Diamond Audio 1-Channel MICROV2 Series Monoblock Class D Amplifier - MICRO1V2

Diamond Audio MICROV2 1-Channel Monoblock Class D Amplifier

Deliver powerful, controlled bass in a compact footprint with the Diamond Audio MICROV2 Monoblock Class D Amplifier. Engineered for efficiency and precision, this monoblock car audio amplifier is built to drive subwoofers hard in car, marine, motorcycle, and powersports applications where space and reliability are non-negotiable.

Running ultra-efficient full-range Class D topology, the MICROV2 puts out 500W x 1 @ 1Ω, 300W x 1 @ 2Ω, and 175W x 1 @ 4Ω RMS from a chassis small enough to tuck almost anywhere. A Direct FET power MOSFET output stage keeps power delivery clean and efficient, while balanced differential inputs eliminate noise even in complex installs.

Built-in Advanced Rollback and Thermal Protection keeps the amp running safely under load, and the high-density aluminum alloy chassis dissipates heat without adding bulk. Tune your system with the 40–400Hz low-pass crossover (24dB slope), Diamond bass boost EQ (12dB @ 45Hz), and 0.2–10V adjustable input sensitivity. The included remote bass knob gives you real-time control of subwoofer output from the driver's seat.

Selectable REM, VOX, and DC turn-on modes ensure compatibility with factory and aftermarket head units right out of the box.

Key Features

• 1-channel monoblock Class D amplifier
• 500W x 1 @ 1Ω / 300W x 1 @ 2Ω / 175W x 1 @ 4Ω RMS

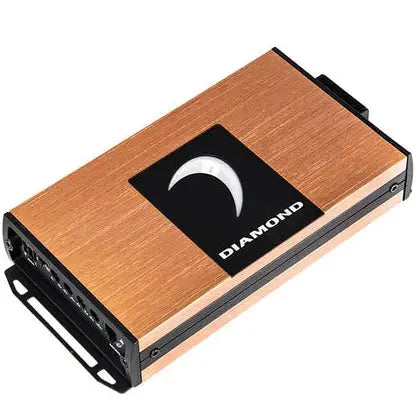

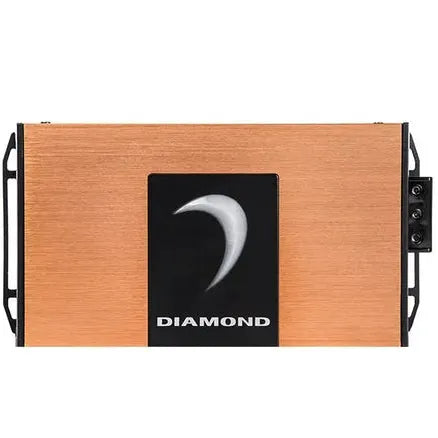

• Ultra-compact high-density aluminum alloy chassis
• Direct FET power MOSFET output stage
• Balanced differential inputs for noise-free signal
• 40–400Hz low-pass crossover, 24dB slope
• Diamond bass boost EQ — 12dB @ 45Hz
• Advanced Rollback & Thermal Protection
• Selectable REM / VOX / DC turn-on modes
• Remote bass knob and wiring harness kits included

Specifications

• 500W x 1CH @ 1Ω
• 300W x 1CH @ 2Ω
• 175W x 1CH @ 4Ω RMS Power Output

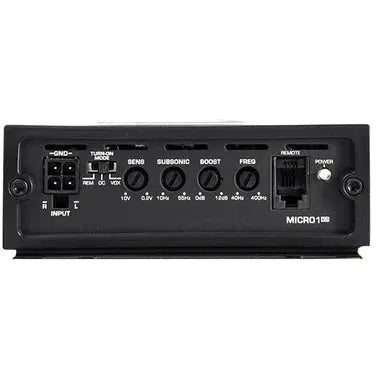

• Input Sensitivity: 0.2–10V
• Crossover Filter: 40–400Hz (LPF), 24dB Per Octave Slope
• Frequency Response: 10–500Hz
• Selectable REM / VOX / DC Turn On Modes
• Dimensions: 7.89" x 4.0" x 1.46" / 200.5 x 103 x 37.2mm
• Remote Bass Knob Included
• Disconnected RCA Input & Speaker Output Harness Kits Included
