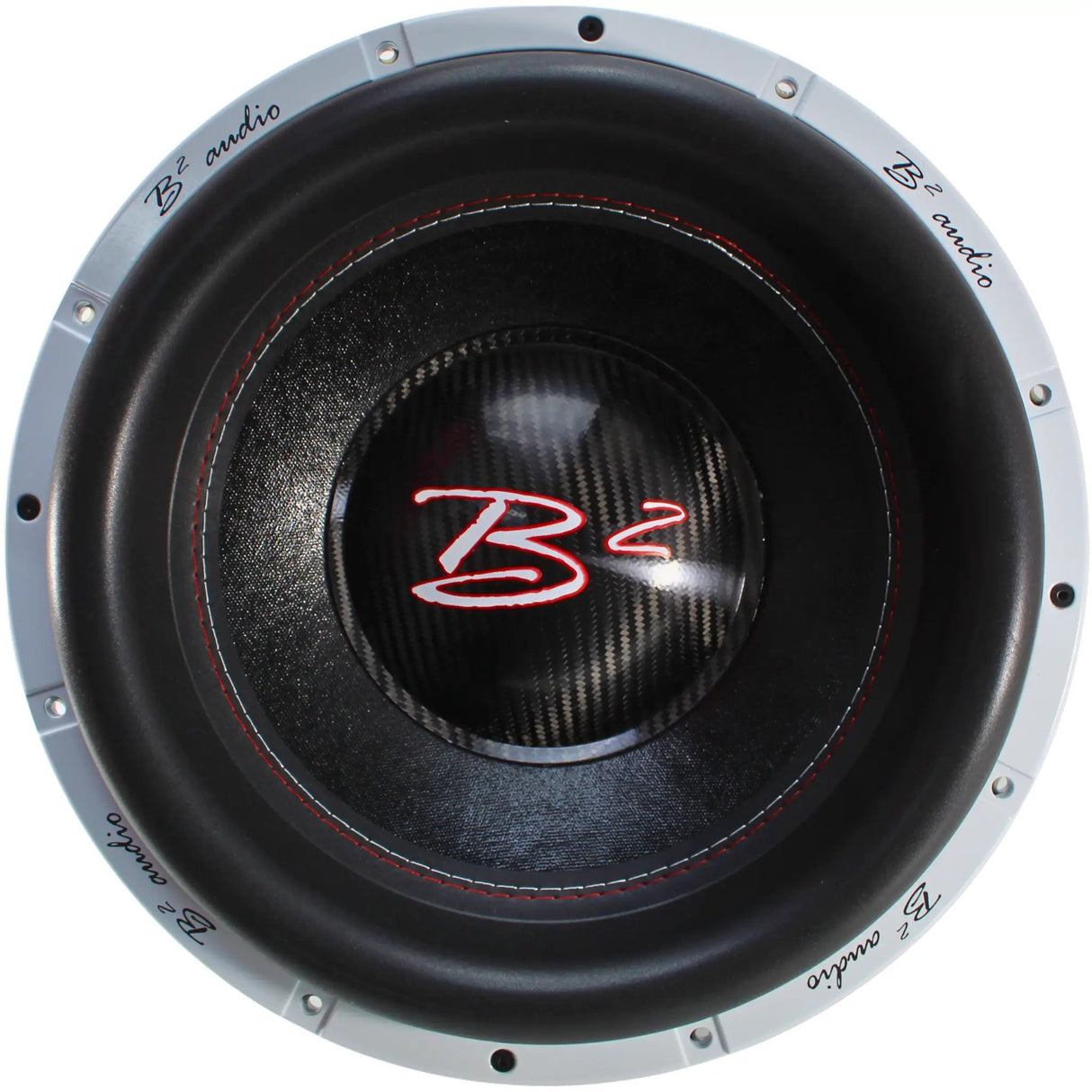

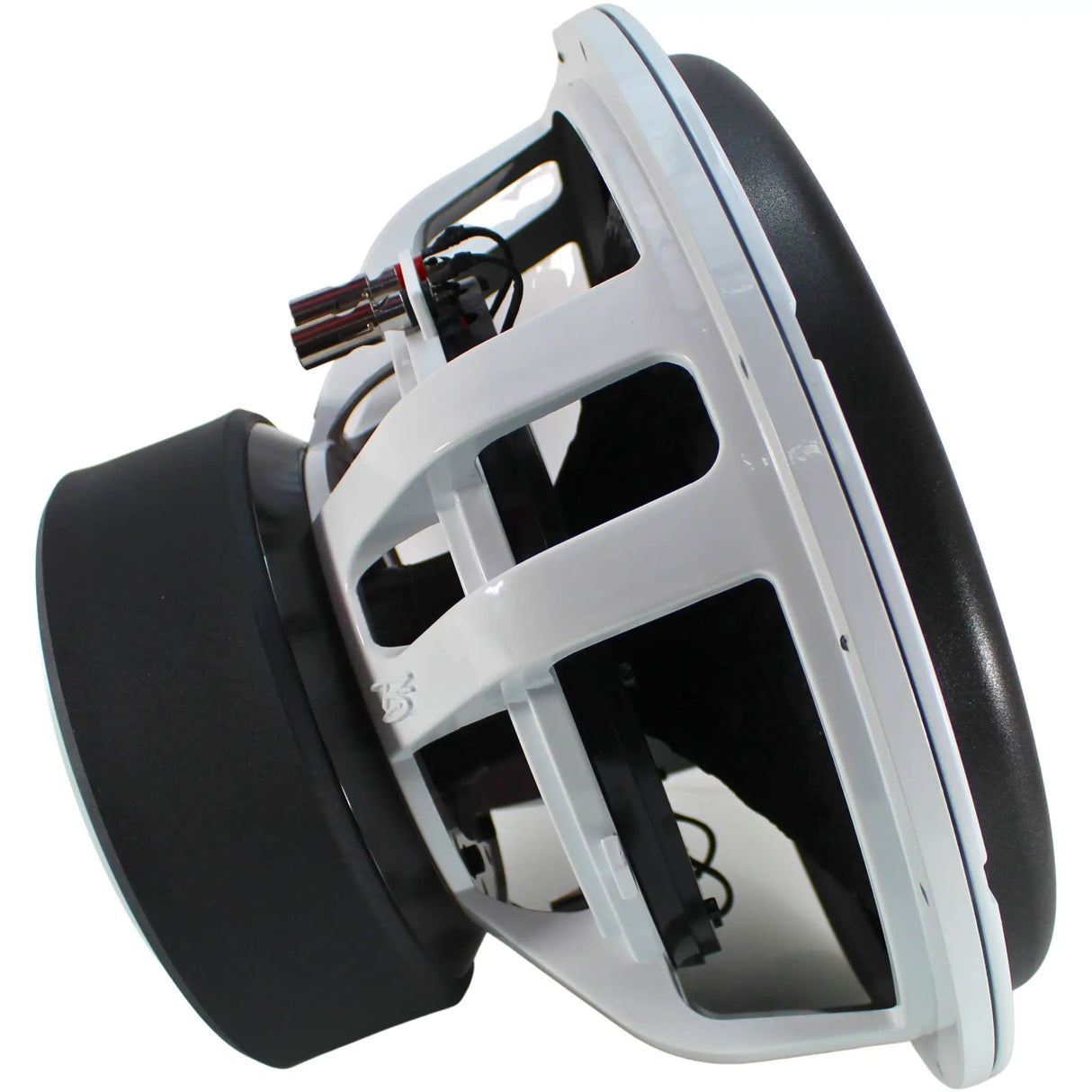

B2 Audio RAGE Series V3 15" 2000 Watt RMS Dual 2-Ohm 3" Voice Coil Subwoofer

The B2 Audio RAGE15-D2-V3 is a 15" dual 2-ohm subwoofer engineered for daily drivers and SPL-focused builds, delivering 2000W RMS with a 600 oz ferrite motor for tight control and brutal low-end authority. The V3 platform adds a carbon fiber cone, integrated dust cap, and a taller surround to maximize excursion and output without compromising durability.

• Power handling: 2000W RMS / 4000W max — sustains high-power bass with controlled transient response, suitable for serious PA-like SPL demands in a vehicle.
• Impedance & voice coil: Dual 2-Ohm voice coil with a 3" high-temperature coil — offers flexible wiring options and easy amplifier matching for a range of builds.
• Sensitivity: 90.6 dB — translates electrical power into audible pressure efficiently, aiding low-frequency extension without excessive amplifier demand.
• Voice coil diameter: 3" (high-temperature) — designed to handle repeated high-power excursions with better heat dissipation and longevity.
• Magnet: 600 oz ferrite motor — provides strong control over the cone motion for tight bass and higher output at given power levels.
• Frequency response: 10–500 Hz — covers deep bass up to upper low-bass fundamentals, enabling musical and SPL-focused applications.
• Xmax: 20 mm — indicates substantial excursion potential for deep, loud bass within enclosure limits.
• Displacement: 10.7 L / 0.37 cu ft — contributes to overall cone area and low-frequency output in enclosure designs.
• Enclosure options: Sealed 50 L / 1.77 cu ft; Ported compact 100 L / 3.5 cu ft with two 4" ports (11.2" length) tuned around 35 Hz; Standard ported 142 L / 5 cu ft — tuned for different room and ride characteristics.
• Terminals: 4 Gauge push terminals — support serious power connections and reliable electrical access.

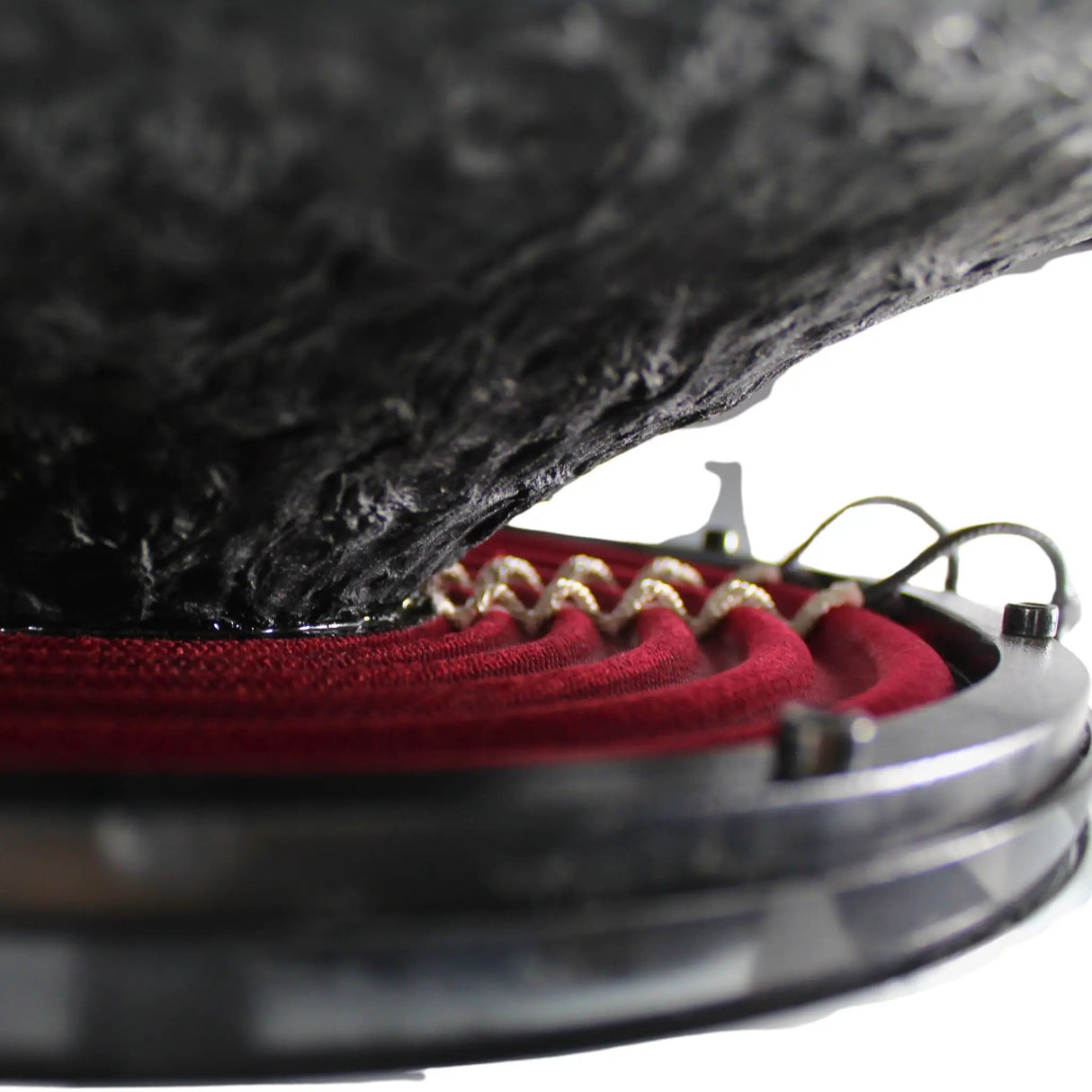

• Cone & surround: Carbon fiber cone with integrated dust cap and taller surround — increases rigidity and excursion for improved accuracy and output.
• Optimization: Optimized Thiele & Small parameters tuned for sealed, ported compact, and high-output ported enclosures — designed for precise system integration.
• Applications: Built for daily drivers, demo builds, and SPL-heavy setups — suitable for high-demand bass environments in automotive installations.

In a real car audio build, the RAGE15-D2-V3 pairs with robust amplification and appropriate enclosure to deliver controlled, room-filling bass across a wide frequency range. Its dual-2-ohm wiring and 3" voice coil provide flexible amplifier matching, while the large 600 oz motor and carbon fiber cone support strong dynamics and consistency in demanding listening environments.
