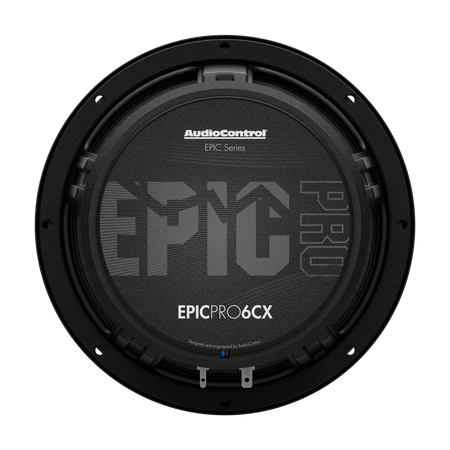

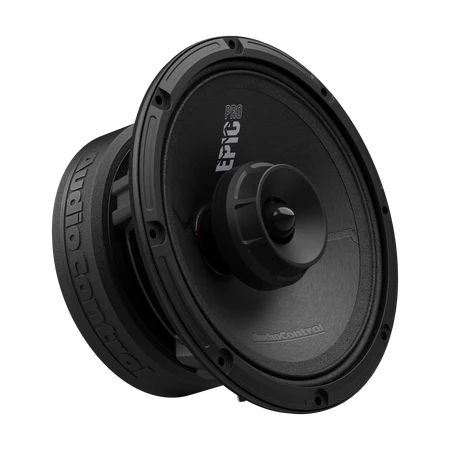

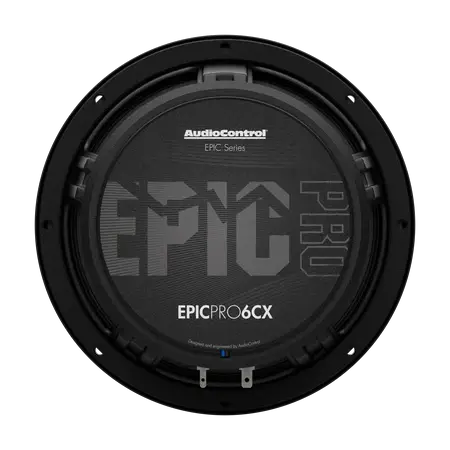

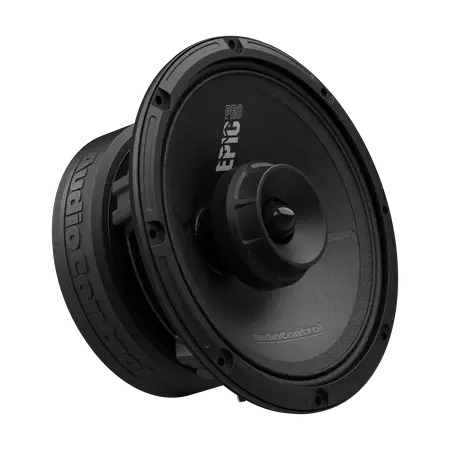

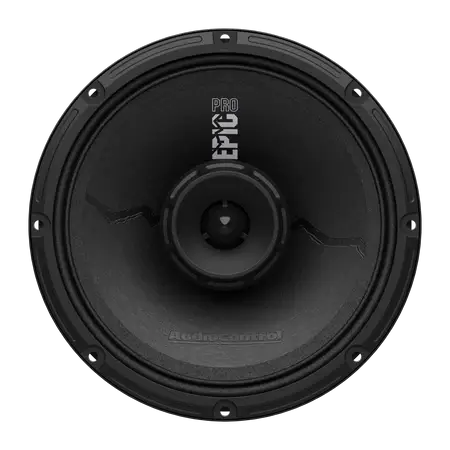

AudioControl Shop EPIC PRO Series EPICPRO6CX 6.5" Coaxial Speakers, 200W RMS, 4 Ohms (Pair)

The AudioControl EPICPRO6CX is a 6.5" coaxial speaker engineered for street-lreaking SPL with studio-like clarity, designed to pair seamlessly with EPIC amplifiers for a cohesive high-performance system.

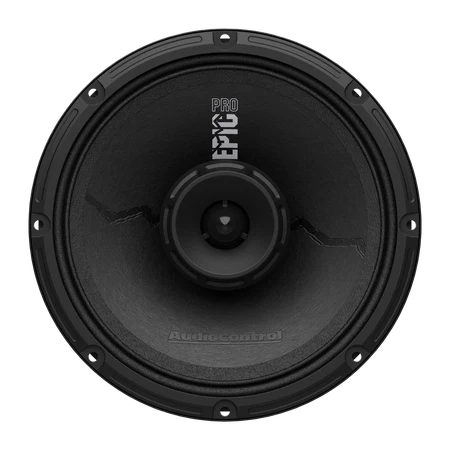

• Proaxial coaxial design: Integrates a midrange driver and a bullet tweeter in one unit, delivering a full-range response from a single location and simplifying installation without compromising top-to-bottom detail.
• Power handling: 200W RMS / 300W max. In real-world use this means capable of demanding dynamic bursts from a capable amplifier while maintaining control and clarity at high volume.
• Impedance: 4 ohms. Optimized to work with a wide range of car audio amps, balancing efficiency and heat management in typical automotive installations.
• Speaker size: 6.5 in / 165 mm nominal diameter. Fits common aftermarket housings and mounting cutouts for a broad range of vehicles.
• Voice Coil (Tw / Mid): 0.78 in / 1.2 in. Different coil sizes support efficient midrange and tweeter control, contributing to high SPL with low distortion.
• System frequency response: 120 – 20,000 Hz. Extends solidly into lows for a convincing full-range sound from a single coaxial package.
• SPL (2.83V/1M): 98.3 dB. Indicates strong in-vehicle output capability, especially when paired with appropriate amplification.
• Magnet weight: 30 oz / 850 g. A sizeable magnet aids cone control for tighter bass and reduced distortion at high excursion.

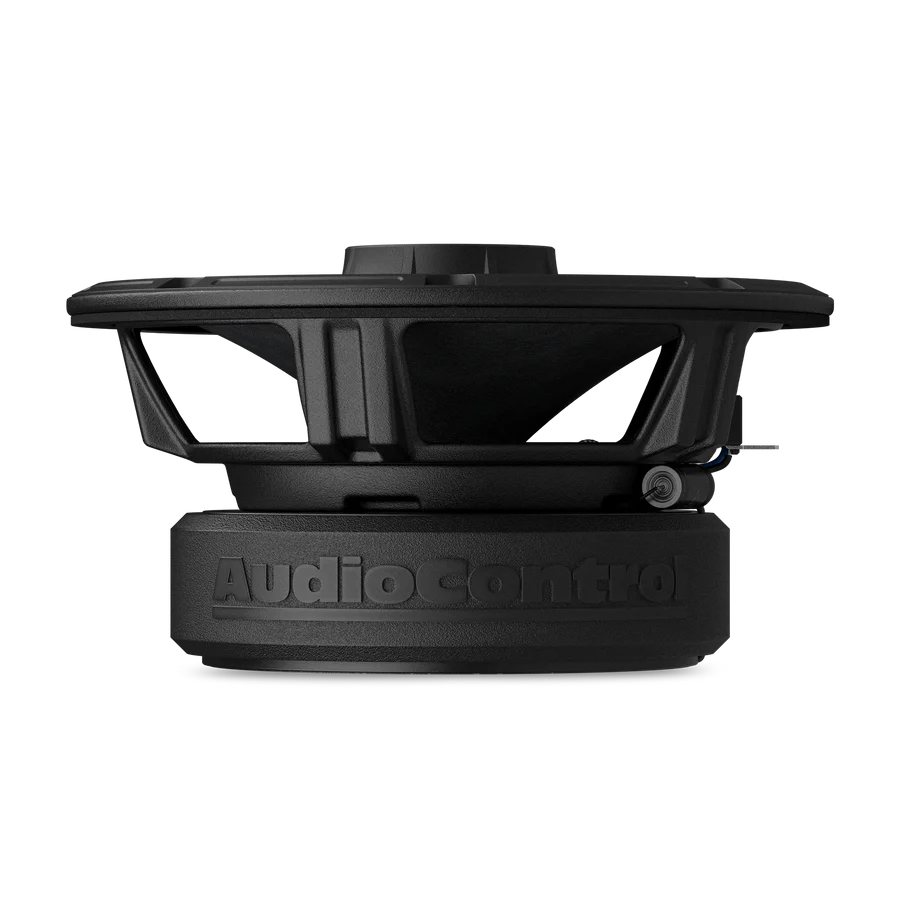

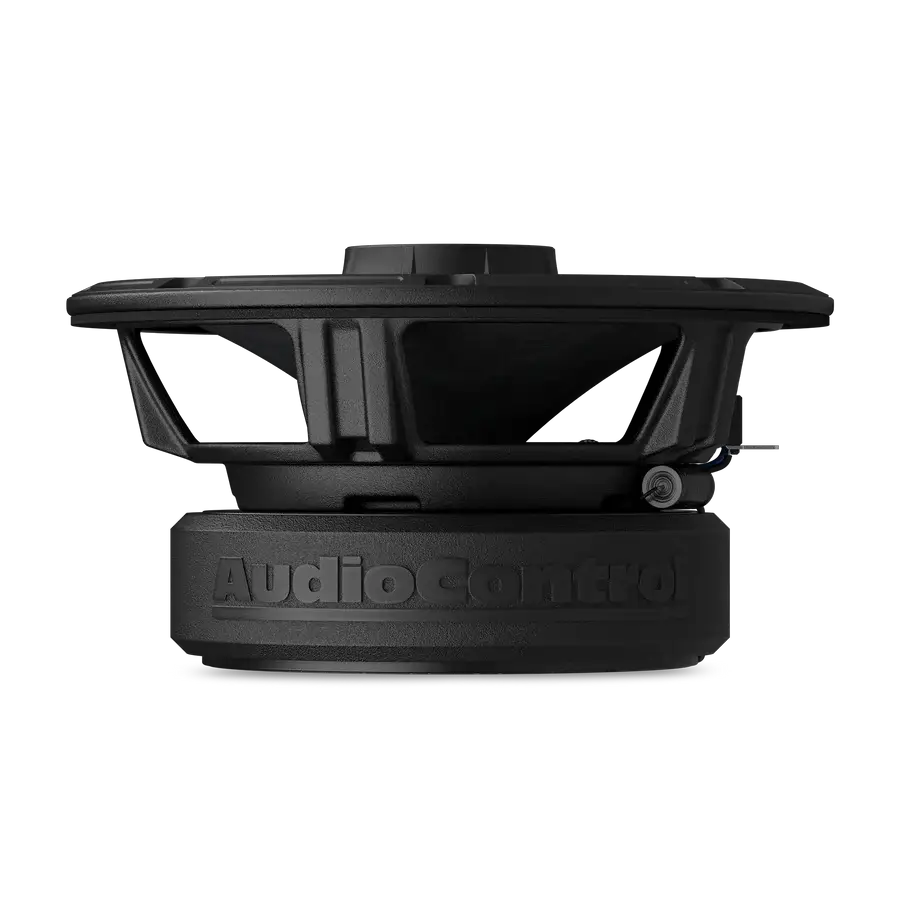

• Construction: High-Tensile, stamped-steel basket; stiff paper cone; double-roll cloth surround; copper shorting ring. These contribute to precise cone movement, warm/detailed midrange, and smoother high-frequency performance with lower distortion.
• Tweeter: Titanium diaphragm with a precision-designed horn for smooth, extended high-frequency response.

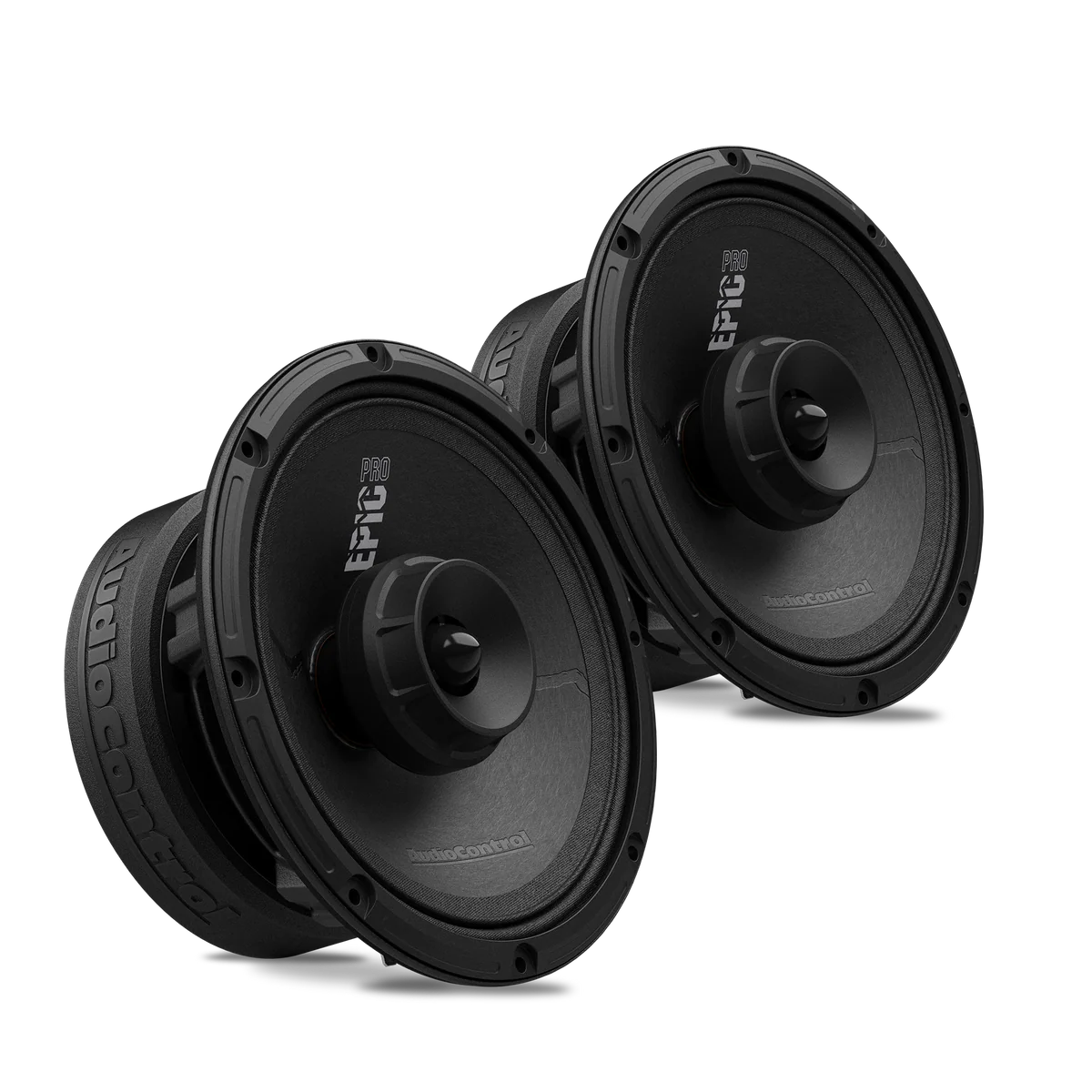

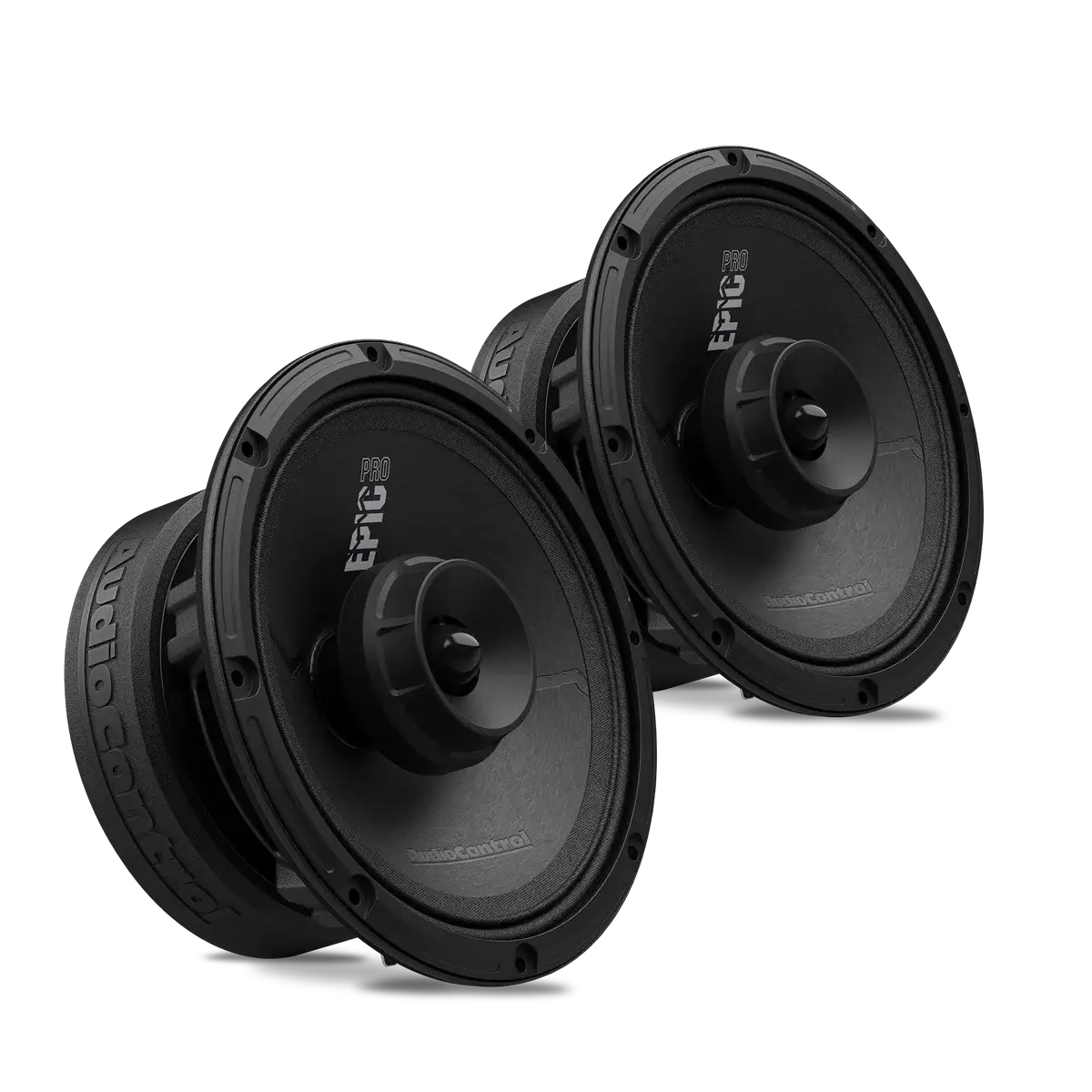

• In the box: Set of 2 EPICPRO6CX speakers, mounting hardware, speaker grilles, and a User Manual.
• Voyage with EPIC amps: Specifically voiced to integrate with EPIC Series amplifiers for an optimized, performance-driven ecosystem.

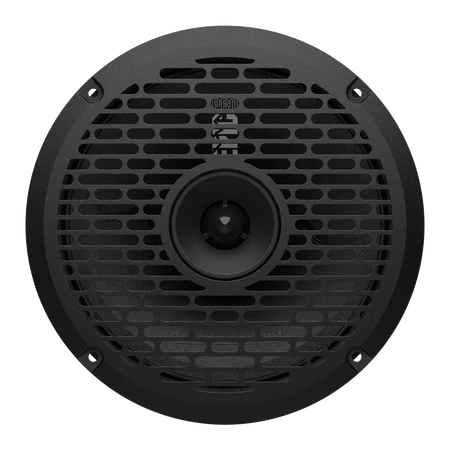

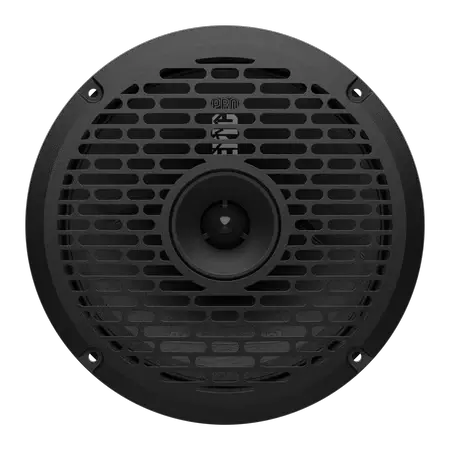

• Dimensions: Overall diameter with grille 6.81 in (173 mm); without grille 6.7 in (170 mm); cutout diameter 5.78 in (147 mm); mounting depth 2.96 in (75.3 mm).

In a real car build, this pair excels as a front-stage or rear-fill solution where space is tight but a single-source, full-range output is desired. The Proaxial design reduces installation complexity while maintaining strong high-frequency detail and controlled bass, aided by the copper shorting ring and robust chassis. The included hardware and grilles simplify mounting, and the performance-tairing with AudioControl’s EPIC amplifiers ensures a cohesive, high-fidelity loudness that remains musical at high SPL.
