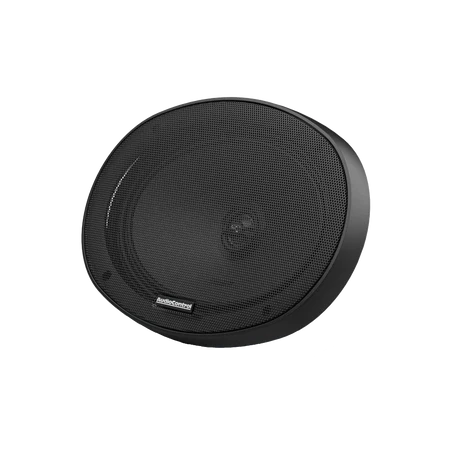

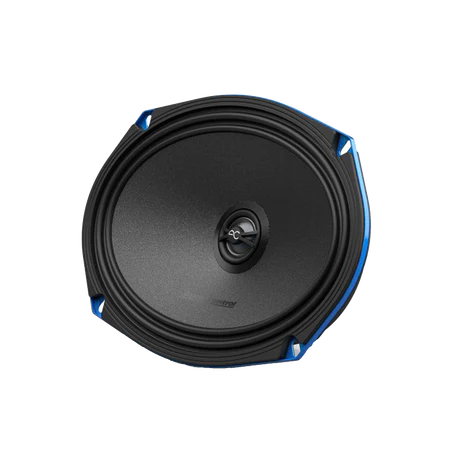

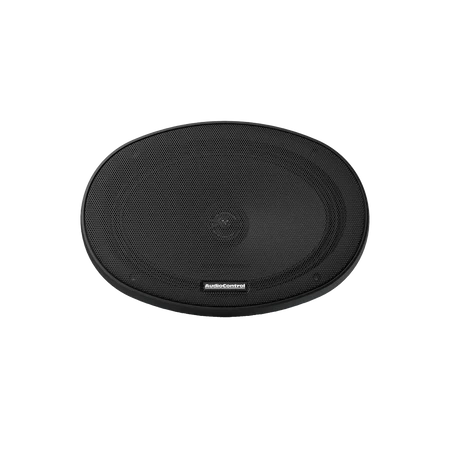

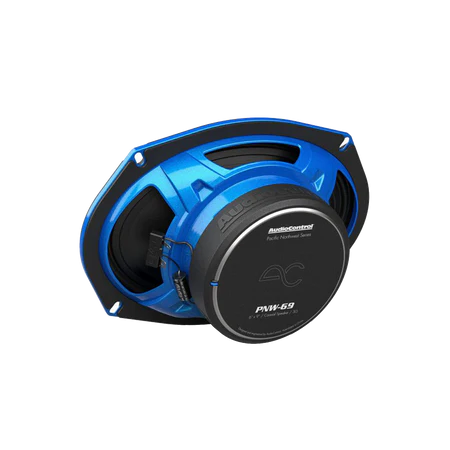

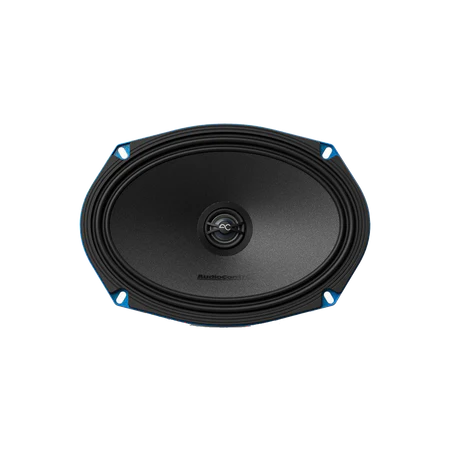

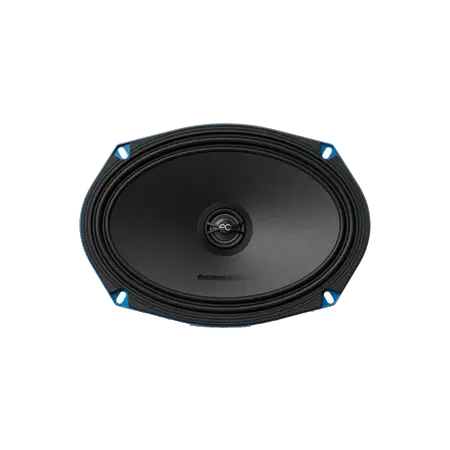

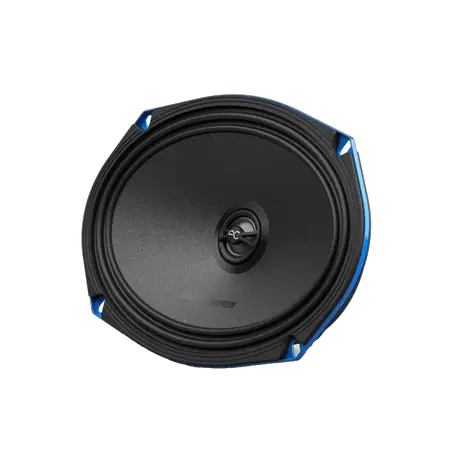

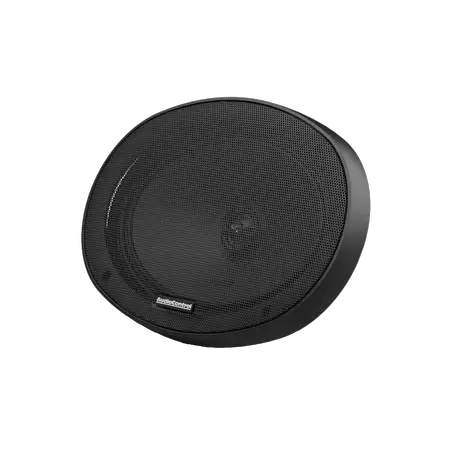

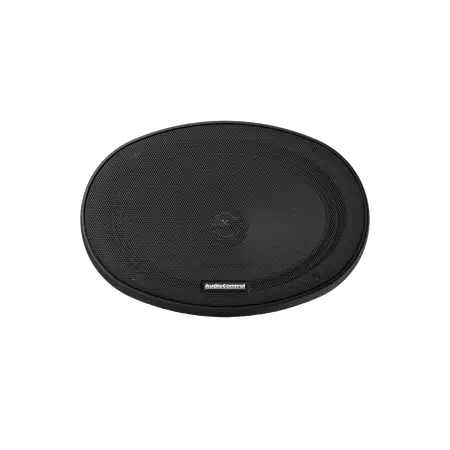

AudioControl PNW-69 6x9" Coaxial Speakers, 75W RMS, 3 Ohms (Pair)

AudioControl PNW-69 6x9" coaxial speakers deliver 75W RMS per pair with a 3Ω impedance, engineered for enthusiasts who demand precise imaging and robust, heat-managed performance in a 6x9" package.

• Power handling: 75W RMS / 100W Max per pair. In real-world use, this means a mid‑powered amplifier can drive the pair without clipping or noticeable power compression within the rated range.
• Impedance: Nominal 3 ohms (DC resistance 2.6 Ω). This low‑to‑mid impedance affects how the speaker loads an amp and can influence achievable output with compatible receivers or amplifiers.
• Crossover: Butterworth type with a 5,250 Hz crossover frequency and -6 dB/Octave slope. Gives a smooth handoff between midrange and tweeter for coherent high-frequency performance.
• Frequency response: 50–20,000 Hz. Covers bass up through the upper treble, delivering a full-range feel from a coaxial design.
• Concentric point source design: Outputs from midrange and tweeter are aligned as a single source. Improves imaging and staging, reducing lobing and timing discrepancies in typical car environments.
• Tweeter and midrange details: Tweeter uses a 20 mm voice coil; midrange uses a 35 mm voice coil. Larger midrange coil supports controlled power handling, while the tweeter coil supports crisp high-frequency response.

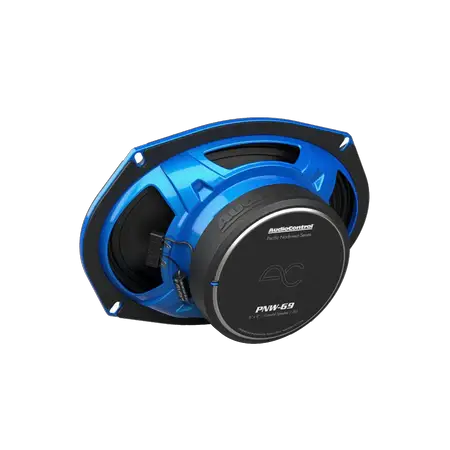

• Construction features: Edge-enhanced steel frame for strength, black anodized voice coil former for heat dissipation, linear double-roll surround for precise cone movement, and a rigid poly mica-coated cone for accurate sound reproduction.
• High-frequency design: Rear dampened hybrid silk dome tweeter with sonic diffuser and radiant collar to improve off-axis frequency response.
• Included hardware: High-quality mounting hardware included for hassle-free installation.
• Dimensions and fitment: Overall 6 x 9 in; Cutout 5.74 x 8.34 in; Mounting depth 2.95 in (w/o grille). Ready for common 6x9 mounting applications with clear space for mounting depth.

The PNW-69 pair is tailored for a cohesive front or rear stage in enthusiast builds, delivering a unified midrange and high-frequency path with solid structural design, heat management, and precise alignment to optimize imaging in a real vehicle environment.
