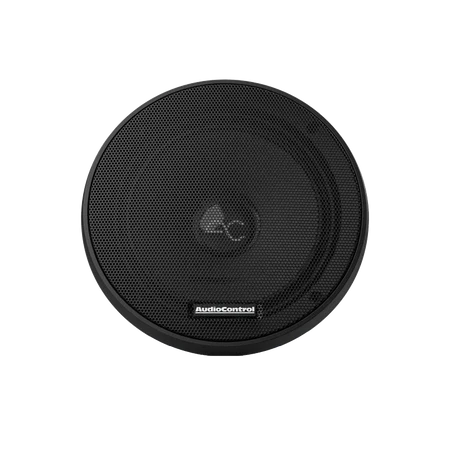

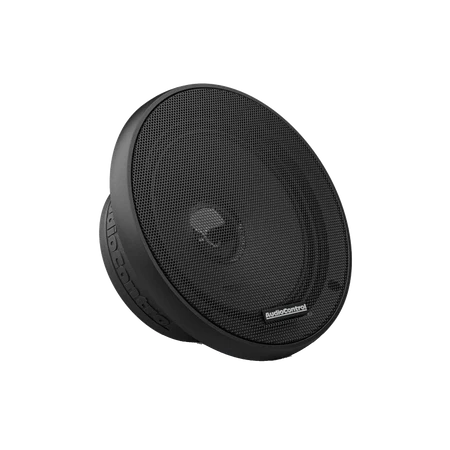

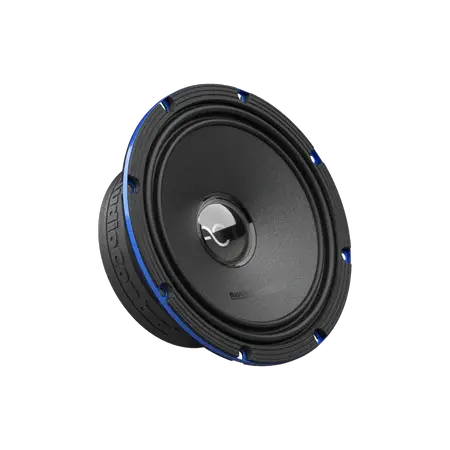

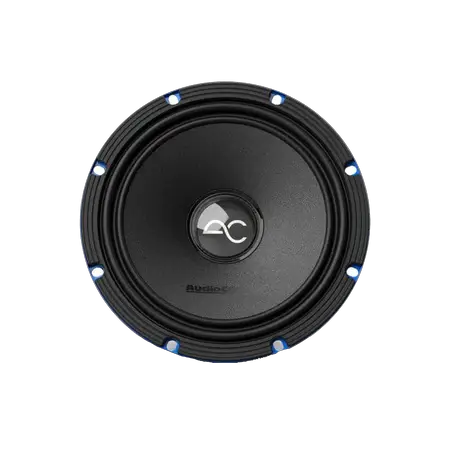

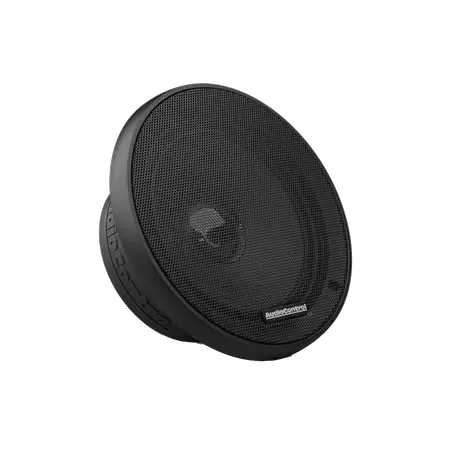

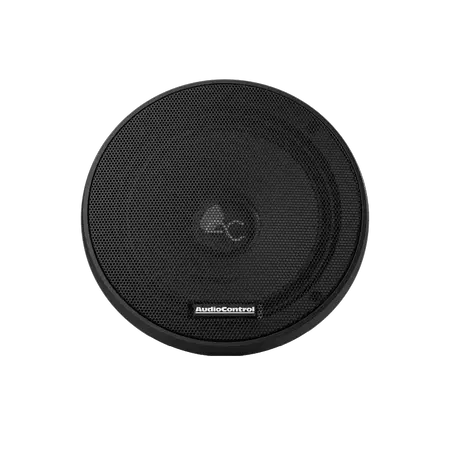

AudioControl PNW-65CS2 6.5" Component Speakers, 100W RMS, 3 Ohms (Pair)

AudioControl's PNW-65CS2 is a 6.5-inch component speaker pair designed for discerning car audio enthusiasts who demand precise imaging, extended highs, and solid midrange from a compact front-stage setup. Built to handle 100W RMS per pair and presenting a 2.3 ohm DC resistance, these drivers are tuned for clear, dynamic playback when paired with quality amplification.

• Power handling: 100W RMS / 125W Max. In real-world use, this provides clean headroom for transients without audible clipping when driven by a capable amplifier.
• Impedance: DC resistance of 2.3 ohms. Lower impedance selects require sufficient amplifier current delivery for consistent performance across the musical range.
• Crossover design: 2nd order Linkwitz-Riley crossover at 3.5 kHz with HP/LP configuration and -12 dB/octave slope. This ensures a smooth, coherent handoff between woofer and tweeter for balanced imaging.
• Frequency response: 60–20,000 Hz. Covers the core vocal range through the onset of airiness in the upper treble for detailed playback.
• Tweeter: Rear dampened hybrid silk dome. Contributes to extended high-frequency response with controlled dispersion for more even off-axis performance.

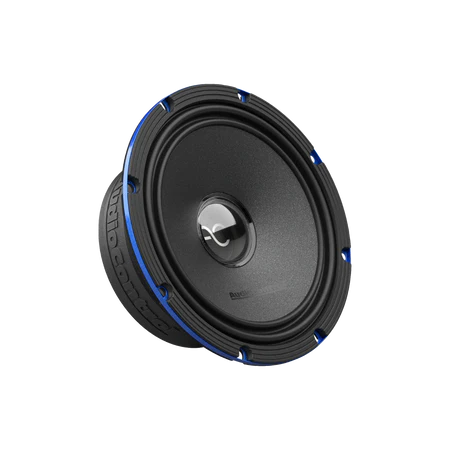

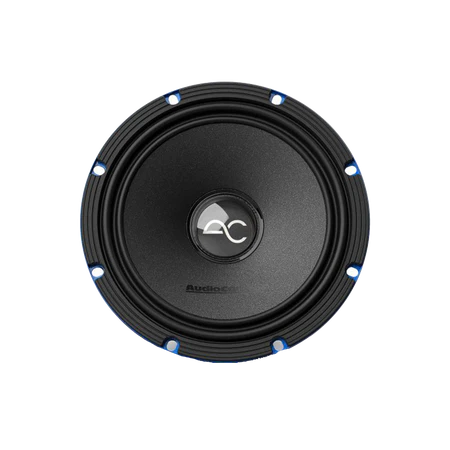

• Cone and surround: Rigid poly mica-coated cone with a linear double-roll surround. This combination supports accurate cone motion and reduced distortion at high excursion.

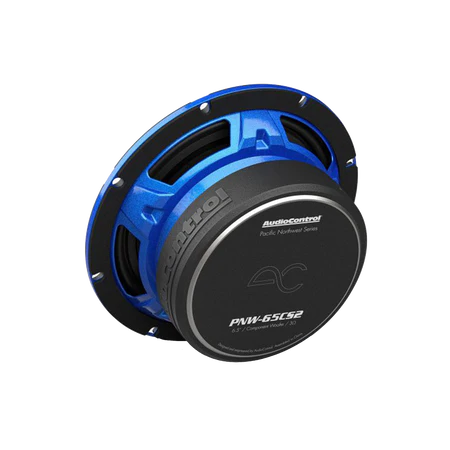

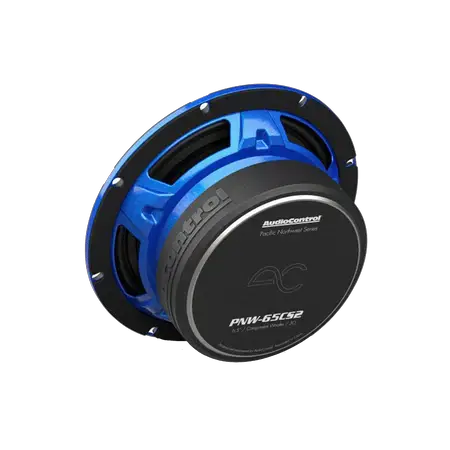

• Motor and frame: Edge-enhanced steel frame with a black anodized voice coil former and a complex FEA-designed high-efficiency motor. Built to withstand mounting stress while aiding heat dissipation and precise control.

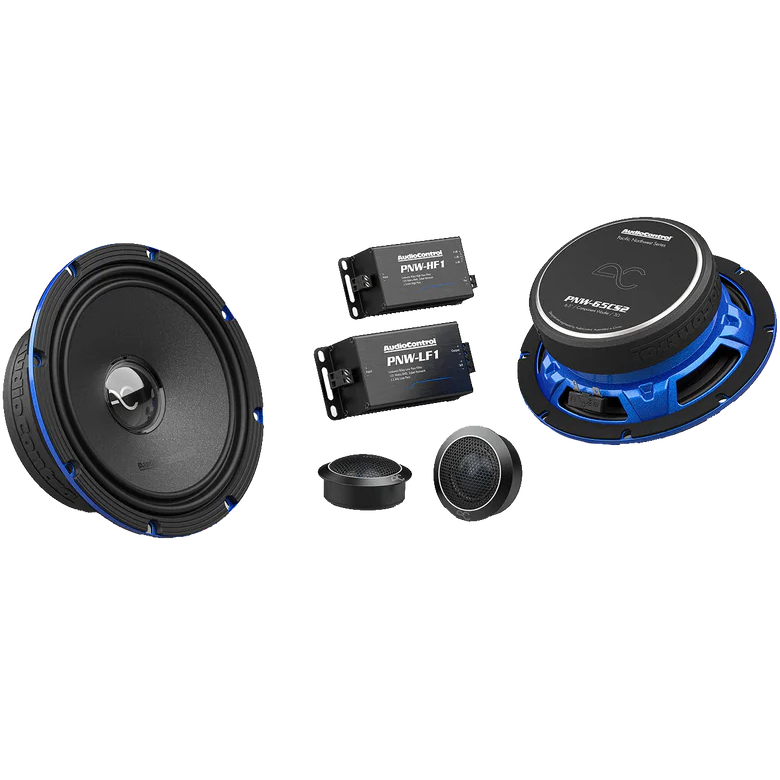

• In the box and hardware: (2) PNW-65CS2 speakers, Manual, Warranty; high-quality mounting hardware included for straightforward installation.
• Dimensions and fit: Overall diameter 6.5 in (166 mm); Cut-out diameter 5.59 in (142 mm); Mounting depth 2.36 in (60 mm). Tweeter: 2.13 in overall diameter, cut-out 1.85 in (47 mm), mounting depth 0.63 in (16 mm).
• System compatibility: Pair with AudioControl Spike or Space series subwoofers for a complete in-vehicle listening experience.

These PNW component speakers deliver detailed, musical sound with coherent integration between woofer and tweeter, supported by a robust build and supplied mounting hardware—making them well-suited for a quality front-stage upgrade in automotive installations.
