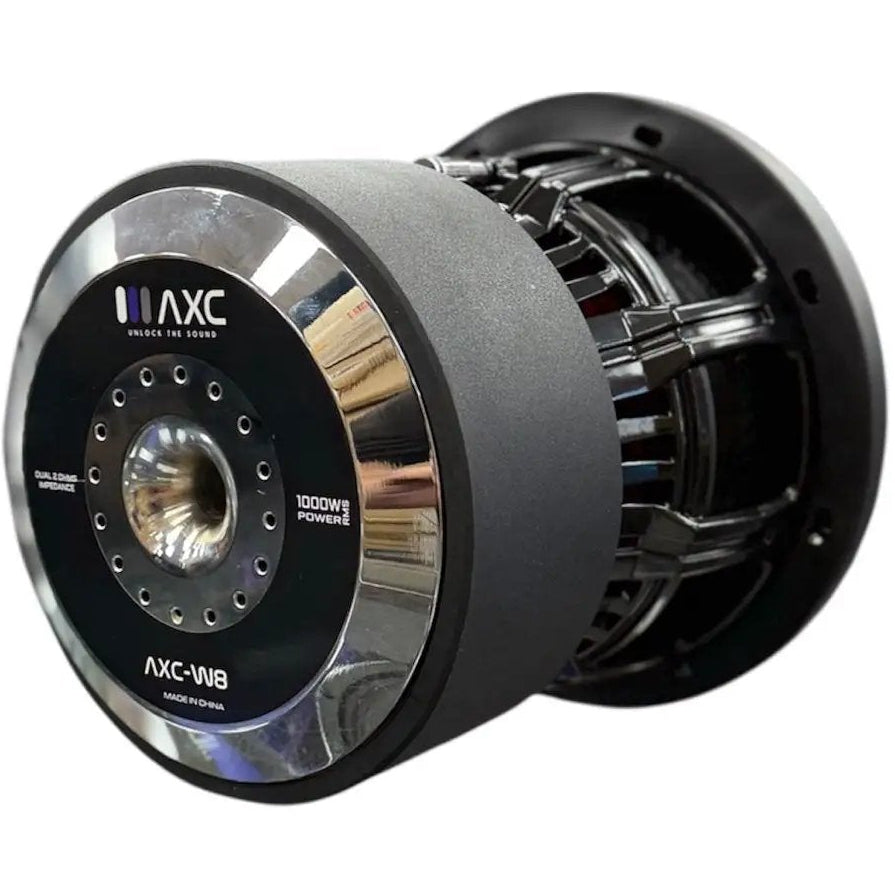

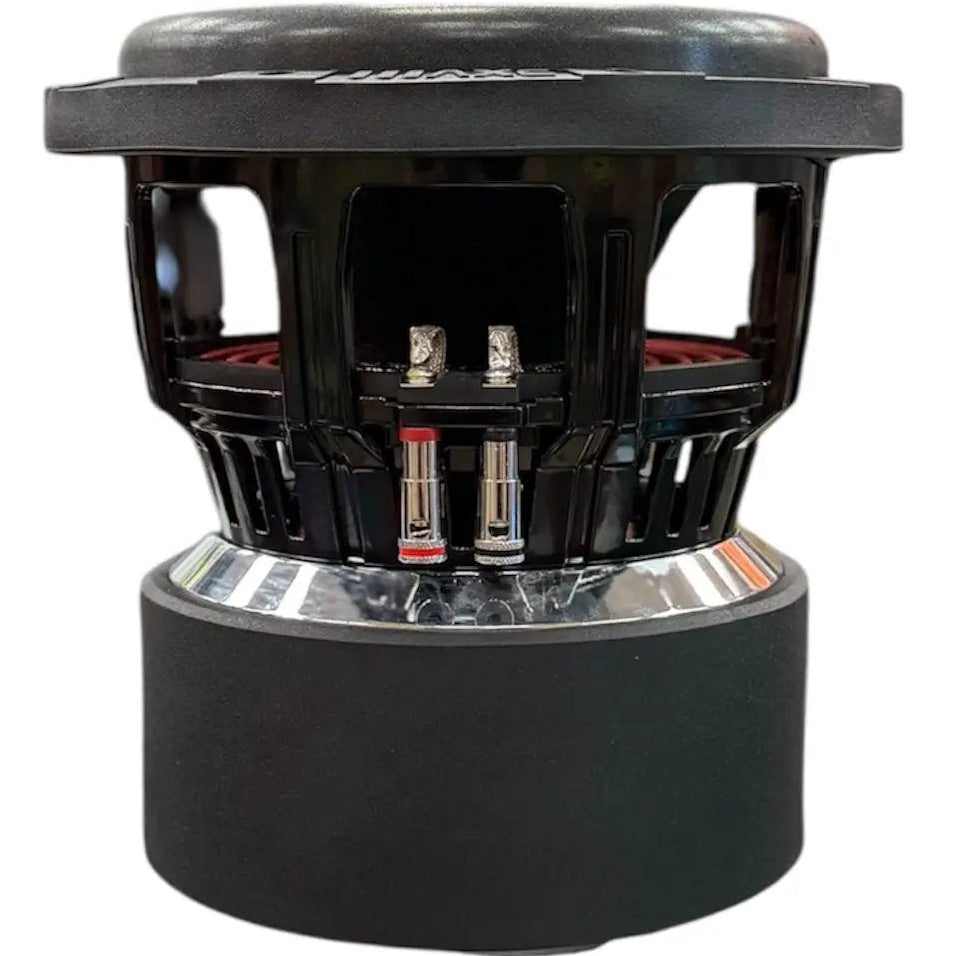

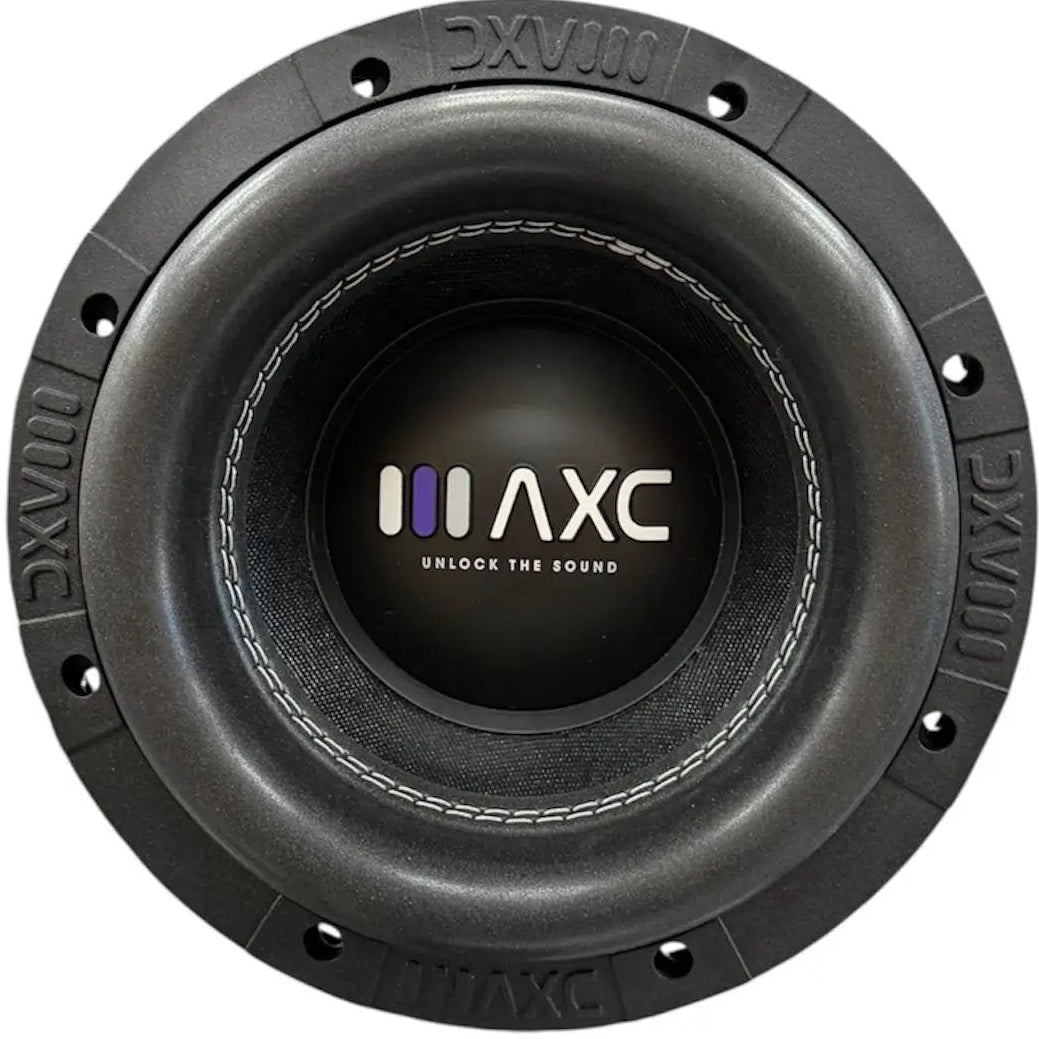

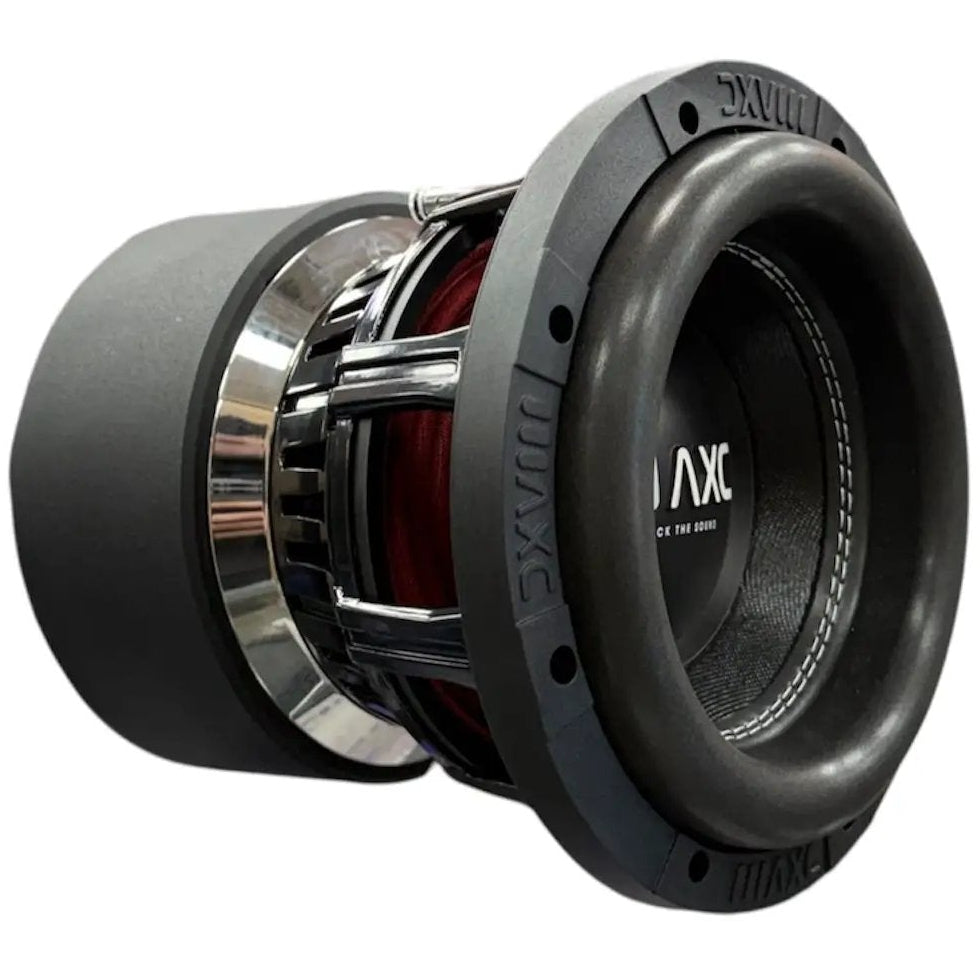

Audio Code AXC-W82 8" 1,000W RMS Subwoofer D2
Description
Description
The Audio Code AXC-W82 8" 1,000W RMS Subwoofer delivers competition-grade output in a compact 8" footprint. 1,000W RMS with a Dual 2-Ohm (D2) voice coil configuration — wire the coils in parallel for a 1-ohm final load to push your amplifier to maximum output, or in series for a 4-ohm final load for cleaner, more efficient operation. The W82 pairs the high-output W-series build with the D2 configuration — the ideal choice for high-current 1-ohm stable amplifiers that need a compact, hard-hitting 8" driver.
Audio Code (Audio Xtreme Code) engineers the AXC-W82 for high-output performance in the 8" format — a segment where most subwoofers top out at 300–500W RMS. The 1,000W RMS continuous power handling means this driver is built for high-current amplifiers and extended high-volume listening without thermal compression or distortion. The Dual 2-Ohm voice coil gives you wiring flexibility: wire in parallel for 1 ohm to push your amplifier to its maximum rated output, or in series for 4 ohms for cleaner, more efficient operation with amplifiers that perform best at 4 ohms. The compact 8" cone diameter makes the AXC-W82 ideal for under-seat enclosures, small sealed boxes, and space-constrained builds where a 10" or 12" simply won't fit — without sacrificing the output levels that enthusiast listeners demand.
Pair the AXC-W82 with a mono amplifier rated 750–1,000W RMS at 1 ohm (coils in parallel) for maximum output, or at 4 ohms (coils in series) for cleaner operation. A sealed enclosure is the most common choice for 8" high-output builds — tight, accurate bass in a compact volume. Contact us at Trinity Car Audio for specific amplifier and enclosure recommendations based on your install location and system goals.
Why Choose the Audio Code AXC-W82?
- 1,000W RMS in an 8" Package: Exceptional power-to-size ratio — competition-grade output in a footprint that fits under seats, in small trunks, and in space-constrained builds.
- Dual 2-Ohm (D2) Voice Coil: Wire in parallel for 1 ohm (maximum amplifier output) or in series for 4 ohms (cleaner, more efficient operation) — ideal for high-current 1-ohm stable amplifiers.
- High-Output Engineering: Built for high-current amplifiers and extended high-volume listening without thermal compression or distortion at rated power.
- Compact 8" Footprint: Fits builds where a 10" or 12" won't — under-seat enclosures, small sealed boxes, and space-constrained installs.
- Audio Xtreme Code Build Quality: Engineered for enthusiast and competition applications where standard 8" subwoofers fall short on power handling.
Amplifier & Enclosure Recommendations
Pair the AXC-W82 with a mono amplifier rated 750–1,000W RMS at 1 ohm (coils wired in parallel) for maximum output, or at 4 ohms (coils wired in series) for cleaner operation. A sealed enclosure is the most practical choice for 8" high-output builds — tight, accurate bass in a compact volume ideal for under-seat and small trunk locations. Use 4-gauge power and ground wire to your amplifier, and 8 AWG or heavier speaker wire from amp to sub. Contact us at Trinity Car Audio for specific amplifier and enclosure recommendations.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC-W82 |
| Size | 8" |
| Power Handling (RMS) | 1,000W |
| Voice Coil | Dual Voice Coil (DVC) |
| Impedance per Coil | 2 ohms |
| Final Impedance (Parallel) | 1 ohm |
| Final Impedance (Series) | 4 ohms |
Frequently Asked Questions
Q: Should I wire the AXC-W82 to 1 ohm or 4 ohms?
A: Wire the two 2-ohm coils in parallel for a 1-ohm final load to push your amplifier to maximum rated output. Wire in series for a 4-ohm final load for cleaner, more efficient operation. Contact us at Trinity Car Audio and we'll recommend the right configuration for your specific amplifier.
Q: What amplifier pairs best with the AXC-W82?
A: A mono amplifier rated 750–1,000W RMS at 1 ohm (parallel wiring) is ideal for maximum output. If your amp isn't 1-ohm stable, wire in series for 4 ohms. Contact us at Trinity Car Audio for a specific recommendation.
Q: What enclosure type works best with the AXC-W82?
A: A sealed enclosure is the most common and practical choice for 8" high-output builds — tight, accurate bass in a compact volume ideal for under-seat and small trunk installs. Contact us at Trinity Car Audio for specific enclosure volume recommendations.
Q: How does the AXC-W82 differ from the AXC-W84?
A: Both are Audio Xtreme Code W-series 8" subwoofers rated at 1,000W RMS. The AXC-W82 is Dual 2-Ohm (wires to 1Ω or 4Ω) — ideal for 1-ohm stable high-current amplifiers. The AXC-W84 is Dual 4-Ohm (wires to 2Ω or 8Ω) — better suited for amplifiers rated at 2 ohms. Choose based on your amplifier's optimal output impedance.
