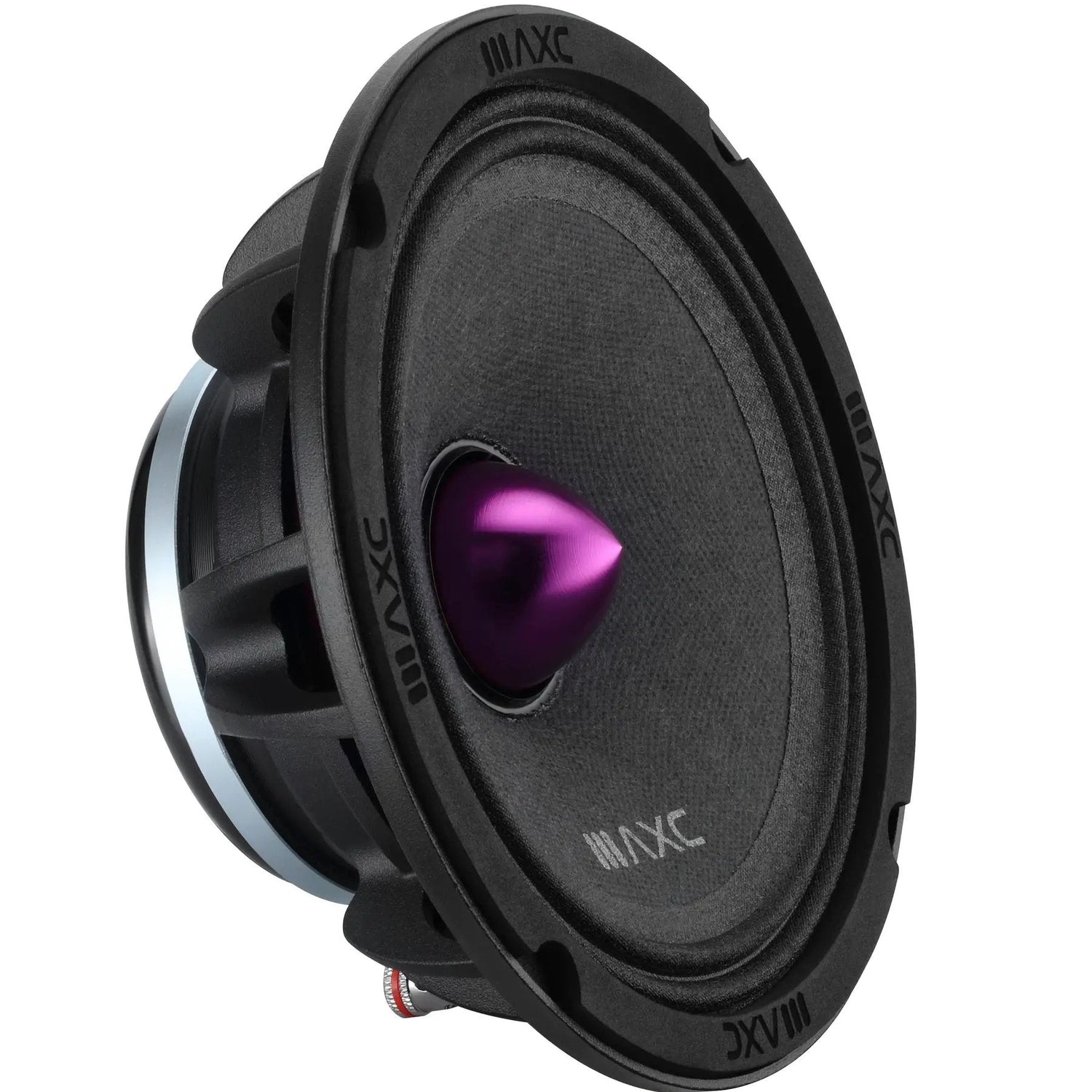

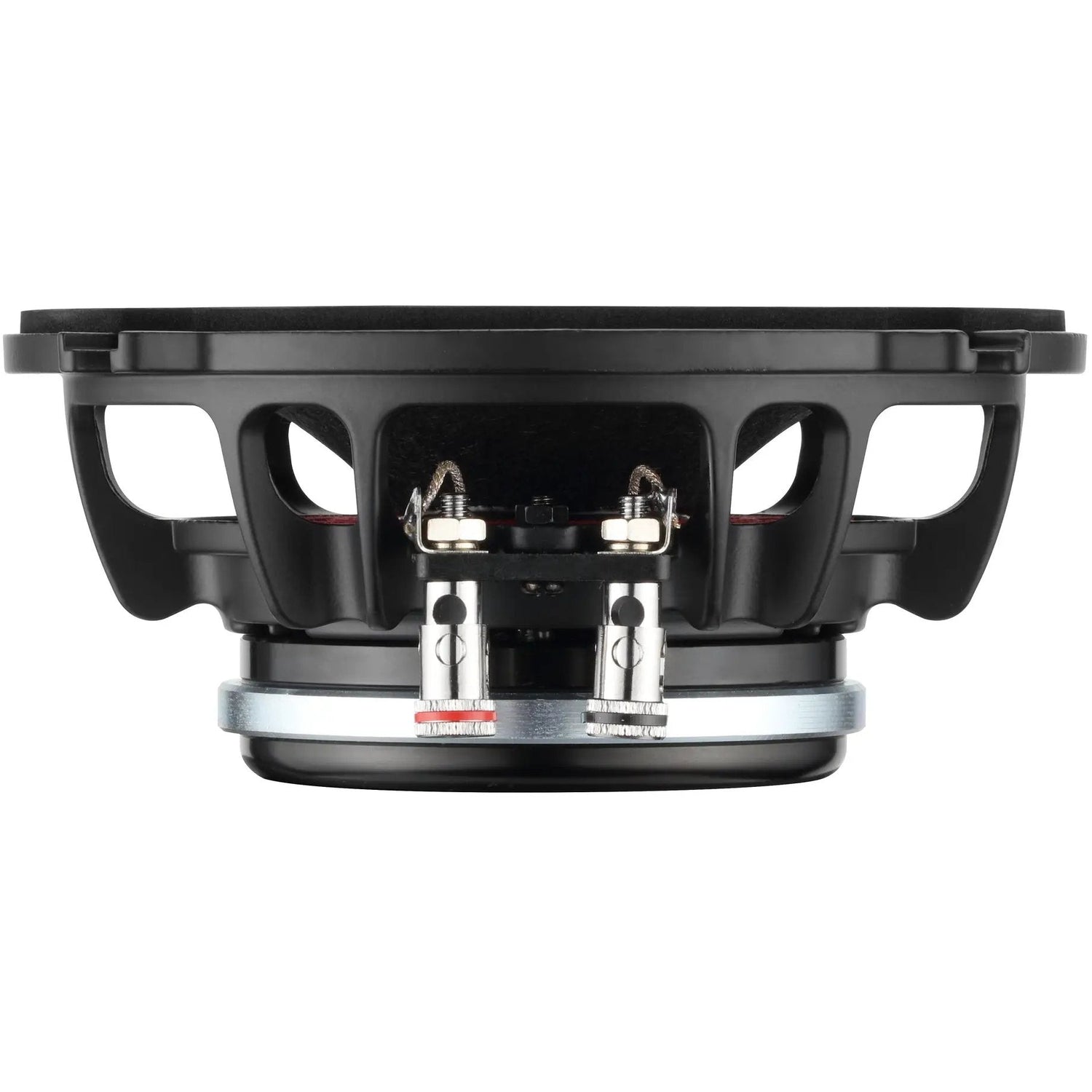

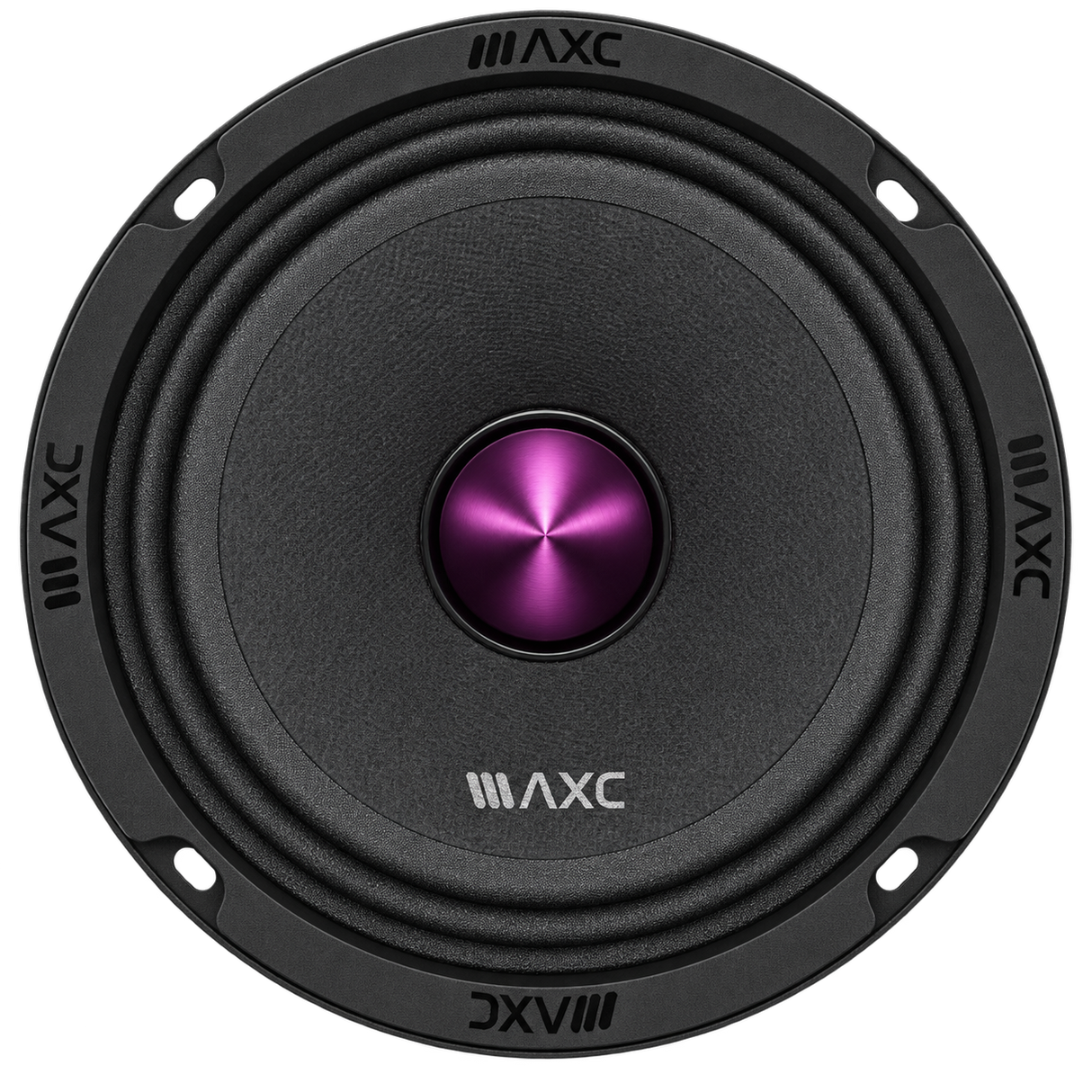

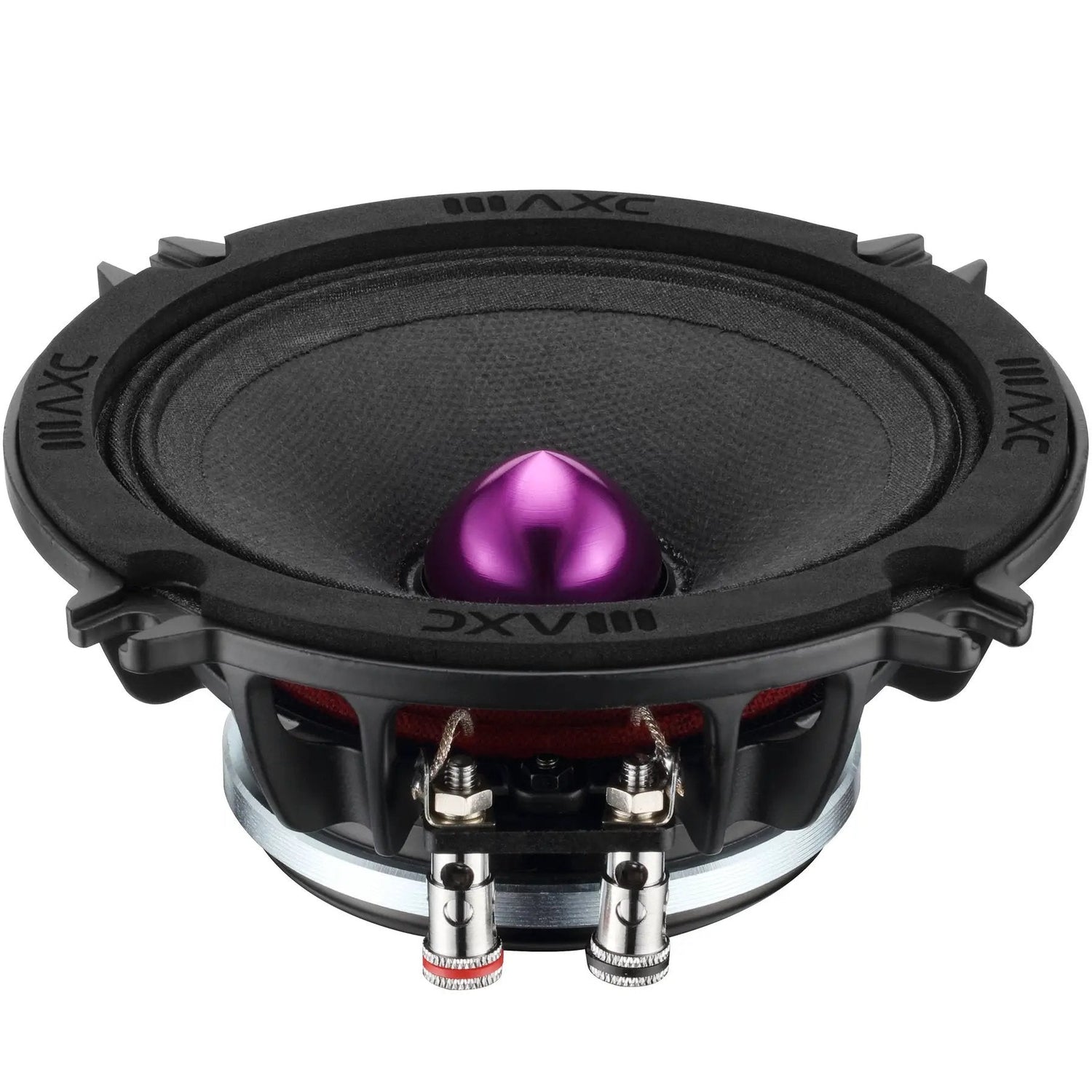

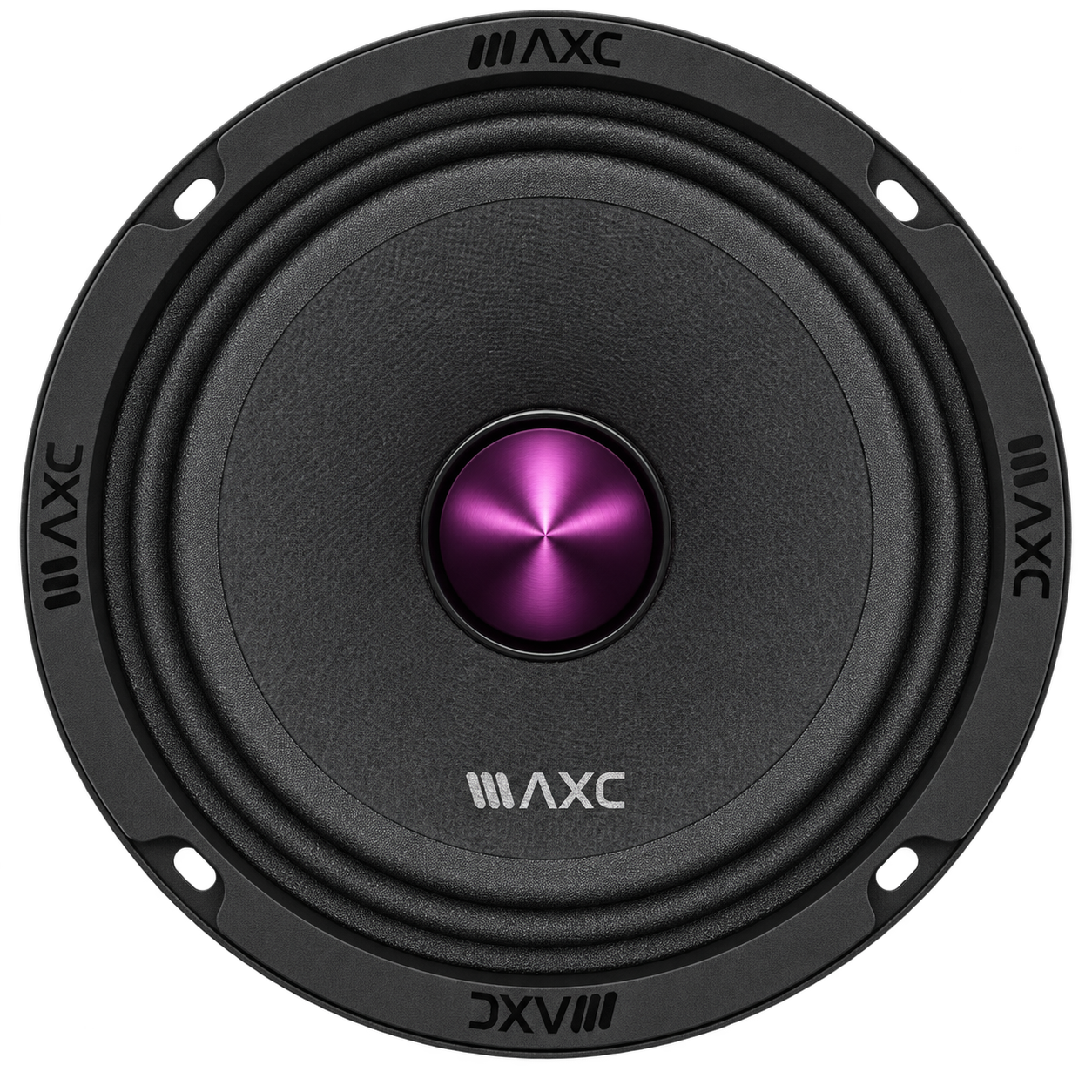

Audio Code AXC NEO 5 5.25" Neodymium Midrange Loudspeaker
Description
Description
The Audio Code AXC NEO 5 5.25" Neodymium Midrange Loudspeaker delivers 200W RMS power handling with a frequency response spanning 150Hz to 16kHz — a high-output, neodymium-equipped 5.25" midrange driver engineered for active multi-way systems, competition SPL builds, and custom door pod installations. Sold individually. The NEO 5 brings rare-earth magnet efficiency and output to the 5.25" midrange format, delivering more power handling and wider upper-frequency extension than conventional ferrite-magnet designs.
The defining feature of the AXC NEO 5 is its neodymium magnet motor. Neodymium (rare-earth) magnets produce significantly stronger magnetic fields than conventional ferrite magnets at a fraction of the weight — the result is a more powerful motor structure that drives the cone with greater force and precision, improving transient response, detail retrieval, and output efficiency. At 200W RMS power handling, the NEO 5 is the highest-output 5.25" midrange driver in the Audio Code lineup — significantly more than the ZR05's 150W RMS. The 150Hz–16kHz frequency response covers the full midrange band from upper bass presence through the lower treble, with the same 16kHz upper extension as the ZR05. The 5.25" nominal diameter fits standard OEM door, dash, and rear deck locations where a 6.5" driver won't fit. Sold individually — order two for a stereo pair.
Use the NEO 5 as the midrange driver in an active 3-way system: cross it over with a high-pass filter at 150–200Hz (to protect it from bass frequencies) and a low-pass filter at 6–8kHz (to hand off to a tweeter). Pair with a dedicated tweeter for the upper frequencies and a subwoofer for the low end. Drive with a dedicated amplifier channel rated 100–200W RMS. Contact us at Trinity Car Audio for system design guidance.
Why Choose the Audio Code AXC NEO 5?
- Neodymium Magnet Motor: Rare-earth magnet technology produces a stronger magnetic field at less weight than conventional ferrite magnets — improved transient response, detail retrieval, and output efficiency.
- 200W RMS Power Handling: The highest-output 5.25" midrange driver in the Audio Code lineup — significantly more than the ZR05's 150W RMS for higher-output active builds.
- 150Hz – 16kHz Frequency Response: Full midrange bandwidth with wide upper-frequency extension — covers upper bass presence through lower treble before handing off to a tweeter.
- 5.25" Format: Fits OEM door, dash, and rear deck locations where a 6.5" driver won't — practical neodymium midrange solution for a wider range of vehicle platforms.
- Lightweight Construction: Neodymium magnet's superior strength-to-weight ratio reduces overall driver weight for easier installation in door panels and pods.
- Dedicated Midrange Design: Engineered for active crossover use — cleaner, more focused midrange reproduction than any coaxial can deliver at high output levels.
- Audio Xtreme Code Engineering: Neodymium-equipped midrange driver for enthusiast and competition builds demanding maximum output and efficiency.
System Integration Recommendations
The AXC NEO 5 is a dedicated midrange driver — it must be used with an active or passive crossover. In an active 3-way system: set a high-pass crossover at 150–200Hz to protect the driver from bass frequencies, and a low-pass crossover at 6–8kHz to hand off to a tweeter. Drive with a dedicated amplifier channel rated 100–200W RMS. Pair with a dedicated tweeter for the upper frequencies and a subwoofer for the low end. A DSP amplifier with active crossover capability (such as the JBL DSP4086) is the ideal signal processing solution. Sold individually — order two for a stereo pair.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC NEO 5 |
| Type | Midrange Loudspeaker |
| Nominal Diameter | 5.25" |
| Magnet Type | Neodymium |
| Power Handling (RMS) | 200W |
| Frequency Response | 150Hz – 16kHz |
| Package Quantity | Single (1 speaker) |
Frequently Asked Questions
Q: Is the AXC NEO 5 sold as a pair or individually?
A: The AXC NEO 5 is sold individually — one speaker per order. Order two for a stereo pair.
Q: How does the NEO 5 compare to the AXC ZR05?
A: Both are Audio Code 5.25" midrange loudspeakers with 150Hz–16kHz frequency response. The NEO 5 uses a neodymium magnet and handles 200W RMS; the ZR05 uses a conventional magnet with an integrated bullet phase plug and handles 150W RMS at 93dB sensitivity. The NEO 5 is the higher-power option; the ZR05 offers higher sensitivity and the bullet phase plug for improved dispersion control. Contact us at Trinity Car Audio for a recommendation based on your system goals.
Q: Do I need a crossover for the AXC NEO 5?
A: Yes — the NEO 5 is a dedicated midrange driver and must be used with an active or passive crossover. Set a high-pass filter at 150–200Hz and a low-pass filter at 6–8kHz. A DSP amplifier with active crossover capability is the ideal solution.
Q: What amplifier should I use with the AXC NEO 5?
A: A dedicated amplifier channel rated 100–200W RMS is ideal. In a multi-way active system, a 4-channel or DSP amplifier with active crossover capability is the preferred solution. Contact us at Trinity Car Audio for a complete system design consultation.
