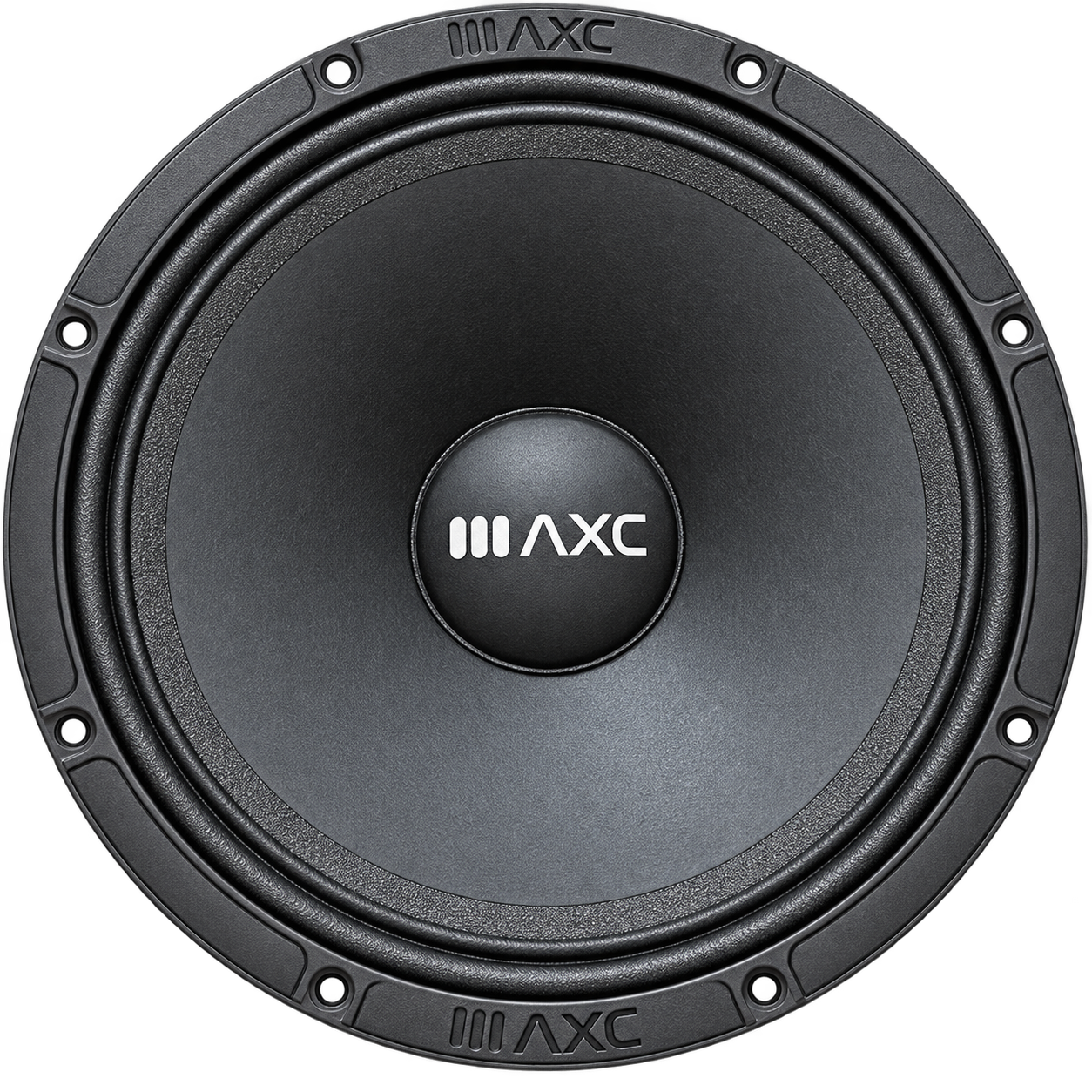

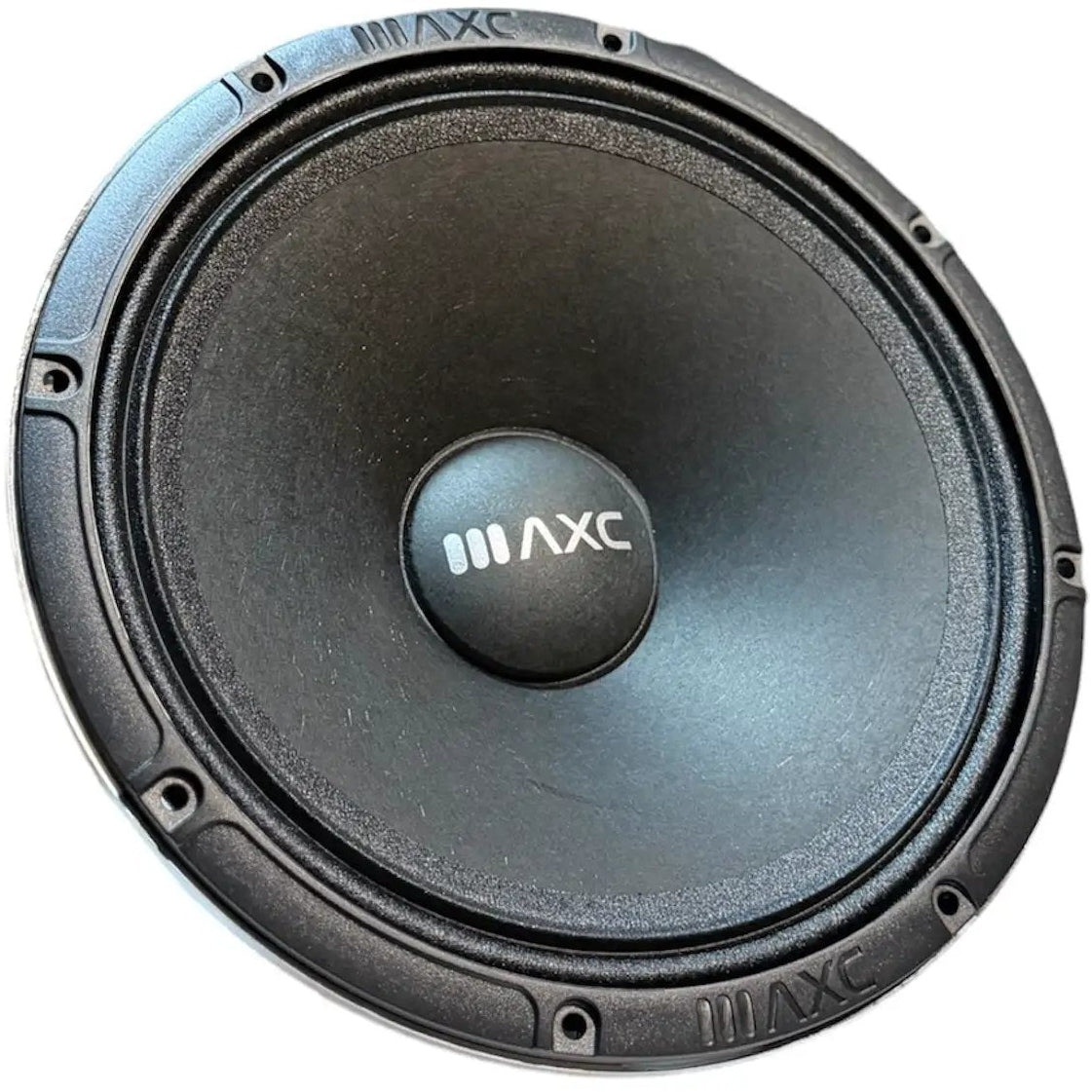

Audio Code AXC MATRIX8 8" Midrange Loudspeaker
Description
Description
The Audio Code AXC MATRIX8 8" Midrange Loudspeaker delivers 300W RMS power handling at 4 ohms with a frequency response spanning 100Hz to 15kHz — the flagship 8" midrange driver in the Audio Code lineup, combining the MATRIX series' high-output engineering with the cone area and midbass authority of an 8" format. Sold individually. The MATRIX8 steps up from the ZRO 8 with more power handling (300W vs 250W RMS) and wider upper-frequency extension (15kHz vs 12kHz) for more complete midrange coverage in demanding active multi-way and competition SPL builds.
The AXC MATRIX8 is a dedicated 8" midrange loudspeaker, not a coaxial — it is designed to be crossed over and used as part of an active or passive multi-way system alongside a subwoofer and tweeter. The 8" cone diameter delivers more cone area than 6.5" or 5.25" midrange drivers, translating to greater midbass output, more acoustic presence in the lower midrange, and the ability to reach deeper into the upper bass band before handing off to a subwoofer. At 300W RMS power handling, the MATRIX8 is the highest-output 8" midrange driver in the Audio Code lineup — built for the most demanding active system builds without thermal compression at rated power. The 100Hz–15kHz frequency response extends further into the upper frequencies than the ZRO 8 (12kHz), giving the MATRIX8 more high-frequency reach before handing off to a tweeter. The 4-ohm nominal impedance is compatible with virtually any amplifier channel. Sold individually — order two for a stereo pair.
Use the MATRIX8 as the midrange driver in an active 3-way system: cross it over with a high-pass filter at 100–150Hz (to protect it from bass frequencies) and a low-pass filter at 5–7kHz (to hand off to a tweeter). The 8" format is particularly well-suited for custom door pods, kick panels, and enclosures where maximum midbass output is the goal. Drive with a dedicated amplifier channel rated 150–300W RMS at 4 ohms. Contact us at Trinity Car Audio for system design guidance.
Why Choose the Audio Code AXC MATRIX8?
- 300W RMS Power Handling: The highest-output 8" midrange driver in the Audio Code lineup — more power handling than the ZRO 8 (250W RMS) for the most demanding active system builds.
- 100Hz – 15kHz Frequency Response: Wider upper-frequency extension than the ZRO 8 (12kHz) — more complete midrange coverage before handing off to a tweeter.
- 8" Cone Diameter: More cone area than 6.5" or 5.25" midrange drivers — greater midbass output, more acoustic presence in the lower midrange, and deeper upper bass extension.
- 4-Ohm Impedance: Compatible with virtually any amplifier channel — no special impedance matching required.
- MATRIX Series Engineering: The flagship 8" midrange in the Audio Code lineup — MATRIX series high-output engineering in the largest midrange format.
- Custom Build Versatility: Ideal for custom door pods, kick panels, and enclosures where maximum midbass output and presence are the priority.
- Audio Xtreme Code Build Quality: Engineered for competition and enthusiast applications demanding maximum high-output midrange reproduction.
System Integration Recommendations
The AXC MATRIX8 is a dedicated midrange driver — it must be used with an active or passive crossover. In an active 3-way system: set a high-pass crossover at 100–150Hz to protect the driver from bass frequencies, and a low-pass crossover at 5–7kHz to hand off to a tweeter. Drive with a dedicated amplifier channel rated 150–300W RMS at 4 ohms. The 8" format is particularly well-suited for custom door pods, kick panels, and enclosures where maximum midbass output is the goal. A DSP amplifier with active crossover capability (such as the JBL DSP4086) is the ideal signal processing solution. Sold individually — order two for a stereo pair.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC MATRIX8 |
| Type | Midrange Loudspeaker |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 300W |
| Frequency Response | 100Hz – 15kHz |
| Nominal Impedance | 4 ohms |
| Package Quantity | Single (1 speaker) |
Frequently Asked Questions
Q: Is the AXC MATRIX8 sold as a pair or individually?
A: The AXC MATRIX8 is sold individually — one speaker per order. Order two for a stereo pair.
Q: How does the MATRIX8 compare to the AXC ZRO 8?
A: Both are Audio Code dedicated 8" midrange loudspeakers at 4 ohms. The MATRIX8 handles 300W RMS vs the ZRO 8's 250W RMS, and extends to 15kHz vs 12kHz. The MATRIX8 is the flagship 8" option for maximum power handling and upper-frequency extension; the ZRO 8 is the ZRO series option at a lower price point. Choose the MATRIX8 for the most demanding high-output active builds.
Q: Do I need a crossover for the AXC MATRIX8?
A: Yes — the MATRIX8 is a dedicated midrange driver and must be used with an active or passive crossover. Set a high-pass filter at 100–150Hz and a low-pass filter at 5–7kHz. A DSP amplifier with active crossover capability is the ideal solution.
Q: What amplifier should I use with the AXC MATRIX8?
A: A dedicated amplifier channel rated 150–300W RMS at 4 ohms is ideal. In a multi-way active system, a 4-channel or DSP amplifier with active crossover capability is the preferred solution. Contact us at Trinity Car Audio for a complete system design consultation.
