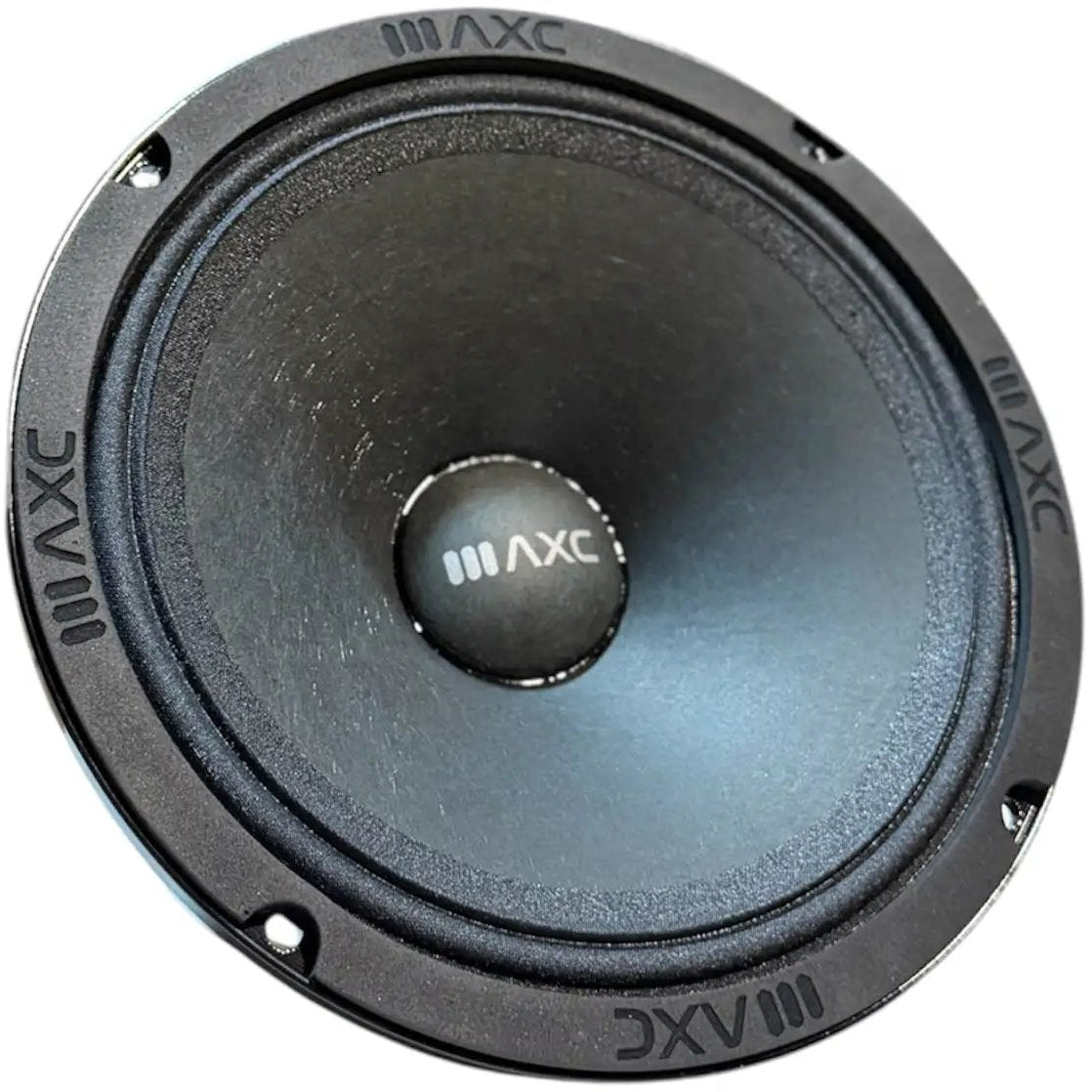

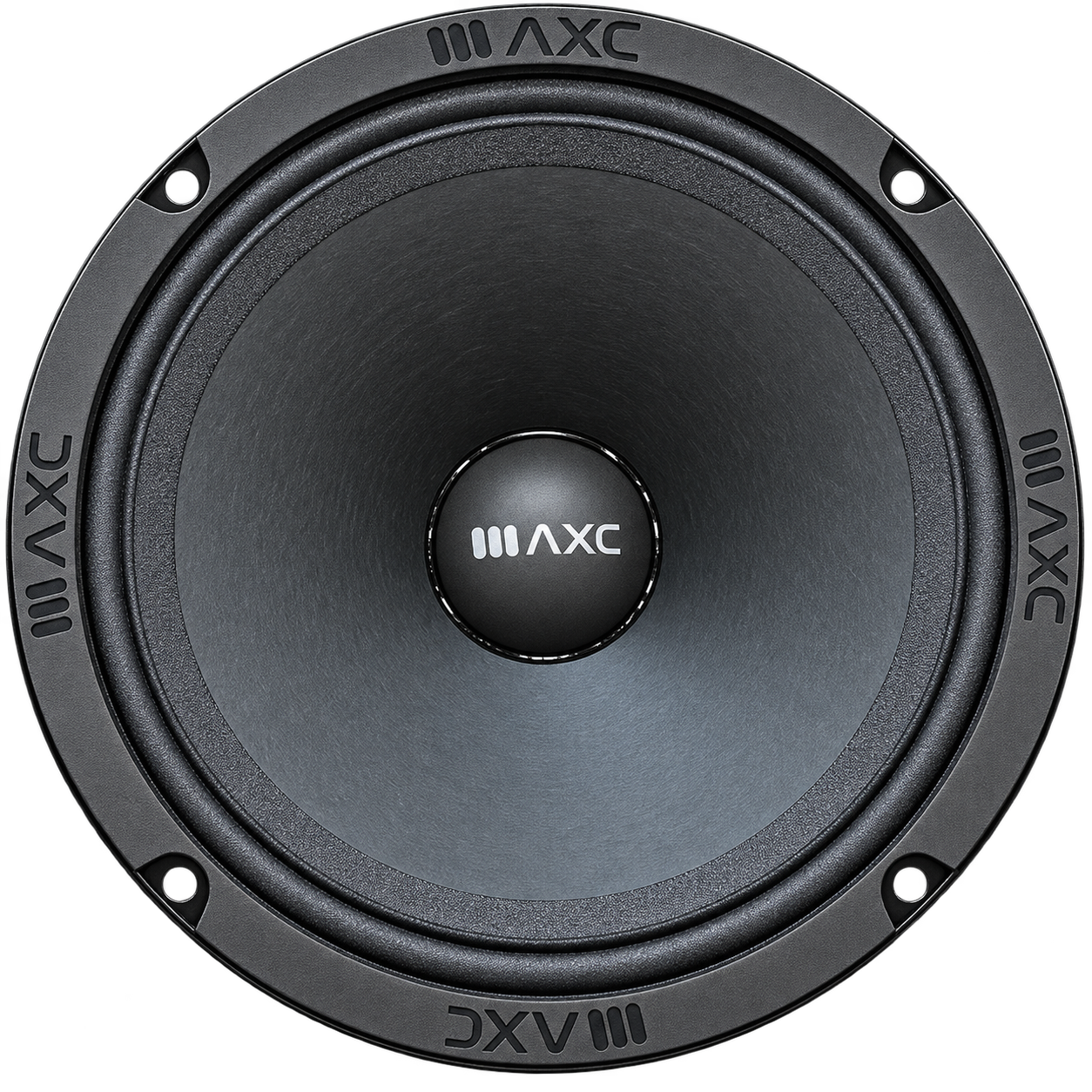

Audio Code AXC CYPHER8 8" Midrange Loudspeaker
Description
Description
The Audio Code AXC CYPHER8 8" Midrange Loudspeaker delivers 300W RMS power handling at 4 ohms with a frequency response spanning 200Hz to 13kHz — a high-output 8" midrange driver engineered for active multi-way systems and competition SPL builds where focused midrange reproduction is the priority. Sold individually. The CYPHER8's 200Hz–13kHz bandwidth makes it a purpose-built midrange driver: it starts higher than the MATRIX8 (200Hz vs 100Hz), handing off to a subwoofer at a higher crossover point, and focuses its output on the core midrange band where vocals, instruments, and upper bass presence live.
The AXC CYPHER8 is a dedicated 8" midrange loudspeaker, not a coaxial — it is designed to be crossed over and used as part of an active or passive multi-way system alongside a subwoofer and tweeter. The 8" cone diameter delivers more cone area than 6.5" or 5.25" midrange drivers, translating to greater midrange output and acoustic presence. At 300W RMS power handling, the CYPHER8 matches the MATRIX8 as the highest-output 8" midrange driver in the Audio Code lineup — built for the most demanding active system builds without thermal compression at rated power. The 200Hz–13kHz frequency response is more focused than the MATRIX8's 100Hz–15kHz range — the CYPHER8 is optimized for the core midrange band, making it the ideal choice for 3-way active systems where a dedicated subwoofer handles everything below 200Hz. The 4-ohm nominal impedance is compatible with virtually any amplifier channel. Sold individually — order two for a stereo pair.
Use the CYPHER8 as the midrange driver in an active 3-way system: cross it over with a high-pass filter at 200–250Hz (to protect it from bass frequencies) and a low-pass filter at 5–7kHz (to hand off to a tweeter). The 8" format is particularly well-suited for custom door pods, kick panels, and enclosures where maximum midrange output is the goal. Drive with a dedicated amplifier channel rated 150–300W RMS at 4 ohms. Contact us at Trinity Car Audio for system design guidance.
Why Choose the Audio Code AXC CYPHER8?
- 300W RMS Power Handling: Matches the MATRIX8 as the highest-output 8" midrange driver in the Audio Code lineup — built for the most demanding active system builds.
- 200Hz – 13kHz Focused Midrange Bandwidth: Purpose-built for the core midrange band — optimized for 3-way active systems where a dedicated subwoofer handles everything below 200Hz.
- 8" Cone Diameter: More cone area than 6.5" or 5.25" midrange drivers — greater midrange output and acoustic presence in the critical vocal and instrumental frequency range.
- 4-Ohm Impedance: Compatible with virtually any amplifier channel — no special impedance matching required.
- CYPHER Series Engineering: High-output midrange engineering focused on the core midrange band — the 8" counterpart to the CYPHER65 6.5" midrange driver.
- Custom Build Versatility: Ideal for custom door pods, kick panels, and enclosures where maximum midrange output and presence are the priority.
- Audio Xtreme Code Build Quality: Engineered for competition and enthusiast applications demanding high-output, focused midrange reproduction.
System Integration Recommendations
The AXC CYPHER8 is a dedicated midrange driver — it must be used with an active or passive crossover. In an active 3-way system: set a high-pass crossover at 200–250Hz to protect the driver from bass frequencies, and a low-pass crossover at 5–7kHz to hand off to a tweeter. Drive with a dedicated amplifier channel rated 150–300W RMS at 4 ohms. The 8" format is particularly well-suited for custom door pods, kick panels, and enclosures. A DSP amplifier with active crossover capability (such as the JBL DSP4086) is the ideal signal processing solution. Sold individually — order two for a stereo pair.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC CYPHER8 |
| Type | Midrange Loudspeaker |
| Nominal Diameter | 8" |
| Power Handling (RMS) | 300W |
| Frequency Response | 200Hz – 13kHz |
| Nominal Impedance | 4 ohms |
| Package Quantity | Single (1 speaker) |
Frequently Asked Questions
Q: Is the AXC CYPHER8 sold as a pair or individually?
A: The AXC CYPHER8 is sold individually — one speaker per order. Order two for a stereo pair.
Q: How does the CYPHER8 compare to the AXC MATRIX8?
A: Both are Audio Code dedicated 8" midrange loudspeakers at 4 ohms and 300W RMS. The CYPHER8 has a more focused 200Hz–13kHz bandwidth — optimized for the core midrange band in 3-way active systems with a higher subwoofer crossover point. The MATRIX8 has a wider 100Hz–15kHz response — more midbass extension and higher upper-frequency reach. Choose the CYPHER8 for a focused midrange role with a higher crossover point; choose the MATRIX8 for broader bandwidth coverage.
Q: Do I need a crossover for the AXC CYPHER8?
A: Yes — the CYPHER8 is a dedicated midrange driver and must be used with an active or passive crossover. Set a high-pass filter at 200–250Hz and a low-pass filter at 5–7kHz. A DSP amplifier with active crossover capability is the ideal solution.
Q: What amplifier should I use with the AXC CYPHER8?
A: A dedicated amplifier channel rated 150–300W RMS at 4 ohms is ideal. In a multi-way active system, a 4-channel or DSP amplifier with active crossover capability is the preferred solution. Contact us at Trinity Car Audio for a complete system design consultation.
