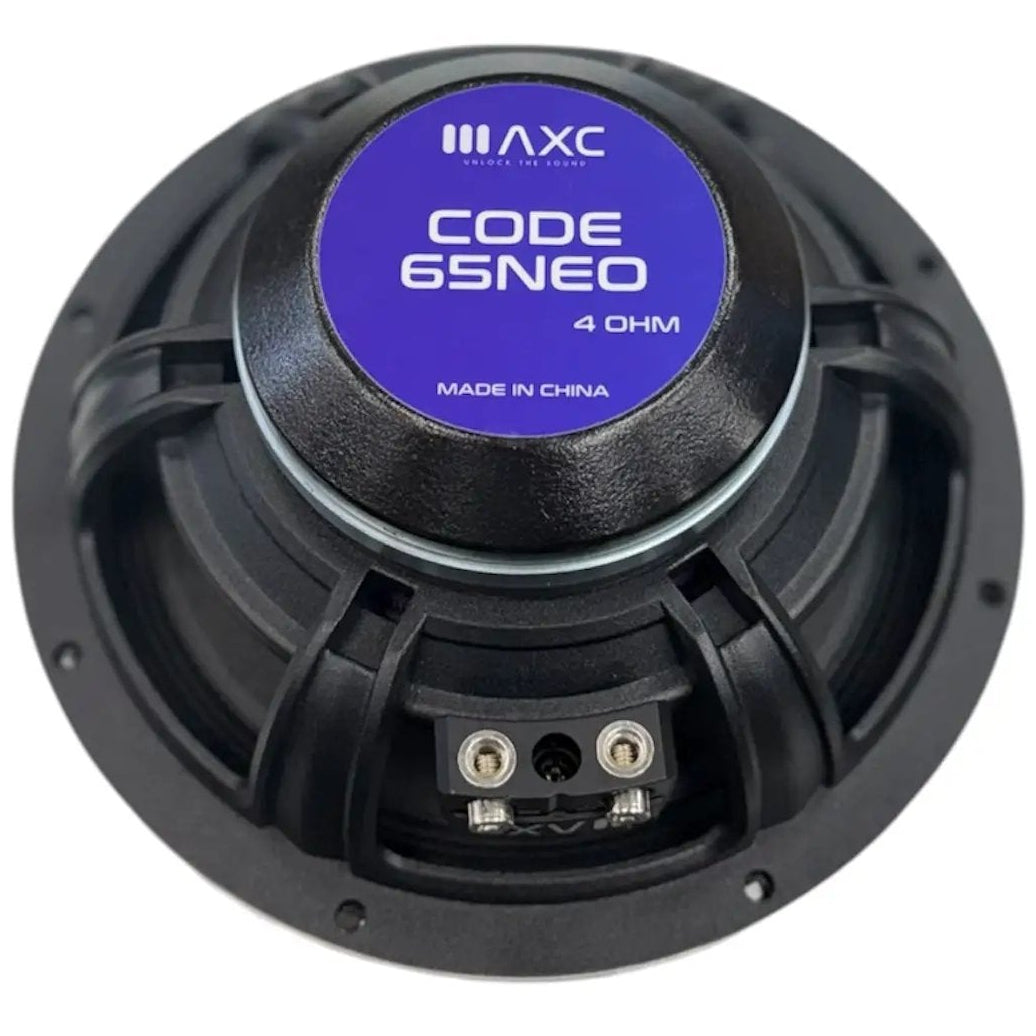

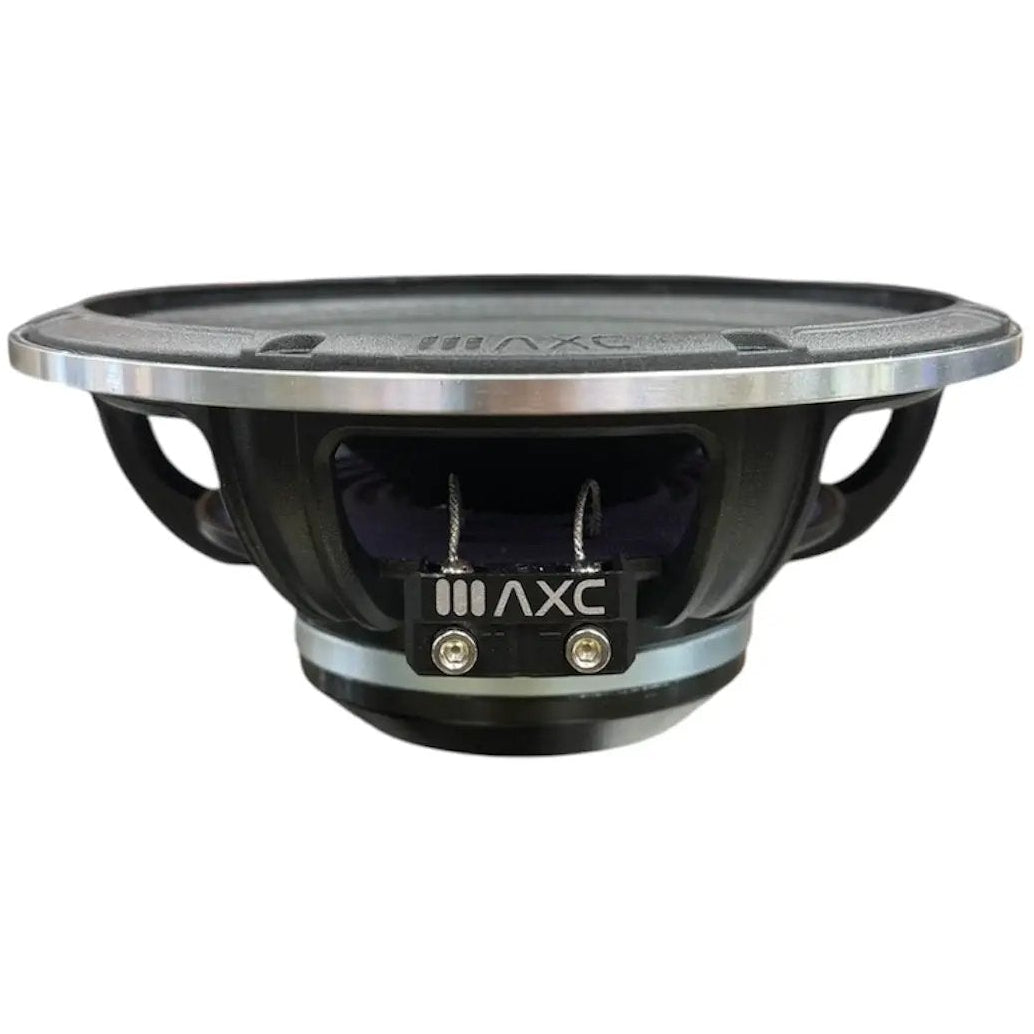

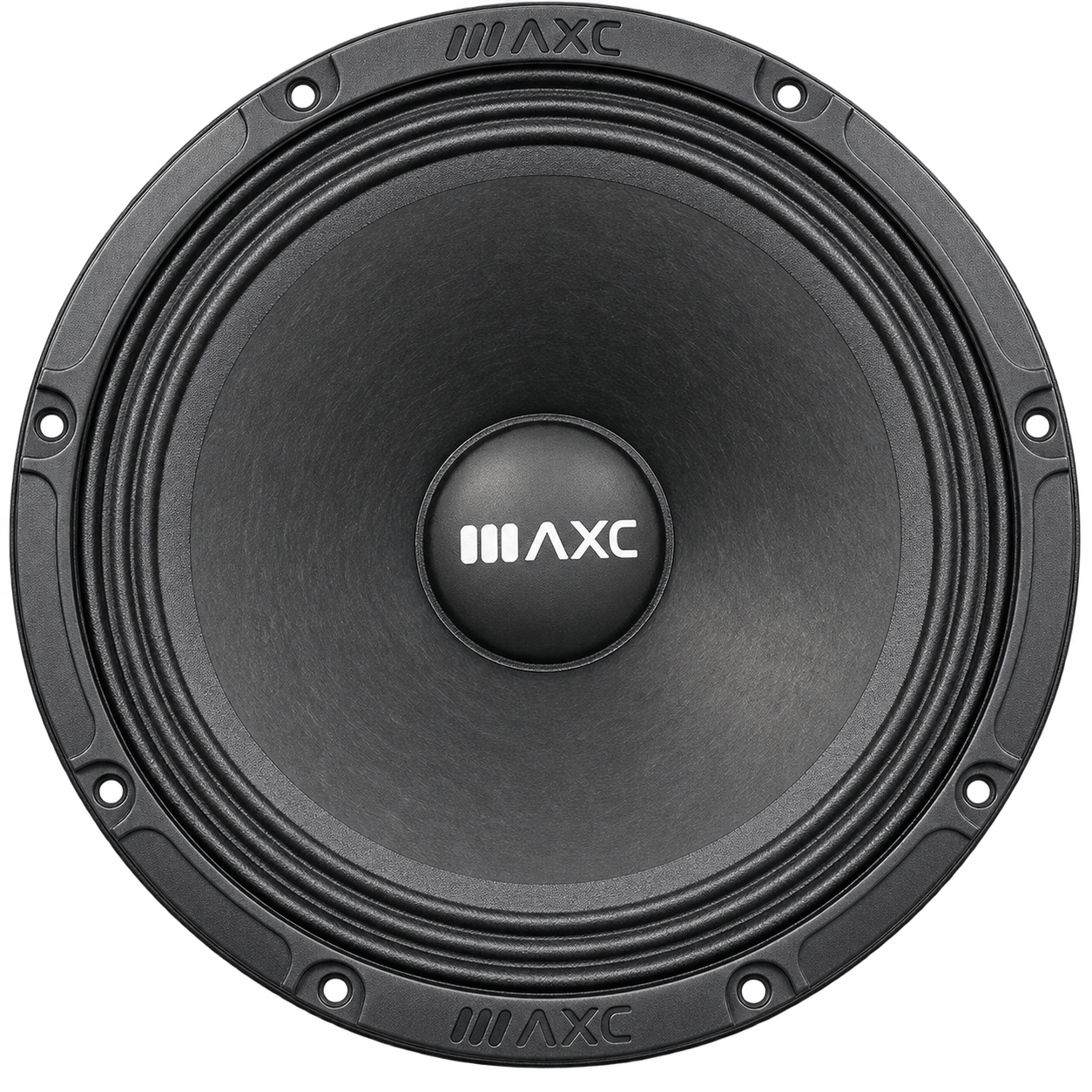

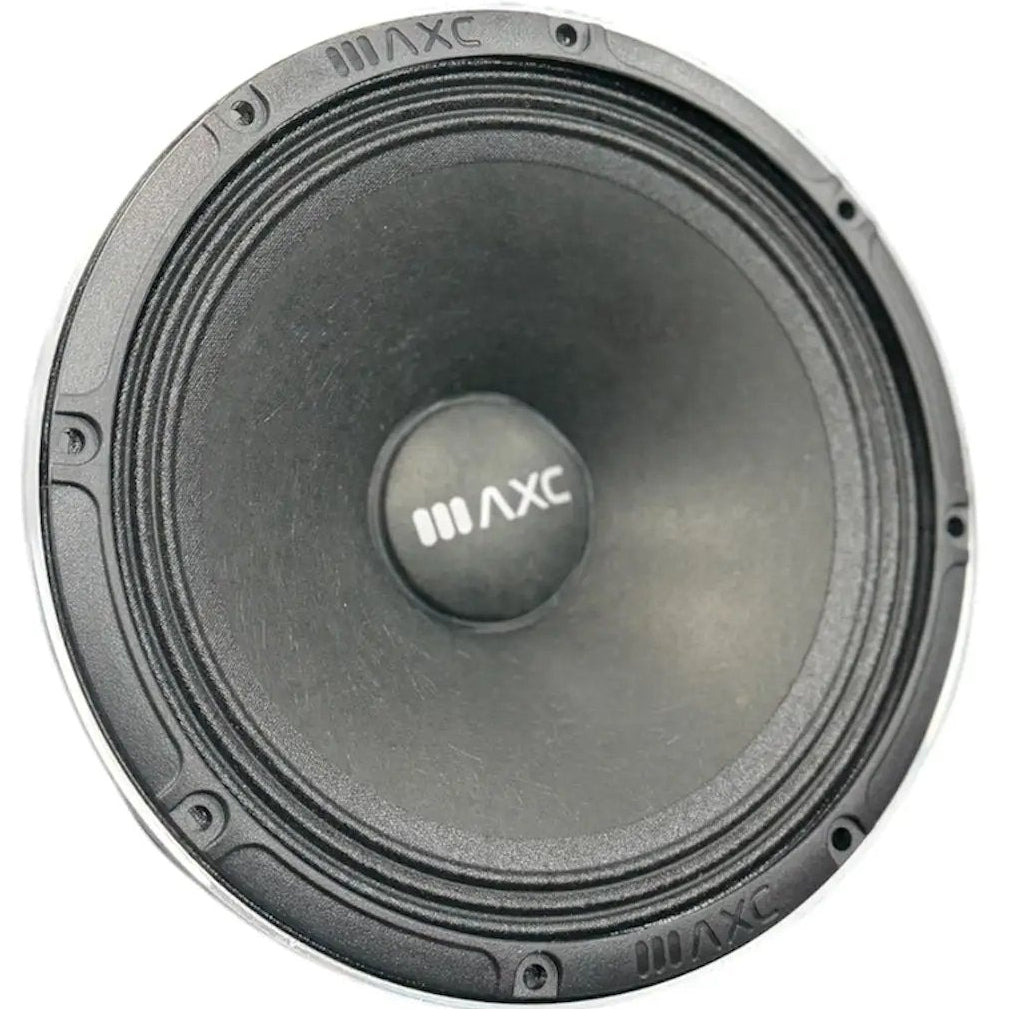

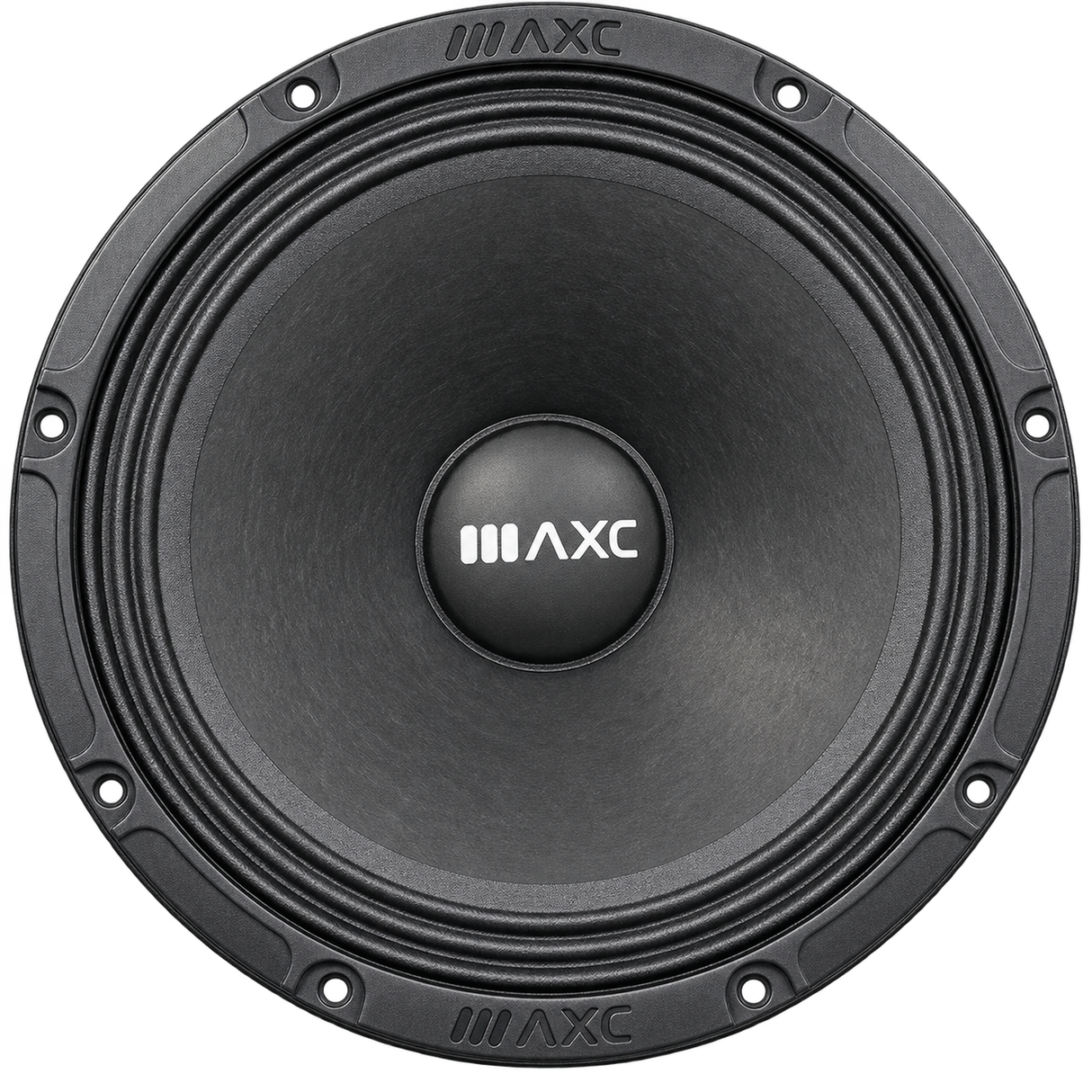

Audio Code AXC Code65NEO 6.5" Neodymium Midrange Loudspeaker
Description
Description
The Audio Code AXC Code65NEO 6.5" Neodymium Midrange Loudspeaker delivers 80W RMS power handling at 4 ohms with 90dB sensitivity and a neodymium magnet motor — bringing the weight and efficiency advantages of rare-earth magnet technology to the 6.5" midrange format. Sold individually. The Code65NEO is Audio Code's neodymium-equipped 6.5" midrange driver, offering a lighter, more powerful motor structure than conventional ferrite-magnet designs for improved transient response and output efficiency.
The defining feature of the AXC Code65NEO is its neodymium magnet. Neodymium (rare-earth) magnets produce significantly stronger magnetic fields than conventional ferrite magnets at a fraction of the weight — the result is a more powerful motor structure that drives the cone with greater force and precision, improving transient response, detail retrieval, and output efficiency. At 90dB sensitivity (1W/1m), the Code65NEO delivers strong output from modest amplifier power — the neodymium motor's efficiency advantage means more acoustic output per watt compared to lower-sensitivity ferrite-magnet designs. The 4-ohm nominal impedance is compatible with virtually any aftermarket amplifier. Power handling is 80W RMS. The 6.5" driver size fits standard OEM door locations for a straightforward drop-in upgrade. Sold individually — order two for a stereo pair.
Pair the Code65NEO with a 4-channel amplifier rated 40–80W RMS per channel at 4 ohms. For best results in an active system, apply a high-pass crossover at 80–100Hz to protect the driver from bass frequencies and let a dedicated subwoofer handle the low end. Mount in the factory 6.5" door location for a clean, straightforward install.
Why Choose the Audio Code AXC Code65NEO?
- Neodymium Magnet Motor: Rare-earth magnet technology produces a stronger magnetic field at less weight than conventional ferrite magnets — improved transient response, detail retrieval, and output efficiency.
- 90dB Sensitivity (1W/1m): High-efficiency design delivers strong midrange output from modest amplifier power — the neodymium motor's efficiency advantage at work.
- 80W RMS Power Handling: Handles real-world amplifier power without distortion or thermal compression at rated output.
- 4-Ohm Impedance: Compatible with virtually any aftermarket amplifier — no special impedance matching required.
- 6.5" Drop-In Format: Fits standard OEM door locations across a wide range of vehicles — straightforward midrange upgrade without custom fabrication.
- Lightweight Construction: Neodymium magnet's superior strength-to-weight ratio reduces overall driver weight for easier installation in door panels and pods.
- Audio Xtreme Code Engineering: Neodymium-equipped midrange driver for enthusiast builds where efficiency, transient response, and output quality matter.
Amplifier & Installation Recommendations
Pair the Code65NEO with a 4-channel amplifier rated 40–80W RMS per channel at 4 ohms. For best results in an active system, apply a high-pass crossover at 80–100Hz to protect the driver from bass frequencies and let a dedicated subwoofer handle the low end. Mount in the factory 6.5" door location — no cutting or fabrication required in most vehicles. Use 16-gauge or heavier speaker wire for runs over 6 feet. Sold individually — order two for a stereo pair.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC Code65NEO |
| Type | Midrange Loudspeaker |
| Speaker Size | 6.5" |
| Magnet Type | Neodymium |
| Power Handling (RMS) | 80W |
| Sensitivity (1W/1m) | 90dB |
| Nominal Impedance | 4 ohms |
| Package Quantity | Single (1 speaker) |
Frequently Asked Questions
Q: Is the AXC Code65NEO sold as a pair or individually?
A: The AXC Code65NEO is sold individually — one speaker per order. Order two for a stereo pair.
Q: What is the advantage of a neodymium magnet over a standard ferrite magnet?
A: Neodymium (rare-earth) magnets produce a significantly stronger magnetic field at a fraction of the weight of conventional ferrite magnets. The result is a more powerful motor structure that drives the cone with greater force and precision — improving transient response, detail retrieval, and output efficiency. The lighter weight also makes installation easier in door panels and pods.
Q: Should I use a crossover with the Code65NEO?
A: Yes — for best results, apply a high-pass crossover at 80–100Hz to protect the driver from bass frequencies and let a dedicated subwoofer handle the low end. A DSP amplifier with active crossover capability is the ideal solution for a complete active system.
Q: Will the Code65NEO fit my vehicle?
A: The Code65NEO is designed for standard 6.5" OEM door locations — one of the most common speaker sizes across virtually all vehicle makes and models. Contact us at Trinity Car Audio with your year, make, and model to confirm fitment before ordering.
