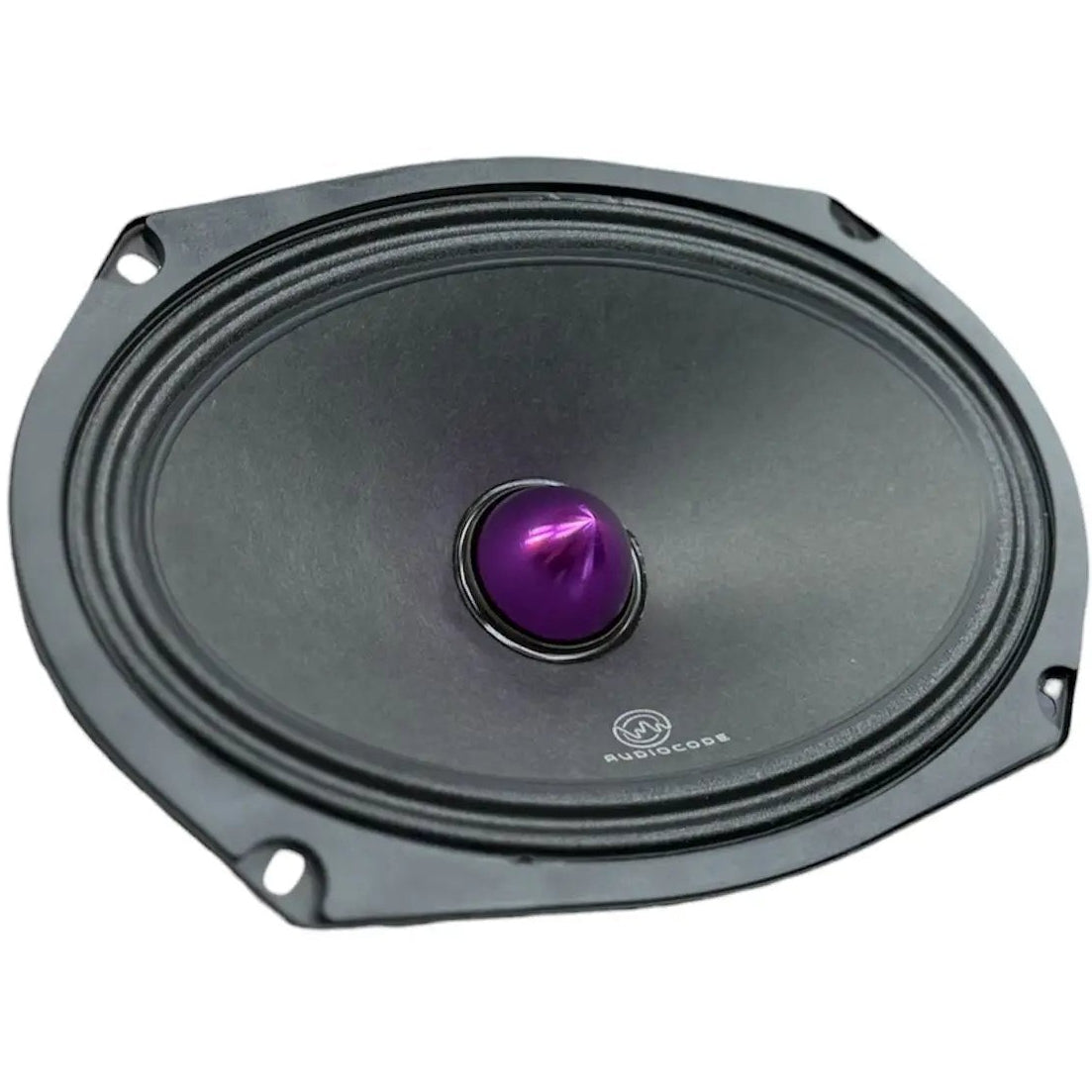

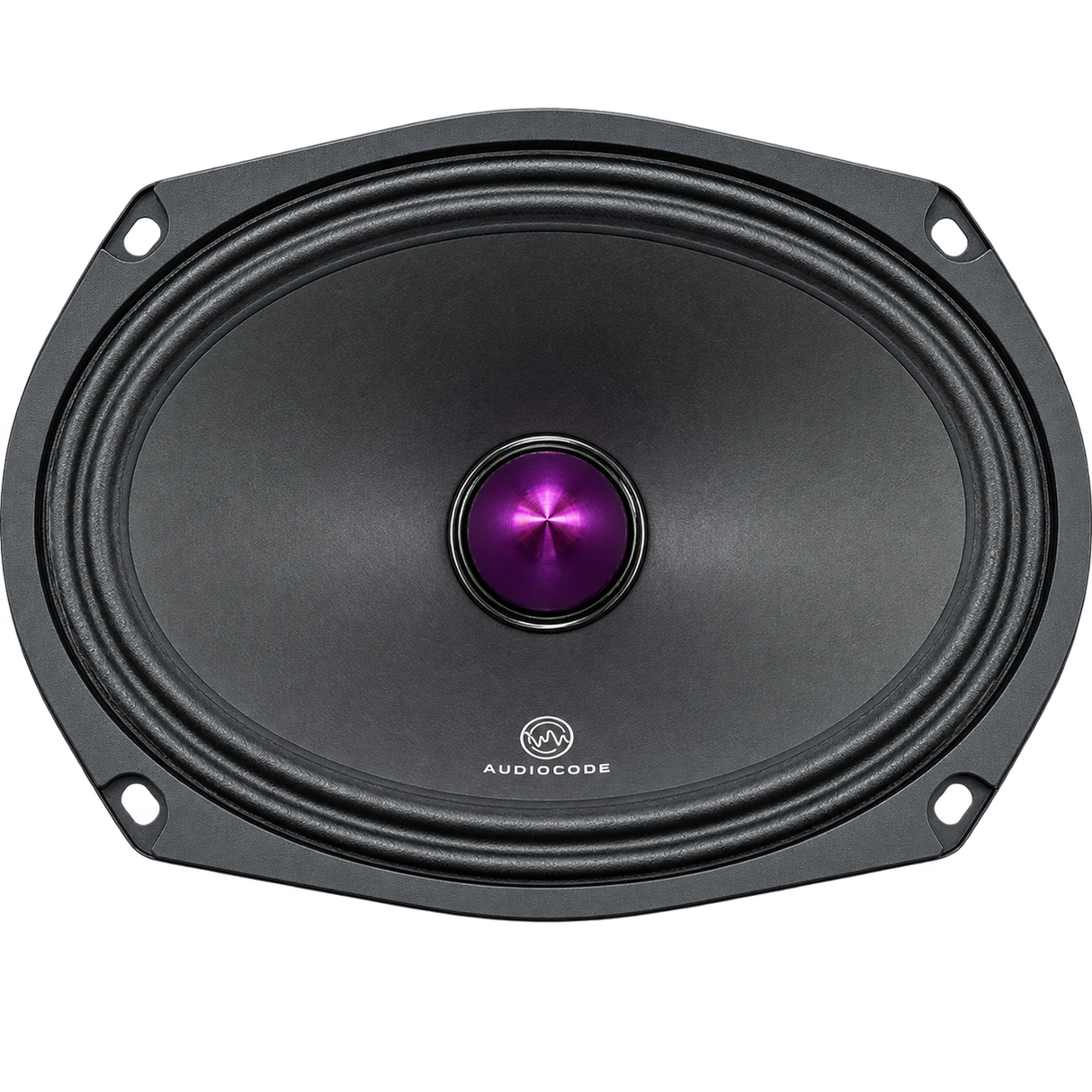

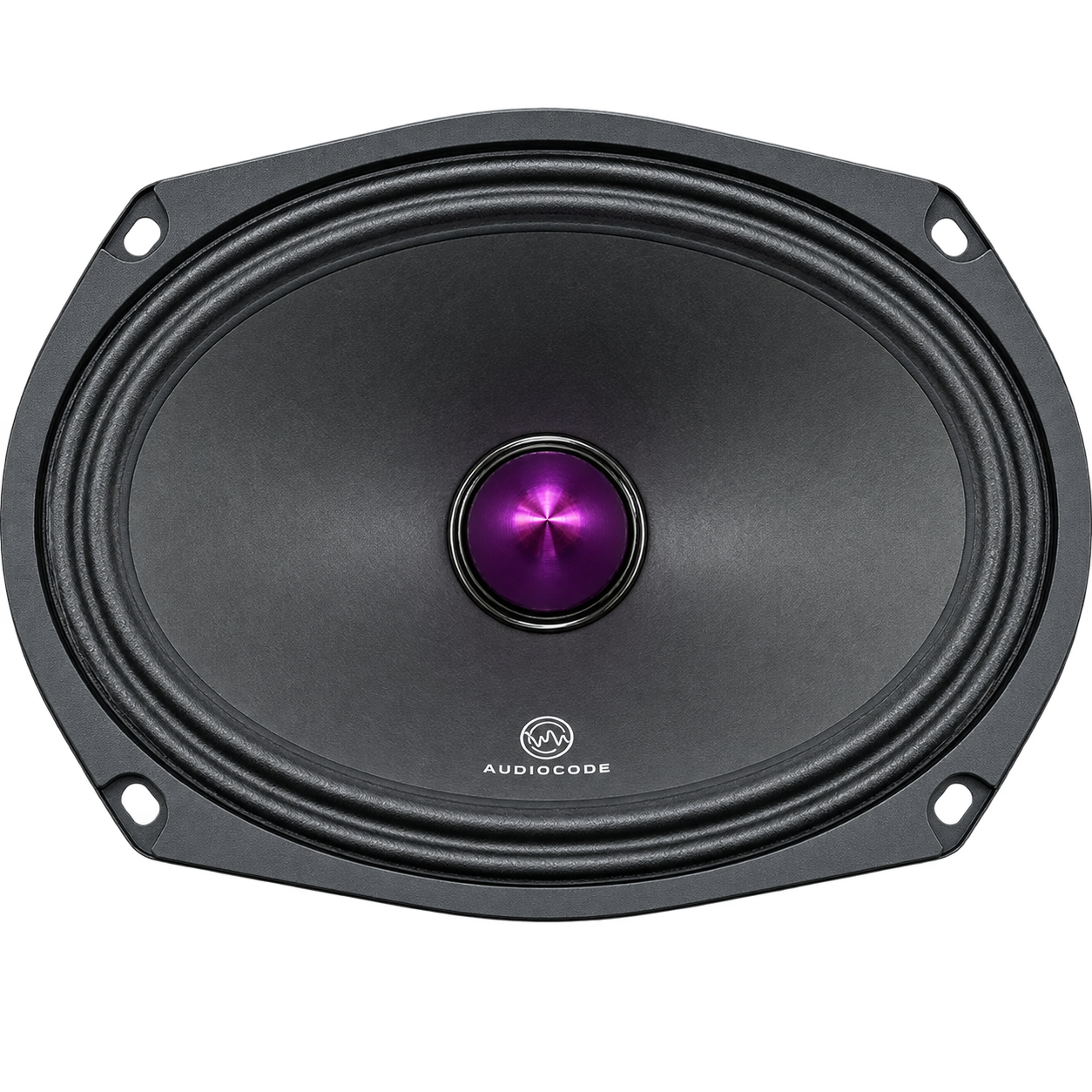

Audio Code AXC-ZRO69 6x9" Midrange Loudspeaker

The Audio Code AXC-ZRO69 6x9" Midrange Loudspeaker delivers 250W RMS power handling at 4 ohms with a frequency response spanning 100Hz to 12.5kHz — engineered for high-output midrange reproduction in active multi-way systems, competition SPL builds, and custom rear deck or door pod installations. The 6x9" form factor brings dedicated midrange performance to the most popular OEM rear deck speaker location, delivering the vocal clarity and upper bass presence that coaxial speakers can't match at high output levels. Sold individually.

The AXC-ZRO69 is a dedicated 6x9" midrange loudspeaker, not a coaxial — it is designed to be crossed over and used as part of an active or passive multi-way system alongside a subwoofer and tweeter. The 6x9" form factor fits standard OEM rear deck and door locations across a wide range of vehicles, making the ZRO69 a practical upgrade for builds where maximum midrange output from an OEM-sized location is the goal. At 250W RMS power handling, the ZRO69 is built for high-output active system builds without thermal compression at rated power. The 4-ohm nominal impedance is compatible with virtually any amplifier channel. Frequency response spans 100Hz to 12.5kHz, covering the full midrange band from upper bass punch through lower treble presence. Sold individually — order two for a stereo pair.

Use the AXC-ZRO69 as the midrange driver in an active 3-way system: cross it over with a high-pass filter at 100–150Hz (to protect it from bass frequencies) and a low-pass filter at 4–6kHz (to hand off to a tweeter). Pair with a dedicated tweeter for the upper frequencies and a subwoofer for the low end. Drive with a 4-channel amplifier or a DSP amplifier with active crossover capability. Contact us at Trinity Car Audio for system design guidance.

Why Choose the Audio Code AXC-ZRO69?

• 6x9" Form Factor: Fits standard OEM rear deck and door locations — brings dedicated midrange performance to the most popular OEM speaker size without custom fabrication.
• 250W RMS Power Handling: High-output midrange capability built for active system builds without thermal compression at rated power.
• 100Hz – 12.5kHz Frequency Response: Covers the full critical midrange band from upper bass punch to lower treble presence — designed for active crossover use.
• 4-Ohm Impedance: Compatible with virtually any amplifier channel — no special impedance matching required.
• Dedicated Midrange Design: Engineered for active crossover use — cleaner, more focused midrange reproduction than any coaxial can deliver at high output levels.
• Audio Xtreme Code Build Quality: Engineered for competition and enthusiast applications where standard coaxial speakers fall short on midrange output and clarity.

System Integration Recommendations

The AXC-ZRO69 is a dedicated midrange driver — it must be used with an active or passive crossover. In an active 3-way system: set a high-pass crossover at 100–150Hz to protect the driver from bass frequencies, and a low-pass crossover at 4–6kHz to hand off to a tweeter. Drive with a dedicated amplifier channel rated 125–250W RMS at 4 ohms. Pair with a dedicated tweeter for the upper frequencies and a subwoofer for the low end. A DSP amplifier with active crossover capability (such as the JBL DSP4086) is the ideal signal processing solution for a system built around the ZRO69. Sold individually — order two for a stereo pair.

Full Specifications

Frequently Asked Questions

Q: Is the AXC-ZRO69 sold as a pair or individually?
A: The AXC-ZRO69 is sold individually — one speaker per order. Order two for a stereo pair.

Q: Do I need a crossover for the AXC-ZRO69?
A: Yes — the ZRO69 is a dedicated midrange driver and must be used with an active or passive crossover. Set a high-pass filter at 100–150Hz to protect it from bass frequencies and a low-pass filter at 4–6kHz to hand off to a tweeter. A DSP amplifier with active crossover capability is the ideal solution.

Q: Will the 6x9" size fit my vehicle?
A: The 6x9" form factor fits standard OEM rear deck and door locations across a wide range of vehicles — one of the most common OEM speaker sizes. Contact us at Trinity Car Audio with your year, make, and model to confirm fitment before ordering.

Q: How does the ZRO69 compare to the AXC ZRO 6?
A: Both are Audio Code dedicated midrange loudspeakers at 4 ohms with the same 100Hz–12.5kHz frequency response. The ZRO69 is a 6x9" driver at 250W RMS for rear deck and door locations; the ZRO 6 is a 6.5" round driver at 250W RMS for standard round locations. Choose based on your vehicle's OEM speaker size and install location.
