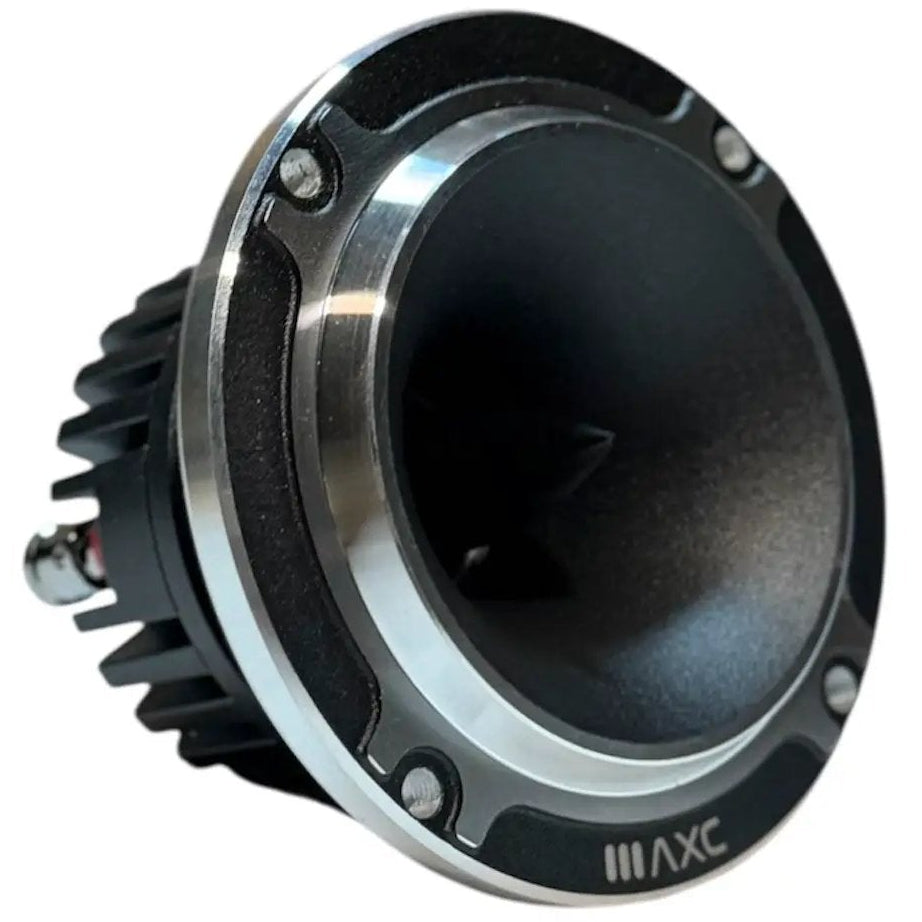

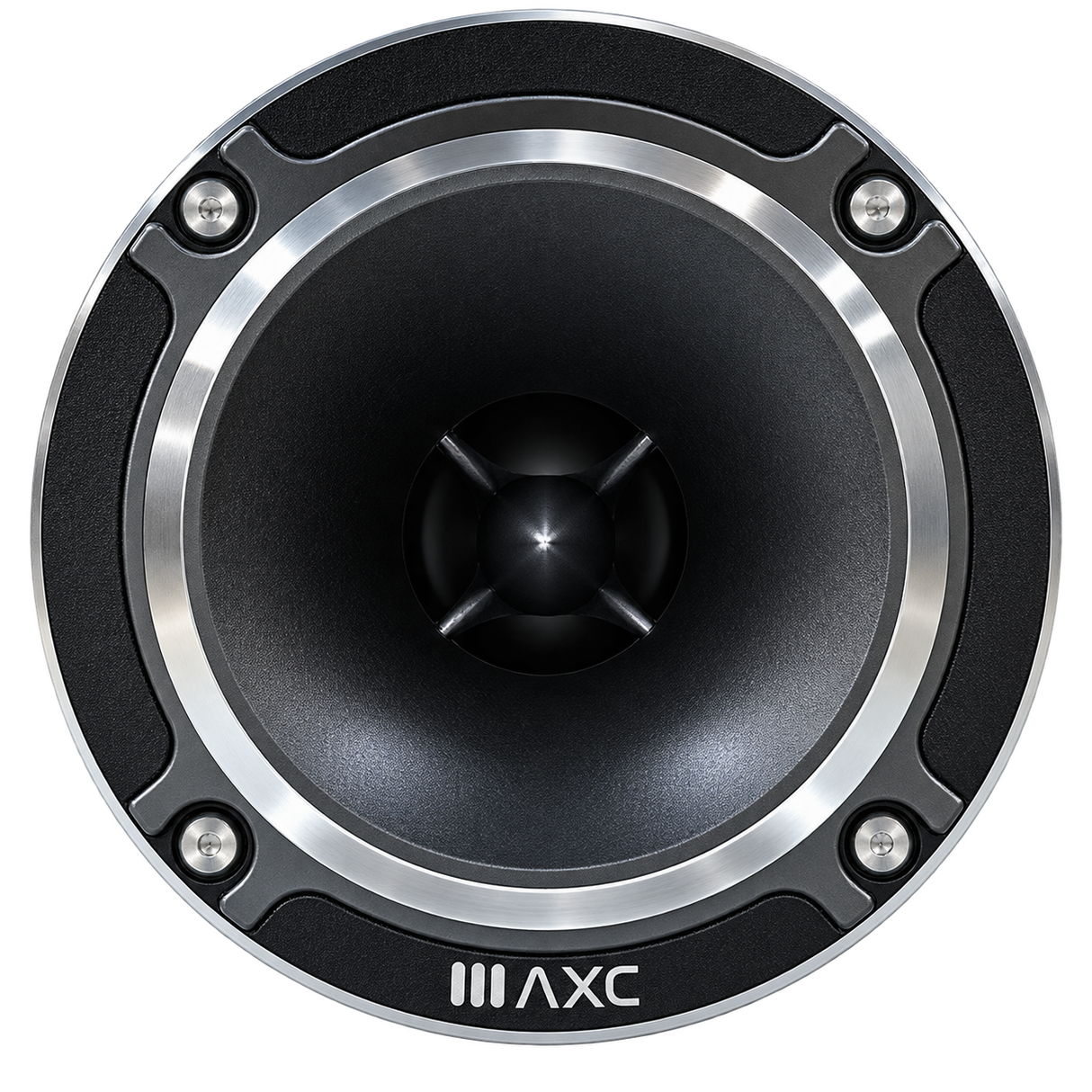

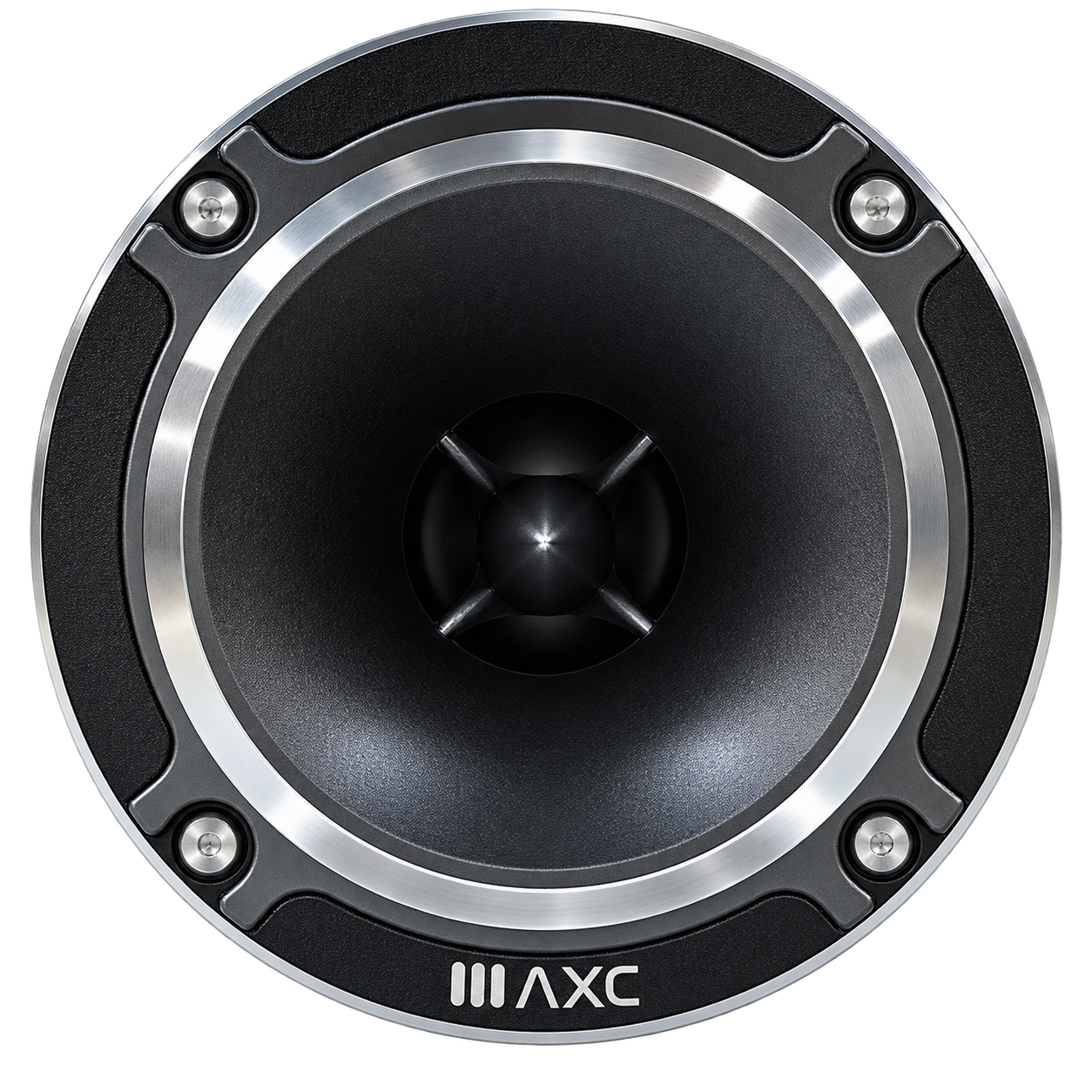

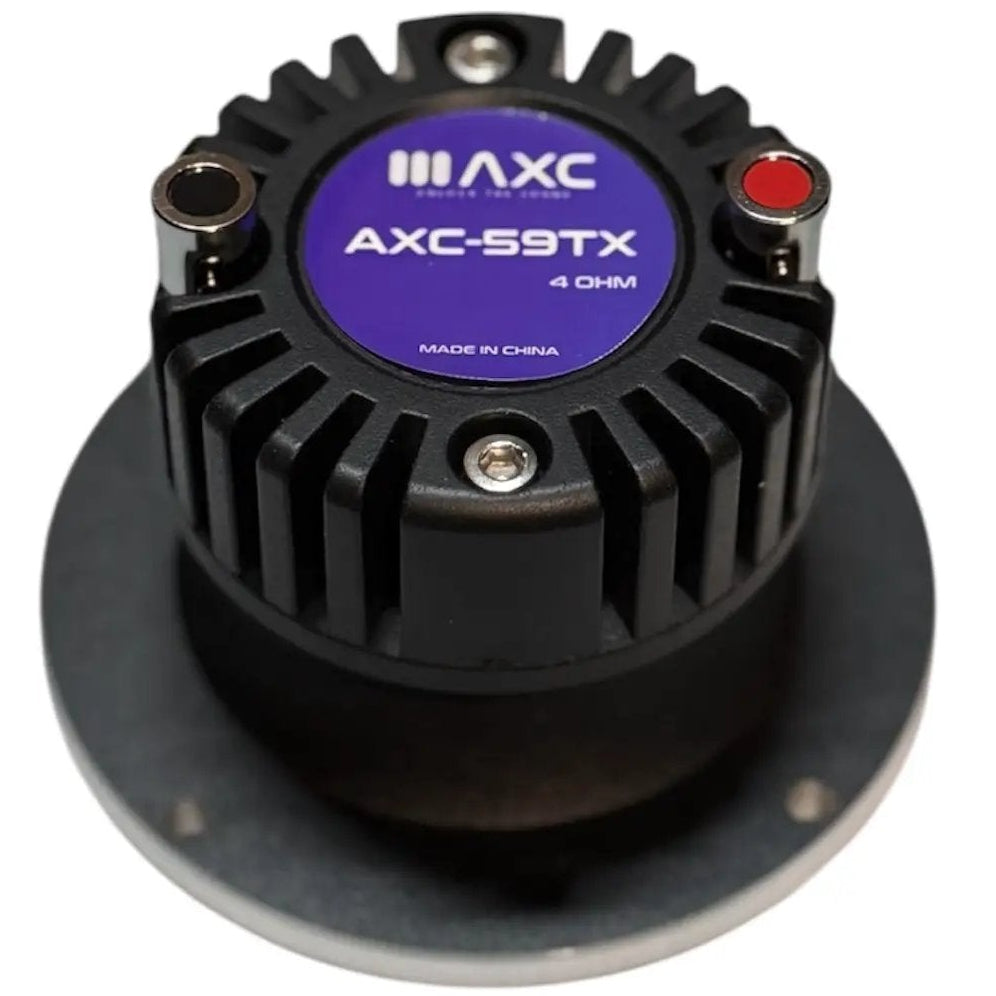

Audio Code AXC-59TX 3" Neodymium Bullet Tweeter
Description
Description
The Audio Code AXC-59TX 3" Neodymium Bullet Tweeter delivers 80W RMS power handling at 8 ohms with a 1" voice coil, a frequency response spanning 2kHz to 20kHz, and a neodymium magnet motor — a high-output, wide-bandwidth bullet tweeter engineered for active multi-way systems, competition SPL builds, and custom car audio installations. Sold individually. The AXC-59TX covers the full high-frequency spectrum from 2kHz all the way to 20kHz, delivering the complete upper frequency range in a compact 3" bullet format.
The AXC-59TX is a dedicated bullet tweeter — it is designed to be crossed over and used as part of an active or passive multi-way system alongside a midrange driver and subwoofer. The neodymium magnet motor produces a significantly stronger magnetic field than conventional ferrite magnets at a fraction of the weight — delivering improved sensitivity, output efficiency, and a more compact overall package. The bullet phase plug design controls the dispersion pattern of the high-frequency output, reducing off-axis coloration and improving on-axis clarity and focus — a design feature common in competition SPL and high-output car audio builds. The 1" voice coil provides solid thermal capacity for the 80W RMS power handling rating. The 2kHz–20kHz frequency response covers the complete high-frequency spectrum — from the upper midrange handoff point all the way to the limits of human hearing. The 8-ohm nominal impedance draws less current than 4-ohm designs, which can be advantageous in multi-driver passive crossover networks. Sold individually — order two for a stereo pair.
Use the AXC-59TX as the high-frequency driver in an active 2-way or 3-way system: always apply a high-pass crossover at 4–6kHz to protect the tweeter from midrange frequencies. Pair with a dedicated midrange driver (such as the Audio Code AXC NEO 6, ZRO 6, or ZR05) and a subwoofer for a complete active system. Drive with a dedicated amplifier channel or a DSP amplifier with active crossover capability. Contact us at Trinity Car Audio for system design guidance.
Why Choose the Audio Code AXC-59TX?
- 2kHz – 20kHz Frequency Response: Full high-frequency bandwidth from the upper midrange handoff point to the limits of human hearing — complete high-frequency coverage in a 3" bullet format.
- 80W RMS Power Handling: Handles real-world amplifier power without distortion or thermal compression at rated output.
- 1" Voice Coil: Solid thermal capacity for the 80W RMS rating — keeps the driver cool and distortion-free during extended high-volume listening.
- Neodymium Magnet Motor: Rare-earth magnet technology produces a stronger magnetic field at less weight than conventional ferrite magnets — improved sensitivity, output efficiency, and compact package size.
- Bullet Phase Plug Design: Controls high-frequency dispersion for improved on-axis clarity and focus — a competition SPL and high-output build design feature.
- 8-Ohm Impedance: Draws less current than 4-ohm designs — advantageous in multi-driver passive crossover networks.
- Audio Xtreme Code Build Quality: Engineered for competition and enthusiast applications demanding maximum high-frequency clarity and controlled dispersion.
System Integration Recommendations
The AXC-59TX is a dedicated tweeter — always use a high-pass crossover at 4–6kHz to protect the driver from midrange frequencies. Running a tweeter without a crossover can damage or destroy the driver. In a 3-way active system, pair with a dedicated midrange driver (such as the Audio Code AXC NEO 6, ZRO 6, or ZR05) and a subwoofer for full-range coverage. Drive with a dedicated amplifier channel or a DSP amplifier with active crossover capability (such as the JBL DSP4086). Note the 8-ohm impedance when configuring passive crossover networks. Sold individually — order two for a stereo pair.
Full Specifications
| Specification | Value |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC-59TX |
| Type | Bullet Tweeter |
| Driver Size | 3" |
| Voice Coil Diameter | 1" |
| Magnet Type | Neodymium |
| Power Handling (RMS) | 80W |
| Frequency Response | 2kHz – 20kHz |
| Nominal Impedance | 8 ohms |
| Package Quantity | Single (1 tweeter) |
Frequently Asked Questions
Q: Is the AXC-59TX sold as a pair or individually?
A: The AXC-59TX is sold individually — one tweeter per order. Order two for a stereo pair.
Q: How does the AXC-59TX compare to the AXC TCY25N?
A: Both are Audio Code 3" neodymium bullet tweeters at 8 ohms. The AXC-59TX adds 80W RMS power handling, a 1" voice coil, and a wider 2kHz–20kHz frequency response — full high-frequency bandwidth to 20kHz. The TCY25N's specific power handling and frequency response are not published. Contact us at Trinity Car Audio for a side-by-side recommendation based on your system goals.
Q: Do I need a crossover for the AXC-59TX?
A: Yes — always use a high-pass crossover at 4–6kHz to protect the driver from midrange frequencies. Running a tweeter without a crossover can damage or destroy the driver. A DSP amplifier with active crossover capability is the ideal solution.
Q: What midrange driver pairs best with the AXC-59TX?
A: The AXC-59TX pairs naturally with Audio Code midrange drivers including the AXC NEO 6, AXC ZRO 6, AXC ZR05, and AXC NEO 5. Contact us at Trinity Car Audio for a complete system design recommendation based on your vehicle and goals.
