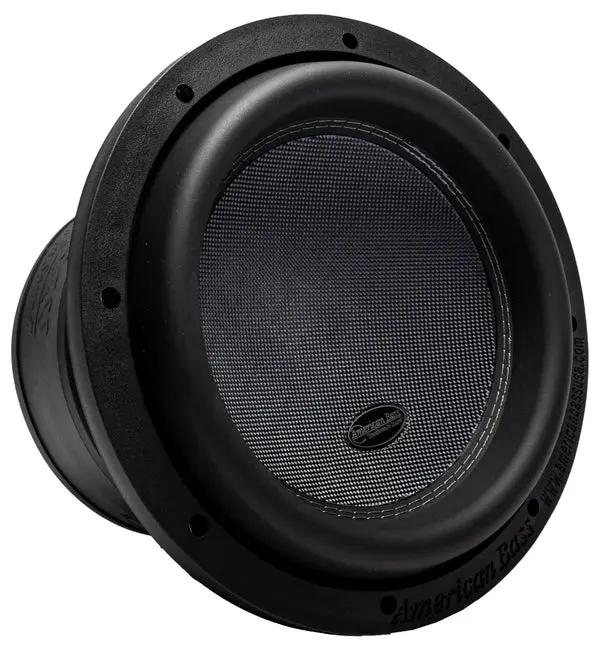

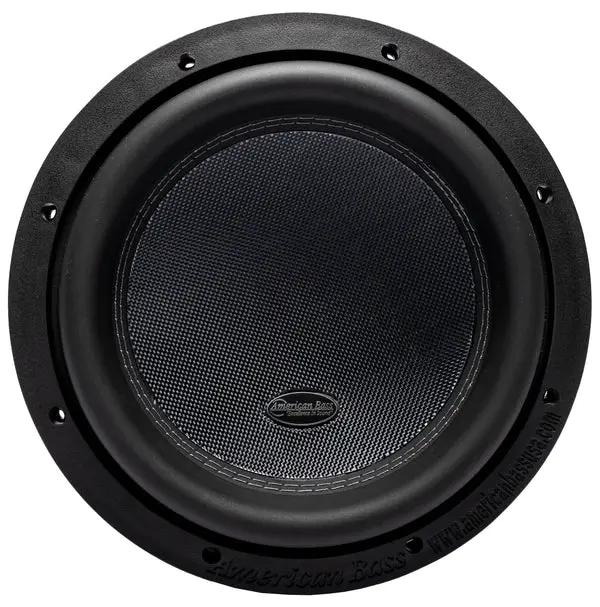

American Bass XR Series 10" Subwoofer

The American Bass XR Series 10" Subwoofer is a high‑power, bass‑focused driver built for serious enthusiasts who demand deep, hard‑hitting low end with precise control. It uses a fiberglass reinforced cone, cast basket, and stitched rubber surround, and it features side‑mounted terminals for faster, cleaner installations.

• RMS Power: 1000W — provides continuous handling for strong, consistent bass without clipping when paired with a suitable amplifier and enclosure.
• Max Power: 2000W — demonstrates the driver’s ability to handle brief power peaks, aiding dynamic bass performance in demanding tracks.
• Impedance (OHMS): D4 — dual 4‑ohm voice coil configuration offers flexible wiring options to match your amplifier setup.
• Sensitivity: 88 dB — reflects the speaker’s efficiency; higher sensitivity translates to more output for a given input power.
• Mounting Depth: 7.08" — depth constraint to consider when choosing an enclosure and vehicle mounting space.
• Cutout Size: 9.2" — required hole diameter for installation in the mounting surface.
• Ported Box (FT³): 1.25–1.5 — enclosure volume range recommended for optimal bass extension and velocity in a ported design.

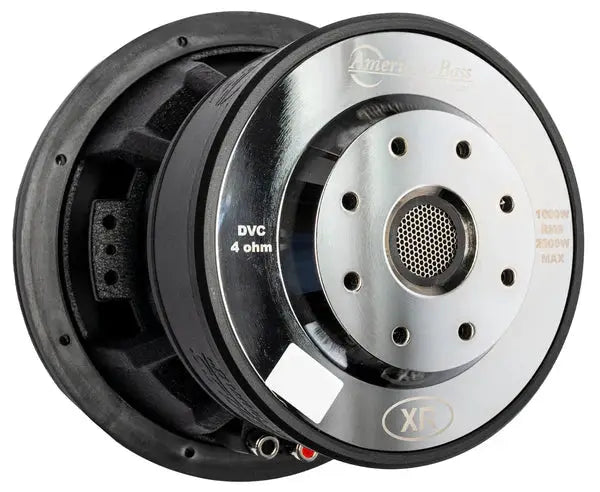

• Magnet Size: 200 oz — large magnet supports higher force and control for low‑frequency output under demanding music.
• Voice Coil Size: 3" — larger coil aids heat dissipation and power handling for sustained performance.
• Basket Type: Cast — rigid, helps reduce flex and distortion at high excursion.
• Recommended Amp (Pair): VFL COMP 2K — pairing guidance to achieve the intended power delivery for the XR Series 10" subwoofer.

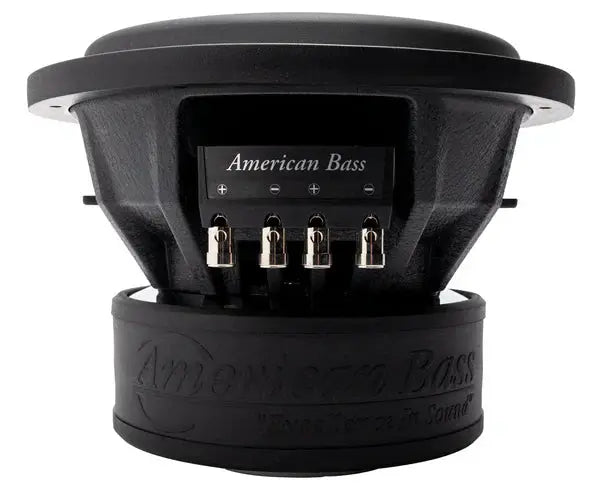

• Side‑Mounted Terminals: Redesigned terminals positioned on one side for faster, easier wiring and installation.

In a real car audio build, this subwoofer excels in a ported enclosure within the 1.25–1.5 ft³ range, delivering deep bass with solid control. The 200 oz magnet and 3" voice coil support strong, repeatable performance under high output, while the cast basket and fiberglass reinforced cone help maintain linear response at high excursion. The side terminals streamline installation, and when paired with the VFL COMP 2K amplifier, it provides a confident foundation for a serious, musically engaging bass setup.
