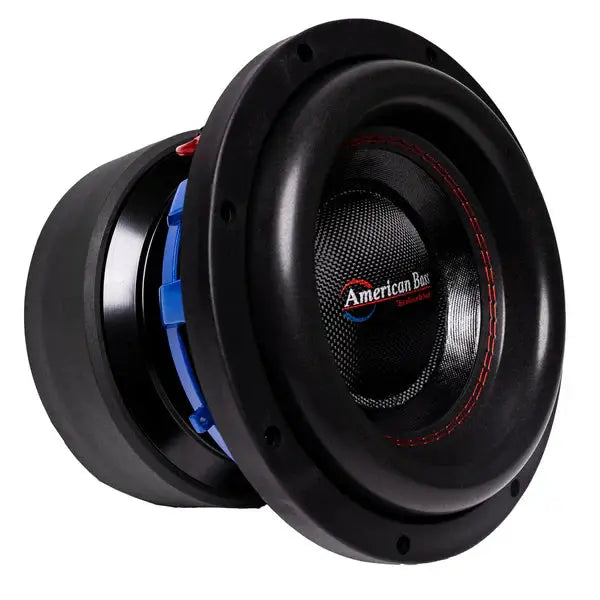

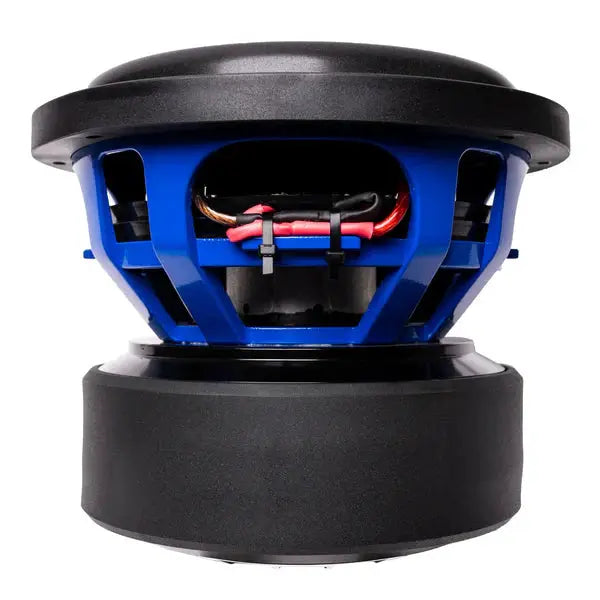

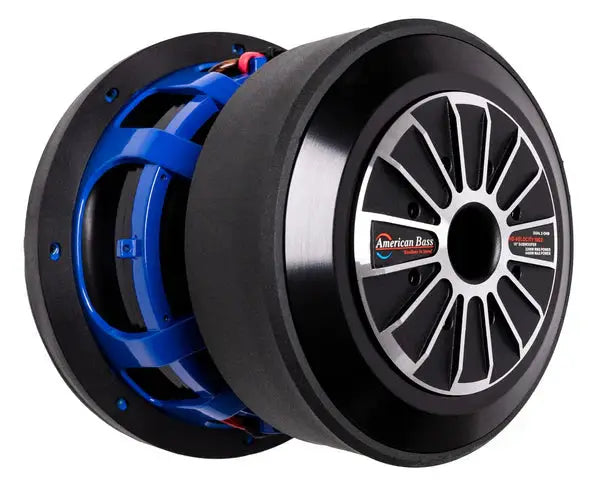

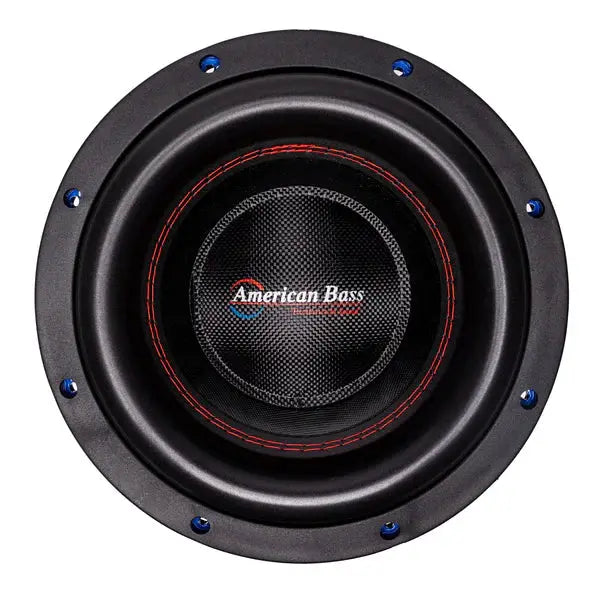

American Bass HD-VELOCITY Series 10" Subwoofer

The American Bass HD-VELOCITY Series 10" Subwoofer is built for car audio enthusiasts who demand high-power, durable bass, featuring a cast basket, blue finish, and a carbon-fiber-enhanced cone for tight, deep low end.

• RMS Power: 2200 W continuous handling, meaning the sub can sustain demanding bass output when paired with a suitable amplifier and enclosure without clipping.
• Max Power: 4400 W peak, indicating headroom for brief, dynamic bass transients beyond continuous power.
• Impedance (Ohms): D1/D2 dual-impedance configuration (1 Ω or 2 Ω), offering flexible wiring to match compatible amplifiers and maximize efficiency.
• Sensitivity: 84.4/84.3 dB, reflecting electrical-to-acoustic efficiency and how loud the sub will sound for a given input power.
• Voice Coil Size: 3" high-temperature voice coil, designed to handle sustained power and heat, enabling reliable performance during long listening sessions.
• Magnet Size: 315 oz magnet, providing substantial motor strength for controlled movement and strong bass at high excursion.
• Basket Type: Cast basket, offering rigidity and effective heat management to reduce distortion under demanding play.
• Mounting Depth: 7.72 in, an important clearance figure for fitting the sub into tight or shallow cavities.
• Cutout Size: 9.25 in, the required mounting hole diameter for proper installation.
• Ported Box (ft³): 1.8–2.5 ft³, the recommended internal volume for a tuned ported enclosure to achieve solid low-end extension.
• Finish: Blue finish on the basket, adding a premium visual match for exposed install aesthetics.
• Cone Construction: Carbon-fiber-enhanced cone, delivering stiffness for cleaner bass and reduced breakup at high output.
• Spider Material: Multi-layer poly-cotton spiders, contributing to durable, stable coil alignment under repeated movement.
• Magnet System: Triple-stacked magnet arrangement, increasing magnetic capability for strong, controlled bass response.
• Recommended Amp (Pair): Godfather 5D, the advised pairing to drive the sub effectively in a two-channel configuration.

In a real car audio install, this 10" sub excels in vented environments that use around 1.8–2.5 cubic feet of internal volume, delivering deep, controlled bass with robust heat handling and mechanical longevity. Its dual-impedance support and high-current voice coil pair well with premium amplifiers, enabling high-power output with reliable control, while the combination of a cast basket, carbon-fiber cone, reinforced spider assembly, and a triple-stacked magnet system maintains linear response during demanding bass passages. The Godfather 5D pairing is recommended to supply clean, ample power for a two-sub setup.
