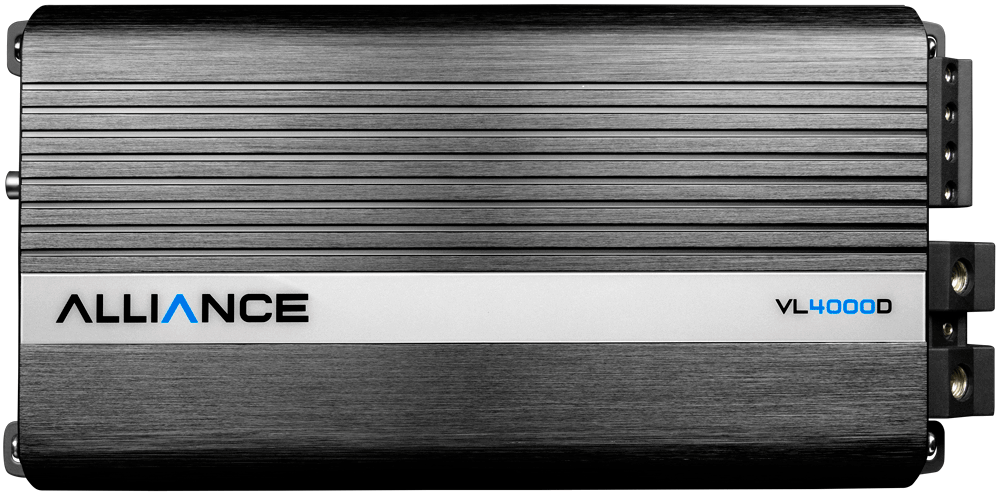

Alliance Audio VL4000D Monoblock Class D Amplifier

The Alliance Audio VL4000D is the top-of-the-line monoblock in the VL series — a compact, high-output Class D subwoofer amplifier delivering a skull-rattling 1000 watts RMS at 1 ohm and 4000 watts peak power in a chassis measuring just 14.7 cm × 29.8 cm × 4.8 cm. With the highest SNR in the entire VL mono lineup at 95dB, the VL4000D doesn't just hit hard — it hits clean. Whether you're building a hard-hitting daily driver, a SQL system, or an entry-level SPL competition build, this amp delivers the raw wattage, the precision tuning controls, and the thermal efficiency to back every install. Its Class D topology runs approximately 80% more efficiently than traditional Class A/B designs, keeping heat manageable even at sustained high-output levels with a max current draw of 115A and a music current draw of just 60A.

The VL4000D is equipped with a full suite of onboard tuning controls: a variable low-pass filter (50Hz–220Hz), a subsonic/high-pass filter (10Hz–50Hz), and a 0–12dB variable bass boost for dialing in your exact sub-bass character without an external processor or DSP. A damping factor of 150 ensures tight, controlled woofer movement for punchy, accurate bass reproduction rather than loose, boomy output. The wide input sensitivity range of 0.2V–9V integrates cleanly with factory head units and aftermarket source units alike, and the included wired sub-level remote puts real-time bass control at your fingertips from the driver's seat. Alliance Audio recommends a 90A inline fuse for safe, reliable operation at full output.

At Trinity Car Audio, the VL4000D is the go-to recommendation for builds demanding maximum output from a compact, stealth-install amplifier. Wire a dual 2-ohm DVC subwoofer in parallel to 1 ohm to unlock the full 1000W RMS, or run a dual 4-ohm DVC woofer in parallel to 2 ohms for a conservative 500W RMS daily driver setup. Pair it with a high-excursion 12", 15", or 18" subwoofer in a ported enclosure tuned between 32–40Hz for maximum low-frequency output, or a sealed enclosure for tighter, more accurate bass. For builds pushing the full 1000W RMS, upgrade to 1/0-gauge power and ground cable to minimize voltage drop and sustain peak output under load.

Why Choose the Alliance Audio VL4000D?

• 1000W RMS at 1 Ohm: The most powerful amp in the Alliance Audio VL mono lineup — stable 1-ohm operation for maximum power transfer to dual voice coil subwoofers.
• 95dB Signal-to-Noise Ratio: The highest SNR in the VL mono series, delivering exceptionally clean, low-noise amplification even at high output levels.
• 4000W Peak Power: Massive headroom for dynamic bass transients, hard-hitting SPL output, and sustained high-volume listening without clipping.
• Ultra-Compact 4.8 cm Mounting Depth: Fits under seats, behind panels, and in tight trunk corners where full-size high-power mono amps won't go.
• High-Efficiency Class D Topology: Runs ~80% more efficiently than Class A/B, keeping thermal output low and sustained power delivery consistent under load.
• Damping Factor of 150: Precise woofer control for punchy, accurate sub-bass — not loose or boomy output.
• Variable Bass Boost (0–12dB): Fine-tune your low-frequency emphasis without an outboard equalizer or signal processor.
• Wired Remote Sub Control Included: Real-time bass level adjustment from the driver's seat — essential for daily driver and competition builds alike.

Amplifier & Subwoofer Pairing Recommendations

The VL4000D is best matched with a single high-excursion subwoofer rated 500–1000W RMS, or a pair of woofers wired to a 1-ohm or 2-ohm combined load. For ported enclosure builds, set the low-pass filter between 80–120Hz and the subsonic filter at 30–38Hz to protect the woofer from over-excursion below the box's tuning frequency. For sealed enclosures, a low-pass setting of 80Hz with the subsonic filter at 20–25Hz is typically sufficient. Wire the amp with 1/0-gauge power and ground cable for full 1000W RMS builds to minimize voltage drop and maintain peak output under sustained load. Install a 90A inline fuse within 18 inches of the battery per Alliance Audio's recommendation. A secondary battery or high-output alternator is strongly recommended for competition or extended high-volume use.

Full Specifications

Frequently Asked Questions

How does the VL4000D compare to the rest of the Alliance Audio VL mono lineup?
The VL4000D is the most powerful monoblock in the VL series at 1000W RMS @ 1Ω — 33% more output than the VL3000D (750W), double the VL2000D (500W), and nearly triple the VL1500D (375W). It also carries the highest SNR in the lineup at 95dB for the cleanest output at high power levels.

What subwoofer pairs best with the VL4000D?
A single 12", 15", or 18" high-excursion subwoofer rated 500–1000W RMS is ideal. A dual 2-ohm DVC subwoofer wired in parallel to 1 ohm will unlock the full 1000W RMS output for maximum SPL impact.

Do I need a secondary battery for the VL4000D?
For daily driver use at moderate volumes, your stock electrical system may be sufficient. For sustained high-volume listening or competition use at full output (115A max draw), a secondary battery and/or high-output alternator is strongly recommended to prevent voltage drop and protect your vehicle's electrical system.

What power wire and fuse do I need?
Use 1/0-gauge power and ground cable for full 1000W RMS builds. Install a 90A inline fuse within 18 inches of the battery per Alliance Audio's specification. For shorter runs or lower-power daily driver setups, 4-gauge is the minimum acceptable wire gauge.
