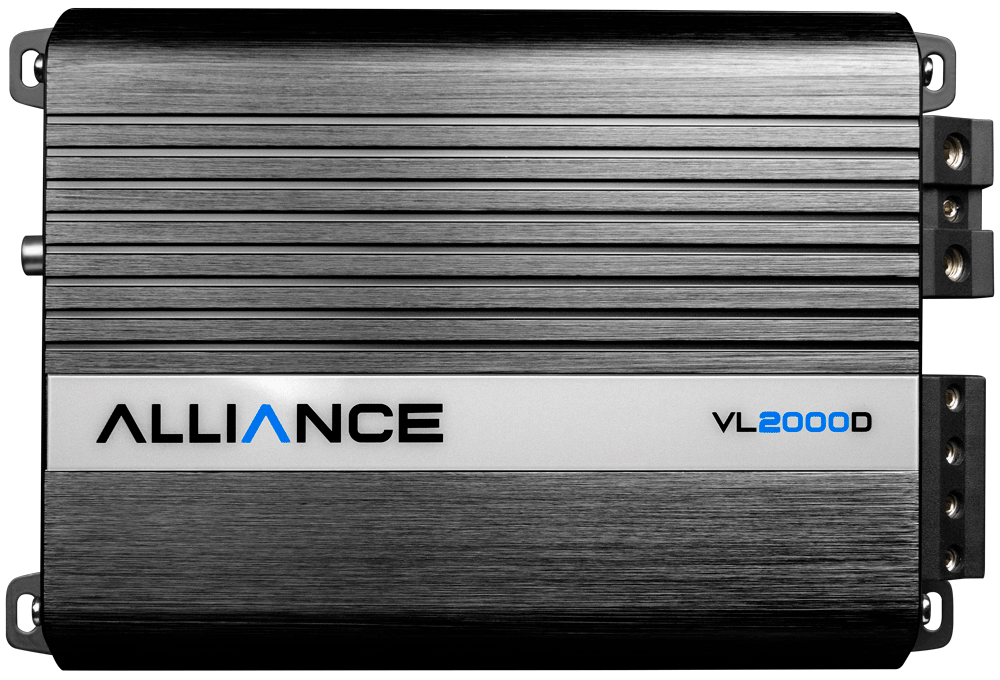

Alliance Audio VL2000D Monoblock Class D Amplifier

The Alliance Audio VL2000D is a compact, high-efficiency monoblock Class D amplifier delivering 500 watts RMS at 1 ohm — 2000 watts peak — in a slim chassis measuring just 14.7 cm × 21.6 cm × 4.8 cm. Sitting squarely between the VL1500D and VL3000D in the Alliance Audio VL mono lineup, the VL2000D is the sweet spot for enthusiasts who want serious sub-bass output in a stealth install package. Its Class D topology runs approximately 80% more efficiently than traditional Class A/B amplifiers, keeping heat low and power delivery consistent during extended high-volume listening — all while drawing just 59A at max and 31A during real-world music playback.

Precision tuning is built in: the VL2000D features a variable low-pass filter (50Hz–220Hz), a subsonic/high-pass filter (10Hz–50Hz), and a 0–12dB variable bass boost for dialing in your exact sub-bass response without an external processor. A damping factor of 150 and 92dB signal-to-noise ratio ensure tight, controlled woofer movement and clean, low-noise amplification at every output level. The wide input sensitivity range of 0.2V–9V makes it compatible with factory head units and aftermarket decks without additional signal adapters, and the included wired sub-level remote puts bass control at your fingertips from the driver's seat. Alliance Audio recommends a 50A inline fuse for safe, reliable operation.

At Trinity Car Audio, the VL2000D is an ideal power plant for a single 10", 12", or 15" subwoofer rated 250–500W RMS in a ported or sealed enclosure. Wire a dual 2-ohm DVC subwoofer in parallel to 1 ohm to unlock the full 500W RMS output, or run a dual 4-ohm DVC woofer in parallel to 2 ohms for a more conservative 250W RMS daily driver setup. Whether you're building a clean under-seat install or a trunk-mounted bass system, the Alliance Audio VL2000D delivers the power, precision, and compact footprint to make your low end hit hard without taking over your vehicle.

Why Choose the Alliance Audio VL2000D?

• 500W RMS at 1 Ohm: Stable 1-ohm operation lets you wire dual voice coil subwoofers in parallel for maximum power transfer and deep, authoritative bass output.
• Sweet Spot in the VL Mono Lineup: More power than the VL1500D, more compact than the VL3000D — the VL2000D hits the ideal balance of output and install flexibility.
• Ultra-Compact 4.8 cm Mounting Depth: Fits under seats, behind panels, and in tight trunk corners where full-size mono amps simply won't go.
• High-Efficiency Class D Topology: Runs ~80% more efficiently than Class A/B, generating less heat and drawing less current for the same output level.
• Damping Factor of 150: Delivers precise, controlled woofer movement for punchy, accurate sub-bass rather than loose, boomy output.
• Variable Bass Boost (0–12dB): Fine-tune your low-frequency emphasis on the fly without an outboard equalizer or signal processor.
• Wired Remote Sub Control Included: Adjust bass level from the driver's seat without touching the amp — essential for daily driver builds.
• Built-In Crossover Filters: Onboard LPF (50–220Hz) and subsonic filter (10–50Hz) protect your subwoofer and keep your bass tight, clean, and distortion-free.

Amplifier & Subwoofer Pairing Recommendations

The VL2000D pairs best with a single subwoofer rated between 250–500W RMS. A dual 2-ohm DVC subwoofer wired in parallel to 1 ohm will unlock the full 500W RMS output. For a more conservative daily driver setup, wire a dual 4-ohm DVC woofer in parallel to 2 ohms for 250W RMS with lower thermal demand. For ported enclosures, set the low-pass filter between 80–120Hz and the subsonic filter at 25–35Hz to protect the woofer below the box's tuning frequency. For sealed enclosures, a low-pass setting of 80Hz with the subsonic filter at 20–25Hz is typically sufficient. Wire the amp with a minimum 4-gauge power and ground cable, and install a 50A inline fuse within 18 inches of the battery per Alliance Audio's recommendation.

Full Specifications

Frequently Asked Questions

How does the VL2000D compare to the VL1500D and VL3000D?
The VL2000D delivers 500W RMS at 1 ohm — 33% more than the VL1500D (375W) and two-thirds the output of the VL3000D (750W). It's the ideal middle-ground choice for builds that need more power than the VL1500D but don't require the full output of the VL3000D.

What subwoofer pairs best with the VL2000D?
A single 10", 12", or 15" subwoofer rated 250–500W RMS is ideal. A dual 2-ohm DVC subwoofer wired in parallel to 1 ohm will unlock the full 500W RMS output for maximum impact.

Can I use the VL2000D with a factory head unit?
Yes. The 0.2V–9V input sensitivity range is compatible with low-voltage factory outputs in most vehicles. No line output converter is required in the majority of OEM applications.

What power wire and fuse do I need?
Use a minimum 4-gauge power and ground cable. Install a 50A inline fuse within 18 inches of the battery per Alliance Audio's recommendation for safe, reliable operation.
