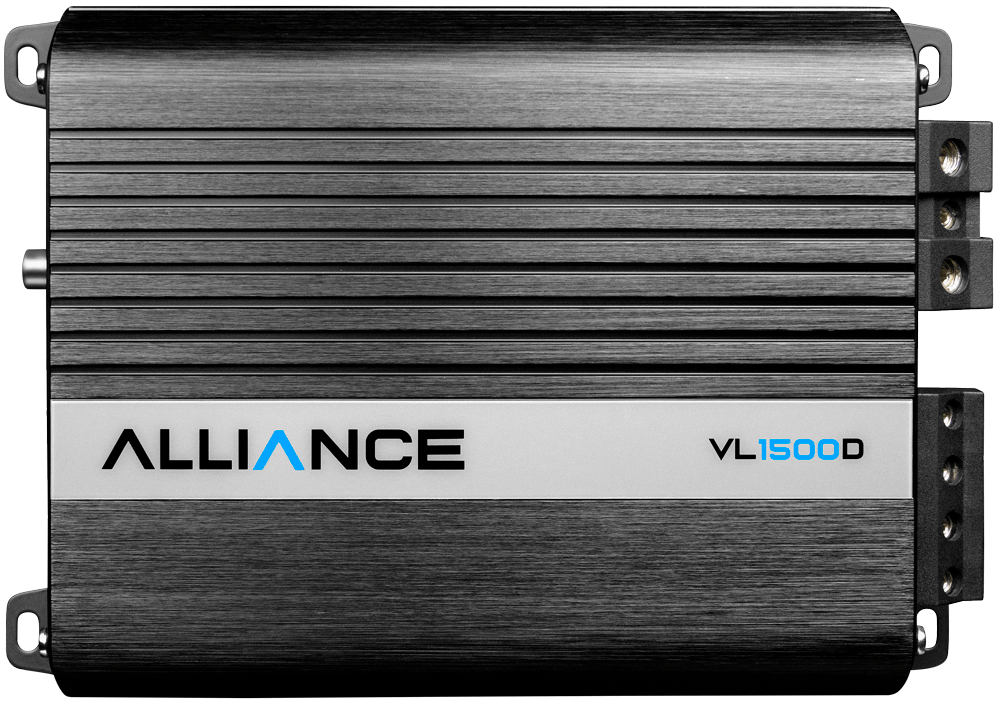

Alliance Audio VL1500D Monoblock Class D Amplifier

The Alliance Audio VL1500D is a compact, high-efficiency monoblock Class D amplifier delivering up to 375 watts RMS at 1 ohm in a chassis small enough to tuck under a seat or fit in the tightest trunk builds. Engineered for serious bass enthusiasts who need real power without sacrificing install flexibility, the VL1500D pairs precision low-frequency amplification with a rock-solid Class D topology that runs 80% more efficiently than traditional Class A/B designs — keeping heat low and output consistent even during extended high-volume sessions.

The VL1500D features a variable low-pass filter (50Hz–220Hz), a subsonic/high-pass filter (10Hz–50Hz), and a 0–12dB variable bass boost for dialing in your exact sub-bass response without an external processor. With an input sensitivity range of 0.2V to 9V, it integrates cleanly with both factory head units and aftermarket source units. A damping factor of 150 ensures tight, controlled woofer movement for punchy, accurate bass reproduction. The included wired sub-level remote lets you adjust bass output on the fly from the driver's seat — no reaching into the trunk required.

At just 14.7 cm × 20.8 cm × 4.8 cm and 1.8 kg, the VL1500D is purpose-built for stealth installs where space is at a premium. It operates across a wide voltage range of 9V–16V, draws a maximum of 45A at full tilt, and is recommended to be fused at 30A for safe, reliable operation. Whether you're powering a single 10", 12", or 15" subwoofer in a ported or sealed enclosure, the Alliance Audio VL1500D delivers clean, efficient, high-output bass amplification in a package that fits anywhere.

Why Choose the Alliance Audio VL1500D?

• Compact Monoblock Design: At just 14.7 × 20.8 × 4.8 cm, it fits under seats, in small trunk corners, or behind panels where full-size amps won't go.
• High-Efficiency Class D Topology: Runs 80% more efficiently than Class A/B, generating less heat and drawing less current for the same output.
• 375W RMS at 1 Ohm: Stable 1-ohm operation lets you wire dual voice coil subwoofers in parallel for maximum power delivery.
• Variable Bass Boost (0–12dB): Dial in the exact low-frequency emphasis your system needs without an outboard equalizer or processor.
• Wired Remote Sub Control Included: Adjust bass level from the driver's seat without touching the amp — ideal for daily drivers.
• Wide Input Sensitivity (0.2V–9V): Compatible with factory head units, aftermarket decks, and DSP outputs without additional signal adapters.
• Built-In Crossover Filters: Onboard LPF (50–220Hz) and subsonic filter (10–50Hz) protect your subwoofer and keep your bass tight and clean.
• Damping Factor of 150: Delivers precise woofer control for punchy, accurate sub-bass rather than loose, boomy output.

Amplifier & Subwoofer Pairing Recommendations

The VL1500D is best matched with a single subwoofer rated between 150–375W RMS, or a dual voice coil subwoofer wired to a 1-ohm or 2-ohm load. For a ported enclosure build, set the low-pass filter between 80–120Hz and the subsonic filter at 25–35Hz to protect the woofer from over-excursion below the box's tuning frequency. For sealed enclosures, a low-pass setting of 80Hz with no subsonic filter is typically sufficient. Wire the amp with a minimum 4-gauge power and ground cable, and use the included remote to fine-tune bass output for different music genres on the fly.

Full Specifications

Frequently Asked Questions

What size subwoofer pairs best with the VL1500D?
The VL1500D works well with 10", 12", or 15" subwoofers rated between 150–375W RMS. A dual 2-ohm DVC subwoofer wired in parallel to 1 ohm will unlock the full 375W RMS output.

Can I use this amp with a factory head unit?
Yes. The wide input sensitivity range (0.2V–9V) makes the VL1500D fully compatible with low-voltage factory outputs. No line output converter is required in most cases.

Is this amp better suited for a ported or sealed enclosure?
Both work well. Ported enclosures will maximize output and low-frequency extension; sealed enclosures will deliver tighter, more accurate bass. Use the subsonic filter (set around 30Hz) when running ported to protect the woofer.

What gauge power wire do I need?
Alliance Audio recommends a minimum 4-gauge power and ground cable for the VL1500D. Use a 30A inline fuse within 18 inches of the battery for safe, code-compliant installation.
