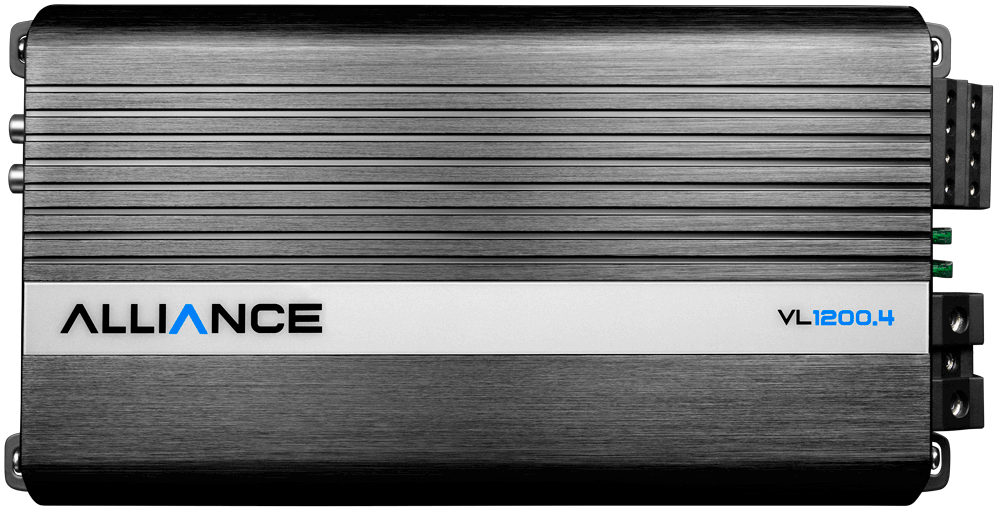

Alliance Audio VL12004 4-Channel Class A/B Amplifier

The Alliance Audio VL12004 is a compact 4-channel Class A/B amplifier delivering 4 × 150 watts RMS at 2 ohms — 1200 watts peak — with the warm, natural sound signature that Class A/B is known for. Measuring just 14.7 cm × 29 cm × 4.8 cm, it's engineered for tight installs where space is limited but audio quality can't be compromised. With a signal-to-noise ratio of 93dB — the highest in the Alliance Audio VL series — the VL12004 delivers exceptionally clean, low-noise amplification across a full 10Hz–30kHz frequency response, making it an ideal choice for powering component speaker sets, coaxial speakers, and mid-bass drivers in any vehicle.

The VL12004 features independent high-pass and low-pass filters (50Hz–250Hz) on each channel pair for precise crossover control, and a wide input sensitivity range of 0.2V–6V for seamless integration with factory or aftermarket head units. Its Class A/B topology operates at 70% efficiency — lower than Class D, but delivering the warmer, more musical midrange character that audiophile-oriented builds demand. A damping factor of 100 keeps speaker movement controlled and accurate, and the 9V–16V operating range ensures compatibility with any standard 12V vehicle electrical system. Max current draw is 53A, with a music current draw of 28A for real-world listening conditions.

At Trinity Car Audio, the VL12004 is a go-to recommendation for listeners who prioritize sound quality and tonal accuracy over raw efficiency. Pair it with a quality set of 6.5" component speakers up front and coaxials in the rear, or bridge channels 3 and 4 to drive a mid-bass woofer while channels 1 and 2 handle your front stage. Whether you're building a clean OEM-style upgrade or a full custom install, the Alliance Audio VL12004 brings the warmth, clarity, and compact footprint to make every drive sound exceptional.

Why Choose the Alliance Audio VL12004?

• 4 × 150W RMS at 2 Ohms: Solid real-world power across all four channels for dynamic, full-range speaker performance.
• Class A/B Topology: Delivers the warm, musical sound signature preferred by audiophile and sound quality (SQ) enthusiasts over pure efficiency-focused Class D designs.
• 93dB Signal-to-Noise Ratio: The highest SNR in the Alliance Audio VL amplifier lineup — exceptionally clean, low-noise output for critical listening.
• Ultra-Compact 4.8 cm Mounting Depth: Fits under seats, behind panels, and in tight trunk corners where full-size 4-channel amps simply won't go.
• 10Hz–30kHz Frequency Response: Full-range output from sub-bass extension to high-frequency detail, covering the entire audible spectrum.
• Built-In High & Low Pass Filters (50–250Hz): Precise crossover control on each channel pair without needing an external DSP or processor.
• Wide Input Sensitivity (0.2V–6V): Plug directly into factory or aftermarket head units without a line output converter in most applications.
• Bridgeable Channels: Bridge channels 1 & 2 or 3 & 4 to power a mid-bass driver or small subwoofer alongside your full-range front stage.

Speaker Pairing & Wiring Recommendations

The VL12004 pairs best with component speakers or coaxials rated between 50–150W RMS per channel. For a front stage build, run channels 1 and 2 to a set of 6.5" component speakers and channels 3 and 4 to rear coaxials or a second component set. To bridge channels for mono mid-bass output, ensure the bridged load is no lower than 4 ohms. Wire the amp with a minimum 4-gauge power and ground cable, fused within 18 inches of the battery. Set the high-pass filter between 80–100Hz to protect your speakers from low-frequency over-excursion and keep your soundstage clean and focused.

Full Specifications

Frequently Asked Questions

What's the difference between the VL12004 (Class A/B) and the VL20004 (Class D)?
The VL12004 uses Class A/B topology, which delivers a warmer, more musical sound signature preferred by sound quality enthusiasts. The VL20004 is Class D, offering higher efficiency and more power per dollar. Choose the VL12004 if tonal accuracy and low noise floor are your priorities.

Can I use the VL12004 with a factory head unit?
Yes. The 0.2V–6V input sensitivity range is compatible with low-voltage factory outputs in most vehicles. No line output converter is required in the majority of OEM applications.

Can I bridge the VL12004?
Yes — channels 1 & 2 and channels 3 & 4 can each be bridged for higher mono output. When bridging, ensure the speaker load is no lower than 4 ohms to keep the amp stable.

What power wire gauge do I need?
Use a minimum 4-gauge power and ground cable. With a max current draw of 53A, install a 60A inline fuse within 18 inches of the battery for safe, reliable operation.
