Violator Audio VA3600.4 3,600 Watt 4-Channel Amplifier

The Violator Audio VA3600.4 is a four-channel high-fidelity amplifier designed in the USA for multi-speaker car audio systems that demand clean power and precise tuning.

• RMS @ 4 Ω: 155 x 4 — per-channel output into a 4-ohm load, providing stable, controllable power to all four channels for reliable everyday listening.
• RMS @ 2 Ω: 255 x 4 — higher current capability at 2 Ω loads to maintain dynamics with demanding speaker configurations.
• THD: 0.06% — low distortion at rated power preserves musical clarity across the full dynamic range.
• S/N RATIO: 93 dB — a quiet signal path that minimizes noise in the system for cleaner quiet passages.
• FREQUENCY RESPONSE: 10 Hz – 25 kHz — covers the full audible spectrum with extended low-end extension and detailed high-end output.
• LPF RANGE: 45 Hz – 490 Hz — enables precise high-frequency roll-off to shape the upper end of each channel’s output.
• HPF RANGE: 20 Hz – 5.2 kHz — allows bass management and speaker protection by setting the low-frequency cutoff per channel.
• BASS BOOST FREQUENCY: 47 Hz — targeted enhancement to add punch in the bass region when desired.
• BASS BOOST GAIN POTENTIAL: 0 dB / 6 dB / 12 dB — selectable levels to tailor bass presence to the installation and music style.
• INPUT SENSITIVITY RANGE: 0.2 – 5.5 VAC — defines how strong the source signal must be to reach full output, aiding compatibility with a wide range of head units.
• INPUT VOLTAGE RANGE: 9 VDC – 16 VDC — designed for typical vehicle electrical systems with tolerance for voltage variations.

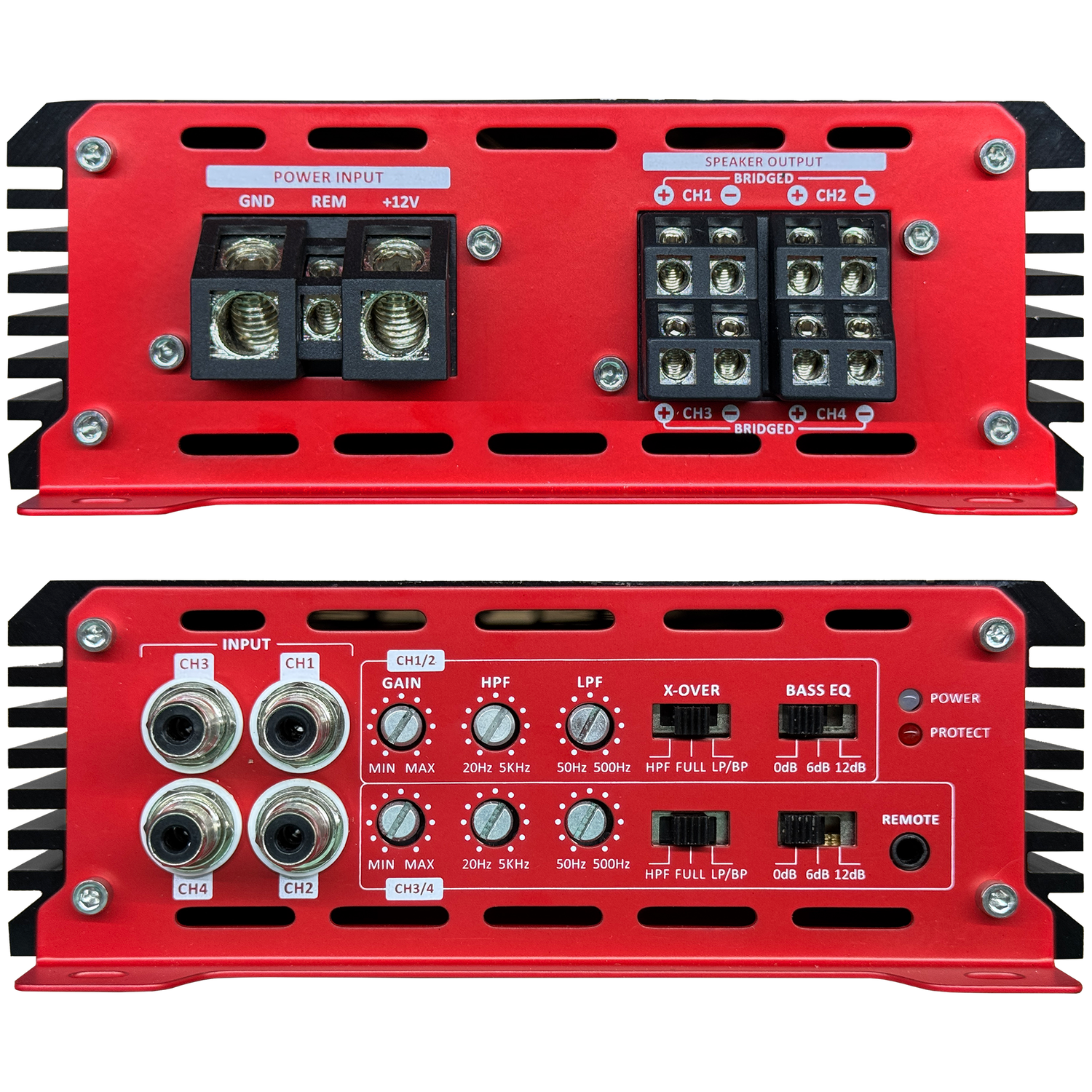

• Panel-Locking RCA Audio Inputs — secure connections to resist vibration during dynamic driving.
• Subsonic Filtration — filters ultra-low frequencies to reduce driver strain and improve overall bass control.
• Variable Adjustable High Pass Filtration — per-channel HPF adjustment for tailored bass management and driver protection.
• Variable Adjustable Low Pass Filtration — per-channel LPF adjustment to shape high-frequency roll-off and clarity.
• Comprehensive Band-Pass Customization — flexible crossovers allow precise channel-by-channel bandwidth configuration.
• Custom Machined Aluminum Heat Sink — efficient cooling to sustain performance under demanding loads.
• Robust Power Inputs & Speaker Outputs — nickel-plated connectors for reliable, low-resistance signal transfer.
• Nickel Plated Connects for Superior Conductivity — minimizes contact resistance for consistent performance.
• Thermal Protection Circuitry — protects the amplifier from overheating during extended use.
• Dead Short Protection — guards against short-circuit conditions to protect connected speakers and wiring.
• Low Voltage Protection — shields the amp and system from voltage dips that could cause instability.
• Sleek Custom Design — a refined chassis that compatibility with performance-focused installations.

Benefits: In a four-channel install, the VA3600.4 furnishes four channels of clean, controllable power with extensive bass management and protection features. The adjustable HPF/LPF, subsonic filtration, and bass boost options let you tailor front and rear channel performance, while protection circuitry and a robust heat sink help preserve sound quality and reliability in demanding listening sessions and challenging vehicle environments.
