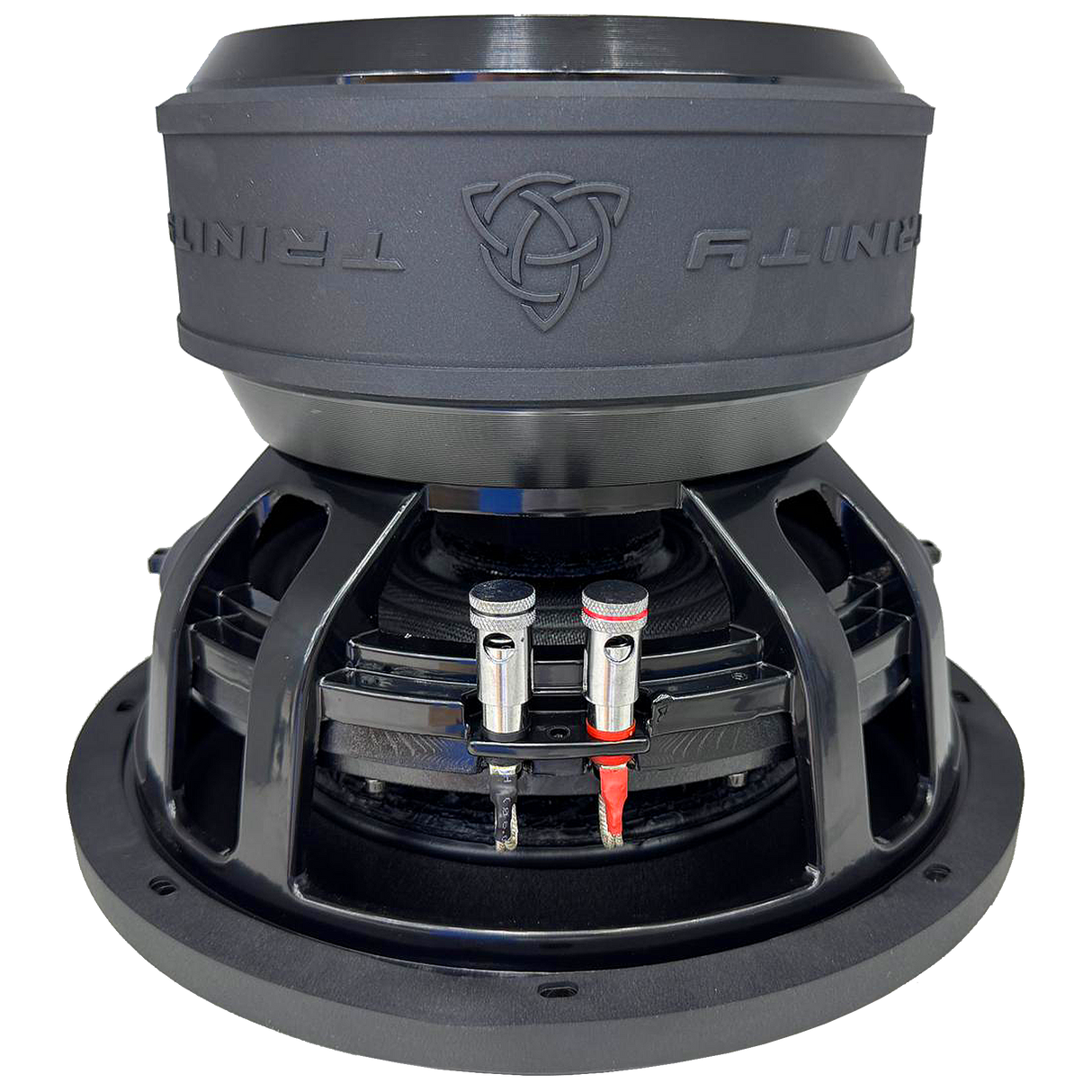

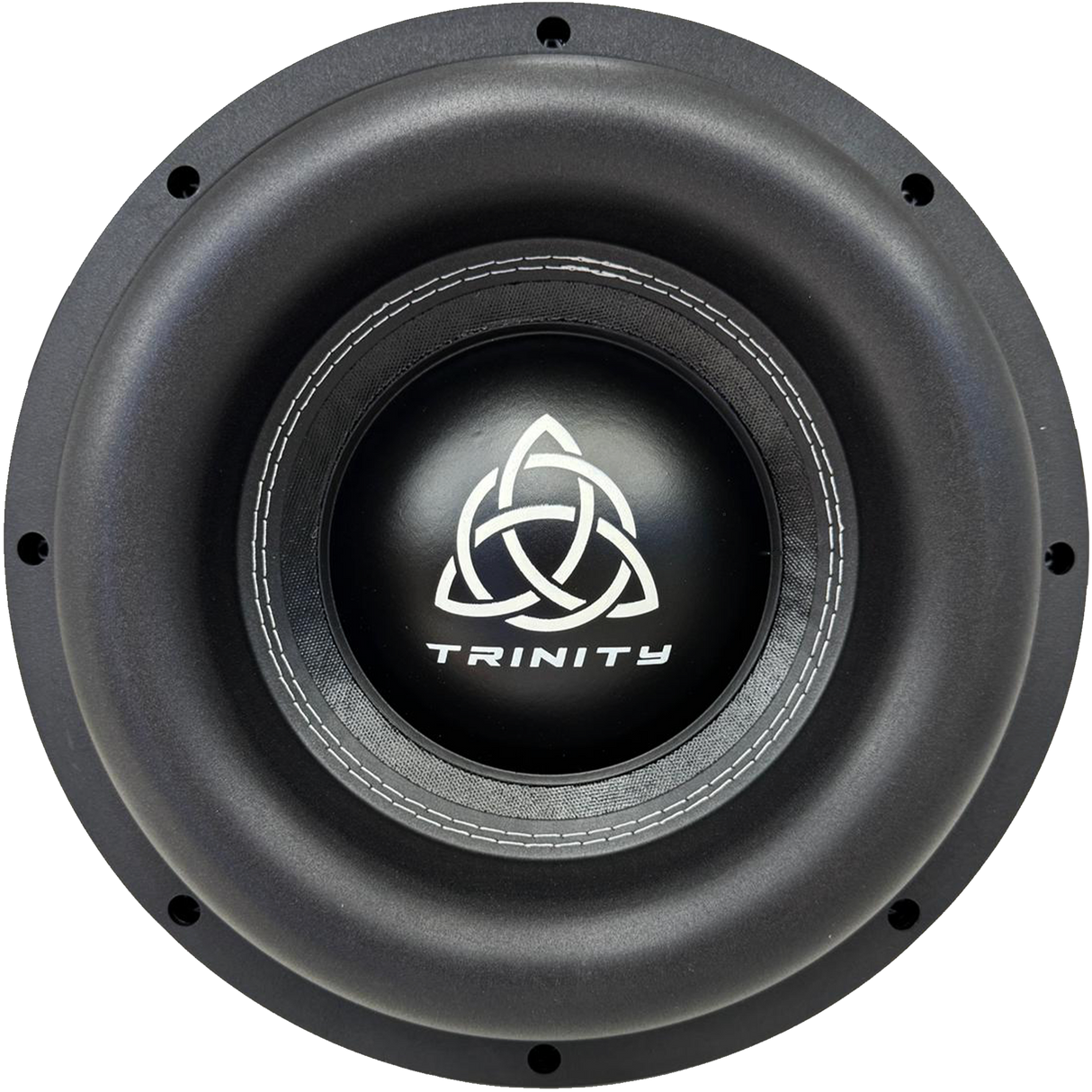

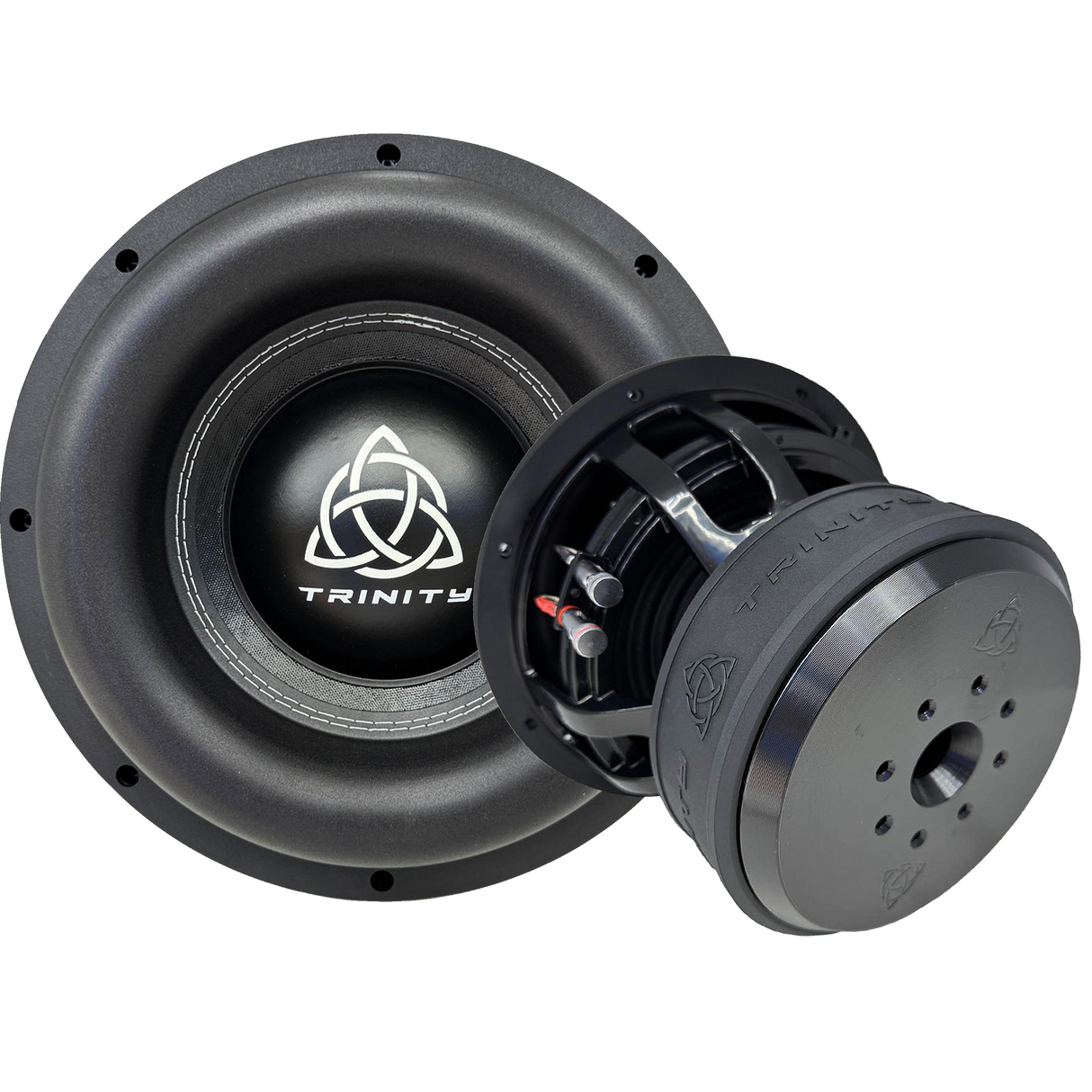

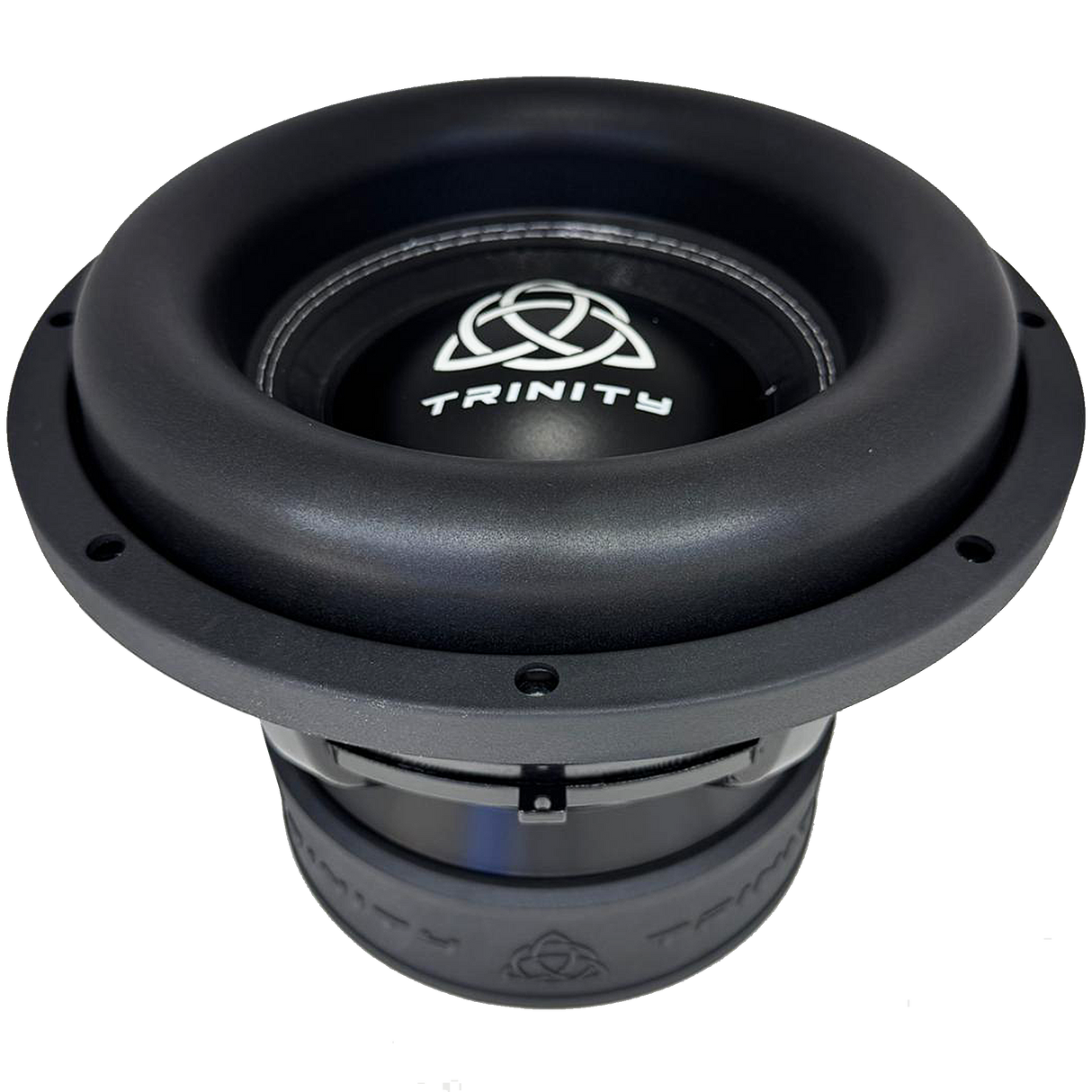

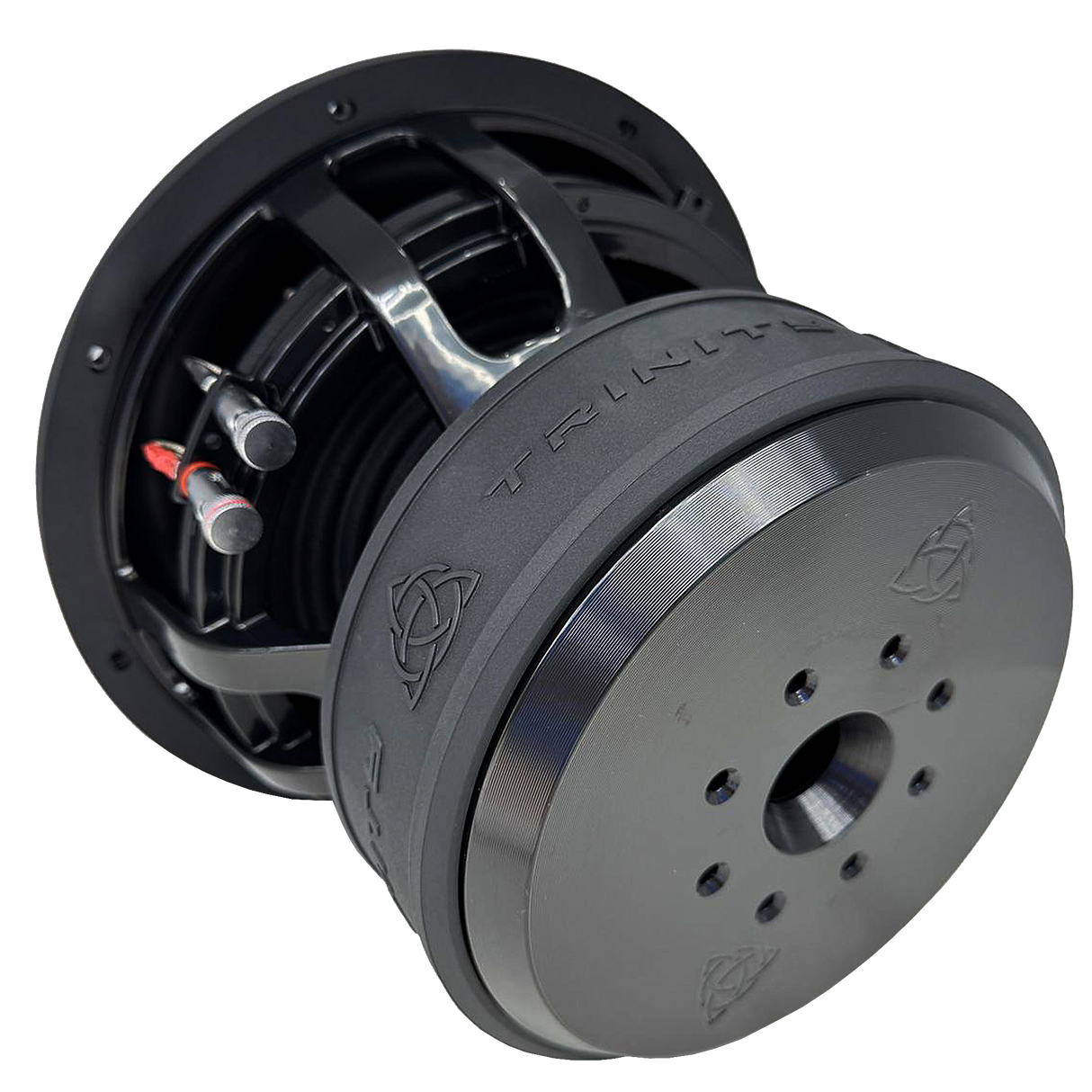

Trinity M Series 12" Subwoofer 2,000 Watts RMS

The Trinity M Series 12" Subwoofer is a high-power 2,000 W RMS woofer built for bass enthusiasts who demand deep, articulate low end in daily and competitive installations. A 650 oz double-stacked ferrite motor and FEA-optimized structure deliver strong bass with tight control, while an integrated airflow system aids heat dissipation during extended use.

• RMS Power: 2,000 W RMS continuous power handling for sustained, high-output bass without excessive distortion.
• Burst Power: 6,000 W peak burst rating (per spec) to accommodate transient musical transients and test signals.
• 650 oz Double-Stacked Ferrite Motor: High magnet weight and dual-stack configuration to maximize magnetic flux for deep, impactful lows with improved control.
• FEA-Optimized Structure: Finite Element Analysis-informed frame and magnet assembly to minimize flex and maintain performance at high excursion.
• Triple-Layer Foam Surround: Durable, high-excursion surround that supports extended bass travel and reduces edge distortion.
• Rigid Composite Paper Cone: Provides precise, accurate bass reproduction with minimal cone breakup across the frequency range.
• 10" Quad-Layer Progressive Nomex Spider Pack: Advanced spider assembly delivering stable suspension and consistent behavior under heavy excursion.
• 3" BASV High-Temperature Dual Voice Coil: Large-diameter, heat-resistant voice coils for sustained power handling and strong motor strength.
• Optimized Airflow Across Motor and Basket: Enhanced cooling path to maintain performance during prolonged play and high-demand bursts.

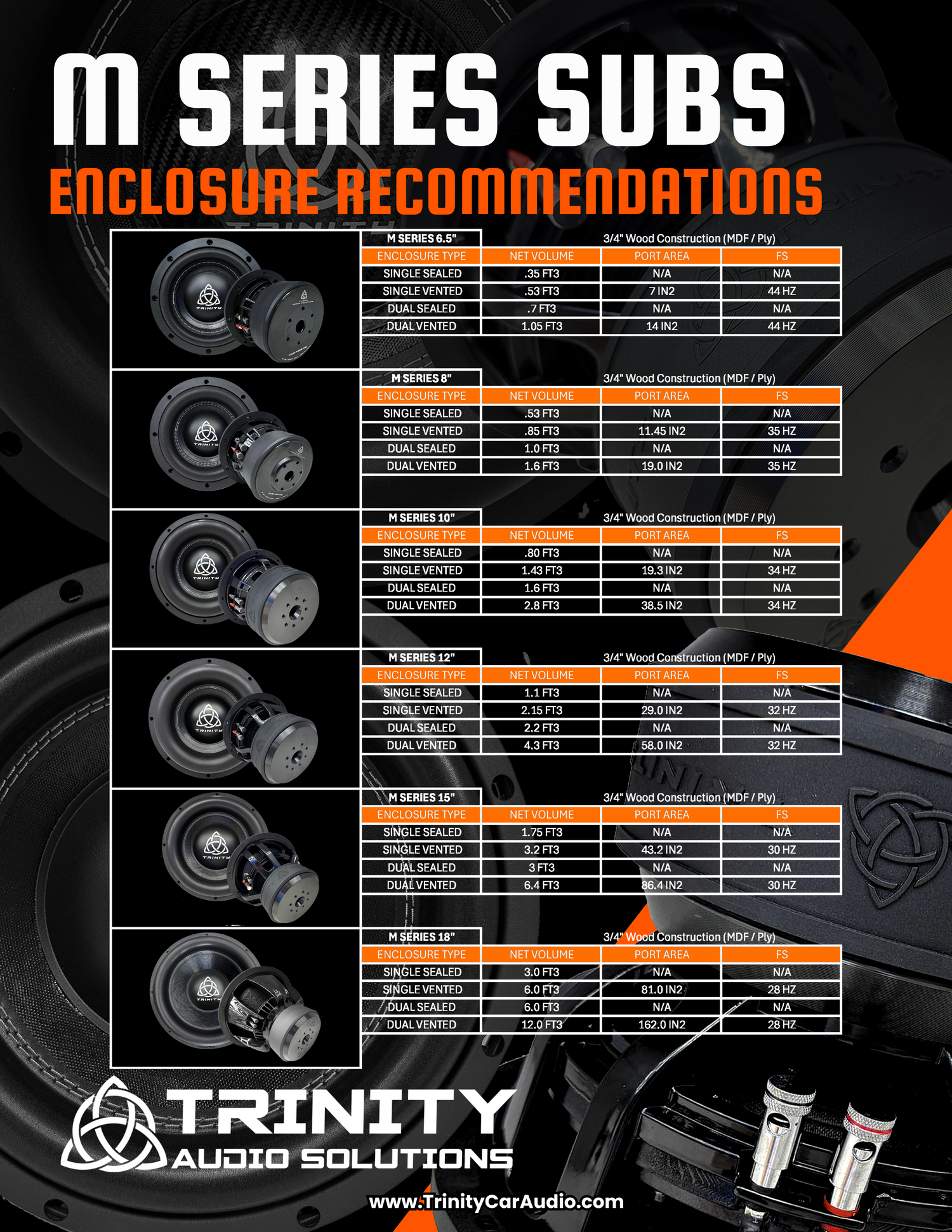

• Enclosure Compatibility: Suitable for ported or bandpass enclosures to tailor bass output to your install and goals.
• Recone Options & 1-Year Warranty: Serviceable cone/coil assembly options and manufacturer-backed coverage for long-term value.

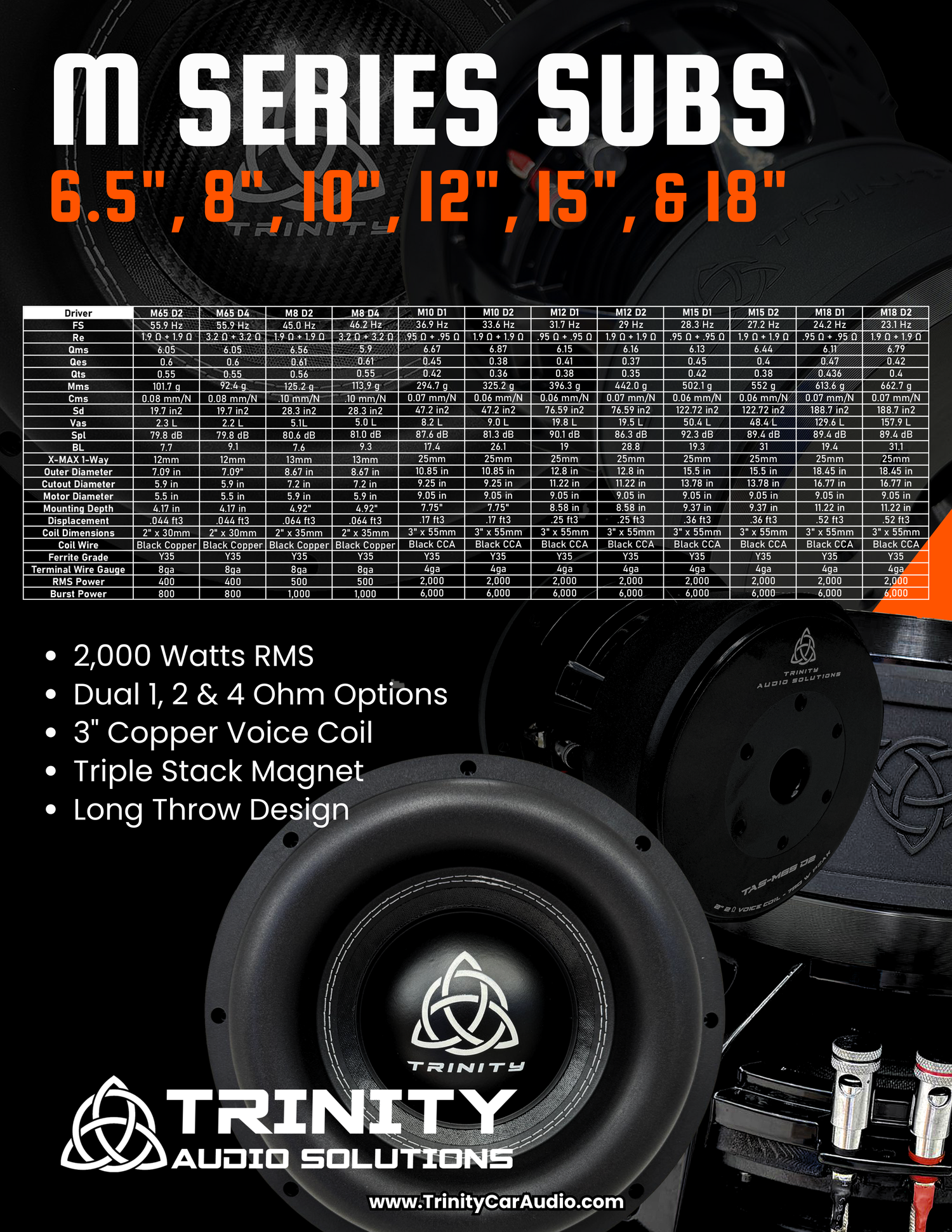

• Driver Data (M12 D1 / M12 D2): FS 31.7 Hz / 29 Hz; Re 0.95 Ω + 0.95 Ω / 1.9 Ω + 1.9 Ω; Qms 6.15 / 6.16; Qes 0.41 / 0.37; Qts 0.38 / 0.35; Mms 396.3 g / 442.0 g; Cms 0.06 mm/N / 0.07 mm/N; Sd 76.59 in2; Vas 19.8 L / 19.5 L; SPL 90.1 dB / 86.3 dB; BL 19 / 28.8; X-max 25 mm.
• Physical Size: Outer Diameter 12.8 in; Cutout Diameter 11.22 in; Motor Diameter 9.05 in; Mounting Depth 8.58 in; Displacement 0.25 ft3.

In a typical build, this subwoofer shines when paired with a properly tuned ported or bandpass enclosure, delivering deep bass with clarity and control at high volumes. The combination of the large ferrite motor, high-temperature voice coils, and robust suspension components provides reliable performance under demanding conditions, while recone options and a 1-year warranty offer confidence for long-term installations.
