SoundQubed Q1-10000 18v Q-Series Monoblock Amplifier
Description
Description
SoundQubed Q1-10000 — 10,000W Mono Amplifier | Q-Series | 18V Capable

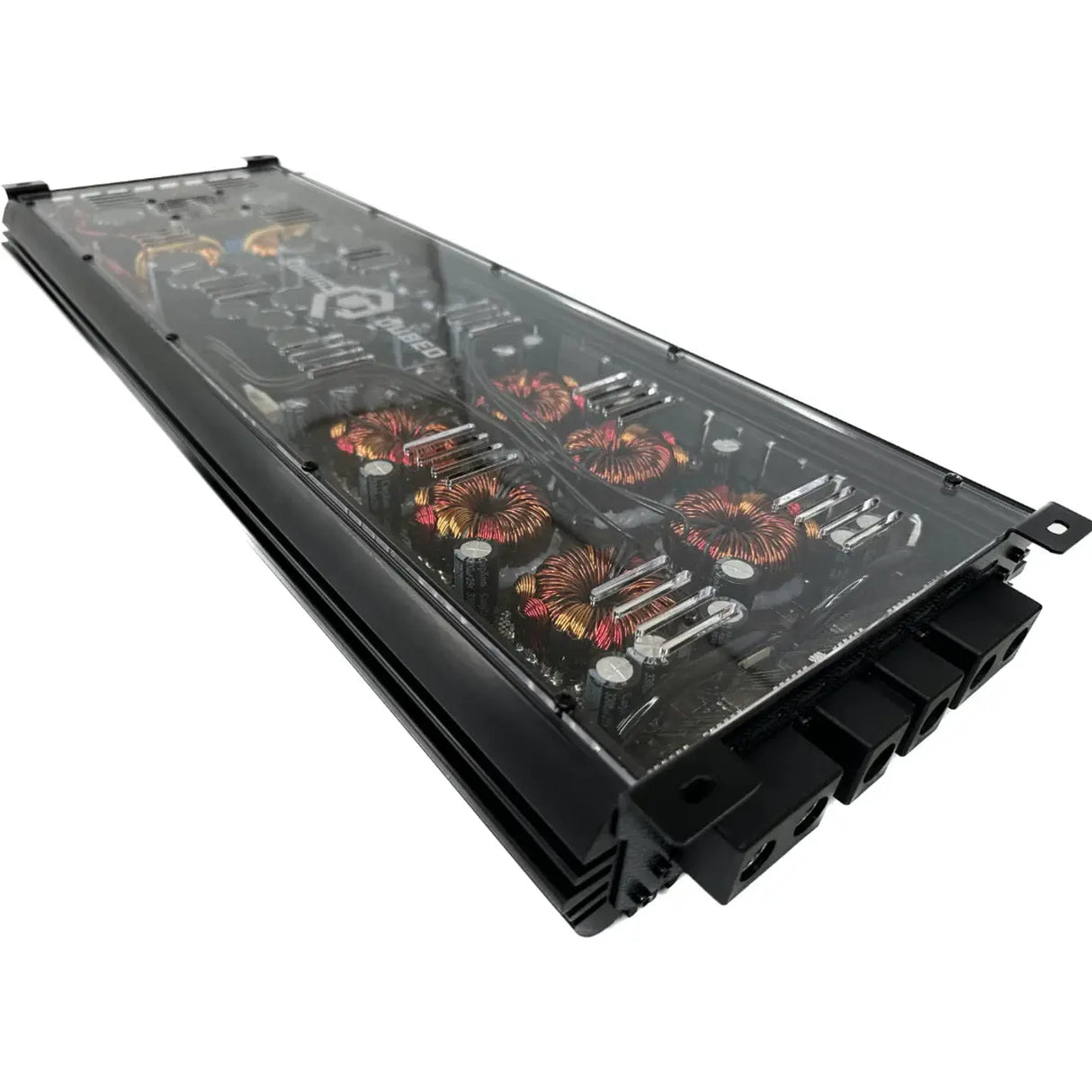

The SoundQubed Q1-10000 is the crown jewel of the Q-Series lineup — a full-tilt, no-compromise mono amplifier engineered for enthusiasts who demand maximum output and refuse to settle for anything less. Rated at 10,000W RMS at 1 ohm (14.4V) and capable of pushing 15,000W at 18V, this amplifier is built for high-output daily drivers, dedicated SPL competition builds, and any system where raw, skull-rattling power is the mission. Housed in a compact 27" chassis with machined end caps and a factory 1/4" plexi backing, the Q1-10000 delivers competition-grade performance with a premium aesthetic that looks as aggressive as it sounds.

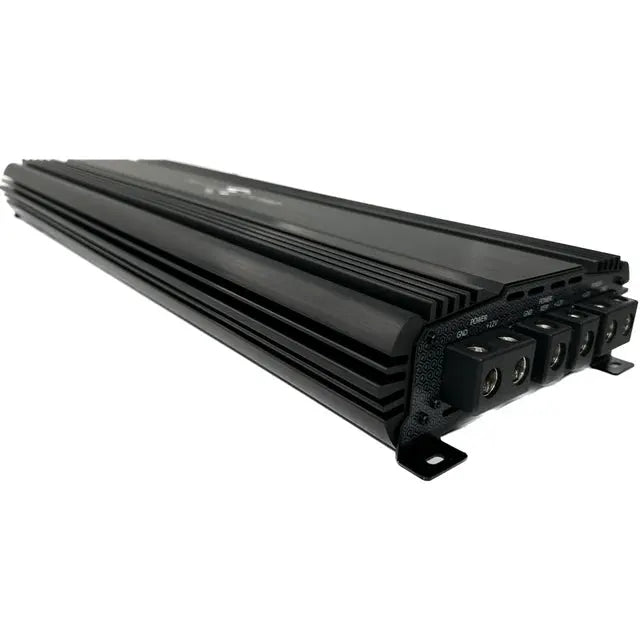

The Q1-10000 is engineered for real-world high-power installs. It features 3 x 1/0GA power and ground inputs to handle the massive current demands of a 10,000W amplifier, Tiffany-style RCA inputs for clean signal transfer, and a variable low-pass filter (20–200 Hz) for precise tuning to your subwoofer setup. Strappable (master/slave) connectivity allows you to link two Q1-10000 units for a combined 20,000+ watt system. The amplifier is 1 ohm stable for maximum power delivery, features a bass boost (0–6 dB @ 45 Hz), infrasonic filter (10–50 Hz), and remote level control in a metal case. With 97% efficiency at 4 ohm and a damping factor of 402, this is a precision instrument as much as it is a powerhouse.
Important: The Q1-10000 requires a properly upgraded electrical system to perform at its rated power. At minimum, you’ll need 350+ amps of alternator output, an upgraded under-hood battery, 1,000Ah of AGM or 140Ah of lithium reserve, multiple runs of 0-gauge power and ground wire, and a dash-mounted voltmeter. This is a professional-grade amplifier — consult a SoundQubed dealer or experienced install professional before purchasing.
Why Choose the SoundQubed Q1-10000?
- 10,000W RMS @ 1 Ohm (14.4V) / 15,000W @ 18V — Massive, competition-grade output built for serious SPL and high-output daily builds.
- 97% Efficiency @ 4 Ohm — Exceptional digital amplifier efficiency minimizes heat and maximizes power delivery to your subwoofers.
- 3 x 1/0GA Power & Ground Inputs — Handles the extreme current demands of a 10,000W amplifier with proper multi-run wiring configurations.
- Strappable (Master/Slave) — Link two Q1-10000 units for a combined 20,000+ watt system when maximum output is the only goal.
- Variable LPF (20–200 Hz) + Infrasonic Filter (10–50 Hz) — Precise crossover and subsonic control for optimal system tuning and driver protection.
- Bass Boost 0–6 dB @ 45 Hz — Dial in the exact amount of low-end punch your build demands.
- Full Protection Suite — Thermal, overload, DC output, short circuit, voltage input, and clipping protection for worry-free high-power operation.
- Tiffany RCA + Heavy Duty PCB + SMT Design — Premium components throughout, verified with Audio Precision instruments for quality control.
Amplifier & Electrical Recommendations
Subwoofer Pairing: The Q1-10000 is designed to drive high-power subwoofers in the 2,000–10,000W RMS range. It pairs exceptionally well with SoundQubed’s HDX and HDS series subwoofers wired to a 1Ω final load. Use the variable low-pass filter to set your crossover point between 50–80 Hz for most ported SPL builds, and engage the infrasonic filter to protect your drivers from over-excursion below their tuning frequency.
Electrical Requirements — Non-Negotiable: Running the Q1-10000 without a properly upgraded electrical system will result in poor performance, voltage sag, and potential damage. At minimum: 350+ amp high-output alternator, upgraded under-hood battery, 1,000Ah AGM or 140Ah lithium reserve, multiple 0-gauge power and ground runs, Big Three upgrade, and a dash-mounted voltmeter. Do not rely on the factory gauge. Consult a SoundQubed dealer or professional installer before purchasing.
Full Specifications
Power
| Specification | Value |
|---|---|
| RMS Power @ 4 Ohm (14.4V) | 3,500W |
| RMS Power @ 2 Ohm (14.4V) | 6,600W |
| RMS Power @ 1 Ohm (14.4V) | 10,000W |
| RMS Power @ 1 Ohm (16V) | 12,000W |
| RMS Power @ 1 Ohm (18V) | 15,000W |
Audio
| Specification | Value |
|---|---|
| Frequency Response | 10 Hz – 250 Hz |
| Signal to Noise Ratio | 90 dB |
| Efficiency @ 4 Ohm | 97% |
| Damping Factor | 402 |
| Input Impedance | 22 KOhms |
| Total Harmonic Distortion (THD) | 1% |
| Low Level Input Range | 0.15V – 5V |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 20 Hz – 200 Hz |
| Bass Boost Range | 0 – 6 dB |
| Bass Boost Frequency | 45 Hz |
| Infrasonic Filter | 10 Hz – 50 Hz |
Features
| Specification | Value |
|---|---|
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 3 x 1/0GA |
| Fuse Size (Recommended) | 900A |
| Remote Level Control | Yes (Metal Case) |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color | Black |
Extra Features
| Feature | Included |
|---|---|
| Very High Efficiency Digital Circuit Design | Yes |
| Tiffany Style RCA | Yes |
| Quality Control Verification Using Audio Precision Instruments | Yes |
| Heavy Duty Printed Circuit Board | Yes |
| Surface Mount Component Technology | Yes |
| Strappable Amplifier | Yes |
Measurements
| Dimension | Value |
|---|---|
| Overall Length | 27" / 687 mm |
| Overall Width | 9.4" / 241 mm |
| Overall Height | 3" / 76 mm |
| Heatsink Length | 25.6" / 650 mm |
Frequently Asked Questions
Q: What subwoofers should I run with the Q1-10000?
A: Pair it with high-power subwoofers rated at 2,000W RMS or more — SoundQubed’s HDX3.2, HDX4.2, or HDS3.3 series are ideal matches. Wire multiple subs to achieve a 1Ω final load at the amplifier for maximum power delivery.
Q: Can I run two Q1-10000 amplifiers together?
A: Yes — the Q1-10000 is strappable, allowing you to link two units for a combined 20,000+ watt system. This requires a fully built-out high-voltage electrical system capable of supporting both amplifiers simultaneously.
Q: What electrical upgrades do I absolutely need?
A: At minimum: a 350+ amp high-output alternator, upgraded under-hood battery, 1,000Ah AGM or 140Ah lithium reserve, multiple 0-gauge power and ground runs, Big Three upgrade, and a dash-mounted voltmeter. Do not attempt to run this amplifier on a stock electrical system.
Q: Is the Q1-10000 good for daily use or competition only?
A: The Q1-10000 is built for high-output daily drivers and SPL competition alike. With the proper electrical system in place, it can be run daily — but it demands a fully upgraded vehicle electrical system to perform safely and at rated power. It is not a plug-and-play amplifier for stock vehicles.
