SoundQubed HDX Series 6.5" 2-Way Component Speaker Set
Description
Description
SoundQubed HDX Series 6.5" 2-Way Component Speaker Set — Pair | Glass Fiber Cone | Silk Dome Tweeter | 400W Passive Crossover
The SoundQubed HDX Series 6.5" 2-Way Component Speaker Set is a complete front-stage upgrade engineered for enthusiasts who want a direct-fit, high-performance component system that keeps up with the rest of the HDX lineup. Built around a 6.5" glass fiber cone woofer, a 1.94" silk dome neodymium tweeter, and a 400W passive crossover with tweeter attenuation and protection, the HDX 6.5" component set delivers coherent midrange, crisp highs, and a wide soundstage — all from a system designed to install in stock door and dash locations with confidence. Sold as a pair with grills included.

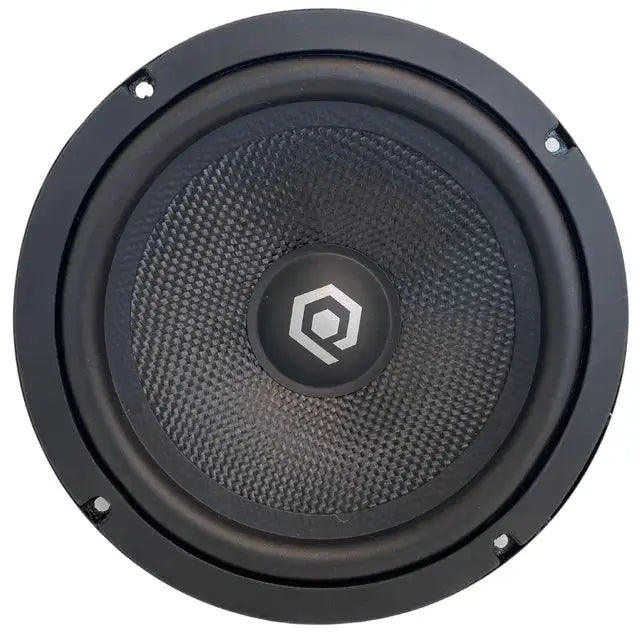

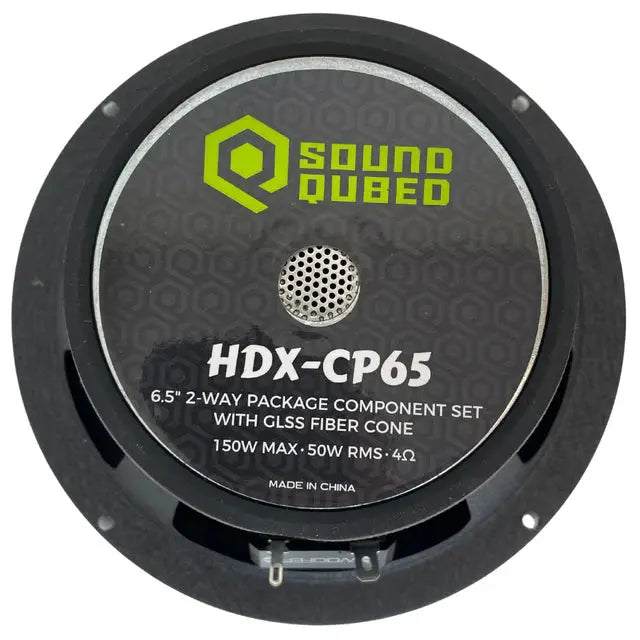

The 6.5" woofer features a glass fiber cone with a rubber surround, a 1" / 25.5mm KSV voice coil former wound with EISV winding material, and a 410g barium ferrite magnet in a black matte steel basket. With 50W RMS / 150W max power handling, 86 dB sensitivity, and a frequency response of 40 Hz–20 kHz, it delivers solid midrange output with a recommended hi-pass crossover at 60 Hz. The 1.94" silk dome tweeter uses a neodymium magnet and EISVM winding on an ASV former for smooth, detailed high-frequency reproduction. The included 2-way passive crossover crosses over at 3.5 kHz with a 12 dB/oct slope, metal film capacitors, ASV coil, tweeter attenuation adjustment, and built-in tweeter protection.
Why Choose the SoundQubed HDX Series 6.5" Component Set?
- 50W RMS / 150W Max @ 4Ω — Handles real amplifier power for a component set in this class — pairs well with any SoundQubed 4-channel amplifier.
- Glass Fiber Cone + Rubber Surround — Stiff, lightweight cone material delivers accurate midrange with controlled resonance and long-term durability.

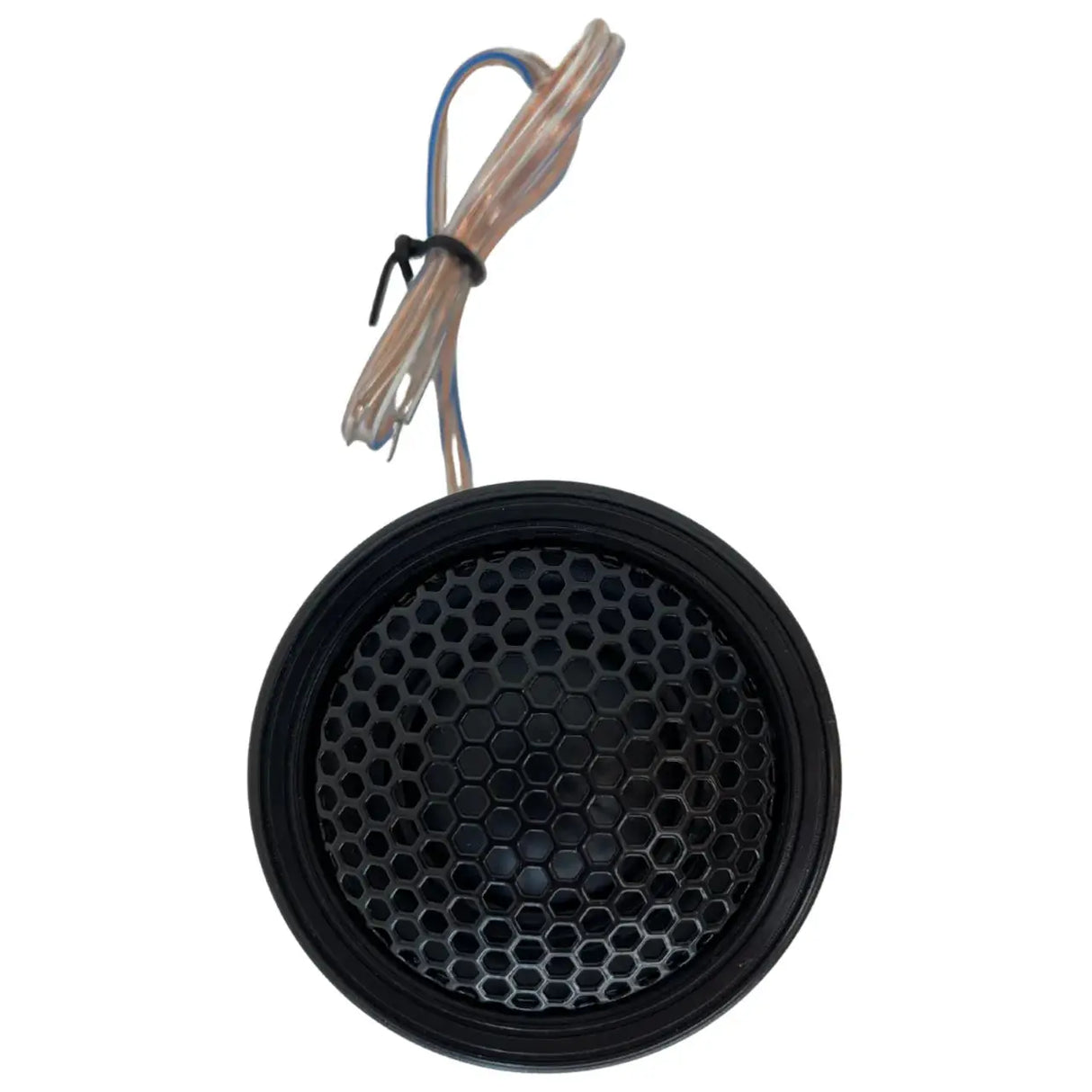

- 1.94" Silk Dome Neodymium Tweeter — Smooth, detailed high-frequency reproduction with a neodymium motor for high sensitivity in a compact package.
- 400W Passive Crossover @ 3.5 kHz / 12 dB/Oct — High-quality crossover with metal film capacitors, tweeter attenuation, and built-in tweeter protection — no active crossover required.
- 86 dB Sensitivity — Efficient enough for head unit power, but designed to shine with proper amplification.
- 40 Hz–20 kHz Frequency Response — Wide range from upper bass through extended treble — a complete front-stage solution.
- Stock-Location Friendly — 5.6" baffle cutout and 2.36" mounting depth fit most OEM 6.5" door and dash locations without modification.

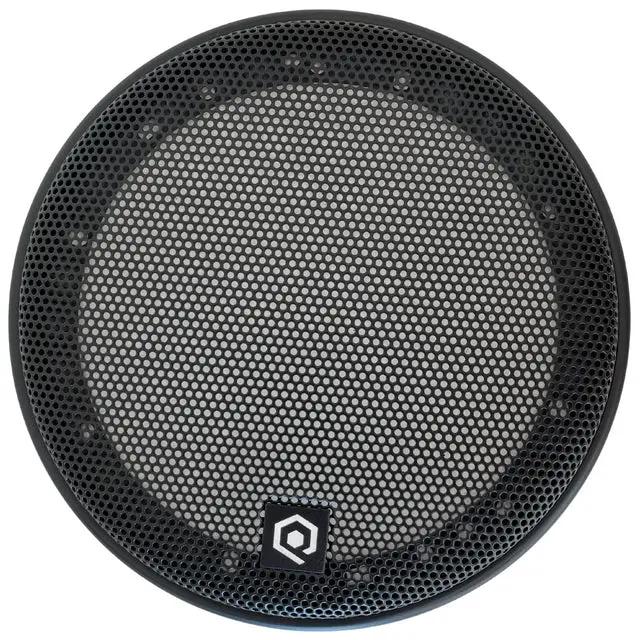

- Grills Included — Complete install-ready package — woofer grills included for a clean, finished look.
Installation & Pairing Recommendations
Amplifier Pairing: The HDX 6.5" component set handles 50W RMS / 150W max at 4Ω. It pairs perfectly with any SoundQubed 4-channel amplifier — the Q4-150ABv2 (150W x4), Q4-2000 (325W x4), or Q4-3200 (520W x4) are all excellent matches. Run channels 1/2 for the front component set with the amplifier’s HPF set at 60–80 Hz, and let the passive crossover handle the woofer/tweeter split at 3.5 kHz.

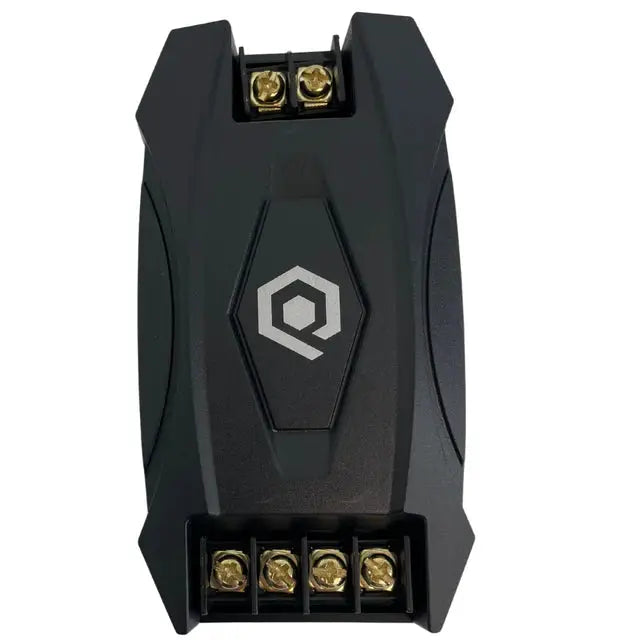

Crossover Setup: The included passive crossover handles the 3.5 kHz woofer/tweeter split with a 12 dB/oct slope and tweeter attenuation adjustment. Connect your amplifier output to the crossover input (+W– for woofer, +T– for tweeter), then run the crossover outputs to the woofer and tweeter separately. Use the tweeter attenuation to balance the high-frequency level to your taste and room acoustics.
Woofer Mounting: The 6.5" woofer requires a 5.6" / 142mm baffle cutout and 2.36" / 60mm mounting depth. With grill, overall diameter is 7.26" and depth is 3". Verify door panel depth before installation — most OEM 6.5" locations will accommodate this driver without modification.
Wiring Diagram
Connect your amplifier to the passive crossover, then run separate leads from the crossover to the woofer and tweeter. Radio, amplifier, wires, and battery not included.
Measurements & Diagrams
Full Specifications
General
| Specification | Value |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 50W |
| MAX Power Handling | 150W |
| Sensitivity (1W/1m) | 86 dB |
| Frequency Response | 40 Hz – 20 kHz |
| Recommended Hi-Pass Crossover | 60 Hz |
| Number of Ways | 2-Way |
| Sold In | Pair |
| Grill Included | Yes |
Woofer Specifications
| Specification | Value |
|---|---|
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 410g |
Thiele & Small Parameters
| Parameter | Value |
|---|---|
| Equivalent Volume (Vas) | 10.36L / 0.365ft³ |
| Excursion One Way (Xmax) | 2.7mm Free |
| Air Resonance (Fs) | 64 Hz |
| Mechanical Factor (Qms) | 9.50 |
| Electrical Factor (Qes) | 0.85 |
| Total Factor (Qts) | 0.78 |
| Mechanical Mass (Mms) | 13.72g |
| Mechanical Compliance (Cms) | 528mm/N |
| BL Factor (BL) | 5.18 |
| Voice Coil Inductance (Le) | 0.174mH |
| Cone Area (Sd) | 131cm² |
| DC Resistance (Re) | 3.5 Ohms |
| Mechanical Mass w/o Air (Mmd) | 12g |
Tweeter Specifications
| Specification | Value |
|---|---|
| Nominal Diameter | 1.94" / 49.5mm |
| Voice Coil Diameter | 1" / 25.5mm |
| Former Material | ASV |
| Winding Material | EISVM |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 13g |
Passive Crossover Specifications
| Specification | Value |
|---|---|
| Passive Crossover Ways | 2 (Woofer / Tweeter) |
| Frequency Crossover Point | 3.5 kHz |
| Power Handling | 400W |
| Cut-Off Slope | 12 dB/Oct |
| Tweeter Attenuation | Yes |
| Capacitor Type | Metal Film |
| Coil Type | ASV |
| Terminal Type | Screw |
| Housing Material | ABS |
| Adjustments | TW Att PT |
| TW Protection | Yes |
Woofer Measurements
| Dimension | Value |
|---|---|
| Overall Diameter (With Grill) | 7.26" / 184.5mm |
| Overall Depth (With Grill) | 3" / 76.5mm |
| Overall Diameter (Without Grill) | 6.5" / 165mm |
| Overall Depth (Without Grill) | 2.6" / 66.1mm |
| Front Mount Baffle Cutout | 5.6" / 142mm |
| Mounting Depth | 2.36" / 60mm |
| Motor Diameter | 3.7" / 94mm |
Tweeter Measurements
| Dimension | Value |
|---|---|
| Overall Diameter | 2.25" / 58mm |
| Overall Depth | 1.14" / 29.2mm |
| Front Mount Baffle Cutout | 1.9" / 48.4mm |
| Mounting Depth | 0.82" / 21mm |
Crossover Measurements
| Dimension | Value |
|---|---|
| Overall Width | 2.55" / 64.8mm |
| Overall Depth | 4.72" / 120mm |
| Overall Height | 1.19" / 30.3mm |
Frequently Asked Questions
Q: What amplifier should I pair with the HDX 6.5" component set?
A: The HDX 6.5" handles 50W RMS / 150W max at 4Ω. The SoundQubed Q4-150ABv2 (150W x4), Q4-2000 (325W x4), or Q4-3200 (520W x4) are all excellent matches. Set your amplifier’s HPF at 60–80 Hz and let the passive crossover handle the 3.5 kHz woofer/tweeter split.
Q: Do I need an active crossover or DSP with this component set?
A: No — the HDX 6.5" component set includes a 400W passive crossover that handles the 3.5 kHz woofer/tweeter split with a 12 dB/oct slope, tweeter attenuation adjustment, and built-in tweeter protection. Connect your amplifier output to the crossover, then run separate leads to the woofer and tweeter.
Q: Will the 6.5" woofer fit my OEM door location?
A: The woofer requires a 5.6" / 142mm baffle cutout and 2.36" / 60mm mounting depth. Most OEM 6.5" door locations will accommodate this driver without modification. Always verify your door panel depth before purchasing.
Q: What’s included in the set?
A: Each set includes a pair of 6.5" woofers with grills, a pair of 1.94" silk dome tweeters, and a pair of 2-way passive crossovers — everything you need for a complete front-stage component install.
