SoundQubed 1600 Watts F4-1600 Full Bridge 4 Channel Amplifier

SoundQubed F4-1600 — 4-Channel Amplifier | F-Series Full Bridge | 250W x 4 @ 4Ω

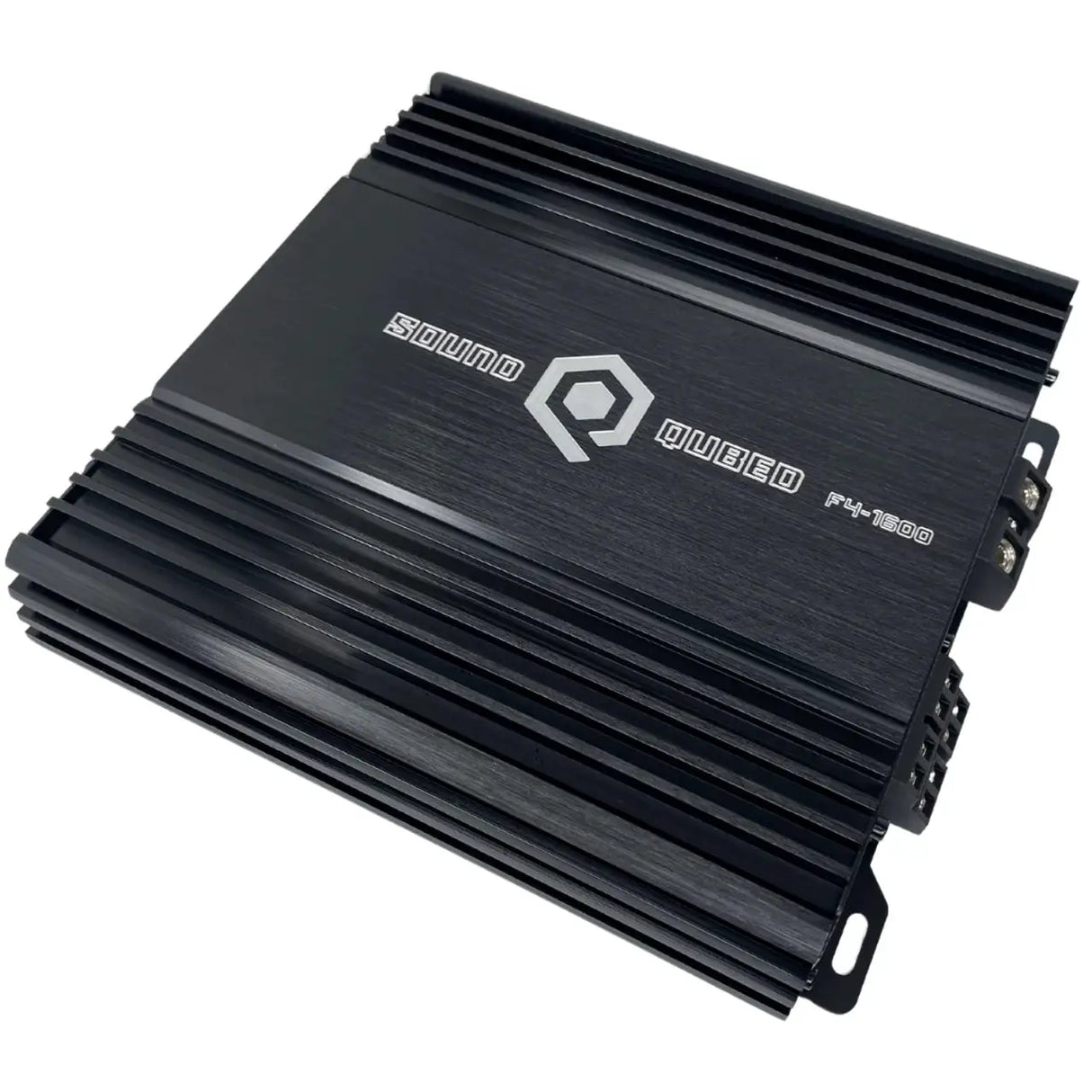

The SoundQubed F4-1600 is the entry point of the 2024 F-Series 4-channel lineup — and it punches well above its class. A full-bridge, digital-class 4-channel amplifier delivering 250W x 4 at 4Ω, 400W x 4 at 2Ω, and 800W x 2 bridged at 4Ω in an ultra-compact 9.13" x 8.46" x 2.28" chassis, the F4-1600 is built for enthusiasts who want serious crossover control and full-bridge efficiency in a platform that fits virtually anywhere. With a 10x crossover frequency multiplier, it eliminates the need for a separate DSP in most front stage builds.

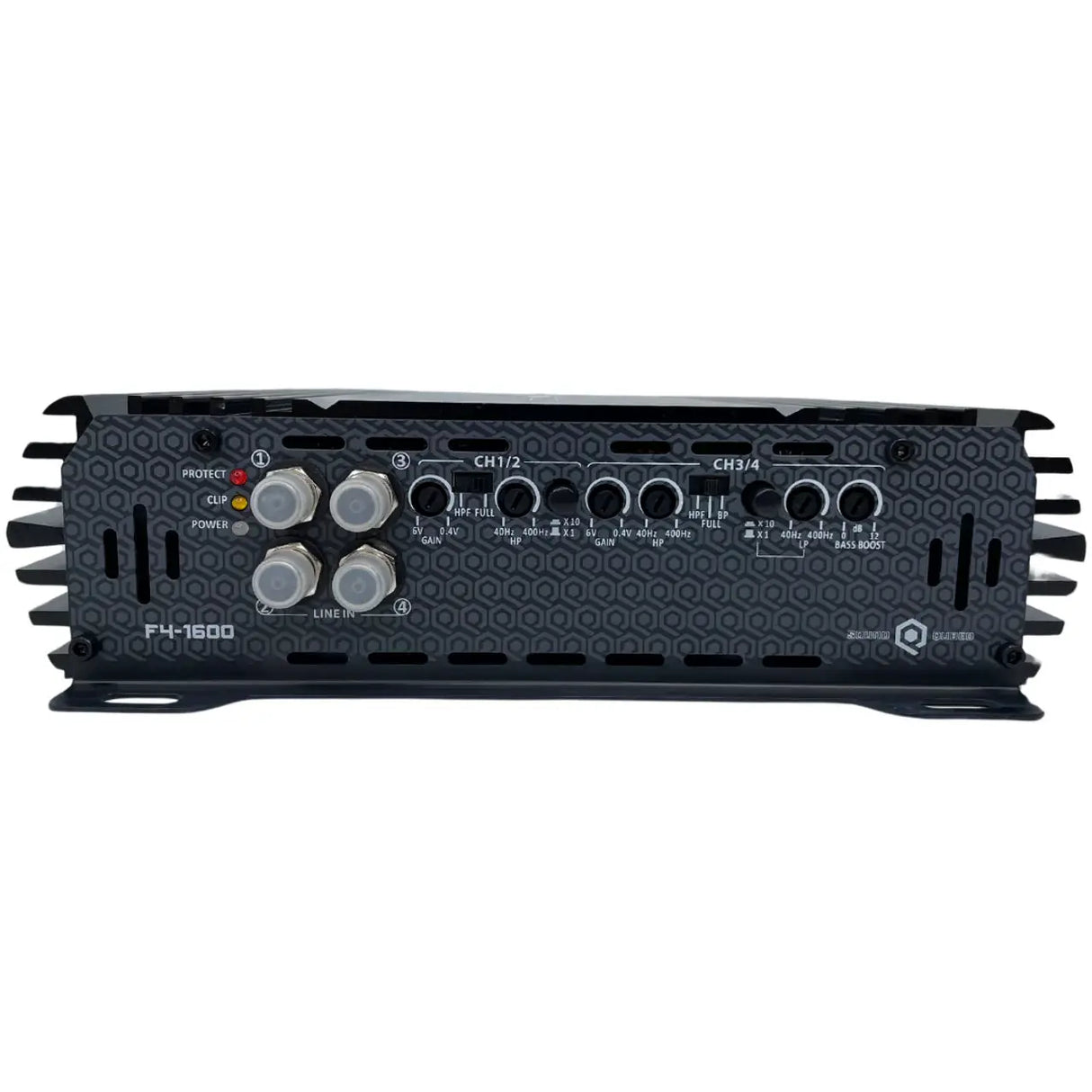

The F4-1600 features selectable HPF/FULL crossover on channels 1/2 and selectable HPF/FULL/BPF on channels 3/4, with HPF range of 40 Hz–400 Hz and LPF range of 40 Hz–400 Hz — giving you precise frequency control across all four channels. The bass boost (0–12 dB @ 45 Hz) adds low-end punch when bridging channels for subwoofer or mid-bass applications. With a signal-to-noise ratio of 95 dB, 84% efficiency at 4 ohm, and a damping factor of 92, the F4-1600 delivers clean, accurate sound reproduction. Like all F-Series amplifiers, it features an enlarged heatsink for superior heat transfer and an optional temperature/voltage readout on the bass knob.

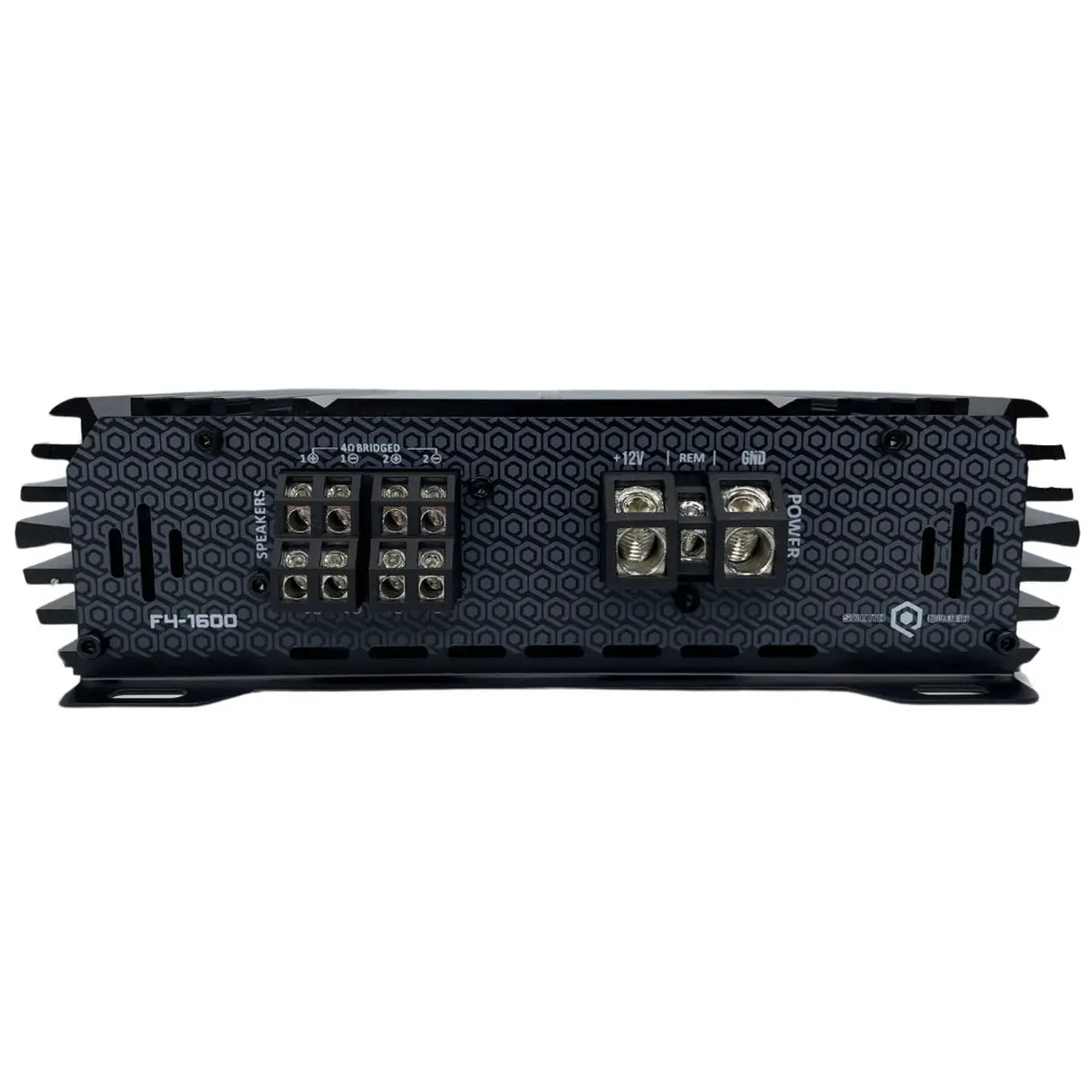

Stable at 2Ω in stereo and 4Ω in bridged mode, the F4-1600 is protected by a full suite of thermal, overload, DC output, short circuit, voltage input, and clipping protection circuits. With a 4GA power input and 360A fuse rating, it’s ready for serious installs right out of the box.

Why Choose the SoundQubed F4-1600?

• 250W x 4 @ 4Ω / 400W x 4 @ 2Ω / 800W x 2 Bridged @ 4Ω — Versatile power configurations for full-system builds, component setups, and bridged mid-bass or subwoofer applications.
• Full Bridge Digital Design — More efficient and more powerful than half-bridge designs at the same physical size.
• 10x Crossover Frequency Multiplier — Extends the crossover range for precise frequency control — eliminates the need for a separate DSP in most builds.
• Selectable HPF/FULL/BPF on CH 3/4 — Full bandpass capability on channels 3/4 for mid-bass, subwoofer, or creative crossover configurations.
• Enlarged Heatsink + Cooling Fan — Superior heat transfer keeps the amp cool during sustained high-power use.
• Optional Temp & Voltage Readout — Bass knob with optional temperature and voltage display for real-time system monitoring.
• 95 dB Signal-to-Noise Ratio — Clean, accurate signal reproduction across all four channels.
• Full Protection Suite — Thermal, overload, DC output, short circuit, voltage input, and clipping protection for worry-free operation.

System Configuration Recommendations

Full Front Stage Build: Run all four channels at 2Ω for 400W per channel to a full set of component speakers. Use the selectable HPF on channels 1/2 for tweeters and the BPF on channels 3/4 for mid-range drivers. The 10x crossover multiplier gives you DSP-level crossover precision without additional hardware.

Front Stage + Mid-Bass / Subwoofer: Use channels 1/2 for front component speakers (HPF filtered) and bridge channels 3/4 for a mid-bass driver or subwoofer (LPF filtered) for 800W. Pair with a dedicated SoundQubed S1-850.1 or S1-1250 monoblock for a complete, high-output system.

Electrical Requirements: The F4-1600 requires a 360A fuse and proper 4-gauge power and ground wiring. It is compatible with most upgraded electrical systems. A high-output alternator is recommended for sustained high-power use at full output.

Full Specifications

Frequently Asked Questions

Q: Can the F4-1600 power my whole car audio system?
A: Yes — use channels 1/2 for front speakers (HPF filtered) and bridge channels 3/4 for a mid-bass driver or subwoofer (LPF filtered) for 800W. For a complete system with dedicated sub bass, pair it with a SoundQubed S1-850.1 or S1-1250 monoblock.

Q: What does the 10x crossover frequency multiplier do?
A: The multiplier extends the crossover filter range by up to 10x, giving you much finer control over your crossover points — similar to what you’d get from a dedicated DSP. This is especially useful for 3-way component setups where precise crossover points are critical.

Q: What’s the minimum impedance for bridged mode?
A: The F4-1600 is stable at 4Ω in bridged mode and 2Ω in stereo mode. Do not bridge into a load below 4Ω.

Q: How does the F4-1600 compare to the F4-4400?
A: The F4-4400 delivers 3x more power (750W vs. 250W x4 @ 4Ω) and is designed for high-output competition front stage builds. The F4-1600 is the ideal choice for daily driver builds, sound quality systems, and installs where space is at a premium — all in a chassis that’s 2.68" shorter.
