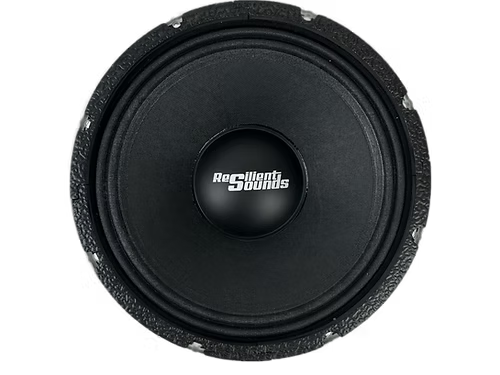

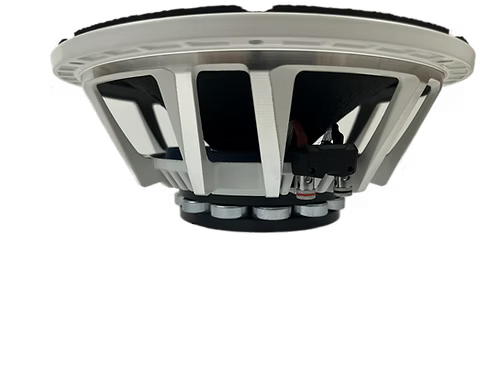

Resilient Sounds RS NEO 8" Pro Audio Midrange Loudspeaker (single)
Resilient Sounds RS NEO 8" Pro Audio Midrange Loudspeaker (single) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Resilient Sounds RS NEO 8" Pro Audio Midrange Loudspeaker (sin...
Highlight title
Text to highlight a key feature of your product
Description
Description
Neo 8
800 Watts Max Power Handling
2" Voice Coil
98 dB Sensitivity
100HZ-8.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 8" (203mm)
Max Power Handling 800 w
RMS Power Handling 400 w
Frequency Response 100Hz-8.5KHZ
Nominal Impedance 4ohm
Sensitivity 98dB
Magnet Neodymium
Voice Coil Diameter 2"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 9.53 L
Free Air Resonance Fs 99 Hz
Mechanical Factor Qms 4.18
Electrical Factor Qes 0.31
Total Factor Qts 0.29
Cone Area Sd 216.4cm²
Mechanical Mass Mms 17.83 g
BI Factor BI 10.68 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 8.26”(210mm)
Front Mount Baffle Cutout 7.32"(186mm)
Mounting Depth 3.11"(79mm)
Overall Depth 3.51"(89.3mm)
