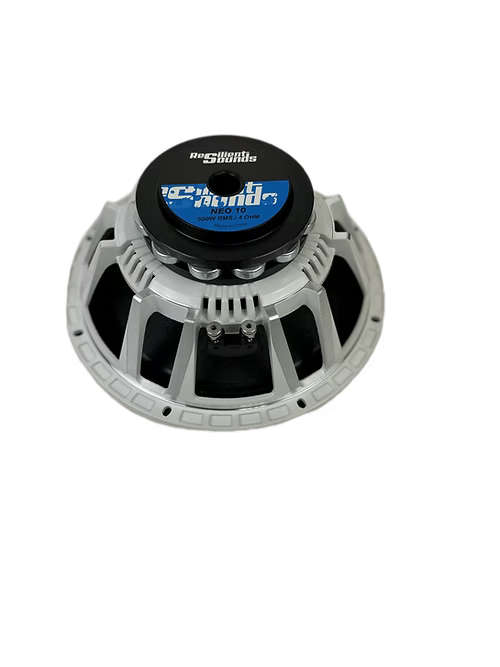

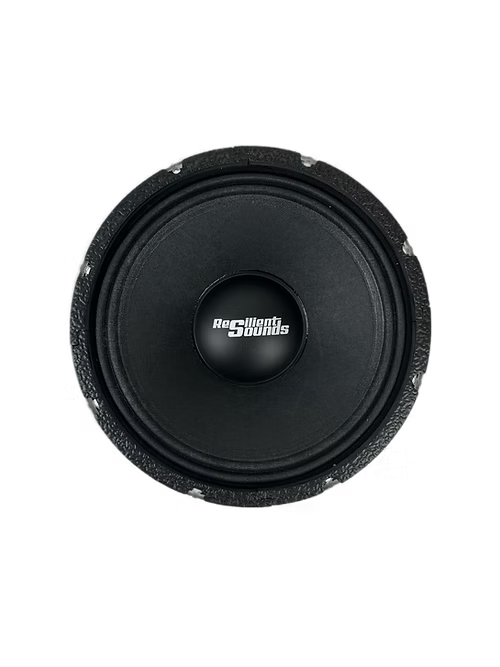

Resilient Sounds RS NEO 10" Pro Audio Midrange Loudspeaker (single)
Resilient Sounds RS NEO 10" Pro Audio Midrange Loudspeaker (single) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Resilient Sounds RS NEO 10" Pro Audio Midrange Loudspeaker (si...
Highlight title
Text to highlight a key feature of your product
Description
Description
Neo 10
1000 Watts Max Power Handling
2.5" Voice Coil
98.5 dB Sensitivity
75HZ-6.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 10” (254mm)
Max Power Handling 1000 w
RMS Power Handling 500 w
Frequency Response 75Hz-6.5KHZ
Nominal Impedance 4ohm
Sensitivity 98.5dB
Magnet Neodymium
Voice Coil Diameter 2.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 26.8 L
Free Air Resonance Fs 76 Hz
Mechanical Factor Qms 4.5
Electrical Factor Qes 0.37
Total Factor Qts 0.34
Cone Area Sd 349.6cm²
Mechanical Mass Mms 27.96 g
BI Factor BI 10.77 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 10.31”(262mm)
Front Mount Baffle Cutout 9.25"(235mm)
Mounting Depth 4.09"(104mm)
Overall Depth 4.52"(115mm)
