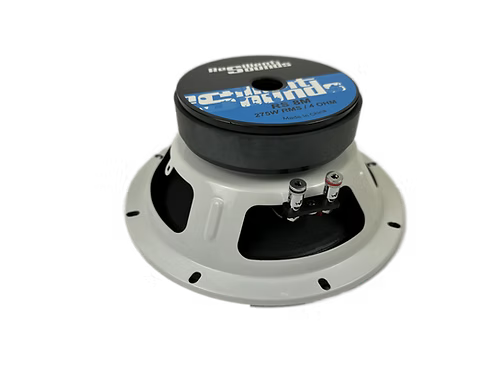

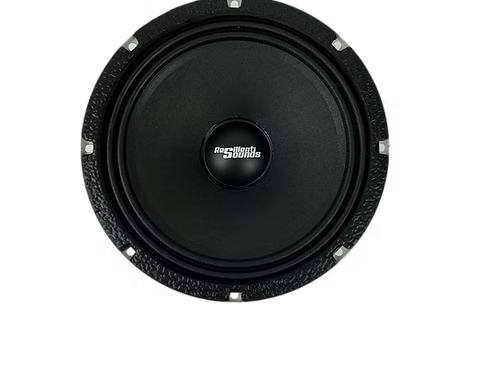

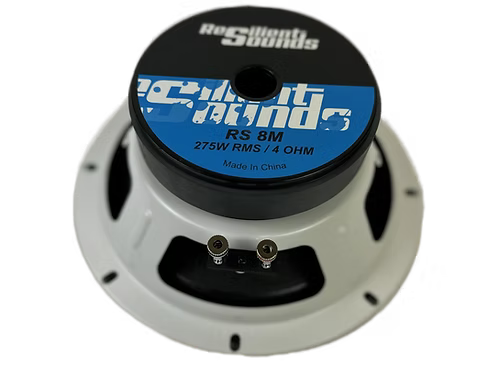

Resilient Sounds RS 8M 8" Pro Audio Midrange Loudspeaker (single)
Resilient Sounds RS 8M 8" Pro Audio Midrange Loudspeaker (single) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Resilient Sounds RS 8M 8" Pro Audio Midrange Loudspeaker (single)
Highlight title
Text to highlight a key feature of your product
Description
Description
RS 8M
550 Watts Max Power Handling
1.5" Voice Coil
98 dB Sensitivity
95HZ-9.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 8” (203mm)
Max Power Handling 550 w
RMS Power Handling 275 w
Frequency Response 95Hz-9.5KHZ
Nominal Impedance 4ohm
Sensitivity 98 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 11.92 L
Free Air Resonance Fs 101 Hz
Mechanical Factor Qms 5.75
Electrical Factor Qes 0.75
Total Factor Qts 0.67
Cone Area Sd 216.4cm²
Mechanical Mass Mms 13.64 g
BI Factor BI 6.07 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 8.26”(210mm)
Front Mount Baffle Cutout 7.2"(183mm)
Mounting Depth 3.42"(87mm)
Overall Depth 3.74"(95mm)
