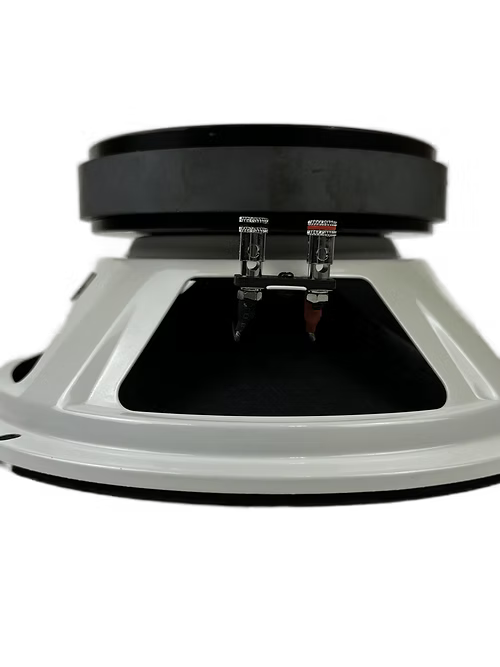

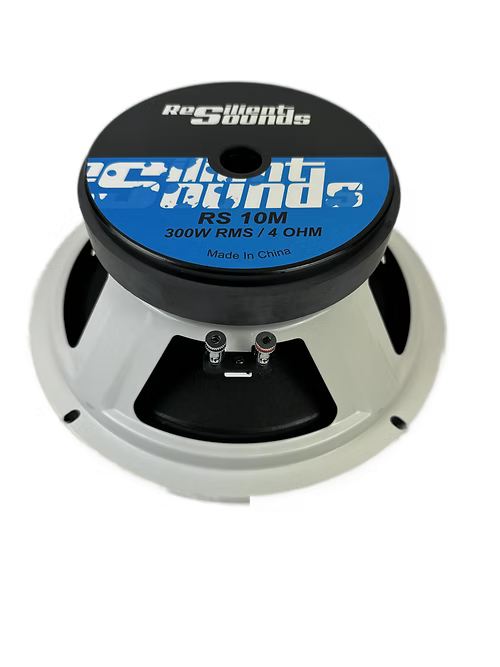

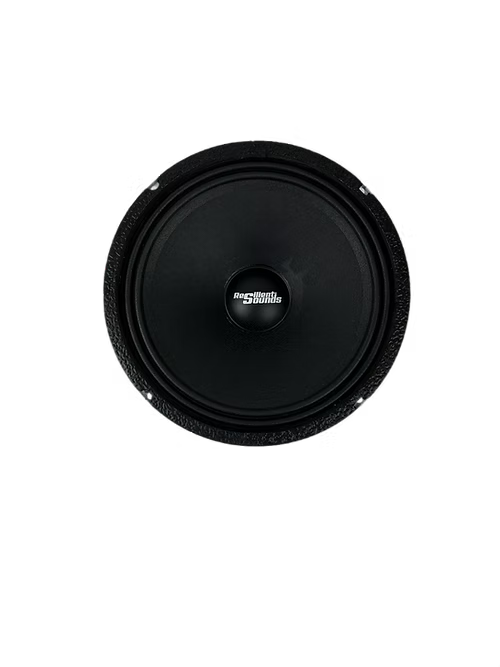

Resilient Sounds RS 10M 10" Pro Audio Midrange Loudspeaker (single)
Resilient Sounds RS 10M 10" Pro Audio Midrange Loudspeaker (single) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Resilient Sounds RS 10M 10" Pro Audio Midrange Loudspeaker (si...
Highlight title
Text to highlight a key feature of your product
Description
Description
RS 10M
600 Watts Max Power Handling
2" Voice Coil
98.5 dB Sensitivity
70HZ-7KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 10” (254mm)
Max Power Handling 600 w
RMS Power Handling 300 w
Frequency Response 70Hz-7KHZ
Nominal Impedance 4ohm
Sensitivity 98.5 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 37.94 L
Free Air Resonance Fs 72 Hz
Mechanical Factor Qms 5.51
Electrical Factor Qes 0.48
Total Factor Qts 0.44
Cone Area Sd 349.6cm²
Mechanical Mass Mms 22.21 g
BI Factor BI 8.21 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 10.11”(257mm)
Front Mount Baffle Cutout 9.13"(232mm)
Mounting Depth 3.85"(98mm)
Overall Depth 4.21"(107mm)
