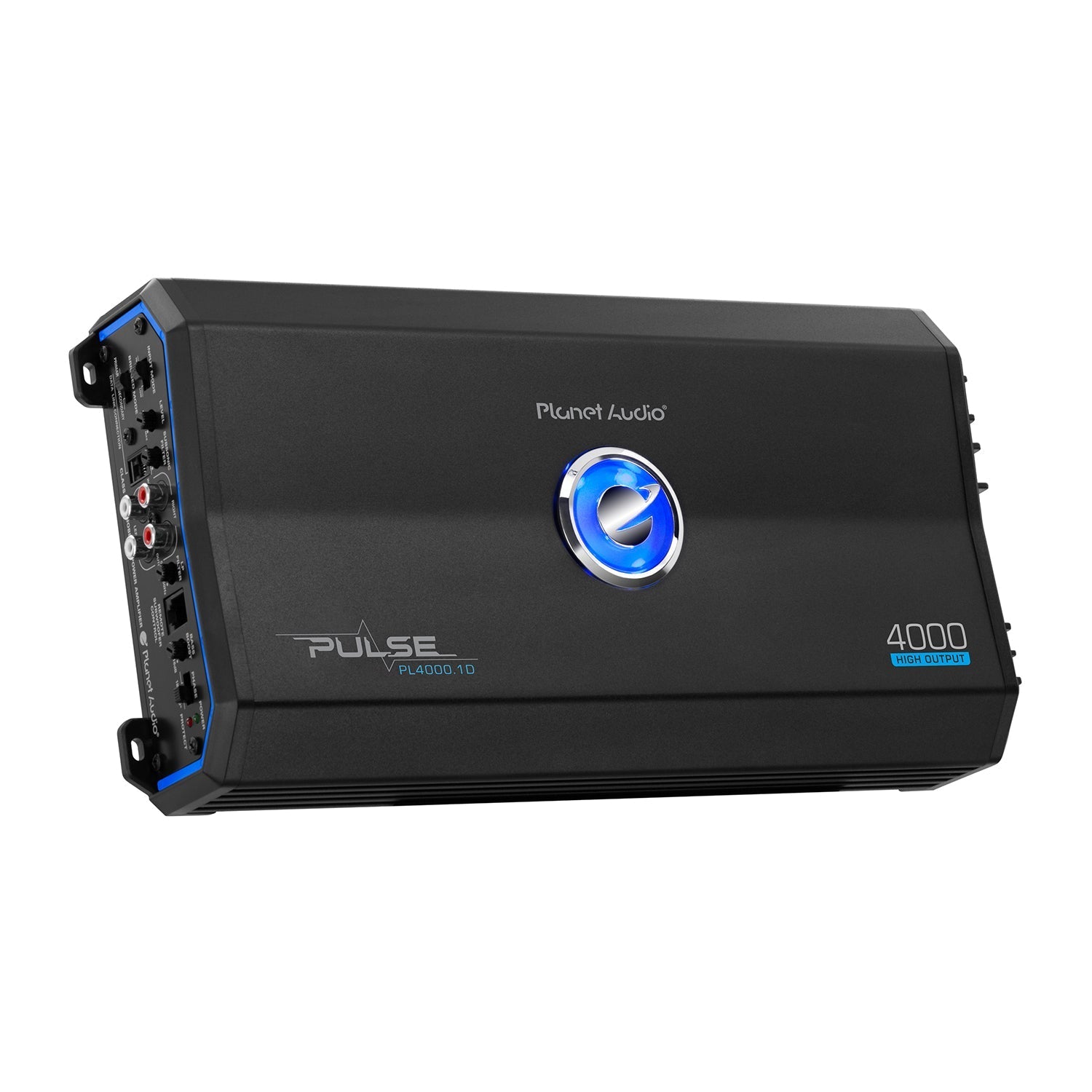

Planet Audio Pulse PL4000.1D 4,000 Watt Monoblock Amplifier
Sale price
$272.99
Regular price
$299.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Planet Audio Pulse PL4000.1D 4,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Planet Audio Pulse PL4000.1D 4,000 Watt Monoblock Amplifier
Sale price
$272.99
Regular price
$299.99
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Pulse MODEL 4000W High Output Monoblock Class D Amplifier Dim:13.9"L 7"W 2.26"H
- MODEL 4000W High Output MONOBLOCK Amplifier
Up to 3000 W X 1 RMS @ 1 ohm
Up to 1500 W X 1 RMS @ 2 ohm
Up to 750 W X 1 RMS @ 4 ohm
Up to 6000 W X 1 RMS Strapped Bridged Power @ 2 ohm - Monoblock Class D, MOSFET Power Supply
- Low Level Inputs, RCA Pre-amp Outputs
- Variable Low Pass Crossover, Variable Bass Boost and Variable Subsonic Filter and Switchable Phase Control
- Include Remote Subwoofer Control
- Blue Illuminated Planet Audio Logo and End Panel Strips
- Dimensions: 13.9" L x 7" W x 2.26" H
General Specs
CHANNEL CONFIGURATION
1 Channel
POWER SUPPLY TYPE
MOSFET Power Supply
AMP TOPOLOGY
Monoblock Class D
Performance Specs
TOTAL POWER OUTPUT
4000 Watts
PEAK POWER @ 1 Ω
4000 Watts x 1
PEAK POWER @ 2 Ω
2000 Watts x 1
RMS POWER @ 4 Ω
750 Watts x 1
STRAPPED POWER BRIDGED @ 2 Ω
8000 Watts
SPEAKER IMPEDANCE
1 to 8 Ω
S/N RATIO (A-WEIGHTED)
100 dB
FREQUENCY RESPONSE
15 Hz to 250 Hz ±1 dB

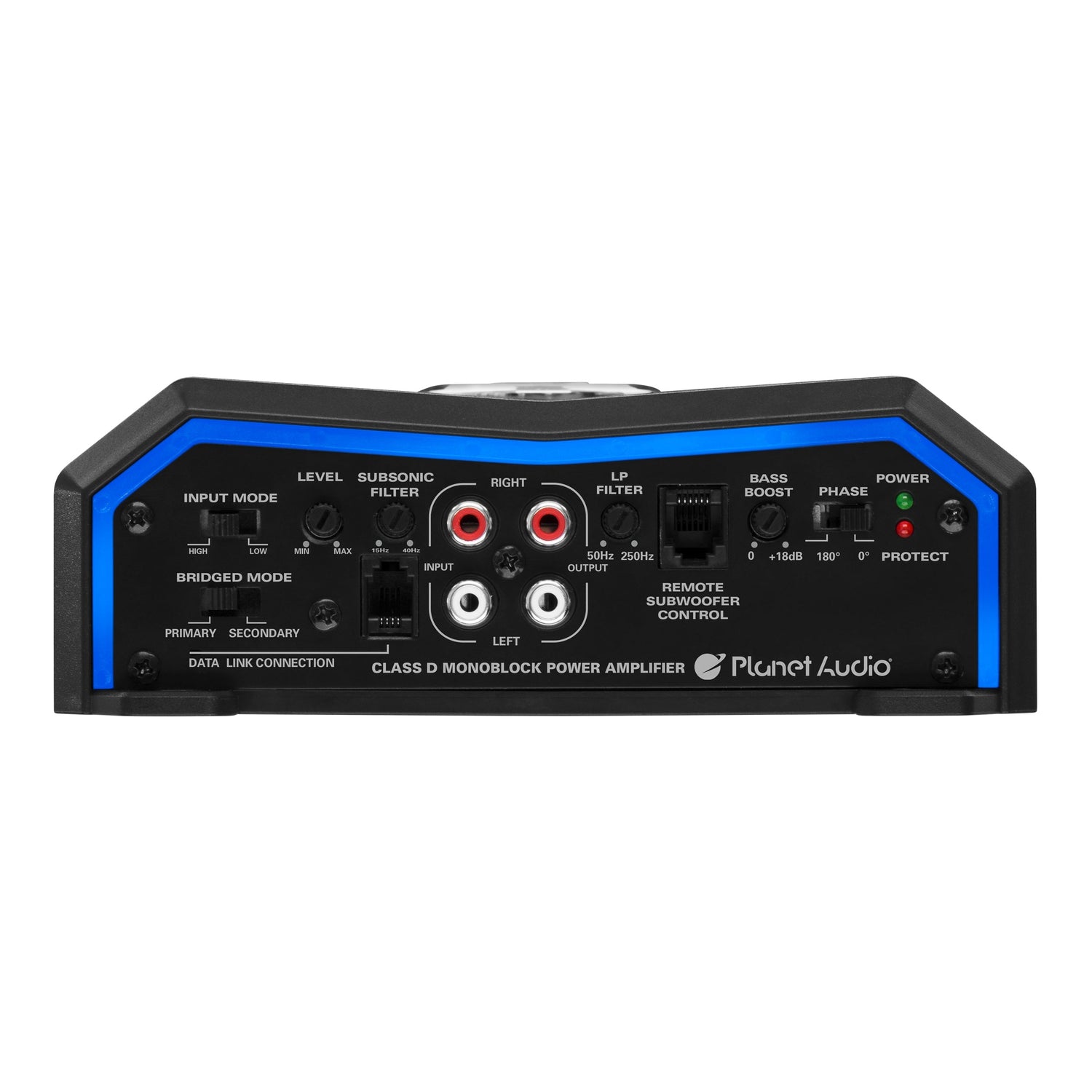

Connections, Controls, and Processing
RCA INPUTS
2 Channel
PRE AMP OUTPUTS
2 Channel
LOW PASS FILTER
50 Hz to 250 Hz
SUBSONIC FILTER
15 Hz to 40 Hz
BASS BOOST
Variable 0 to 18 dB
SUBWOOFER LEVEL CONTROL
INPUT SENSITIVITY SWITCH
STRAPPABLE
THERMAL/OVERLOAD/SHORT PROTECTION
Measurement
WIDTH
7"
HEIGHT
2.2599999999999997868"
LENGTH
13.900000000000000355"
