Planet Audio | SKU:
4% off

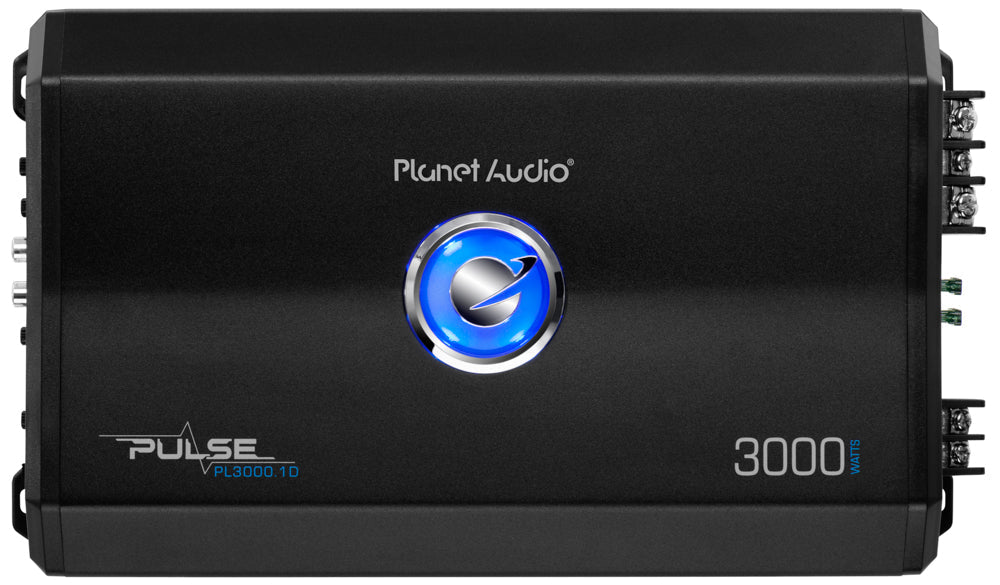

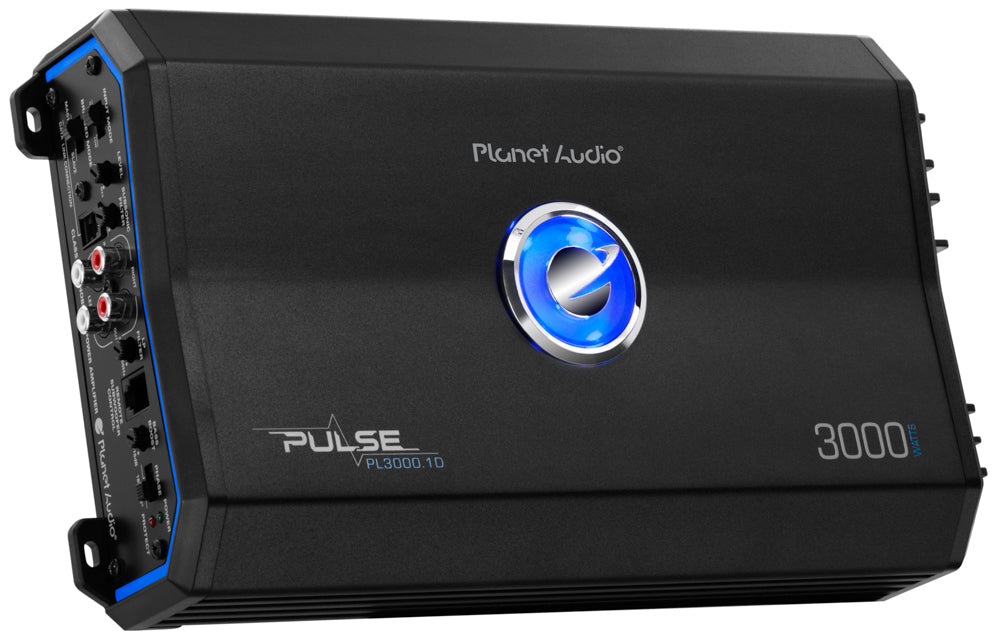

Planet Audio Pulse PL3000.1D 3,000 Watt Monoblock Amplifier
Sale price
$240.49
Regular price
$249.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Planet Audio Pulse PL3000.1D 3,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Planet Audio Pulse PL3000.1D 3,000 Watt Monoblock Amplifier
Sale price
$240.49
Regular price
$249.99
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Pulse MODEL 3000W High Output Monoblock Class D Amplifier Dim:11.93"L 7"W 2.26"H
- MODEL 3000W High Output MONOBLOCK Amplifier
Up to 2250 W X 1 RMS @ 1 ohm
Up to 1125 W X 1 RMS @ 2 ohm
Up to 563 W X 1 RMS @ 4 ohm
Up to 4500 W X 1 RMS Strapped Bridged Power @ 2 ohm - Monoblock Class D, MOSFET Power Supply

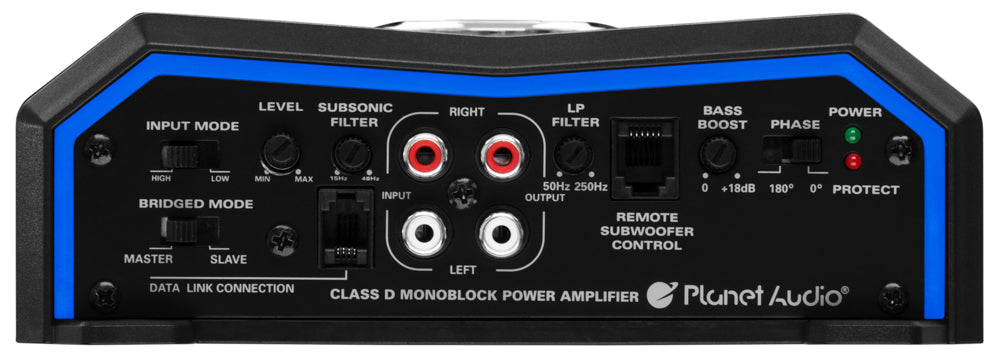

- Low Level Inputs, RCA Pre-amp Outputs
- Variable Low Pass Crossover, Variable Bass Boost and Variable Subsonic Filter and Switchable Phase Control
- Include Remote Subwoofer Control
- Blue Illuminated Planet Audio Logo and End Panel Strips
- Dimensions: 11.93" L x 7" W x 2.26" H
General Specs
CHANNEL CONFIGURATION
1 Channel
POWER SUPPLY TYPE
MOSFET Power Supply
AMP TOPOLOGY
Monoblock Class D
Performance Specs
TOTAL POWER OUTPUT
3000 Watts
PEAK POWER @ 1 Ω
3000 Watts x 1
PEAK POWER @ 2 Ω
1500 Watts x 1
RMS POWER @ 4 Ω
563 Watts x 1
STRAPPED POWER BRIDGED @ 2 Ω
6000 Watts
SPEAKER IMPEDANCE
1 to 8 Ω
S/N RATIO (A-WEIGHTED)
100 dB
FREQUENCY RESPONSE
15 Hz to 250 Hz ±1 dB
Connections, Controls, and Processing
RCA INPUTS
2 Channel
PRE AMP OUTPUTS
2 Channel
LOW PASS FILTER
50 Hz to 250 Hz
SUBSONIC FILTER
15 Hz to 40 Hz
BASS BOOST
Variable 0 to 18 dB
SUBWOOFER LEVEL CONTROL
INPUT SENSITIVITY SWITCH
STRAPPABLE

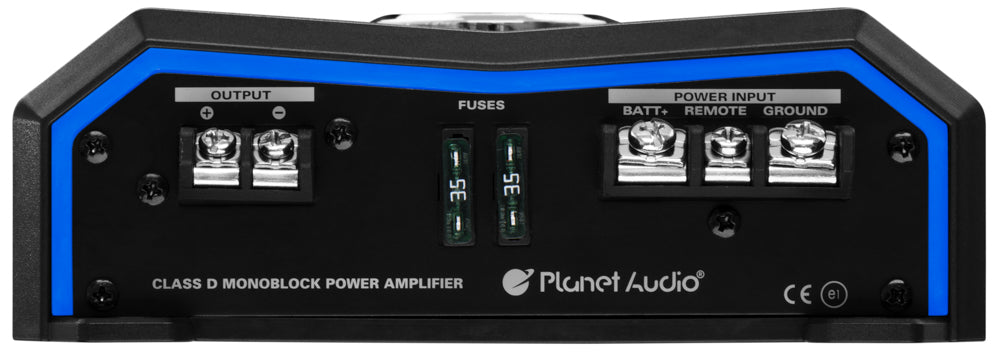

THERMAL/OVERLOAD/SHORT PROTECTION
Measurement
WIDTH
7"
HEIGHT
2.2599999999999997868"
LENGTH
11.929999999999999716"
