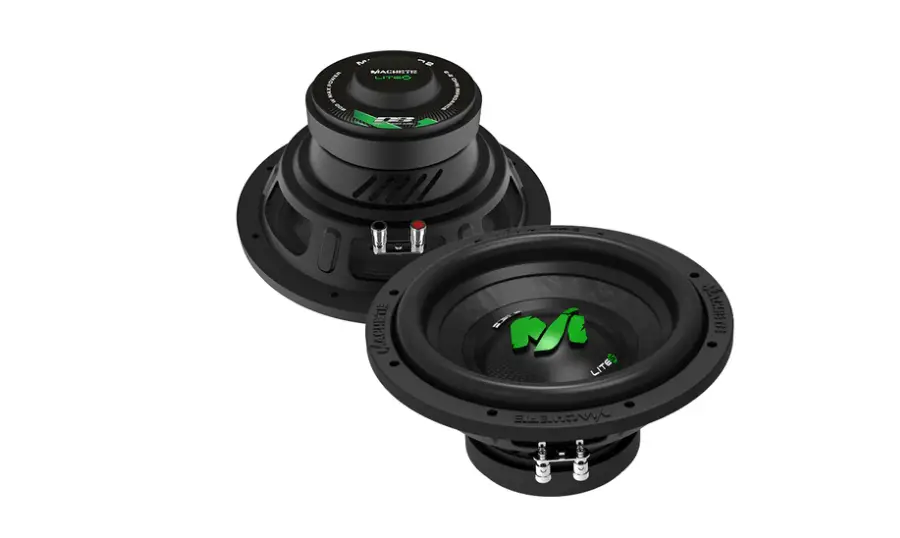

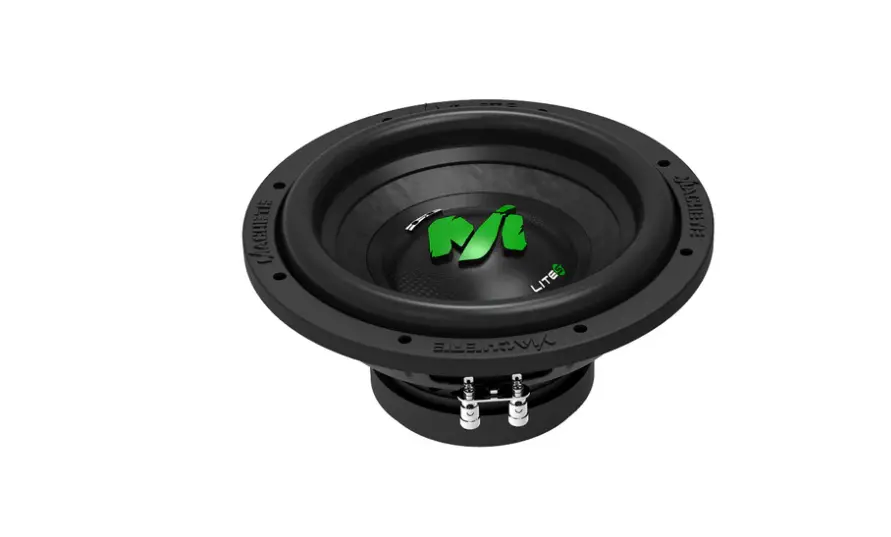

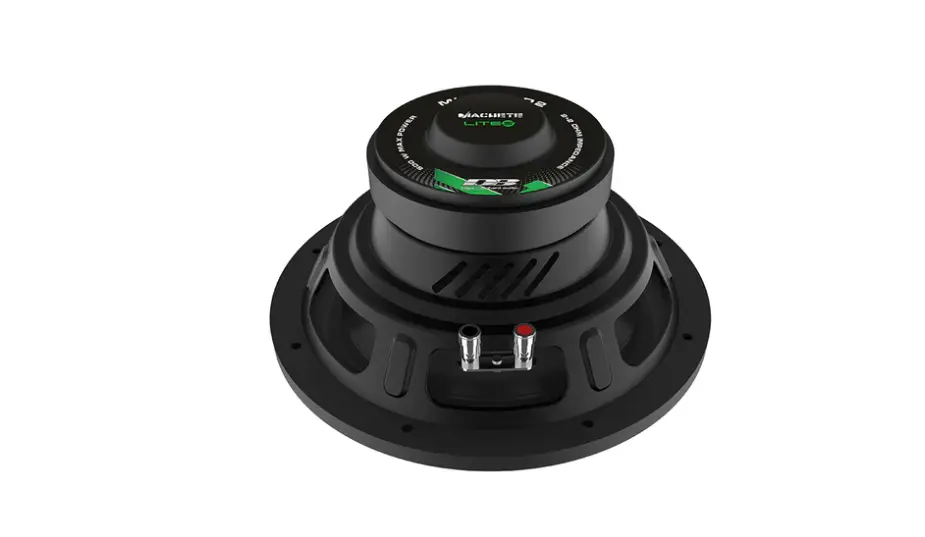

Deaf Bonce Machete ML-10S D2 10" 300W RMS Subwoofer

The Deaf Bonce Machete ML-10S D2 is a 10-inch subwoofer delivering 300 W RMS (600 W MAX) with a dual 2-ohm voice coil for flexible amplifier wiring in high-demand car audio systems.

• Model: ML-10S D2 — 10" driver with dual 2-ohm voice coils to support different wiring configurations and amp loads.
• Type: Subwoofer — dedicated low-frequency driver designed to reproduce deep bass in vehicles.
• Size: 10 inch — standard diameter for a wide range of enclosures and mounting options.
• Voice coil size: 1.75 inch — larger coil improves heat dissipation and sustained power handling during vigorous bass passages.
• Cone: Paper — lightweight cone that contributes to natural bass response and efficient motion.
• Magnet: Ferrite — compact, rugged magnet suitable for high-power applications in tighter spaces.
• Voice coil wire: Copper — low resistance windings enhance damping and efficiency across the frequency range.
• Surround: Foam — durable edge that supports controlled cone travel and reliable excursion.
• RMS Power: 300 W — continuous power handling for steady bass performance in daily driving or weekend installs.
• MAX Power: 600 W — peak power capability for brief transients without immediate failure.
• Frame: Steel — rigid construction minimizes flex and preserves cone control under heavy excursions.
• Impedance: 2+2 Ohm — dual coils enable versatile wiring to match a variety of amplifiers and loads.
• SPL: 85.9 dB — sensitivity indicator of loudness achieved per watt at a given distance and enclosure.
• Fs: 39.7 Hz — strong bass extension into the deep lows, useful for musical authority in ported or sealed boxes.
• Qts: 0.4 — alignment parameter guiding enclosure type and tuning for the driver.
• BL: 16 — motor strength metric affecting control and transient response.
• Vas: 16.2 L — recommended enclosure volume helps you design the correct box for the intended response.
• Xmax: 10.00 mm — maximum linear excursion before distortion occurs, informing enclosure and amp pairing decisions.
• Xmeh: 20.00 x 20.00 mm — mechanical travel limit guiding safe mounting and box tolerances.
• Mounting depth: 116.3 mm — physical depth required inside the enclosure or cargo area for proper fitment.
• Cut-out dimension: 232 mm — hole diameter needed to install the speaker correctly.
• Gross weight: 4.60 kg — weight to consider when handling enclosures and mounting hardware.

In a compatible enclosure and with an appropriate amplifier, the ML-10S D2 provides deep bass with clear transient response thanks to its 39.7 Hz Fs, 10 mm Xmax, and solid motor structure. The dual 2-ohm coils offer wiring flexibility to optimize load for your amplifier, while the ferrite magnet and steel frame contribute to robust performance in a compact package. The 10" diameter, 116.3 mm mounting depth, and 232 mm cut-out make it suitable for a wide range of install scenarios, from under-seat boxes to trunk enclosures, delivering controlled bass without excessive enclosure space.
