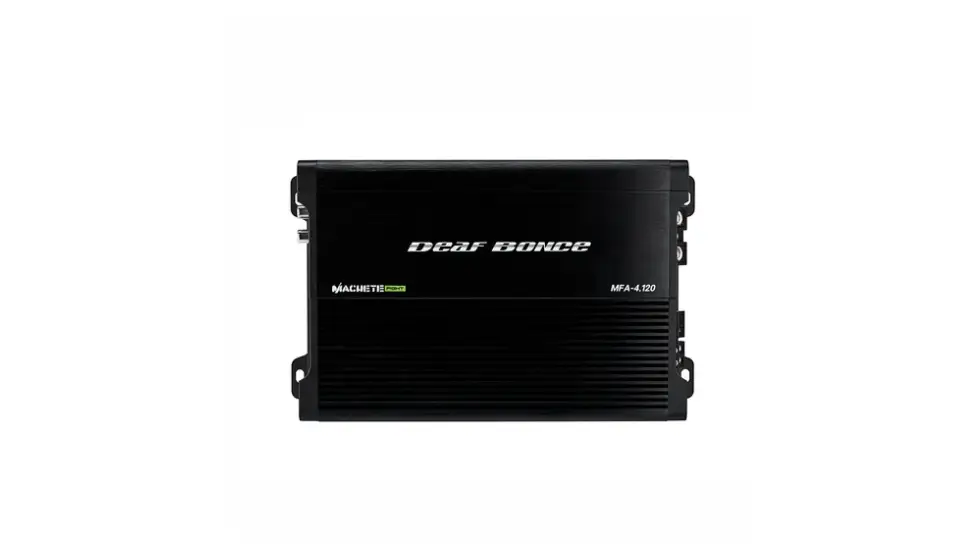

Deaf Bonce MACHETE MFA-4.120 | 120 Watt 4-channel amplifier

The Deaf Bonce MACHETE MFA-4.120 is a 4-channel Class D amplifier delivering up to 180 W per channel into 2 Ohms, built for high-current, multi-channel car audio installs with flexible crossover options.

• Model: MFA-4.120
• Class: D
• Number of channels: 4
• Frequency response: 20-20000 Hz
• 2 Ohm RMS Power (14.4 V): 180 W x 4
• 4 Ohm RMS Power (14.4 V): 120 W x 4
• 4 Ohm RMS Power (Bridge): 360 W x 2
• Minimum permissible load on the channel: 2 Ohm
• Minimum permissible load in a bridge connection: 4 Ohm
• Input SPL: 0.4 - 8V
• Low pass filter: 50-12000 Hz
• High pass filter: 50-12000 Hz
• LPF and HPF simultaneous operation: True
• Crossover: 12 dB/Oct
• Input terminal: 4 Ga
• Output terminal: 10 Ga
• Working voltage: 9 - 15V
• Signal-to-noise ratio: 90 dB
• Size (WxLxH): 9.7 x 6 x 2.2 inch

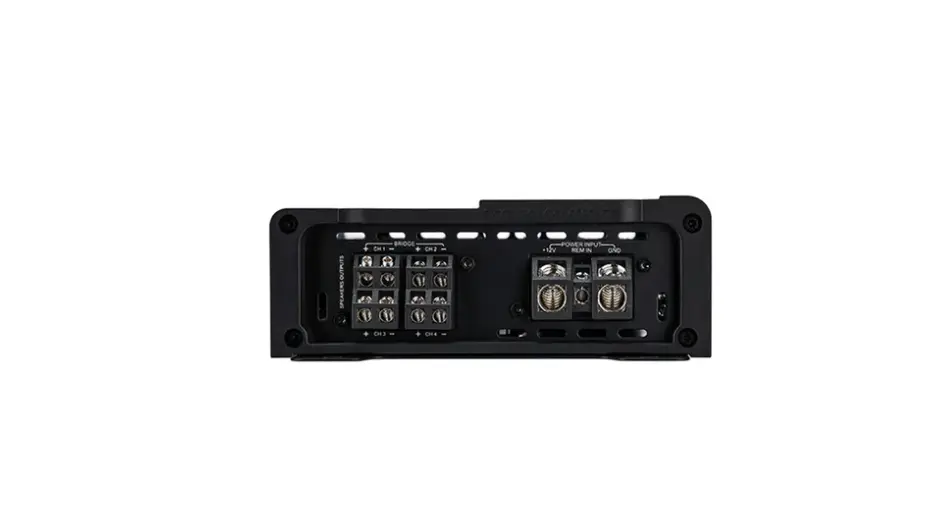

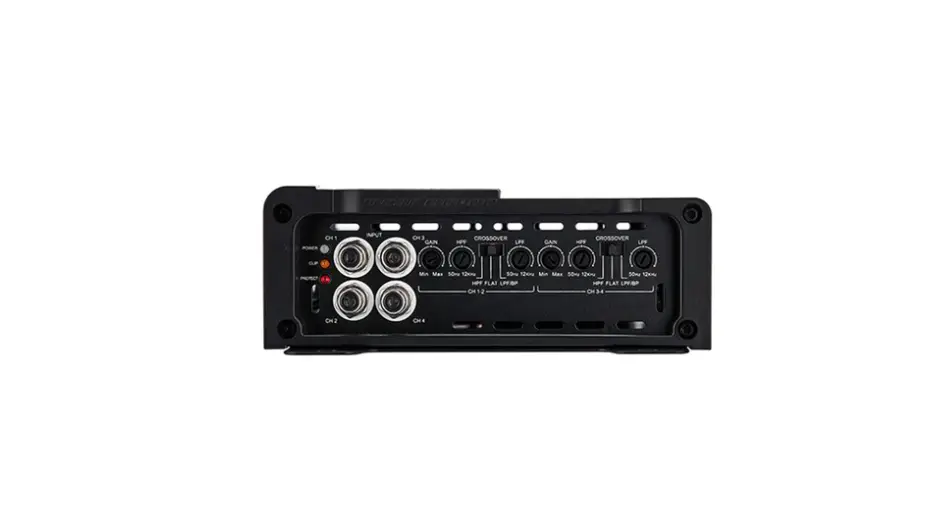

In a typical four‑channel install, MFA-4.120 provides four outputs for separate channels, with the option to bridge two channels for higher power into a single load. The wide frequency range, 12 dB/Oct crossovers, and the ability to run LPF and HPF simultaneously give you precise tonal shaping across the system, while the 0.4–8 V input sensitivity ensures compatibility with a range of source units. Built for vehicle use with a 9–15 V operating range and 4 Ga input / 10 Ga output wiring, it integrates into compact, high‑power builds without sacrificing signal integrity, supported by a 90 dB SNR.
