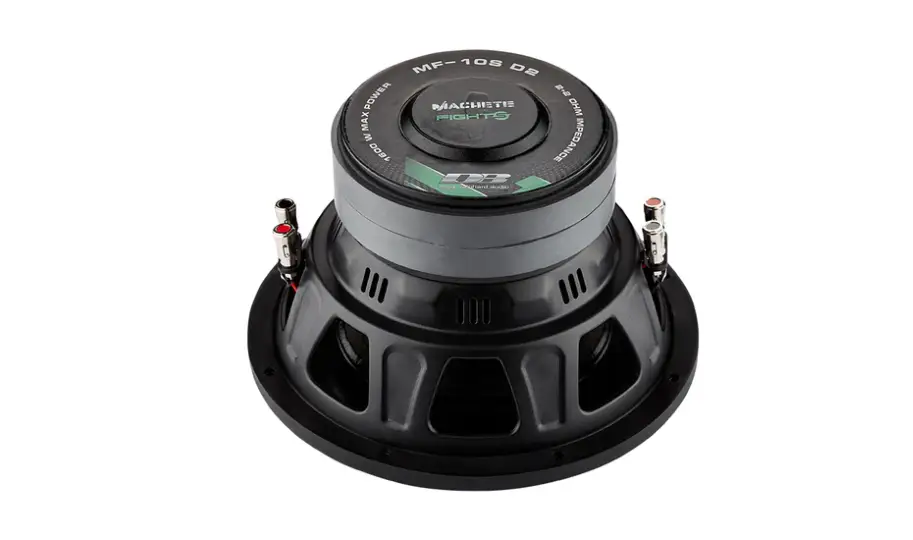

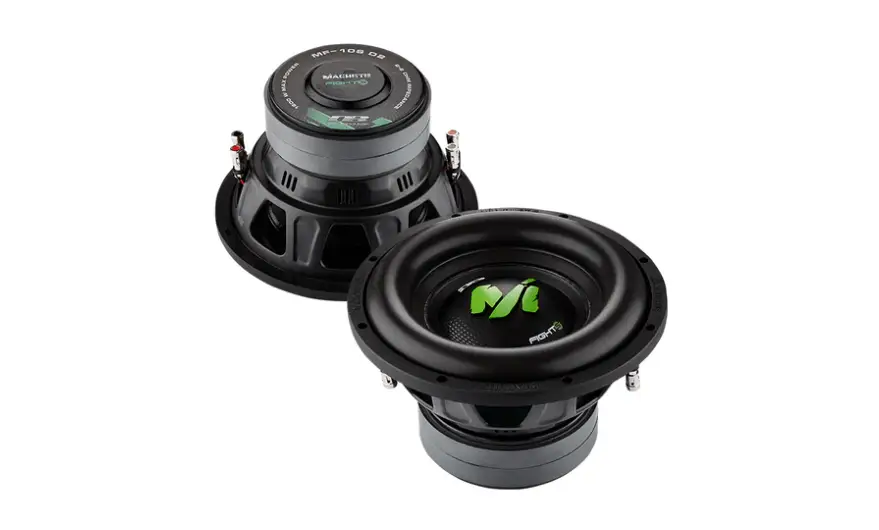

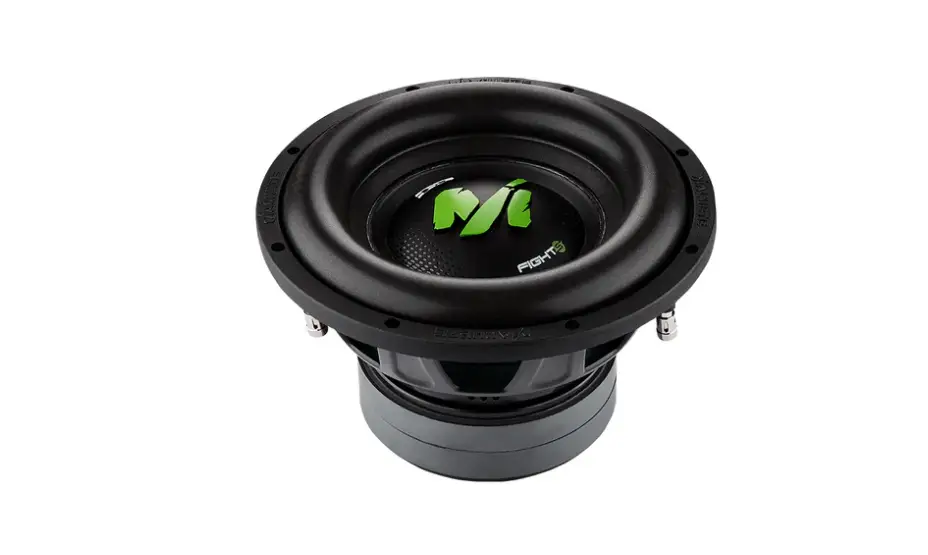

Deaf Bonce Machete MF-10S D2/D4 10" Subwoofer

The Deaf Bonce Machete MF-10S D2/D4 is a 10-inch subwoofer built for high-power car audio systems, delivering 800W RMS and up to 1600W peak with a dual 2+2 Ohm voice coil configuration for flexible amplifier wiring.

• Size: 10" driver footprint for compact yet capable bass in many trunk or under-seat installations.
• Voice coil size: 2.5" voice coil supports efficient heat dissipation and sustained excursions under demanding music.
• Cone: Paper cone provides a lightweight, rigid structure with balanced stiffness and damping.
• Magnet: Ferrite magnet offers solid magnetic flux for consistent control through high dynamic ranges.
• Voice coil wire: CCAW winding combines copper with aluminum cladding to balance current handling and weight.
• Surround: Foam surround contributes controlled cone movement and long-term durability.
• RMS Power: 800W continuous power handling for demanding music and amplified systems.
• MAX Power: 1600W peak capability for short-term dynamic peaks.
• Frame: Steel frame provides rigidity and secure mounting for in-car installations.
• Impedance: 2+2 Ohm dual voice coils enable series or parallel wiring to suit different amps and loads.
• SPL: 84 dB sensitivity indicates how efficiently the driver converts electrical power into sound at the specified mounting conditions.
• Fs: 36 Hz indicates low-frequency extension capability, contributing to deeper bass performance for a 10" sub.
• BL: 18.00 reflects motor strength for better control of cone movement at high excursion.
• Vas: 20.50 L aids enclosure design by describing the driver’s air compliance requirements.
• Xmeh: 28 mm mechanical excursion limit before approaching the physical travel boundary.
• Xmax: 14.00 mm maximum linear cone travel, defining usable excursion range.
• Mounting depth: 5.6" (143 mm) chassis depth to plan fitment in tighter spaces.
• Cut-out dimension: 8.9" (228 mm) required hole diameter for installation.
• Gross weight: 16.4 lb (7.4 kg) shipped weight for handling and packaging considerations.

The MF-10S D2/D4 is designed for high-power builds where space and wiring flexibility matter. Its dual-VC configuration lets you tailor impedance to your amplifier, while the robust steel frame and ferrite magnet provide reliable, repeatable bass performance under demanding music and installation conditions.
