AudioControl ACX-BT3 3-Zone Bluetooth Receiver
AudioControl ACX-BT3 3-Zone Bluetooth Receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AudioControl ACX-BT3 3-Zone Bluetooth Receiver
Highlight title
Text to highlight a key feature of your product
Description
Description

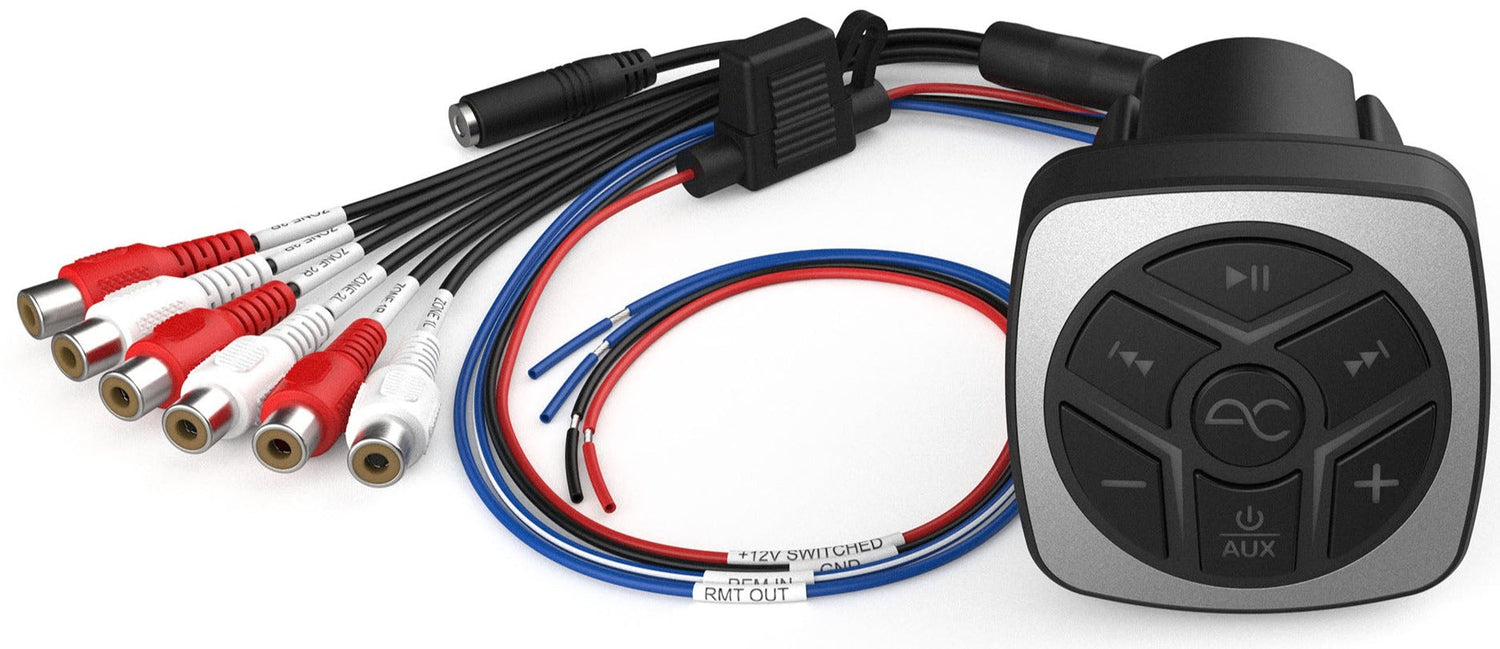

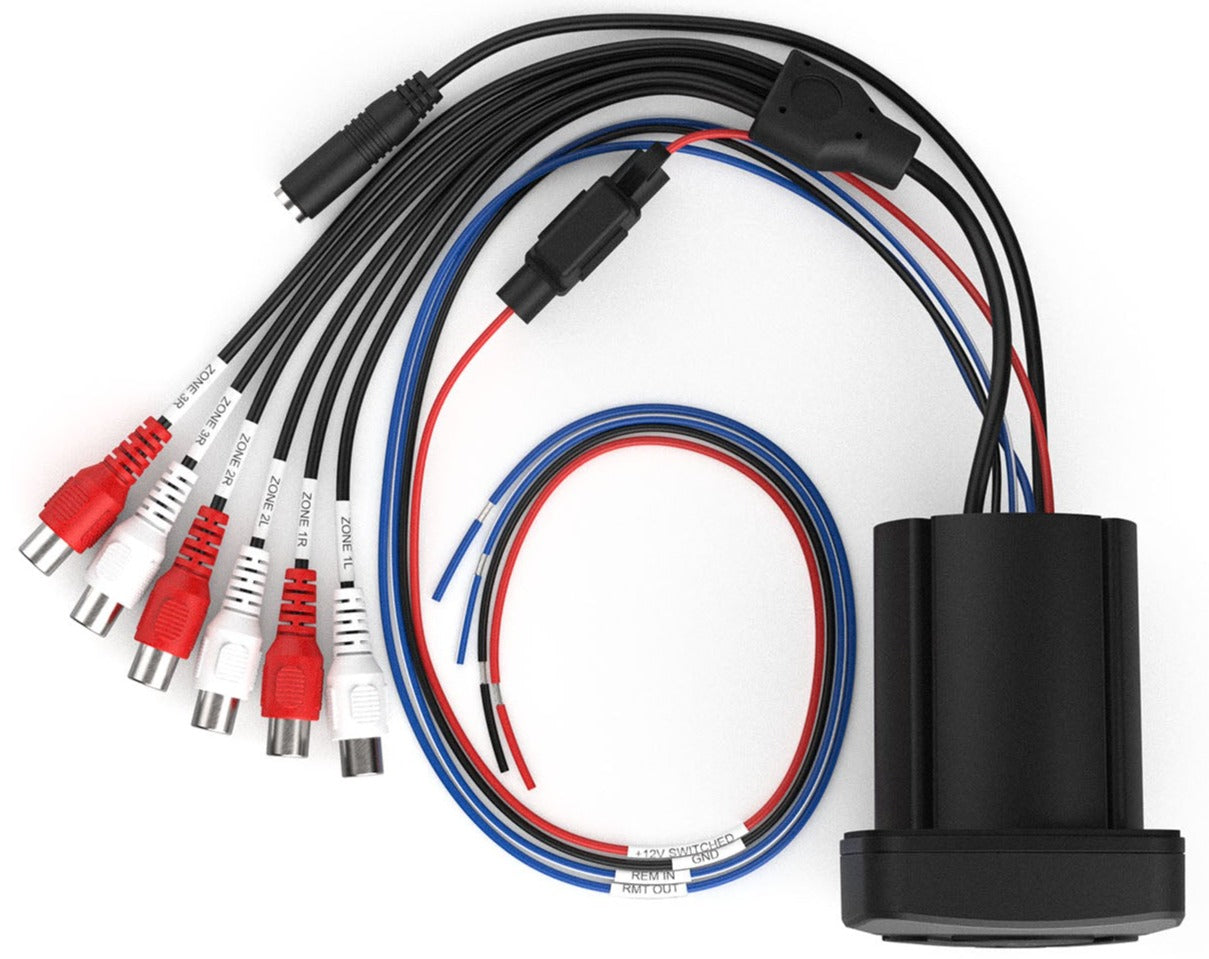

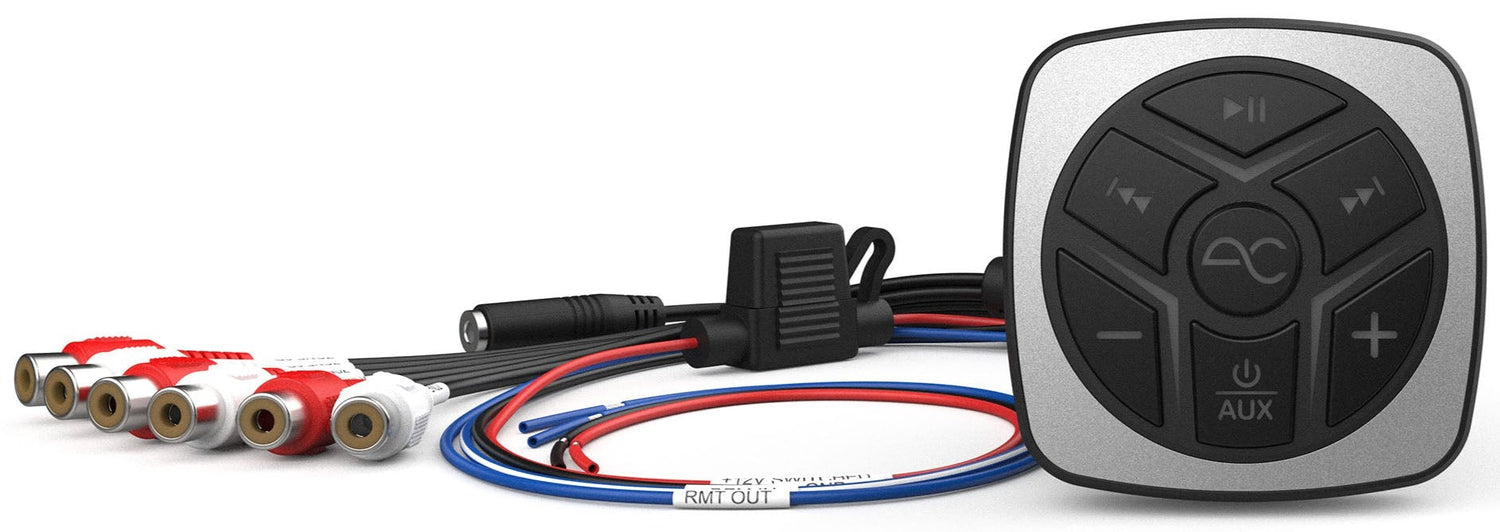

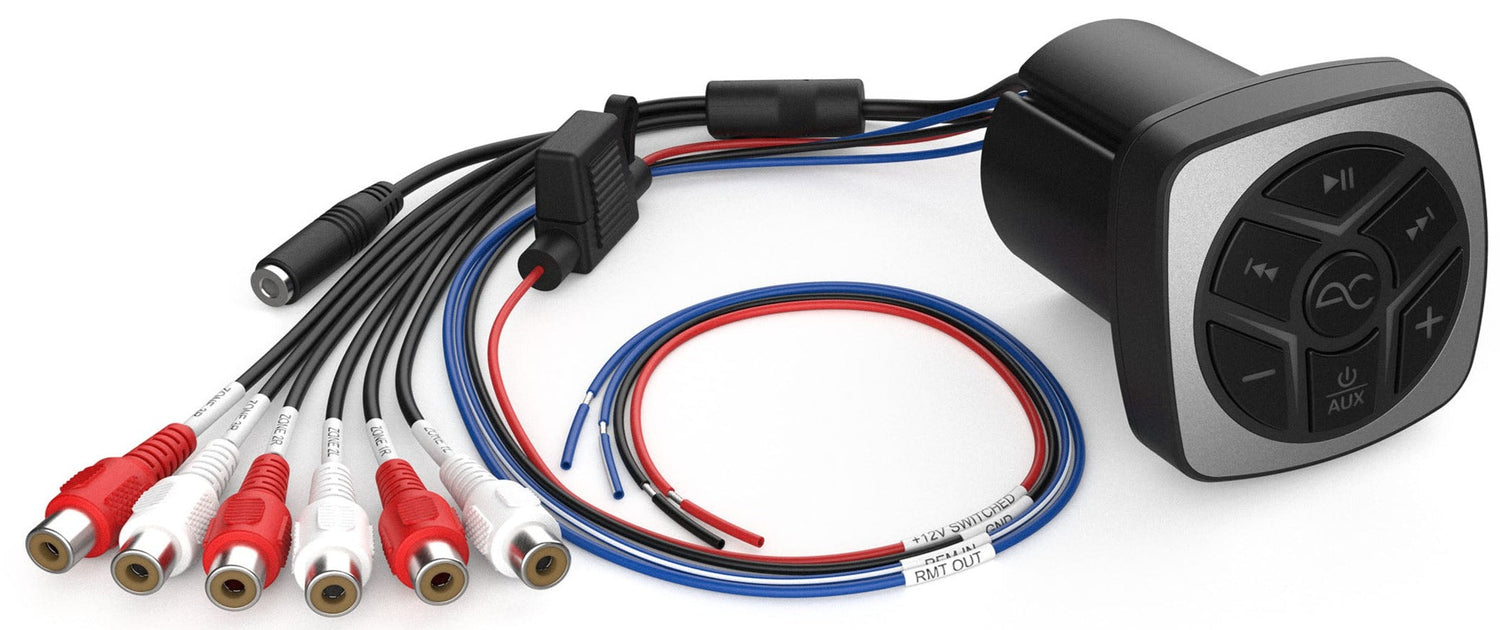

The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications.
Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick access to volume control over 3 separate zones at the touch of a button. With the added flexibility of an auxiliary input, the ACX-BT3 is the perfect solution as a primary or secondary source for any audio system. aptX™ HD support coupled with robust 4 Vrms outputs provides the best possible audio quality.
Integrated mounting holes allow for easy custom installation to a dashboard, or other flat panel in a car, side-by-side, boat, or vehicle of your choice. And the all-weather ACX-BT3 is IPX6 rated against splashes, wind and spray, ensuring your music will play on wherever your next adventure takes you.
features
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- IPX6 rated enclosure
- Built in fuse
IN THE ZONE
With a simple tap of a button, the button LEDs change color to indicate which zone you are controlling
MAIN SCREEN
AUX INPUT
ZONE 1
ZONE 2
ZONE 3
specifications
bluetooth
- Version: 5.1
- aptX HD Compatible
output
-
Preamp Outputs: 3 (6 channels)
-
Maximum Output Level: 4 Vrms
performance
- Signal to Noise Ratio: 95 dB
- Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
- Operating Range: 10+ meters (depending on environment)
general
- Current Draw: 100 mA
- Fuse Rating: 2 A
weights & dimensions
- Dimensions (enclosure): 2.51″L x 2.51″L x 3.17″D
- Weight: 0.43 lbs. (194 g)
in the box: ACX-BT3, Mounting Screws, Warranty
downloads
full line catalog
literature
quick start guide
