Audio Control EPICFIVE AudioControl EPIC Series 5-Channel Amplifier

The AudioControl EPICFIVE is a compact, thermally efficient 5-channel Class D amplifier built for high‑current car audio installs. It excels in multi‑stage setups and includes a bass knob for easy on‑the‑fly bass control, with optional pairing to The Epicenter Bass Restoration Processor for enhanced low end.

• Digital Class-D Amplifier: High‑efficiency power stage that remains compact while delivering strong output, and is capable of driving 2 ohm loads for higher overall headroom.
• Power Output @ 4 ohms: 4 x 75 Watts + 1 x 300 Watts. Ideal for a four‑channel front stage with a dedicated sub channel on a single chassis.
• Power Output @ 2 ohms: 4 x 150 Watts + 1 x 500 Watts. Higher current capability supports more demanding front stages and a robust sub channel.
• Subwoofer Channel @ 1 ohm: 1 x 700 Watts. Provides a powerful dedicated subwoofer channel for deep bass response.
• Bridged Power: 2 x 300 Watts @ 4 ohms (bridged). Enables pairing two channels to drive a single higher‑power speaker if needed.

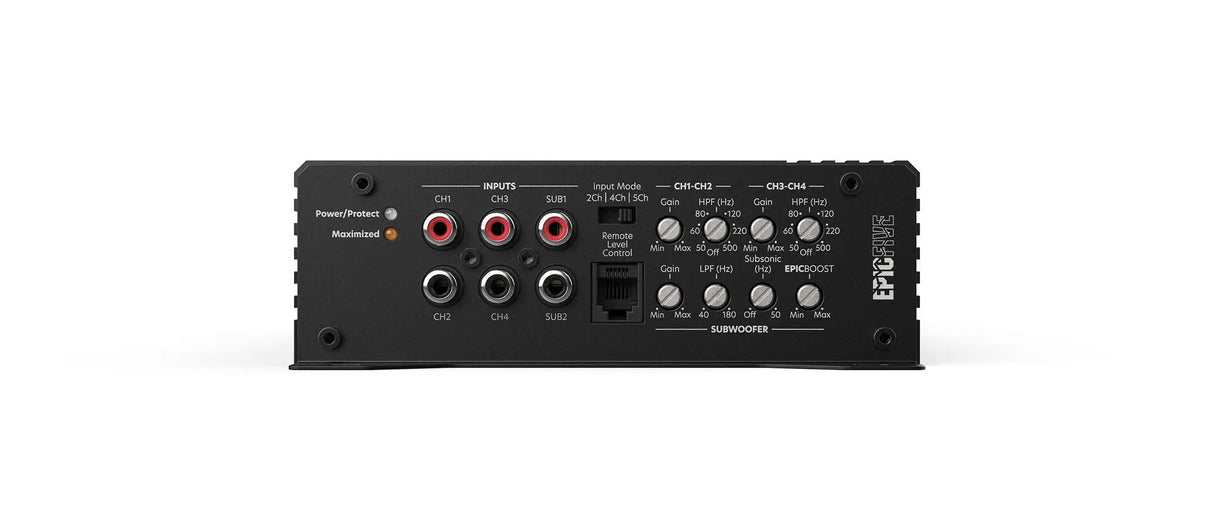

• Inputs: Line‑Level Inputs: 500 mV – 6 V RMS for flexible source compatibility.
• Filters: 12 dB/octave Linkwitz‑Riley High‑Pass and Low‑Pass filters with Subsonic filter; HPF behaves 50 Hz–500 Hz (or Off), LPF 40 Hz–180 Hz (or Off), Subsonic Off–50 Hz.
• EPIC Boost: Center frequency 45 Hz with 0 to 12 dB gain to tailor bass emphasis.

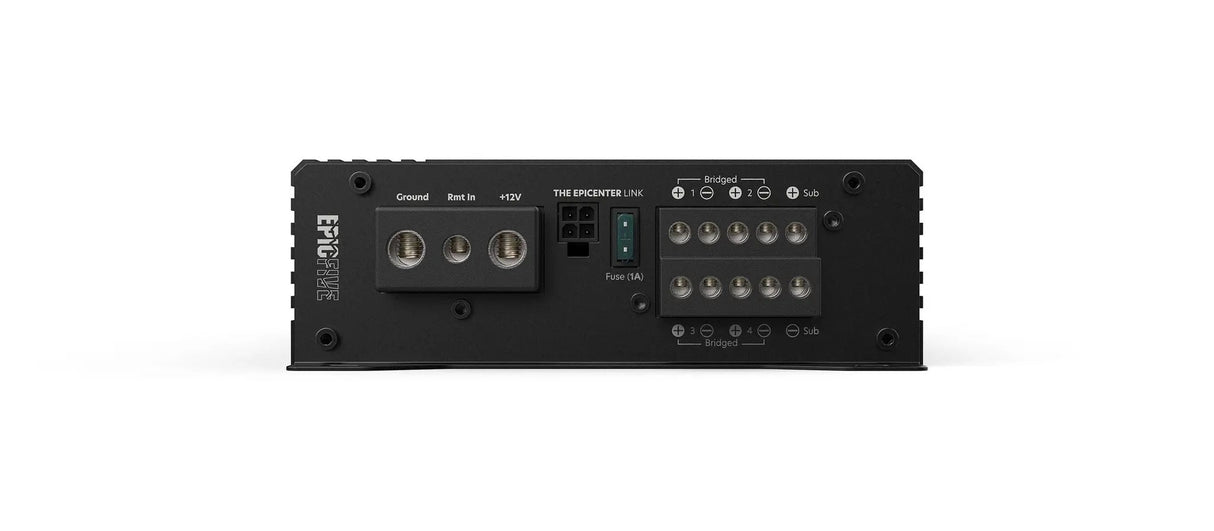

• Terminals: Solid 4 AWG power terminal and 8 AWG speaker terminal with hex screws for secure, high‑current connections.
• Protection: Smart Auto Reset Protection Circuit including Output Over‑Current (OCP), Input Over‑Voltage (OVP), Input Under‑Voltage (UVP), Output DC‑Offset (DCP), and Over‑Temperature (OTP) protections.
• Bass control: Includes a bass knob for convenient front‑seat adjustment of low‑end levels.
• The Epicenter Link: The EPIC Center Link connects to EPIC (Power & Remote) to simplify Epicenter installation with the amplifier.
• In the box: EPICFIVE, Wrench, Screws, ACR-E Remote Level Control and Cable, The Epicenter Link (1 meter harness), Manual, Warranty.
• Dimensions: 6.1" W x 13.35" L x 2.01" H.
• S/N and performance notes: 92.1 dB A, Ref 75 Watts @ 4 ohms; compact form factor supports efficient cooling and straightforward mounting.

In a typical car audio build, EPICFIVE powers a four‑channel front stage while dedicating one channel to a sub, or it can be bridged for a single high‑power mid/woofer. Its 2/1 ohm capability, integrated 12 dB/octave filters, bass boost, and Epicenter integration provide scalable bass control and headroom, all while protecting the system with comprehensive protection circuitry.
