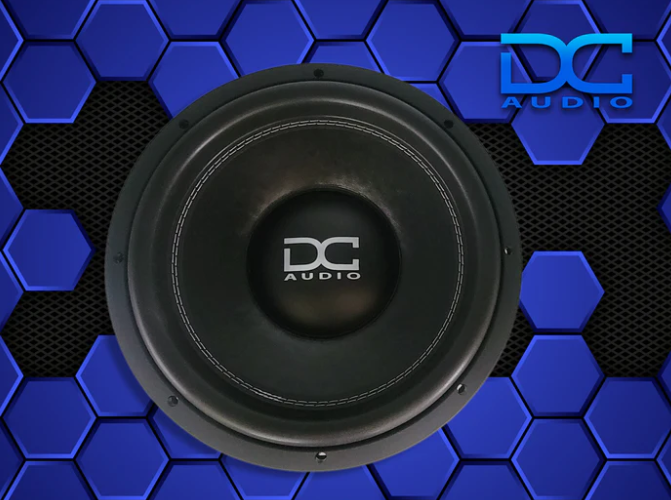

DC Audio Shortie FTW 12" Subwoofer

The DC Audio Shortie FTW 12" Subwoofer packs a 2.5" voice coil and a 5.48" mounting depth into a compact 12.5" chassis, enabling deep bass in shallow installations. Its FEA-optimized motor with a chrome top plate and yoke, side-venting, and a cast aluminum frame deliver robust, high-power performance (500W RMS / 1000W peak) in a space-conscious package.

• 2.5" Voice Coil: Larger diameter coil increases heat handling and control under high output, improving consistency at high excursion.

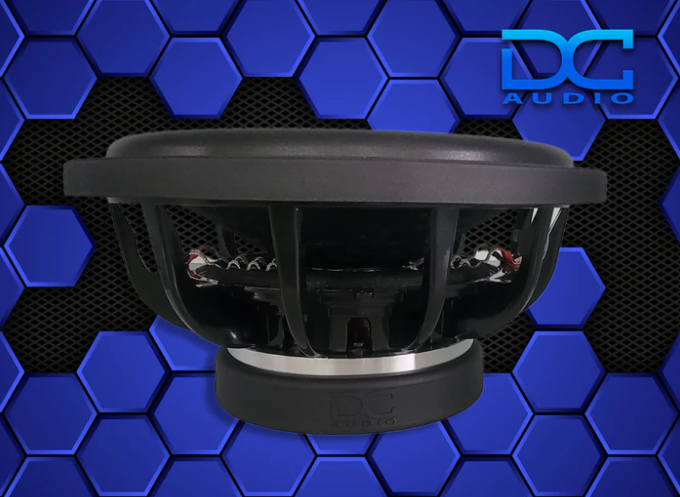

• Mounting Depth: 5.48" depth lets you install the Shortie in tight spaces where deeper drivers won’t fit.
• Outside Driver Diameter: 12.5" footprint accommodates standard cutouts while preserving bass potential.
• Displacement: 0.14 ft³ of cone displacement contributes to more air movement for deeper bass within the enclosure.
• Power Handling: 500W RMS / 1000W peak supports aggressive daily listening and transient peaks within its rating.
• Sd (Cone Area): 552 cm² provides substantial cone surface for effective air excursion.
• Vas: 18.47 L—enclosure size implications help with enclosure design decisions for sealed or ported setups.
• Fs: 41.9 Hz, indicating where the driver’s bass output begins to roll off in a typical enclosure.
• Qts / Qes / Qms: 0.633 / 0.728 / 5.128 reflect a balanced electrical/mechanical damping profile suitable for tuned and sealed alignments.
• Re: 4 Ohms DC resistance, important for amp matching and damping factor considerations.
• Xmax: 14 mm linear excursion, enabling substantial movement before distortion.
• Reference SPL @ 1W: 84.1 dB, a measure of sensitivity under standard test conditions.
• Enclosure Recommendations: Sealed ~1.0 ft³; Ported ~1.5 ft³, providing practical starting points for bass tuning in cars.

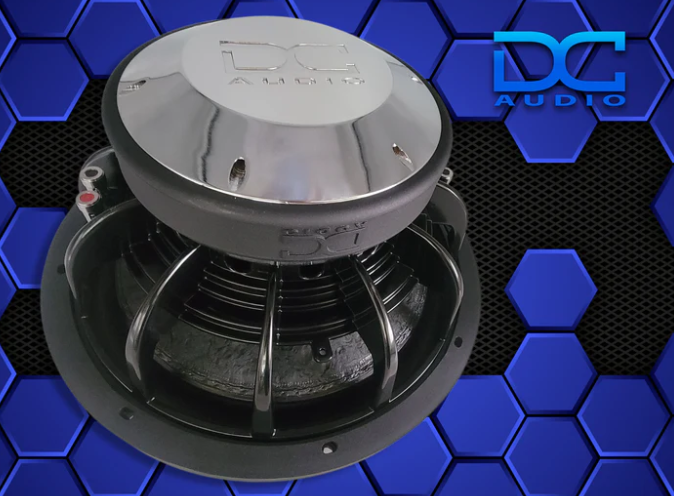

• Construction & Motor: Stitched surround with paper cone, rubber motor boot, polypropylene dust cover, heavy-duty tinsel wiring, cast aluminum frame, and a CNC-machined, side-vented motor assembly built around an FEA-optimized design.
• Terminals & Gasket: Chrome spring-loaded push terminals and a rubber mounting gasket for reliable, vibration-resistant mounting.
• Side Motor Venting: Designed to aid cooling and maintain performance under high drive.

The Shortie FTW 12" is aimed at car audio enthusiasts who need high-power bass from a compact footprint, with flexible enclosure options and a robust, thermally aware motor design that remains reliable in daily driving conditions.
