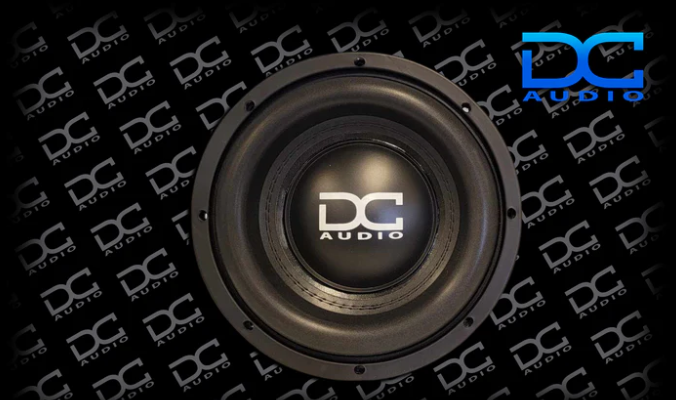

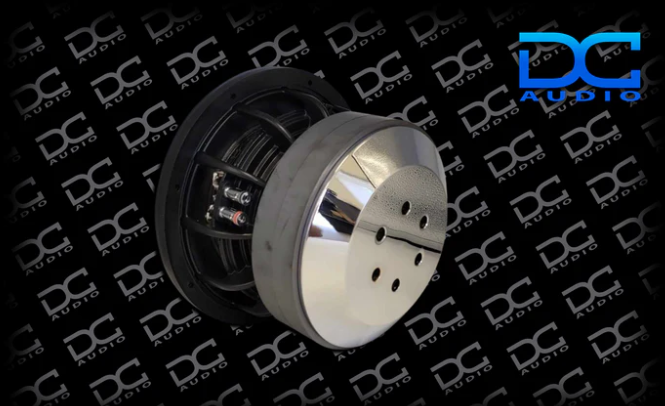

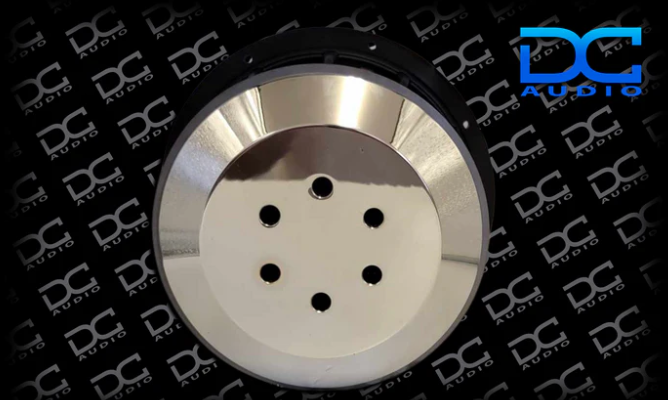

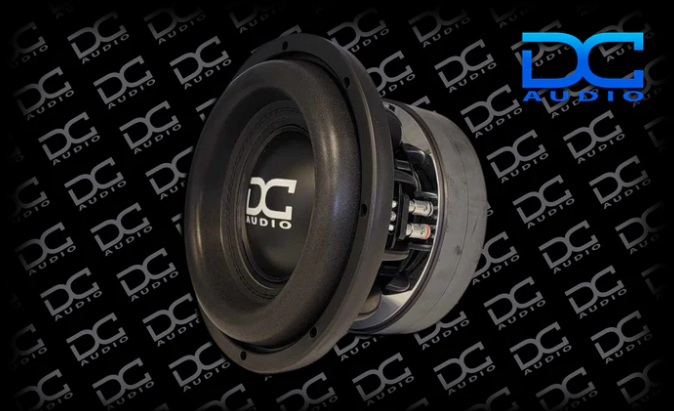

DC Audio RS 10" Subwoofer

DC Audio RS 10" Subwoofer delivers extreme bass in high-power car audio builds, using a force-cooled motor with dual 220mm Y35 Extream Grade magnets and an 8-layer flat wire american made voice coil to sustain big excursions and low distortion.

• Dual 220mm Y35 Extream Grade magnets: High flux provides strong motor control for loud bass without easy power compression.
• Radial venting around a solid pole with forced cooling: Moves 100% of the internal motor air across the coil to stabilize performance under long, demanding sessions.
• 8-layer flat wire american made voice coil: Large-diameter coil handles high current and distributes heat for sustained power handling.
• Extremely rigid non-pressed paper cone assembly: Maintains linear piston action under heavy bass swing, reducing distortion.
• Multilayered polymer foam surround: Controls cone motion precisely and supports deep excursion with durability.
• Triple Stiff 8" OD semi cup progressive roll spiders: Improves mechanical stability and repeatable suspension during intense transients.
• Dual extra heavy duty interweaved tinsel lead wires: Withstands high excursion without fatigue, preserving electrical connection.
• Cast aluminum black frame / no invert mount: Rigid chassis design that supports tight response and reliable mounting.
• FEA analyzed and optimized motor assembly – Fully CNC machined: Tight tolerances yield consistent performance across units.
• Dual 1.0 or 2.0 ohm 3" Hi-temp Voice Coil: Flexible impedance options for different amplifiers while handling high heat.
• Sealed and ported enclosure guidance for 10" model: Sealed 0.75 ft³; ported 1.0 ft³ to suit your desired bass alignment.
• Key specifications (10" model): Sd 324.29 cm²; Vas 5.39 L; Cms 0.036 Mm/N; Mms 405.41 g; Fs 41.59 Hz; Qts 0.408; Xmax 24 mm; Power handling 1800/3600 rms/peak.

Benefits: This 10" RS subwoofer is designed for serious bass in demanding mobile setups. Its high-power motor and robust cooling maintain control and SPL in both sealed and ported configurations, with enclosure recommendations that optimize cone displacement and efficiency. The combination of a rigid cone, heavy-duty build, and CNC-machined motor assembly delivers repeatable performance in automotive environments, while the impedance options and durable wiring support reliable, long-term operation in high-output systems.
