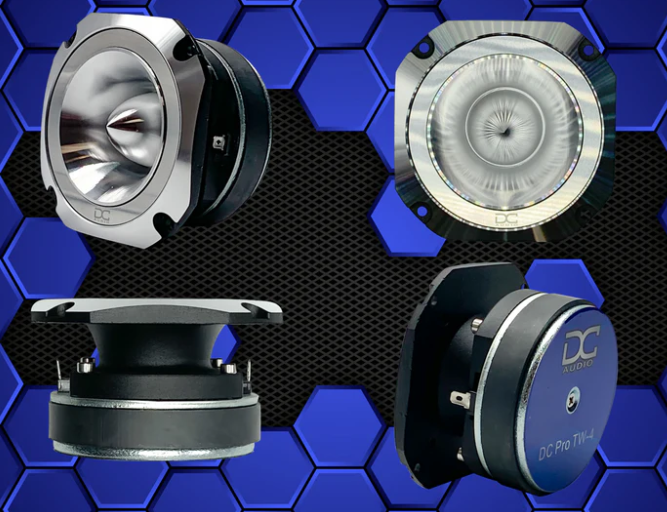

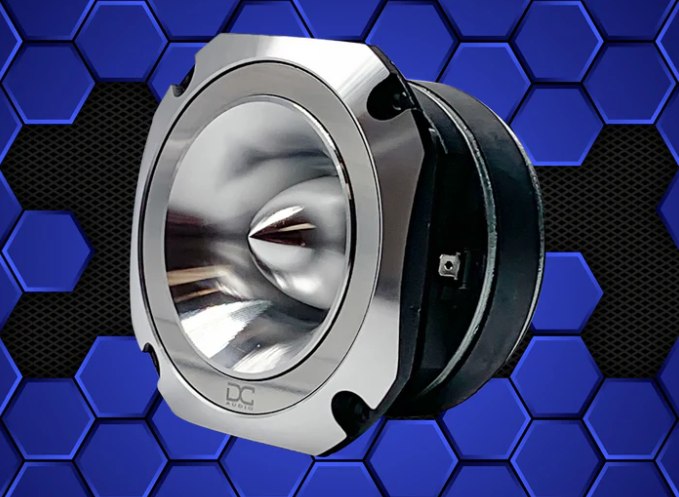

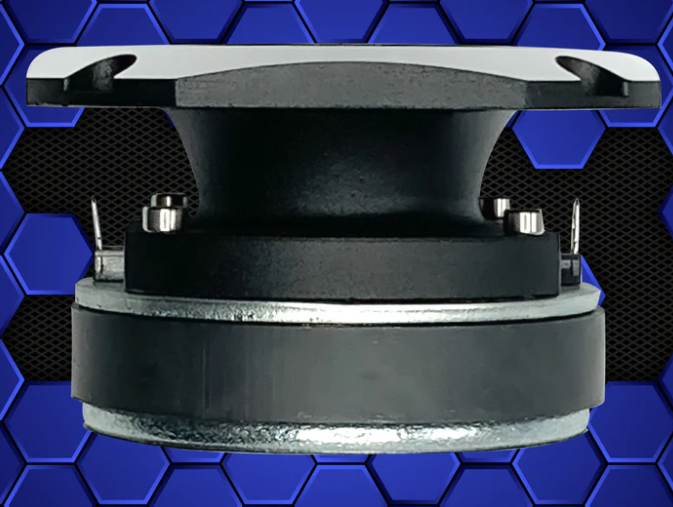

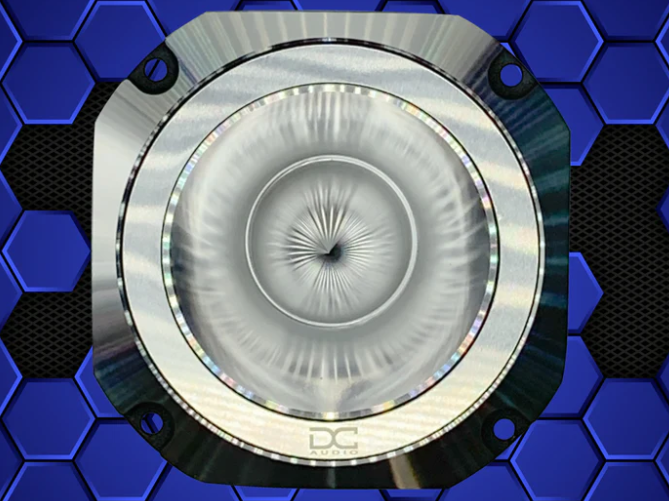

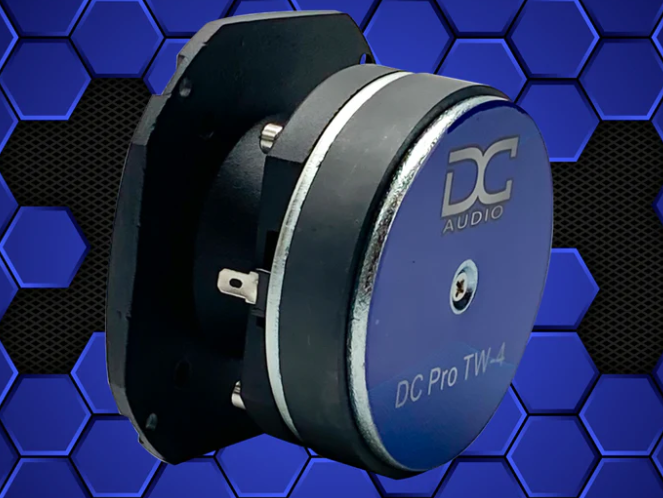

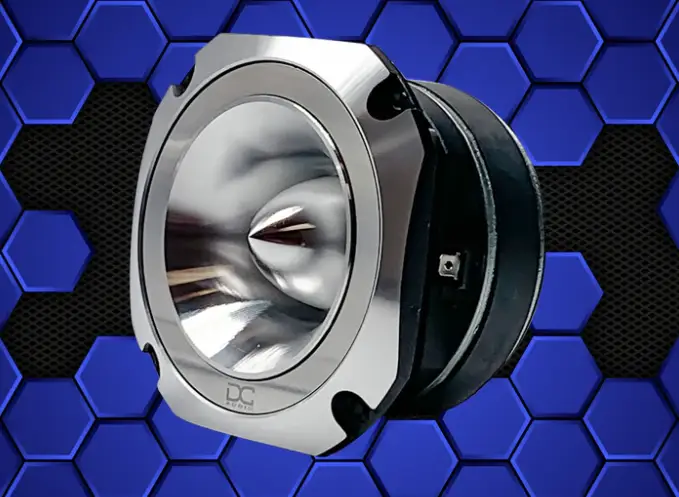

DC Audio Pro Audio Tweeter

The DC Audio Pro Audio 4-inch Tweeter delivers detailed high-frequency extension in a compact 4-inch form factor, built for serious car-audio builds requiring precise highs and reliable power handling. It uses a titanium diaphragm and is offered with 4- or 8-ohm impedance options, and it ships with a passive crossover.

• Power Handling: 50 watts (via the 1.5-inch voice coil). In practice, this means the tweeter can handle moderate input levels without distortion, with the 1.5" voice coil designed to manage the associated heat and current.
• Diaphragm Material: Titanium. Titanium diaphragms provide stiffness and lightness, contributing to fast transient response and extended high-frequency performance.
• Impedance: 4 ohms or 8 ohms. This gives you flexibility to match the tweeter to your amplifier load and crossover design for optimal power transfer.
• Frequency Response: 3 kHz–30 kHz. This range defines the frequencies the tweeter is intended to reproduce, with the included passive crossover ensuring proper integration into the system.
• Includes Passive Crossover: Yes. Simplifies installation by providing the required crossover network to align the tweeter with other drivers in the system.
• Sensitivity: 100 dB. High sensitivity means more output per watt, helping you achieve audible highs without demanding excessive amplifier power.
• Cutout: 3.5 inches. The mounting hole diameter required for installation.
• Mounting Depth: 2.15 inches. Indicates the depth needed behind the mounting surface.
• Sold As: Individual. Each tweeter is sold separately, allowing flexible channel configuration.

In a premium car audio build, this tweeter provides controlled, high-frequency detail with robust power handling, a straightforward integration path via the included crossover, and flexible impedance Options to match your amplifier and crossover design. The 3 kHz–30 kHz range and 100 dB sensitivity support clear, articulate highs without requiring excessive driving power, while the compact 3.5" cutout and 2.15" mounting depth offer versatile fitment opportunities.
