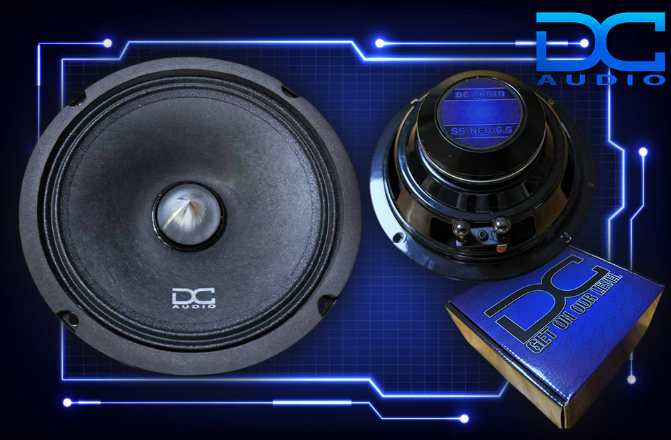

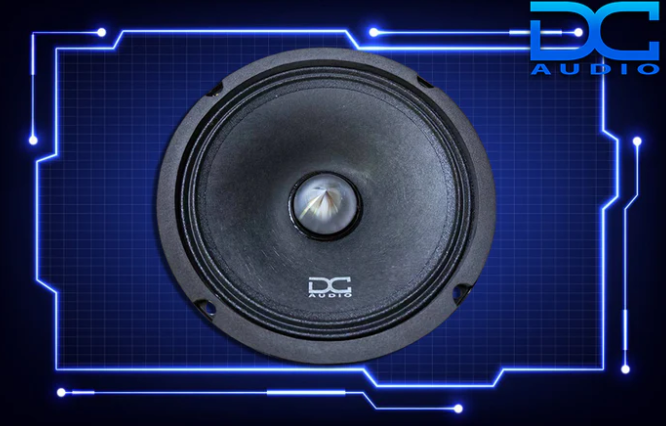

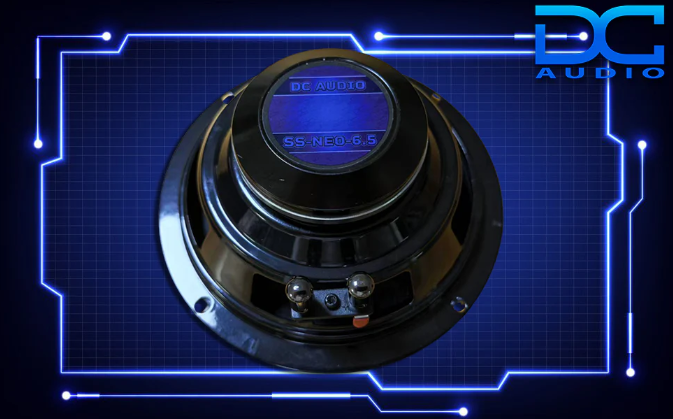

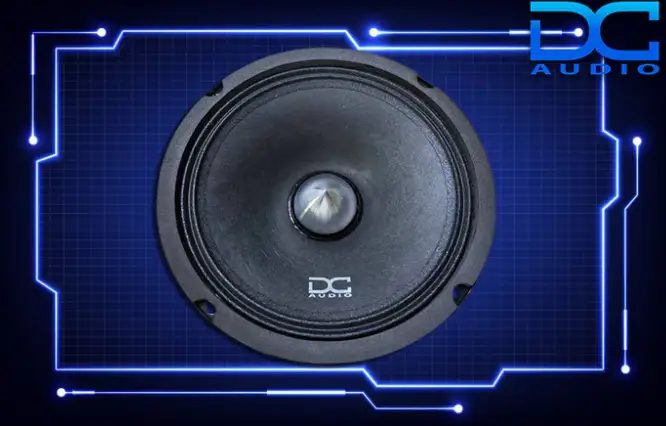

DC Audio NEO SS 6.5" Full Range Pro Audio

The DC Audio NEO SS 6.5" Pro Audio Speaker is a 100W RMS, 6.5-inch driver built for high-output installations where clarity and dynamic range matter. It’s offered with 4 or 8 ohms and a compact footprint for demanding car audio builds.

• Power Handling: 100 watts RMS — represents continuous power the driver can handle without overheating, useful for selecting an appropriate amplifier and crossover headroom.
• Impedance: 4 or 8 ohms — provides flexibility to match with different amplifiers and crossovers, influencing how much current the amp delivers and how impedance interacts with the signal path.
• Voice Coil: 1.5" voice coil — larger coil helps with heat dissipation and sustained excursion, improving control under demanding playback.
• Frequency Response: 150Hz–10kHz — covers most upper midrange to high-frequency content, indicating this driver is intended for midrange/highs in a multi-driver system.
• Sensitivity: 97 dB 1W/1m — higher sensitivity means more output from a given input power, aiding loudness with smaller or hotter amplifiers.
• Magnet: N35 Neo magnet (4 oz) — a lightweight, high-flux magnet design that supports strong performance in a compact form factor.
• Phase Plug: Aluminum Phase Plug — helps manage high-frequency dispersion and heat management for cleaner imaging at stake-out angles.
• Cut Out: 5.7" — the mounting hole diameter required for installation, critical for enclosure or door panel planning.
• Mounting Depth: 2.6" — total depth to clear for fitment in tight cavities or shallow mounting locations.
• Motor Diameter: 3.0" — external dimension of the motor assembly, affecting mounting footprint and heat spread.
• Frame: Stamped Steel Frame — rigid, lightweight housing that supports high excursion and durability in pro-audio use.
• Sold: Sold in Individuals — each unit is sold separately rather than as a paired set.
• Installation note: These Speakers are for High Output Applications and may require custom installation or modifications to fit.

In a car audio build, this driver offers strong upper-frequency reliability with efficient output, a flexible impedance option, and installation adaptability for challenging spaces, making it suitable for high-demand, single-driver or mid/high-frequency roles within a larger system.
