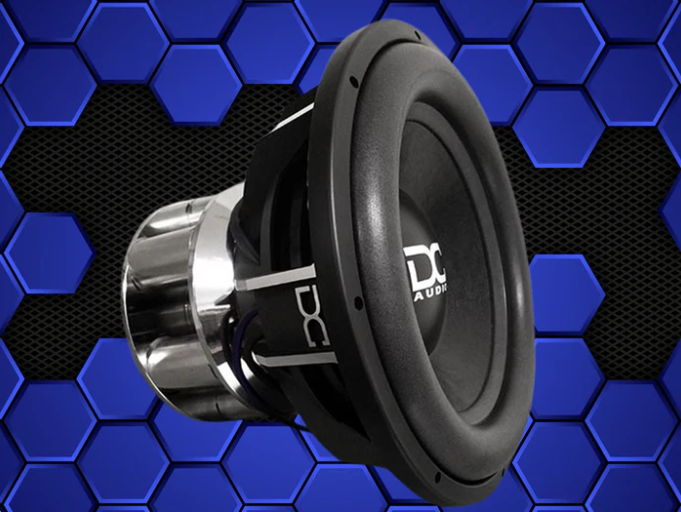

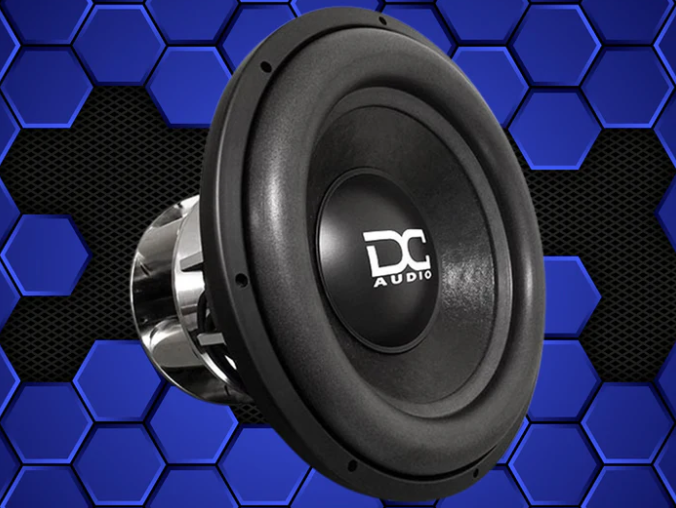

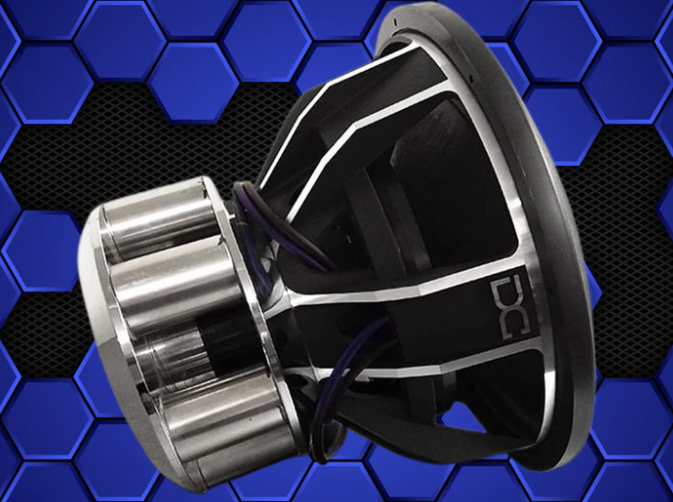

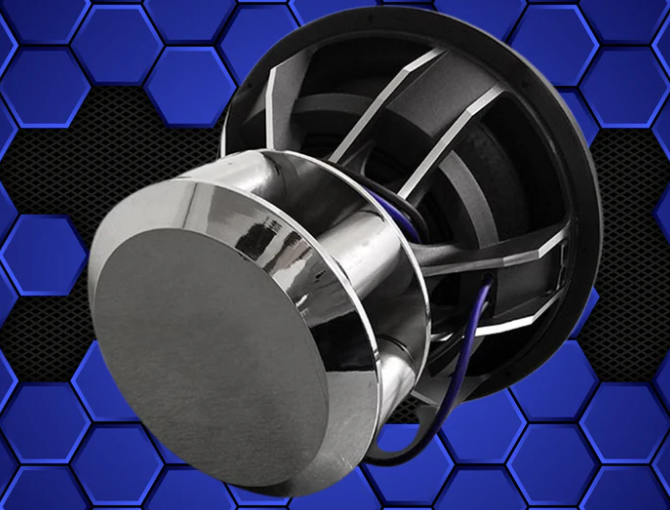

DC Audio NEO Elite 4.0 18" Subwoofer ***BUILT TO ORDER***

The DC Audio NEO Elite 4.0 18" Subwoofer is a purpose-built neo-powered driver designed for extreme power handling and ground-pounding bass in demanding installations. With 4500 W RMS (9000 W peak) and a 4.0" voice coil, it’s engineered for high-power SPL and deep lows in large enclosures. Click HERE to get a Subwoofer Box

• 18" diameter, 13" mounting depth: Provides a large motor and long-throw capability while requiring substantial enclosure real estate.
• Power handling: 4500 W RMS / 9000 W peak: Ready for serious amplification and sustained high-volume bass, assuming a properly designed enclosure and cooling.
• 4.0" voice coil: Large coil diameter enables better heat dissipation and power handling under high excursion conditions.
• 8 AWG OFC direct leads: Minimizes resistance for cleaner power delivery to the voice coil during aggressive playback.
• 10" spaced spiders: Adds rigidity and linear control of cone motion across high excursions, improving stability at high power.
• Cast DC Series aluminum frame (black), no invert mount: Structural rigidity and precise alignment for dependable performance in rugged installations.
• FEA- analyzed, CNC-machined motor assembly: Optimized magnetic structure and tight tolerances for predictable, high-power response.
• Kraft pulp fiber reinforced cone & wide long-throw foam surround: Stiff yet flexible cone construction paired with a durable surround for extended travel and deep bass without distortion.
• Dome-propylene dust cover with White DC logo: Protects the motor assembly while maintaining a clean, high-end appearance.
• T/S parameters (18" version): Sd 1159 cm²; Vas 67.10 L; Cms 34.01 μm/n; Mms 807.49 g; Fs 30.36 Hz; Re 3.9 Ω; Le 4.70 mH; Qms 8.08; Qes 0.36; Qts 0.35; Xmax 34 mm; Ref SPL @ 1W/1m 88.83 dB.
• Enclosure guidance: Ported box recommended around 5.5 ft³ for the 18" version (sealed options not specified).

The Neo Elite 4.0 18" excels in high-output, large-volume builds where deep, loud bass must remain controlled. Its heavy-duty coil and spider assembly, stiff cone, and optimized motor design work together to deliver sustained bass output with disciplined motion, making it well-suited for serious SPL-focused systems and premium installations that require deep lows at high volumes. For enclosure pairing, a ported box around 5.5 ft³ is listed for the 18" version.
