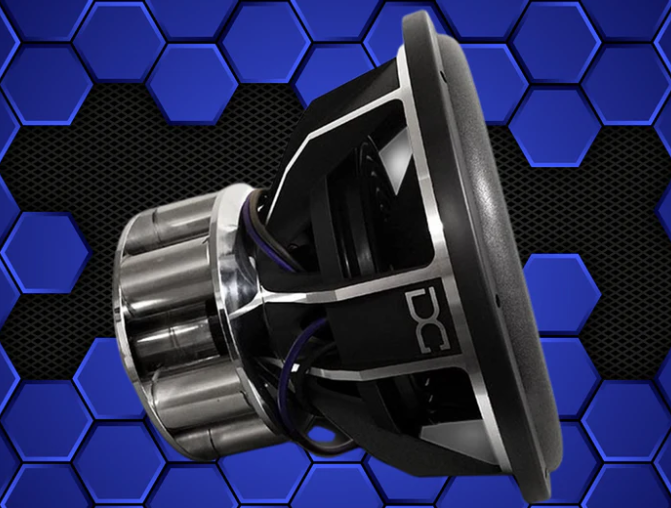

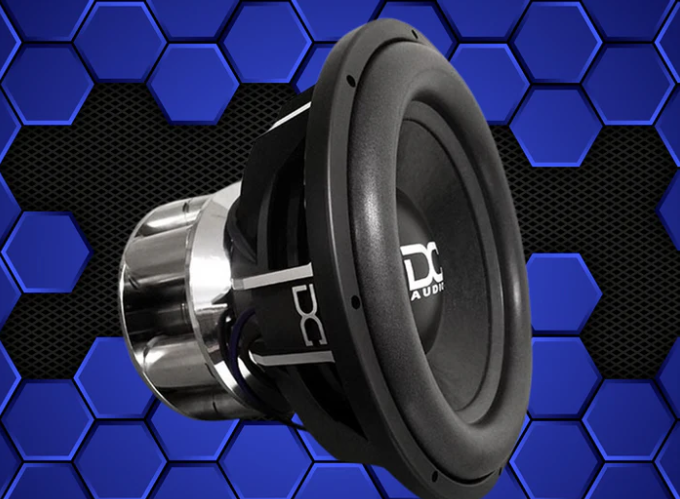

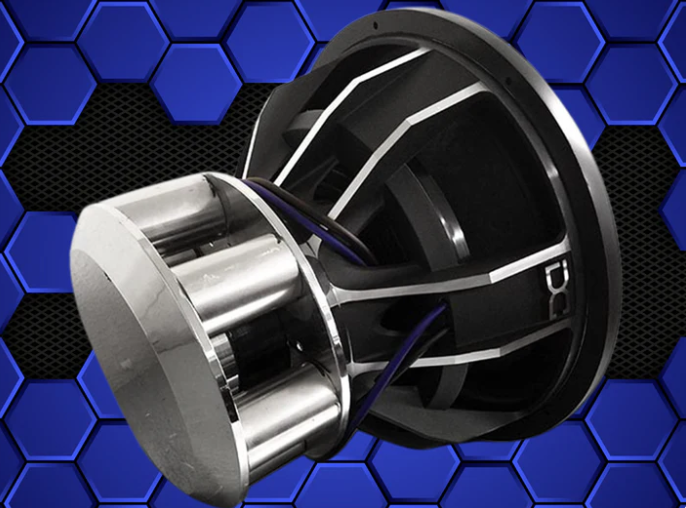

DC Audio NEO Elite 3.5 15" Subwoofer ***BUILT TO ORDER***

The DC Audio NEO Elite 3.5 15" Subwoofer (Built to Order) is a high-motor-force driver engineered for SPL applications and relentless bass, with heat-management features that keep the 3.5" voice coil cool under hard use.

• Extremely rigid paper cone assembly: minimizes cone flex for tighter, more precise bass at high excursion levels.
• Large Roll “LR” multilayered polymer foam surround: supports long, controlled travel while resisting distortion.
• Polypropylene dust cover with DC logo: protects the motor system without adding unwanted resonance.
• (5) 3.5x10” OD spiders: a reinforced suspension that improves control and stability under extreme movement.
• Dual extra heavy duty interweaved tinsel lead wire: reduces electrical resistance and fatigue during intense bass cycles.
• Cast aluminum DC tooled black frame / no invert mount: rigid enclosure integration with reliable mounting compatibility.
• Large Neo Columns: contributes to heat dissipation and structural stiffness for sustained output.
• Rubber mounting gasket: aids sealed, vibration-free installation in a variety of enclosures.
• Direct Leads: straightforward wiring path for low-impedance, high-current performance.
• 3.5" 8-layer hi-temp aluminum voice coil: handles high heat and maintains linearity during extended bass bursts.
• Power handling RMS 3500 watts / Peak 7000 watts: demonstrates the driver’s capability to deliver extreme bass with appropriate amplification.
• Impedance options: d.7 / d1 / d2: selectable impedance to match your amplifier and enclosure design.
• Suggested Ported Box (15") 3.25 ft³: guides enclosure sizing for deep, loud bass in a ported configuration.
• Mounting Depth (15") 11.75" / Mounting Hole Diameter 14.25" / Outside Diameter 15.7" / VC Diameter 3.5": practical install dimensions for fitment planning and enclosure design.
• Xmax 34 mm / Sd 791 cm² / Displacement 0.23 ft³: high excursion capability with substantial cone area for delivering deep bass.

In a capable SPL build, this 15" sub thrives in a ported enclosure around 3.25 ft³, paired with a high-current amplifier to approach its 3500W RMS rating. The open-motor design and NEO columns actively manage heat, helping maintain performance during prolonged bass bursts. The robust five-spider suspension and heavy lead wires provide dependable control at extreme excursions, while the large voice coil and 34 mm Xmax support deep, fulsome bass without audible compression. This driver is intended for installations demanding serious bass output with precise control and reliable thermal performance.
