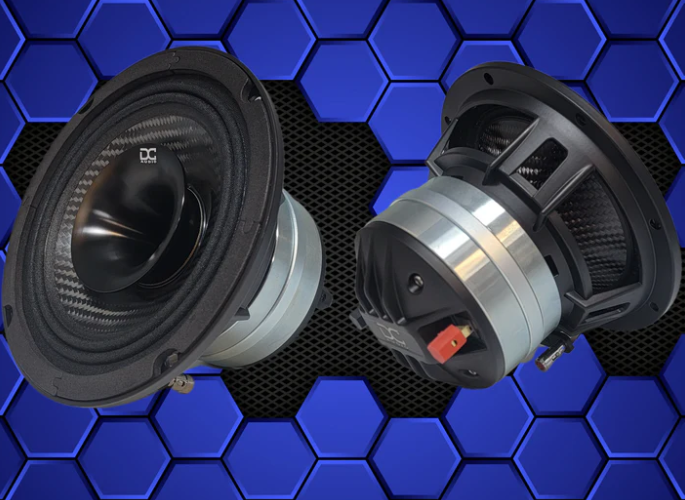

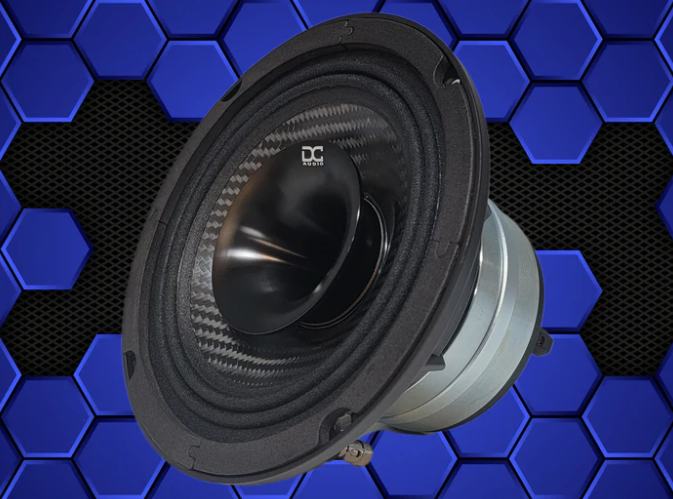

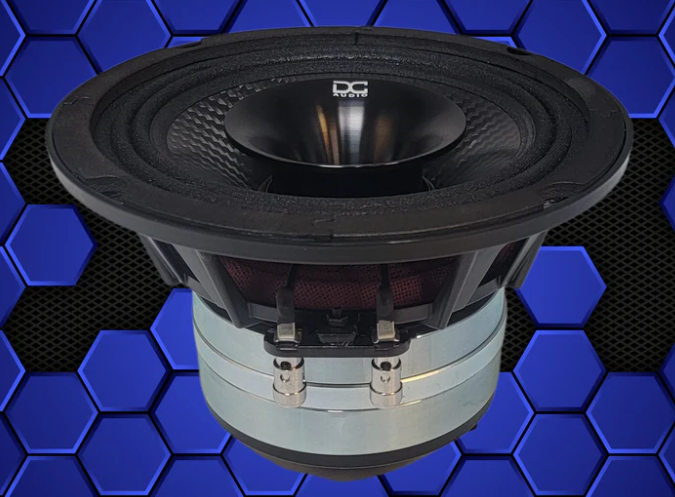

DC Audio NEO COAXIAL CF 6.5" Full Range Pro Audio

DC Audio NEO COAXIAL CF 6.5" Full Range Pro Audio is a 6.5-inch coaxial driver built for high-output car audio builds, pairing a 50 mm voice coil-driven mid section (200 watts) with a dedicated highs section rated at 50 watts. It’s designed to meet demanding installations where power handling and extension to the top end matter in a single, coaxial package.

• Mid power rating: 200 watts via a 50 mm voice coil, providing substantial midrange capability for loud, dynamic listening in active or high-output systems.
• Highs power rating: 50 watts, indicating the tweeter portion can contribute in high-output scenarios without overload when properly crossed over.
• Impedance options: 4 ohms or 8 ohms available, enabling compatibility with a range of amplifiers and system designs.
• Frequency response: 120 Hz–20 kHz, covering most of the audible spectrum when paired with suitable crossovers and enclosures.
• HF crossover: 1.2 kHz–20 kHz, defining where the high-frequency portion begins to operate in a properly tuned system.
• Mid crossover: 120 Hz–20 kHz, indicating the low-to-mid transition range for the driver within a multi-way setup.
• Sensitivity: 1w/1m 000db, the stated efficiency figure to gauge output relative to input power (subject to enclosure and system tuning).
• Cut out: 5.9" diameter, informs installation diameter for mounting in trim rings or door panels.
• Mounting depth: 4.45" / 112 mm, a measurement to verify fitment within enclosures or mounting surfaces.

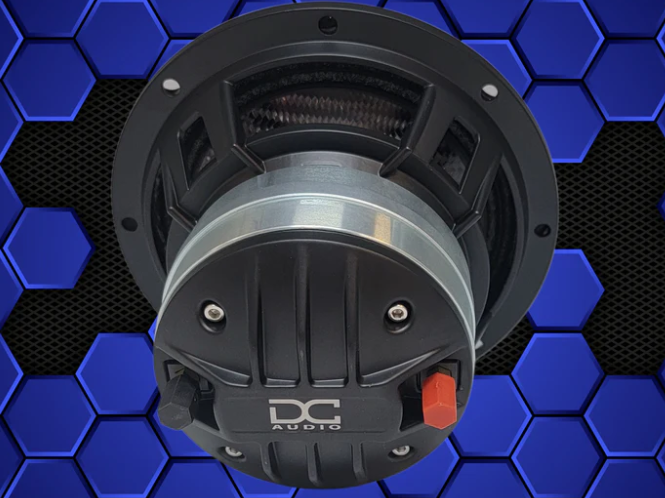

• Motor diameter: 2.95" / 75 mm, part of the reason for the “massive motor and frame” note for Pro Audio lineups.
• Frame: Cast frame, contributing to rigidity and durability at higher power levels.
• Configuration: Sold in individuals, intended for custom, one-piece purchases for specialized builds.
• Installation notes: These speakers are for high-output applications and 99% of the time require custom installations or modifications to fit the massive motor and frame used for the Pro Audio lineup.
• Usage recommendation: Run fully active with mids and horns on separate channels set at the appropriate crossover and power settings.

In a real car audio build, this DC Audio NEO COAXIAL CF 6.5" pair serves as a compact but capable front-stage or dedicated mid/high module in a multi-channel, actively crossed system. Its substantial motor and cast frame support high power handling, while the integrated coaxial design and explicit crossover points help streamline a precise, high-distortion-free signal path when configured with the correct amps and crossovers.
