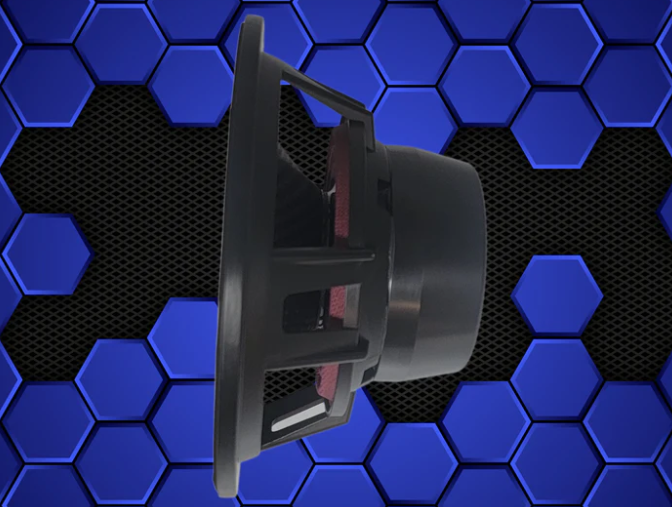

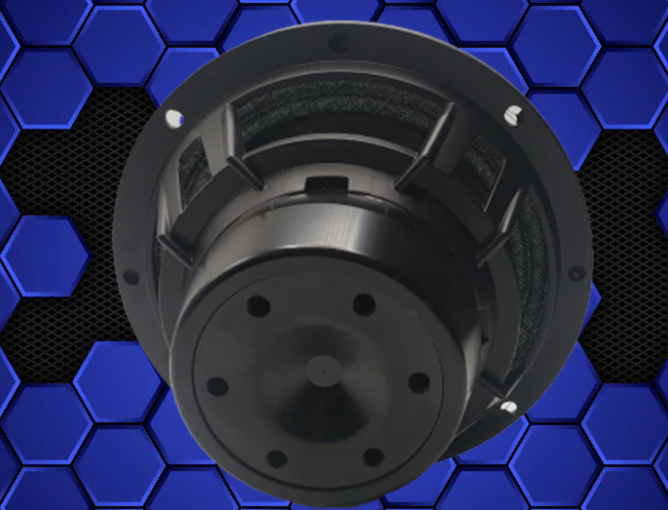

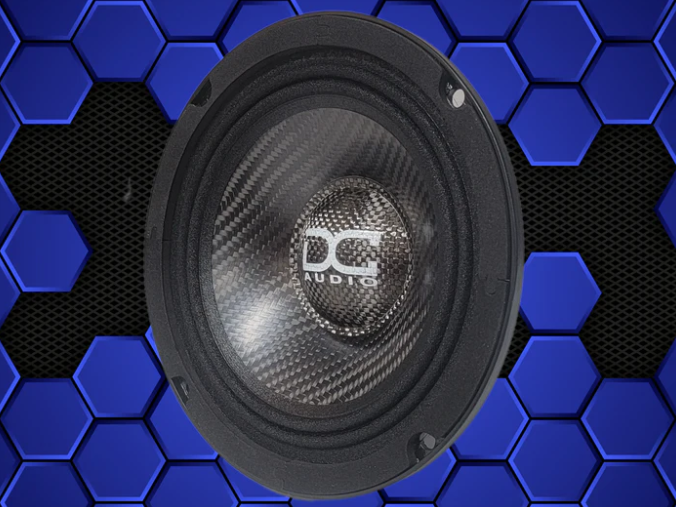

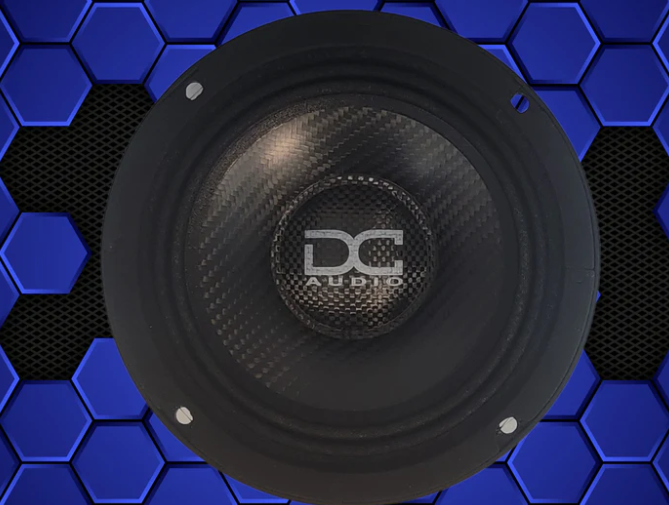

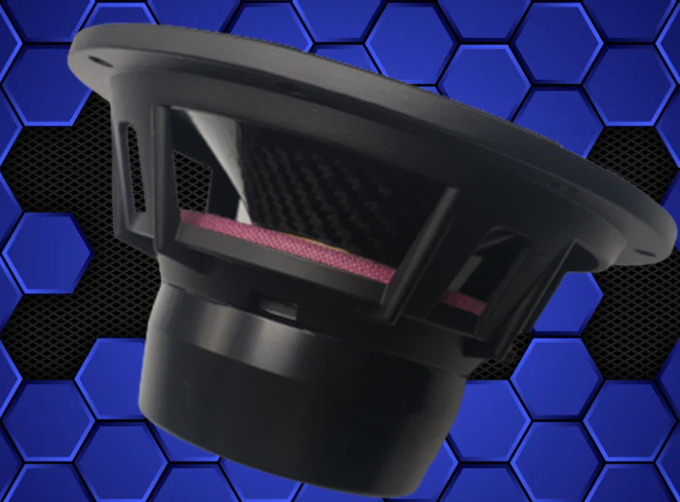

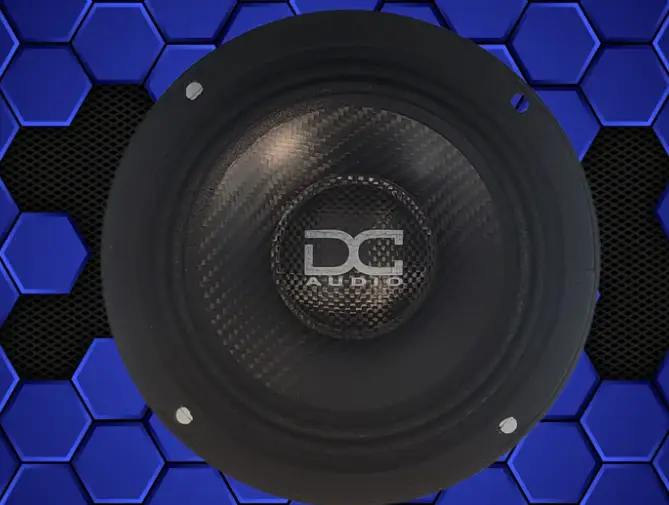

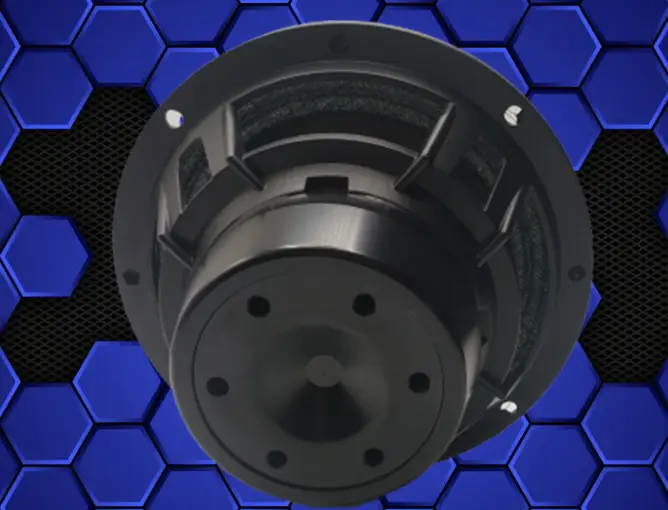

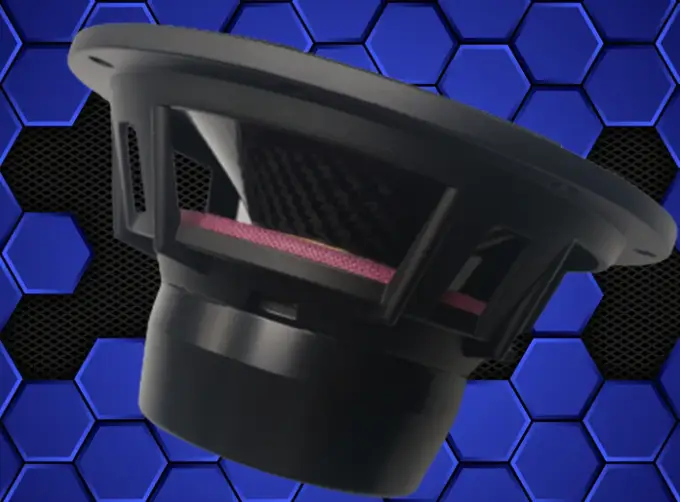

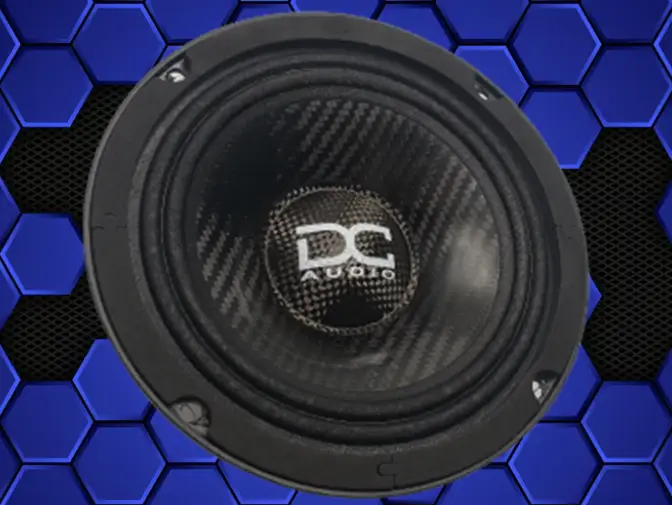

DC Audio NEO CF 6.5" Full Range Pro Audio

DC Audio NEO CF 6.5" Full Range Pro Audio is a 6.5-inch high-output driver built for demanding in-car installations, delivering strong mid-to-high frequency performance with a 150 Hz–12 kHz range and a 98 dB sensitivity (1W/1m). It uses a 50mm CCAW voice coil to sustain higher power handling in a cast-frame chassis.

• Power Rating: 150 watts via a 50mm voice coil (CCA W). In real-world use, this supports louder playback and better transient response in high‑output systems while the large coil aids heat dissipation during sustained use.
• Impedance: 4 or 8 ohms. Provides flexibility for amplifier and enclosure design, allowing you to optimize loading and damping for your setup.
• Frequency Response: 150 Hz – 12 kHz. Covers bass-leaning midrange up through bright treble, making it suitable as a full‑range element in custom enclosures where subwoofers aren’t used for low end.
• Sensitivity: 98 dB (1W/1m). Signals that with modest amplification you can achieve high SPL in a listening environment without excessive power demand.
• Cut Out: 5.9". Cutout diameter dictates fitment in chosen mounting locations and may require precise mounting templates or custom installation work.
• Mounting Depth: 3-1/4". Provides a relatively shallow profile for a pro‑audio 6.5" driver, but still requires adequate space behind the mounting surface in vehicle applications.
• Motor Diameter: 3.5". A sizeable motor supports strong excursion and control in high‑output builds.
• Frame: Cast frame. Durable construction designed to withstand demanding use in pro‑audio style installations.
• Sold: Individually. Each driver is sold as a single unit, not as a pair.
• Installation note: These speakers are for high-output applications and 99% of the time require custom installations or modifications to fit the massive motor and frame used for the Pro Audio lineup.

Benefits: In a dedicated high‑output car audio build, the NEO CF 6.5" excels as the primary full‑range element where space is constrained but loud, clear midrange and treble are desired. The 4/8 ohm options, robust 50mm voice coil, and cast frame support aggressive systems with careful enclosure and mounting planning. Expect strong upper-frequency presence and detailed transient response, with installation challenges typical of pro‑audio focused drivers requiring custom fabrication or mounting solutions.
