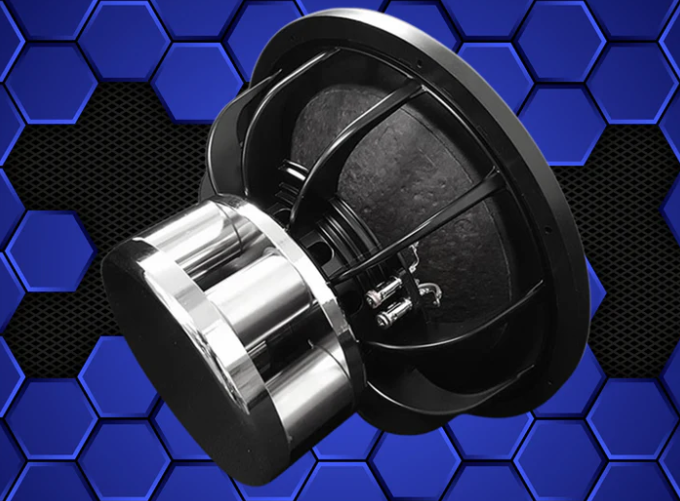

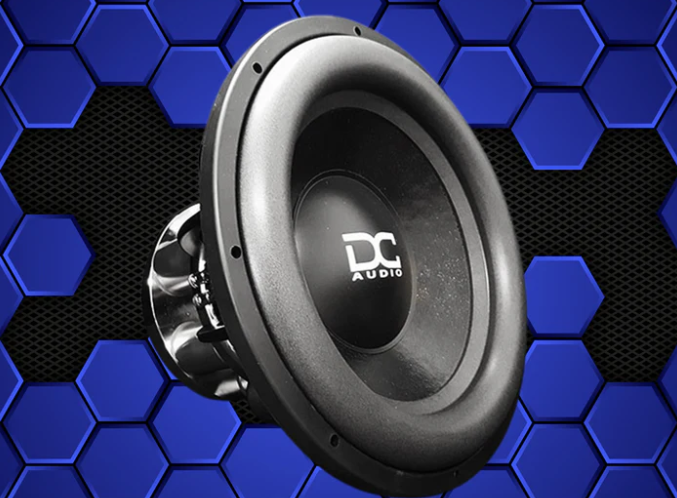

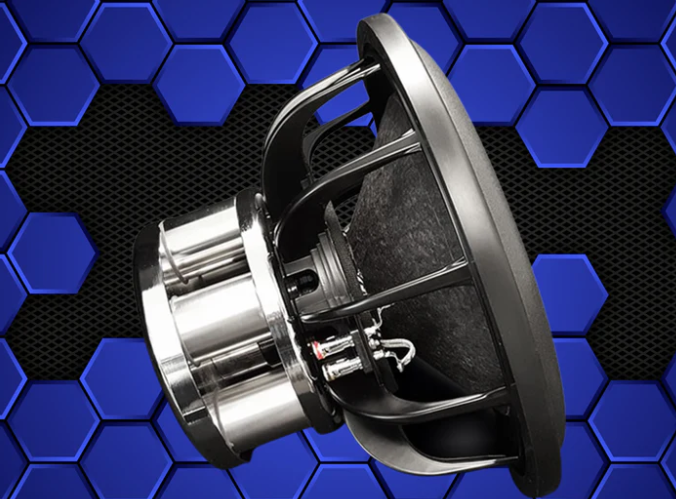

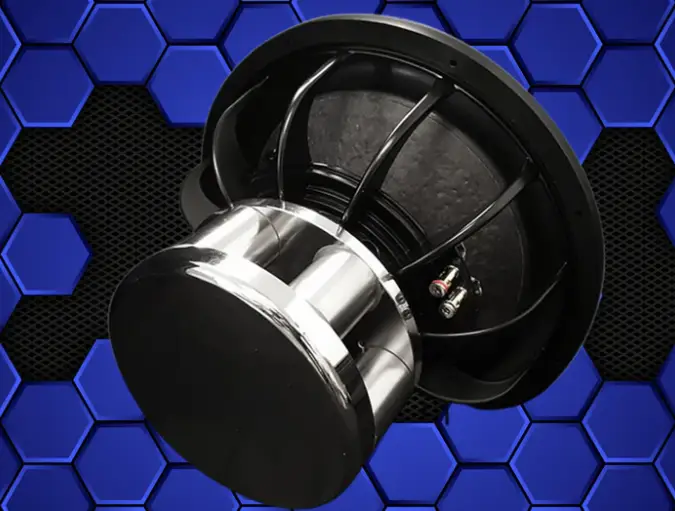

DC Audio NEO 3.0 15" Subwoofer ***BUILT TO ORDER*** SOLD OUT

The DC Audio NEO 3.0 15" Subwoofer is an SPL-focused 15-inch driver built for championship-level bass, featuring a 3" aluminum voice coil and a CNC-machined motor assembly for tight, controlled performance under high power. Built to order, this version emphasizes extreme excursion potential with a configurable coil/spider design to extract every tenth of a dB.

• 15" form factor with 9" mounting depth: fits common 15" cabinets and provides substantial excursion headroom without excessive enclosure depth.
• Mounting Hole Diameter: 14"
• Outside Driver Diameter: 15.7"
• Voice Coil: 3" 8-layer hi-temp flat wound aluminum coil for high-temperature tolerance and strong motor coupling.
• Spider configuration: 8" OD semi cup progressive roll spiders for linear suspension across large excursions.
• Frame: Cast aluminum black frame for rigidity and cooling potential.
• Motor assembly: FEA analyzed and optimized, fully CNC machined for precise alignment and consistent performance.
• Surround: Multilayered polymer foam surround to maintain stiffness under load.
• Dust cover: Polypropylene dust cover with DC logo.
• Lead wiring: Dual extra heavy duty interweaved tinsel lead wires to handle high excursion.
• Terminals: Chrome spring-loaded push terminals for secure, high‑current connections.
• Power handling: RMS 2200 W / Peak 4400 W, enabling serious bass authority when paired with appropriate amps.
• Impedance options: d.7 / d1 / d2 / d4 for flexible system integration.
• Sd: 791 cm (cone area specification for enclosure design).
• Vas: L (compliance metric provided in catalog notation).
• Displacement:.23 ft³ (air moved in typical excursion conditions for the 15" version).
• Enclosure guidance: Suggested Sealed Box 3.0 ft and Suggested Ported Box 5.5 ft for the 15" variant.

In a real car audio build, the NEO 3.0 15" excels in high-output installations where precise control at high power is required. The combination of a rigid AR paper cone, heavy-duty spider system, and a CNC-machined motor assembly supports strong, clean bass with reduced distortion at extreme excursions, while the robust frame, gasket, and terminals help ensure reliable performance in demanding mobile environments.
