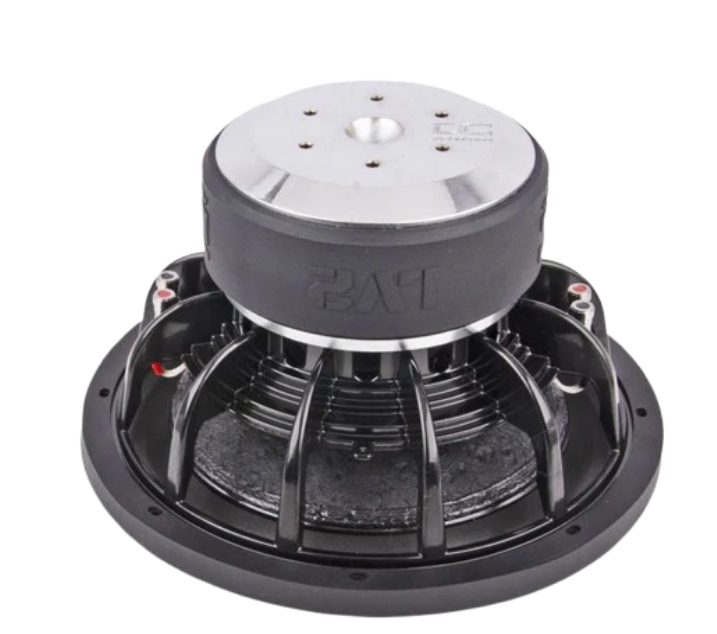

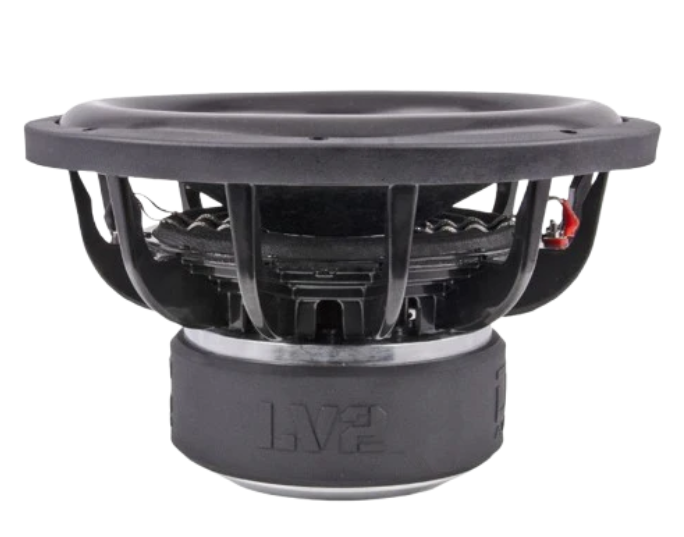

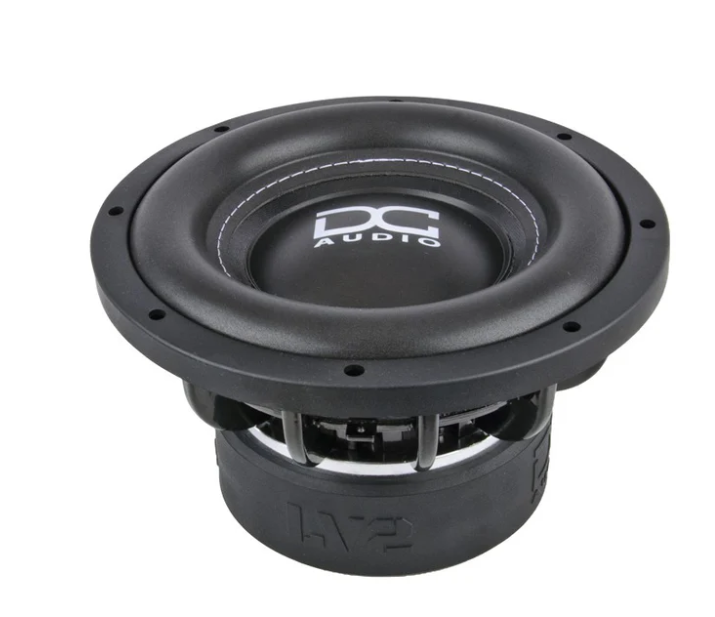

DC Audio M4 Level 2 12" Subwoofer

DC Audio’s M4 Level 2 12" Subwoofer is a redesigned 12-inch driver built for high‑power, enthusiast-level installs, delivering more output in sealed or ported enclosures. NEW for 2025, it features a double-stacked FEA-optimized motor, chrome top plate and T‑yoke, and 22 mm of Xmax for extended bass swing, with testing claiming about 33% more output than the previous version.

• Double-stacked FEA-optimized motor (fully CNC machined): A larger, computer-optimized magnetic system aimed at higher efficiency and better control at elevated power levels.
• 2.75" Hi-temp copper voice coil: A thick coil designed to handle heat, enabling sustained high‑power performance without thermal compression.
• 8" OD progressive high‑output spiders: Supports smooth, linear cone travel at high excursion, improving low‑bass reliability under demanding music and SPL scenarios.
• Cast aluminum black frame / no invert mount: Rigid, thermally stable chassis with a mounting layout that reduces confusion during installation and handling.
• Chrome top plate & T‑yoke: Adds stiffness and a premium presentation while contributing to consistent motor performance at high output.
• 12.5" outside driver diameter; 6.5" mounting depth; 11.00" mounting hole diameter: A concrete footprint for fitment planning in vehicles, helping you verify enclosure and mounting clearances.
• Power handling: 750W RMS / 1500W peak: Defines the continuous and peak energy the driver is built to tolerate in real-world listening sessions.
• Displacement 0.15 ft³; Sd 502 cm²; Vas 18.5 L: Indicates cone area and enclosure requirements to achieve optimal bass extension and efficiency.
• Xmax 22 mm; Fs 41.5 Hz; Qts 0.799; Qes 1.003; Qms 3.937: High‑level mechanical specs that relate to bass extension, tuning flexibility, and overall control under dynamic content.
• Ref SPL @ 1W: 83.1 dB: Baseline sensitivity indicating expected loudness with a single watt of input at 1 meter.
• Suggested sealed/ported box sizes: Sealed 0.75 ft³; Ported 1.25 ft³

Benefits: In a real build, the M4 Level 2 12" excels where you want substantial bass from a 12" driver without oversized enclosure volume. The combination of the robust motor, high excursion, and the option for either sealed or ported boxes provides flexibility for tight, accurate bass or louder, deeper extension, all while maintaining structural integrity and reliability under high power. The included rugged hardware—gasket, push terminals, and a durable frame—supports durable installations in demanding car environments.
