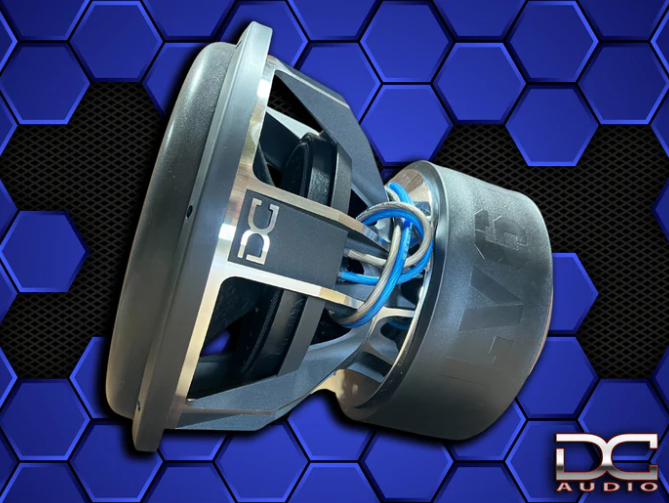

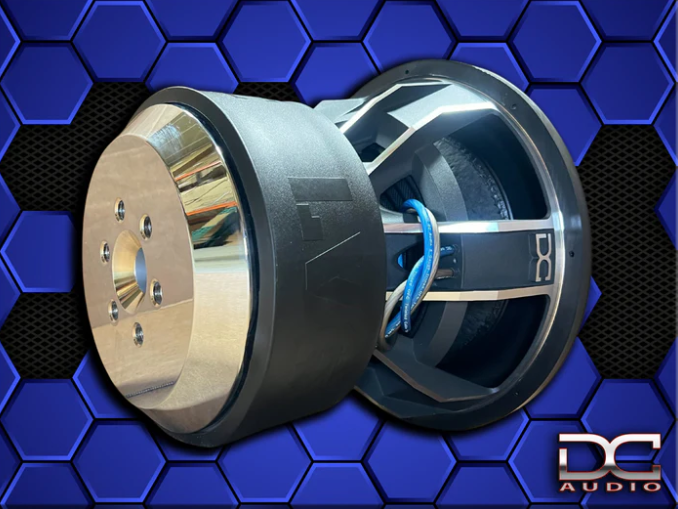

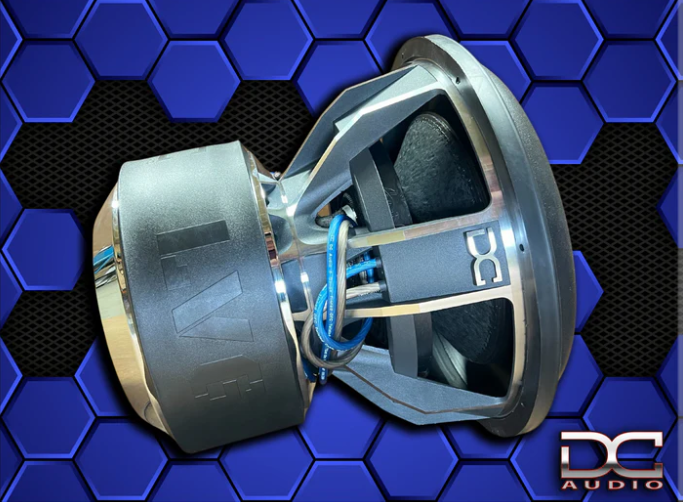

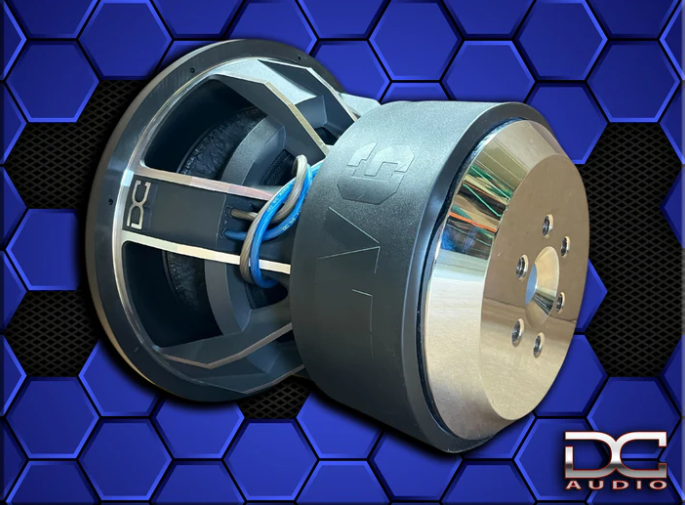

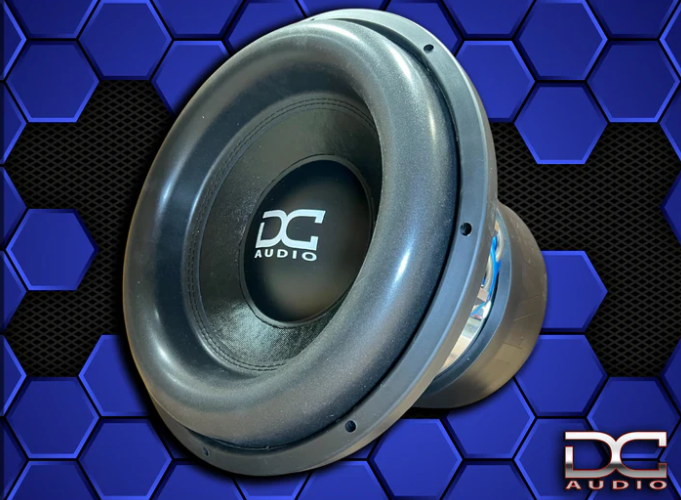

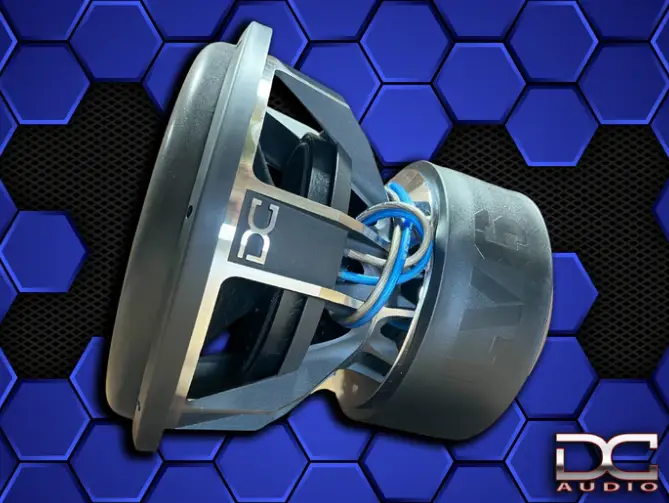

DC Audio Level 6 M6 18" Subwoofer ***BUILT TO ORDER***

The DC Audio Level 6 M6 18" Subwoofer is a hand-built, USA-made Level 6 Elite driver designed for extreme power handling and ultra-deep bass in large installations. Built to order for discerning enthusiasts, it’s engineered to live in the SPL lanes or on a high-output daily system. Click HERE to get a Subwoofer Box

• Power Handling: 4500 Watts RMS / 9000 Watts Peak. In real terms, this driver is built to accept serious continuous and burst power when paired with a capable amplifier, delivering substantial headroom and deep bass without immediate thermal compression.
• Voice Coil & Leads: 4.0" aluminum voice coil on a black anodized aluminum former with 8 AWG OFC direct leads. The 8-layer hi-temp aluminum winding supports high current and robust thermal handling for sustained bass under demanding conditions.
• Construction & Frame: Cast DC Series aluminum black frame with rubber mounting gasket and a dedicated motor boot with embossed DC Audio and LV6 logos. Built to resist harsh in-vehicle environments while maintaining precise alignment under heavy excursion.
• Suspension & Cone: Kraft pulp fiber reinforced cone with a wide long-throw foam surround and a dome polypropylene dust cover. The combination is aimed at high excursion control and durable, low-distortion motion at extreme fills.
• Motor & Alignment: FEA- analyzed and optimized motor assembly with a full CNC-machined structure, extended pole and more rearward coil clearance. These features support linear motion and reduce coil rub at high excursions.
• Size & Dimensions (18" version): Mounting Depth 13.5", Outside Driver Diameter 18.5", VC Diameter 4.0", Displacement.27 ft, Ohm Options d.7/d1/d1.4/d2/d4, Sd 1159 cm, Vas 88.75L, Cms 00.049 mm/n, Mms 748.83 g, Fs 26.37 Hz, Le 4.64 mH, Qms 6.871, Qes 0.5119, Qts 0.4764, Xmax 32 mm.
• Size & Dimensions (15" version for reference): Mounting Depth 12.5", Outside Driver Diameter 15.7", VC Diameter 4.0", Displacement.24 ft, Ohm Options d.7/d1/d1.4/d2/d4, Sd 815 cm, Vas 46.3L, Cms 0.057 mm/n, Mms 583.6 g, Fs 27.59 Hz, Le 2.02 mH, Qms 5.726, Qes 0.3643, Qts 0.3425, Xmax 32 mm.
• Sensitivity (Ref SPL @ 1 watt): 86.16 dB (15") / 86.92 dB (18").
• Recommended Enclosures: Suggested Ported Box 3.5 ft (15") / 6.0 ft (18"). These figures provide starting points for achieving strong bass extension in typical large enclosures.

The Level 6 M6 18" is built to move a lot of air with ample thermal and mechanical resilience, making it a purpose-built choice for high-power, high-excursion bass systems that require sustained, controlled deep lows.
