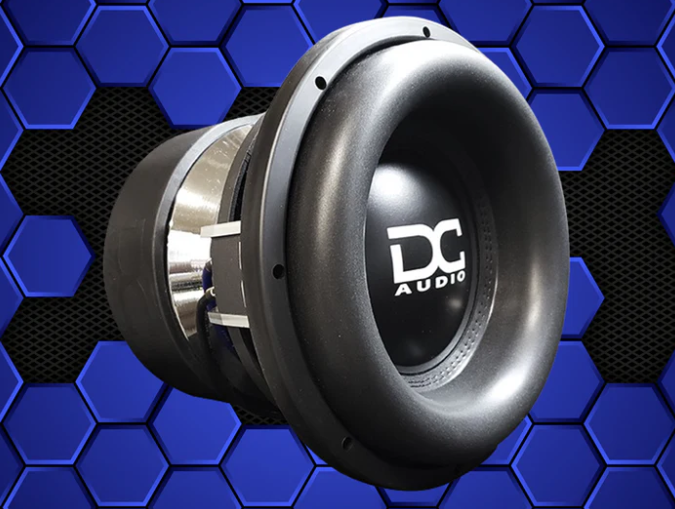

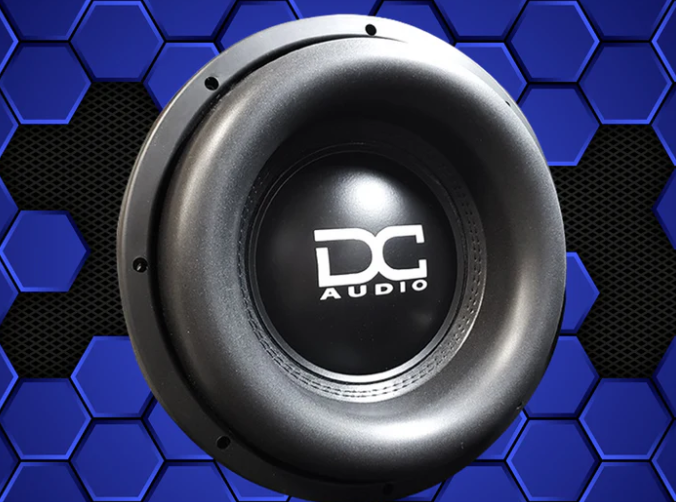

DC Audio Level 5 Elite 15" Subwoofer

The DC Audio Level 5 Elite 15" Subwoofer is a hand-built, USA-made SPL-focused driver in the M6 Elite lineage (2025 release), engineered for extreme bass authority with a 3500W RMS / 7000W peak rating and a robust 3.5" voice coil. It ships with the 2024 cone change (LR cone/surround) and is designed to endure hard use in competition and street builds alike. Click HERE to get a Subwoofer Box.

• Power Handling: 3500 Watts RMS / 7000 Watts peak. In real-world use, this capacity supports powerful, sustained bass with ample headroom when paired with a suitable amplifier and proper enclosure.
• Cone & Surround: Kraft pulp fiber reinforced cone with a wide long-throw foam surround. This combination strengthens rigidity and excursion capability for deep bass with controlled cone motion.
• Voice Coil & Former: 3.5" hi-temp aluminum voice coil wound on a black anodized aluminum former with high-current input strips. Heavy-duty winding and conductor geometry enable high current handling and reduced distortion at high power.

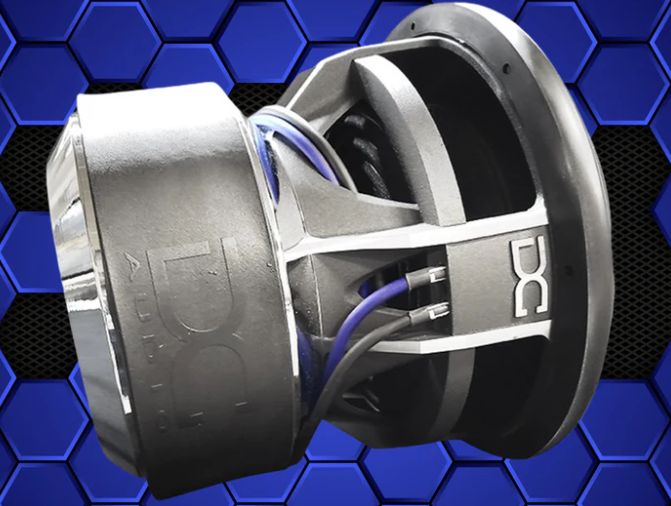

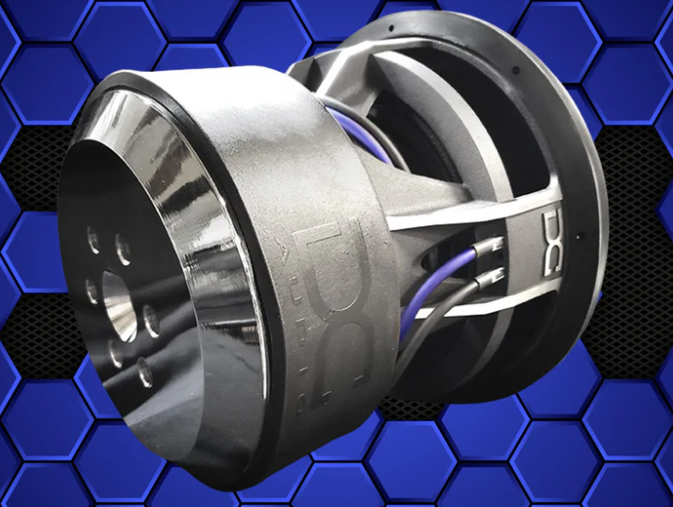

• Frame & Motor Assembly: Cast DC Series aluminum black frame with a FEA-optimized, fully CNC-machined motor assembly and machined cooling vents. Built for stiffness, cooling efficiency, and precise alignment under stress.
• Lead Wires & Termination: 8 AWG OFC direct leads for low resistance during high-power operation and reliable endurance in rugged installations.
• Suspension & Spiders: 10" OD spaced spiders supporting the voice coil, contributing to stable control under extreme excursion.
• Dust Cover & Motor Boot: Dome polypropylene dust cover with White DC logo and embossed rubber motor boot for protection against dust and debris while maintaining motor clearance.
• Mounting & Size (15" model): Mounting Depth 11.75"; Outside Driver Diameter 15.7"; Mounting Hole Diameter 14.25"; VC Diameter 3.5".
• Displacement & Electrical: Displacement 0.23 ft³; Ohm Options d.7/d1/d2/d4 for flexible system design.
• Electroacoustic Parameters (15"): Sd 791 cm, Vas 48.98 L, Cms 55.12 μm/N, Re 3.26 Ω, Le 1.86 mH, Qts 0.300, Qes 0.310, Qms 5.59, Fs 30.7 Hz, Xmax 32 mm, Ref SPL @ 1W 89.4 dB, Bl 31.38 N.
• Enclosure Guidance: Ported box recommendation for the 15" model is 3.25 ft³ to balance extension and control in typical installations.

Benefits: In a properly tallied system, this 15" Level 5 Elite drives deep, loud bass with tight control thanks to its high-displacement motor and reinforced cone, making it suitable for high-current, high-output builds. It pairs with substantial amplification in a well-designed enclosure (ported around 3.25 ft³ for the 15" variant) to deliver legitimate SPL capability while maintaining low-frequency accuracy. The combination of CNC-machined components, robust wiring, and a durable frame helps ensure consistent performance under demanding conditions typical of competition lanes or aggressive street setups.
