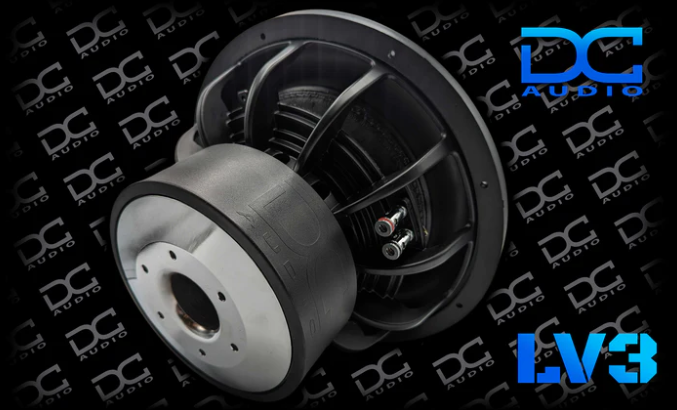

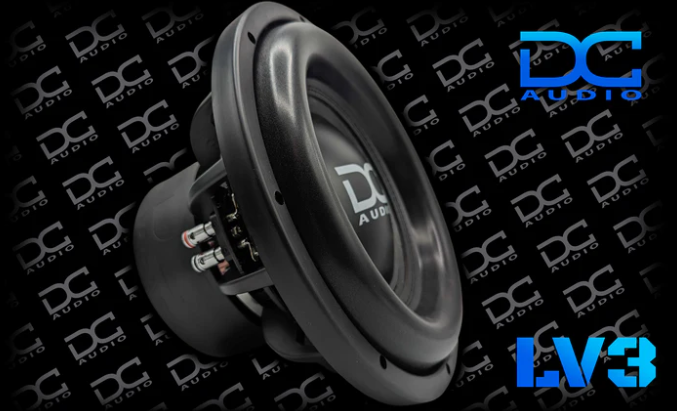

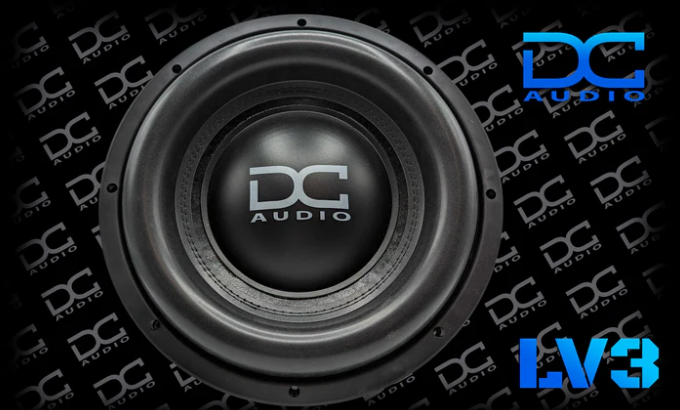

DC Audio Level 3 12" Subwoofer

The DC Audio Level 3 12-inch subwoofer is a daily-driver built for enthusiasts who want deep, controlled bass in sealed or ported enclosures. With a 1000W RMS (2000W peak) rating and a 22.5 mm X-max, it delivers substantial bass and linear excursion under real-world driving conditions.

• 12" diameter cone: Large cone area moves more air, producing higher output in both sealed and ported enclosures.
• Extremely rigid non-pressed paper cone assembly: Maintains stiffness through heavy bass excursion to minimize distortion.
• Multilayered polymer foam surround: Controls the cone’s motion for smoother, more reliable long-term performance.
• Polypropylene dust cover with DC logo: Protects the voice coil while preserving a clean front-end appearance.
• Dual 8" OD semi cup progressive roll spider: Provides balanced, stable cone movement and linear travel under power.
• Extra heavy duty interweaved tinsel lead wire sewn to spider: Durable connection that survives constant motion in daily use.
• Cast aluminum black frame / no invert mount: Rigid chassis minimizes flex for cleaner bass and reduced distortion.
• FEA analyzed and optimized motor assembly – Fully CNC machined: Precise geometry for predictable, linear response and reliable performance.
• Newly tooled motor boots with DC Logo and LV3 embossed: Refined interface at the motor with embossed branding.
• Triple-stacked motor, chrome top plate and T-yoke: High-force motor design for strong, controlled excursion at high output.
• Deep gap with 22.5 mm X-max: Expanded excursion capability for deeper bass in compatible enclosures.
• 3" Hi-temp Aluminum voice coil wound on a black anodized former: Withstands high power and heat for sustained performance.
• Rubber magnet cover with DC and LV3 embossed logos: Protective and visually integrated magnet cover.
• 2.5mm Aluminum Shorting ring: Reduces inductance, helps mitigate power compression, and acts as an internal heatsink with coil venting for cooling.
• Push terminals and rubber mounting gasket: Secure, vibration-resistant electrical connections and mounting seal.

In typical installations, the Level 3 excels in sealed or ported enclosures, delivering deep bass with authority thanks to its 22.5 mm X-max and large 12" cone area. The 2.5mm Aluminum Shorting ring reduces inductance and helps minimize power compression, while its internal heatsink path pulls heat from the windings into the ring and uses direct coil venting to keep temperatures in check during long playback. The triple-stacked motor, CNC-machined frame, dual progressive spiders, and heavy-duty lead wire provide linear, reliable performance under daily use, with the ability to sustain high-power bursts up to 1000W RMS. The result is a robust, enthusiast-grade subwoofer that integrates well with both sealed and ported builds and maintains controlled bass output at high SPL.
