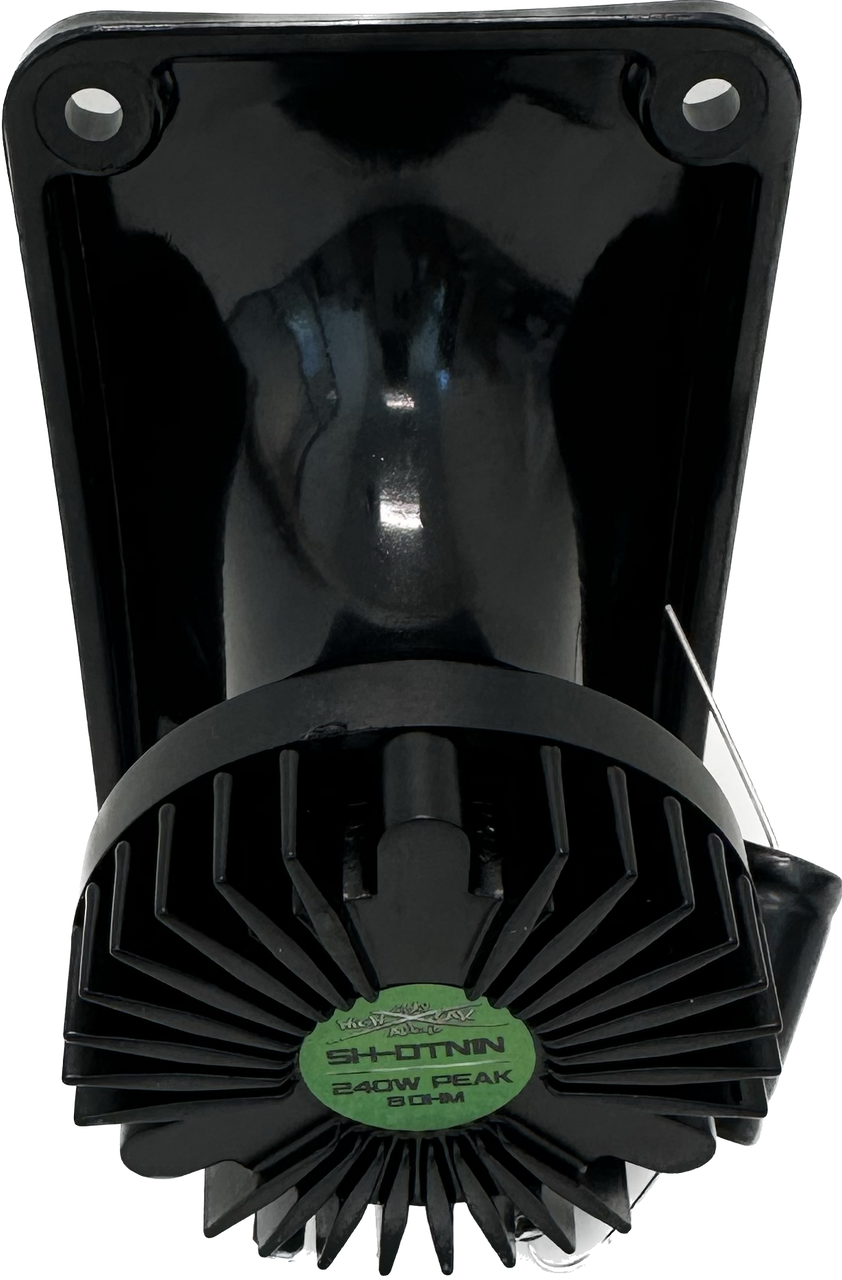

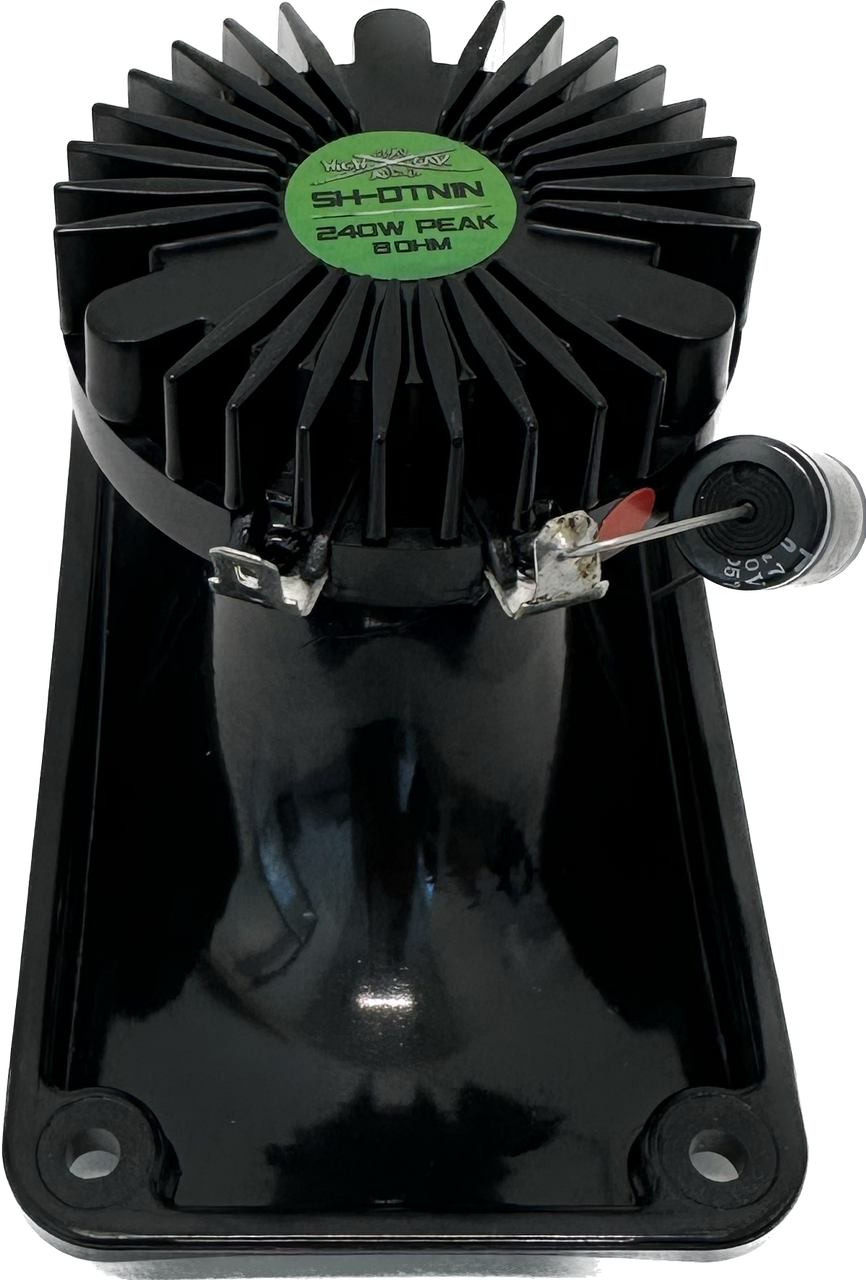

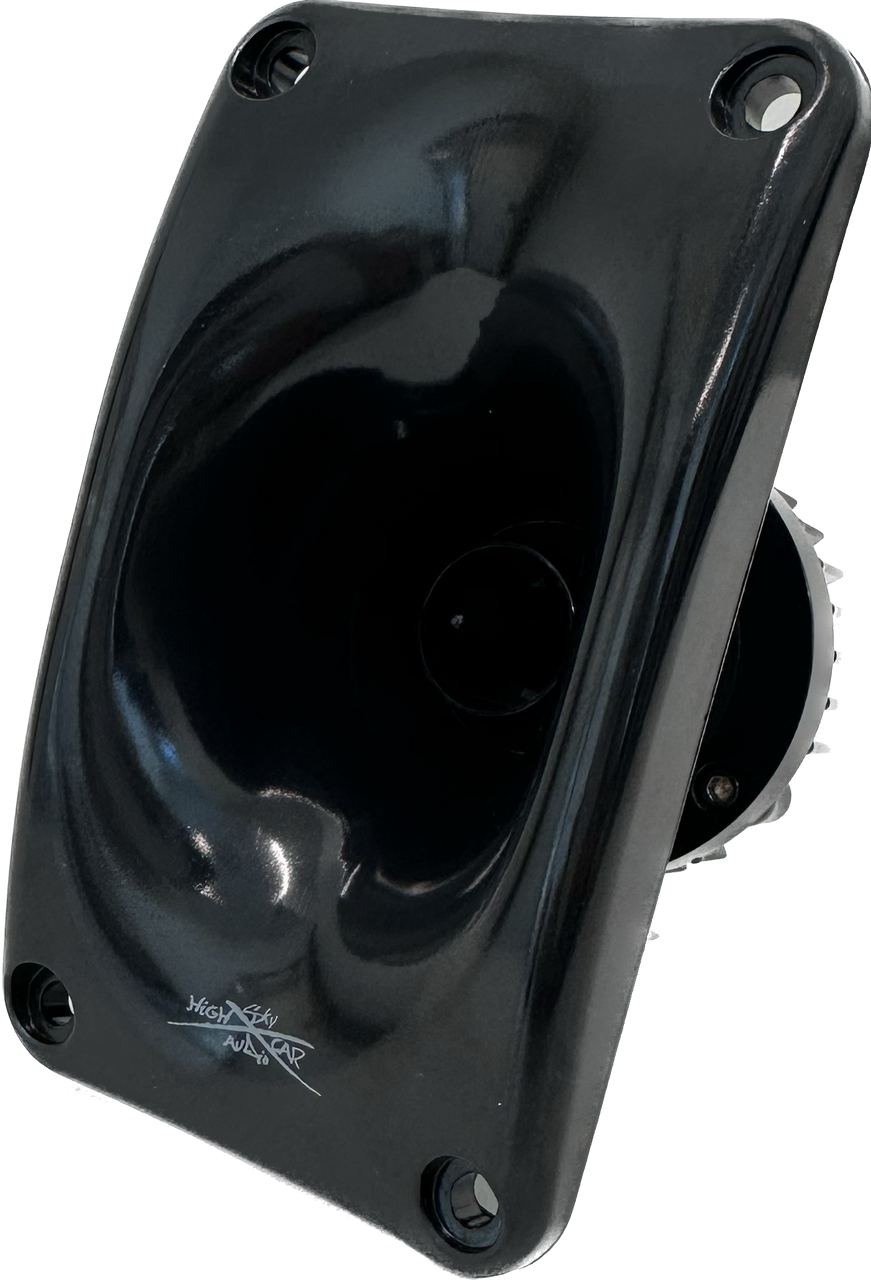

Sky High Neodymium Horn Driver SH-DTN1N
Sale price
$26.95
Regular price
$46.95
Unit price
/
Unavailable
Description
Description
SPECIFICATIONS
| Nominal Impedance | 8 ohms |
| AES Power handling | 60W |
| Program Power Handling | 120W |
| Peak Power handling | 240W |
| Sensitivity (1w/1m) With Horn | 108dB |
| Frequency Response | 1.5KHz - 18KHz |
| Recommended Lo Pass Crossover | 2KHz |
| Pair or Single | Single |
MOTOR
| Voice Coil Diameter | 1" / 25.4mm |
| VC Former Material | Kanton |
| Winding Material | CCA |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Size | 0.96" x 0.19" / 24.5×5mm |
| Motor Diameter | 2.2" / 57.2mm |
| Body Material | Aluminum |
HORN SPECIFICATIONS
| Nominal Diameter | 2.7" × 4.7" / 70×120mm |
| Throat Diameter: | 1" / 25 4mm |
| Sound Coverage: | 45° x 30° |
| Body Material: | ABS |
| Color/Finish: | Black |
MEASUREMENT
| Overall Diameter: | 4.72" × 2.75" / 120x70mm |
| Overall Depth: | 3.12"1 79.5mm |
| Mounting Depth: | 2.48" / 63mm |
| Mounting Hole Diameter: | 2.75" x 2.3" / 69.8x58.4mm |
