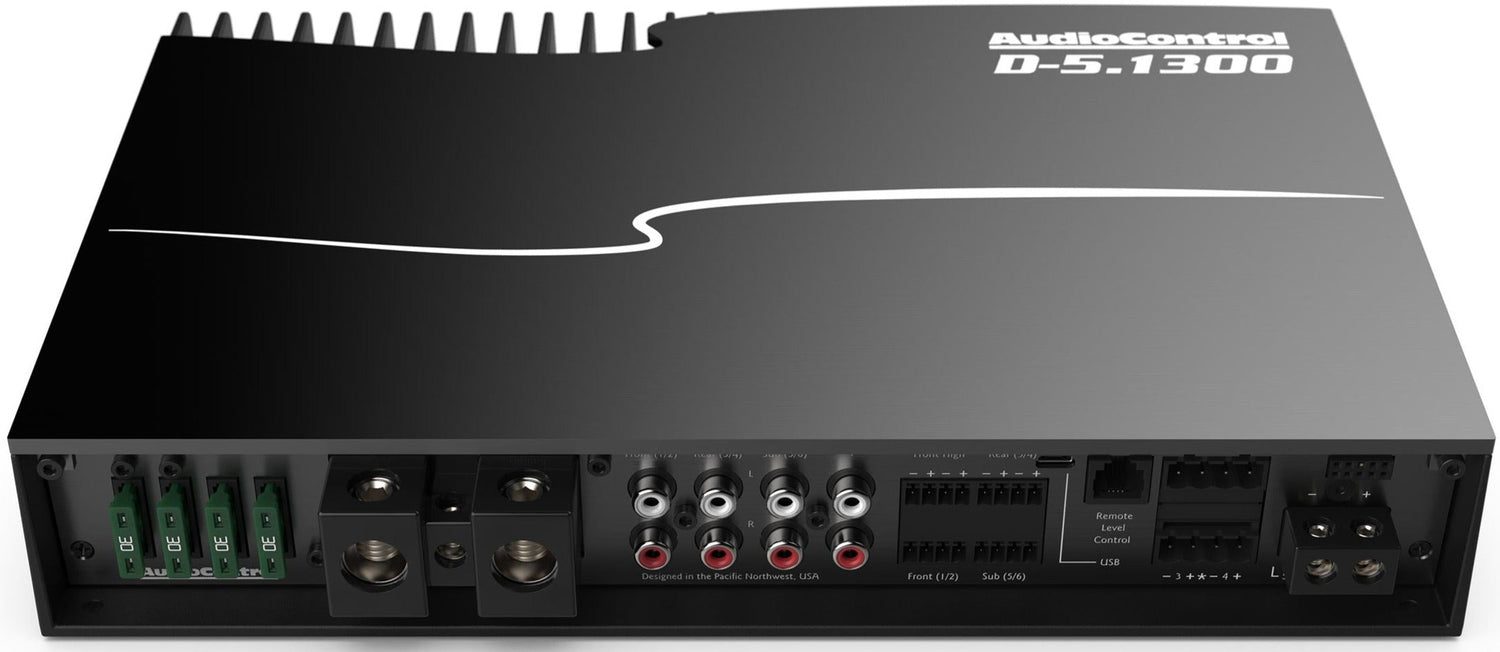

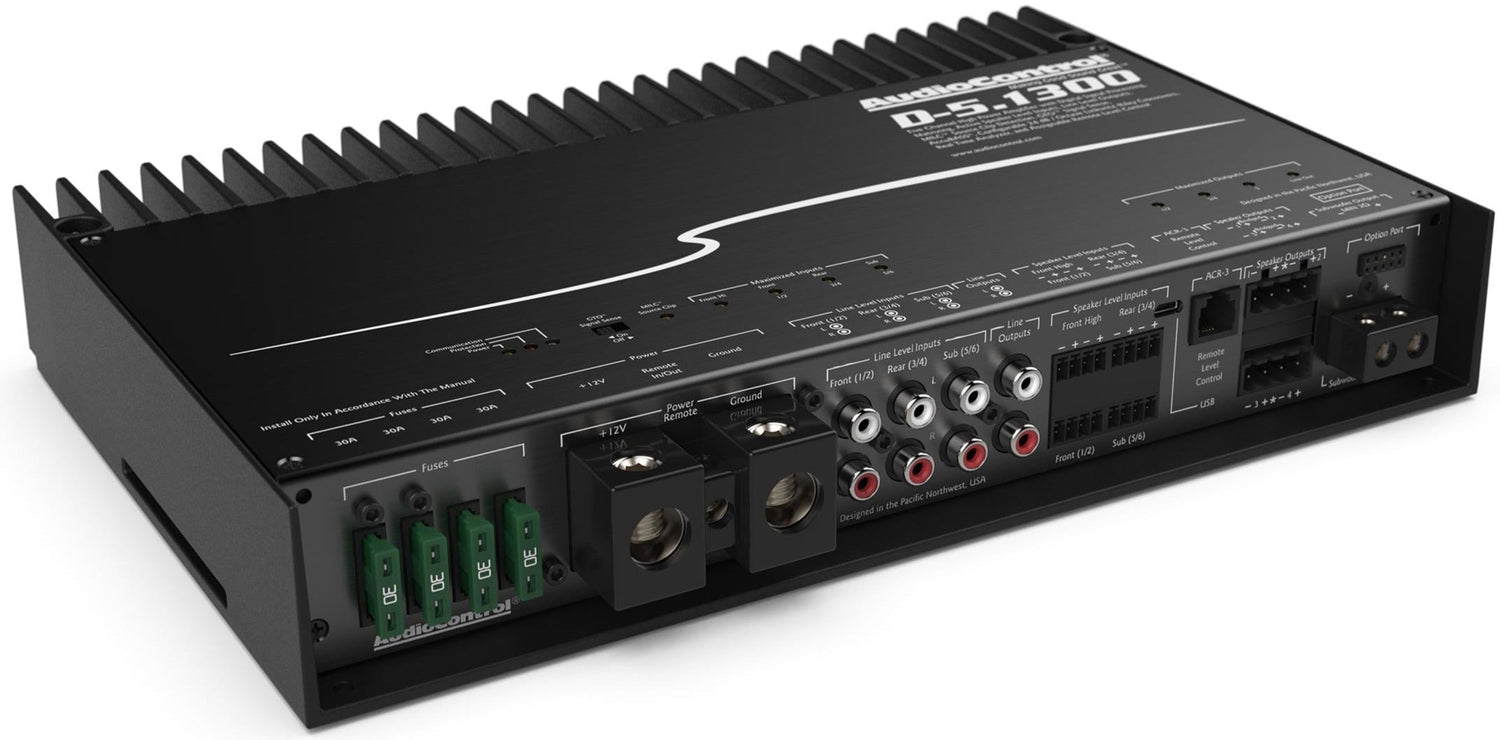

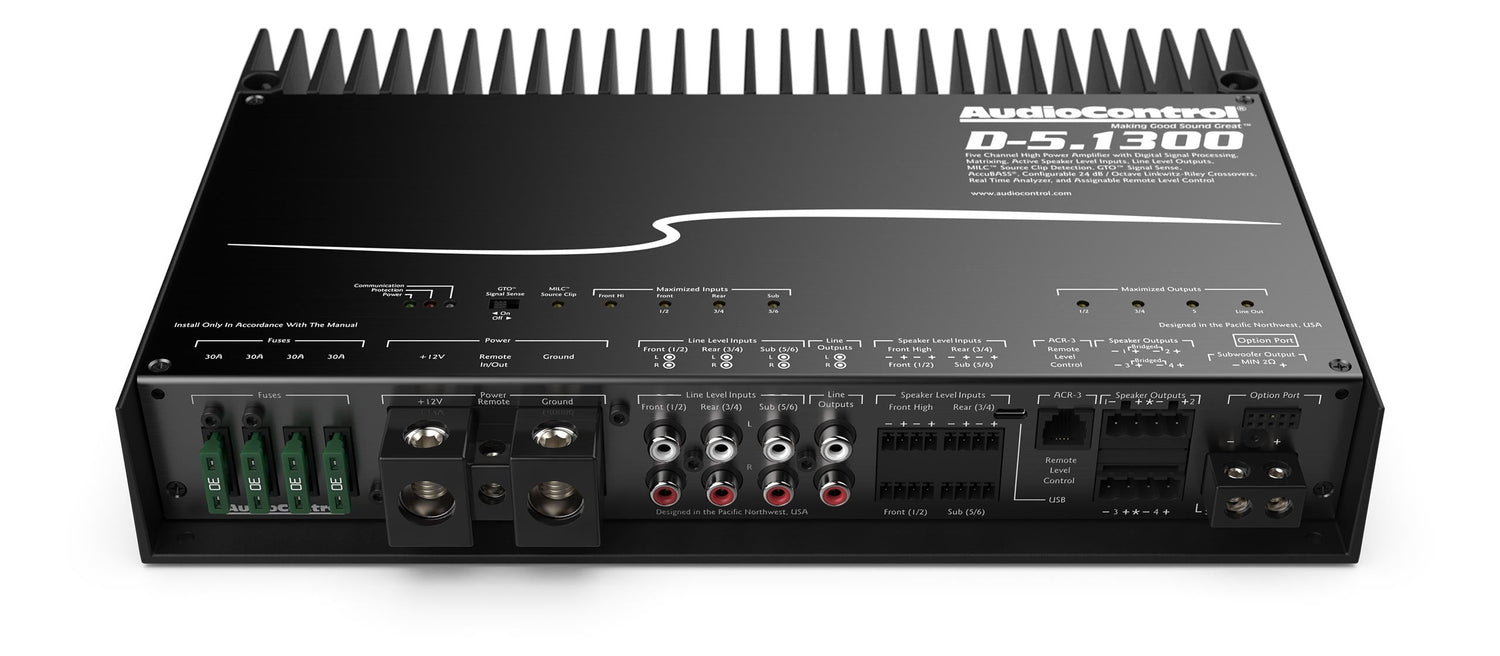

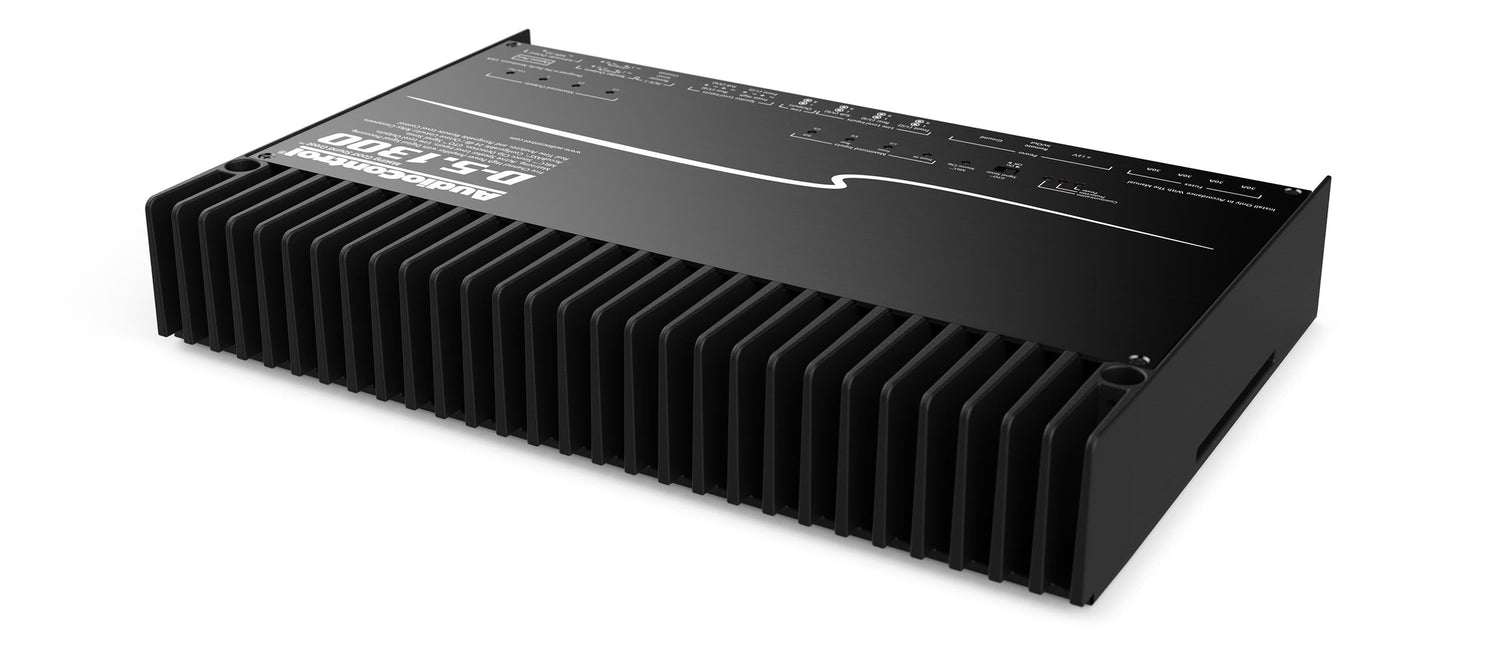

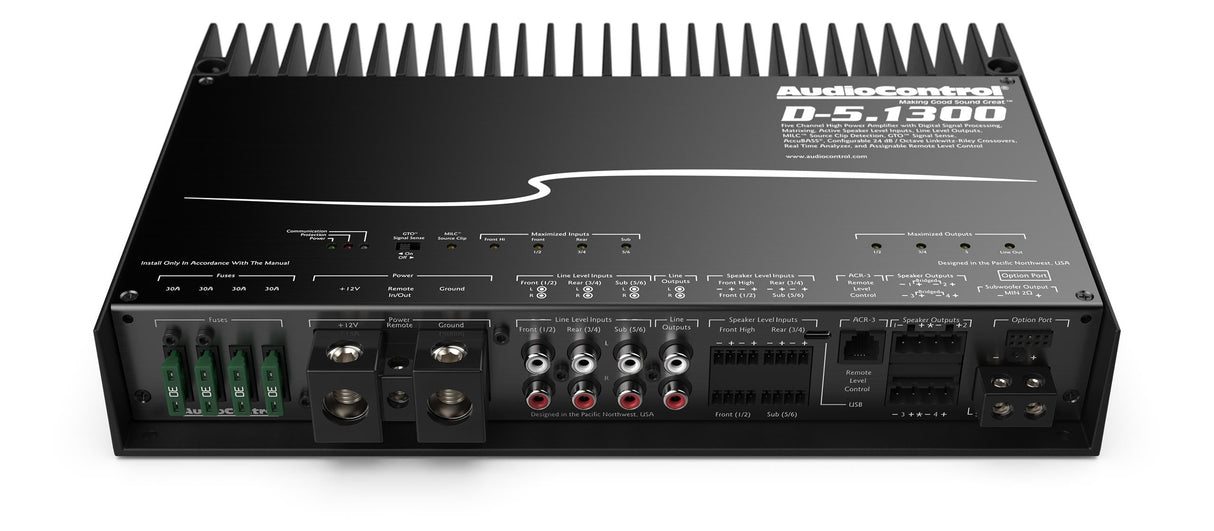

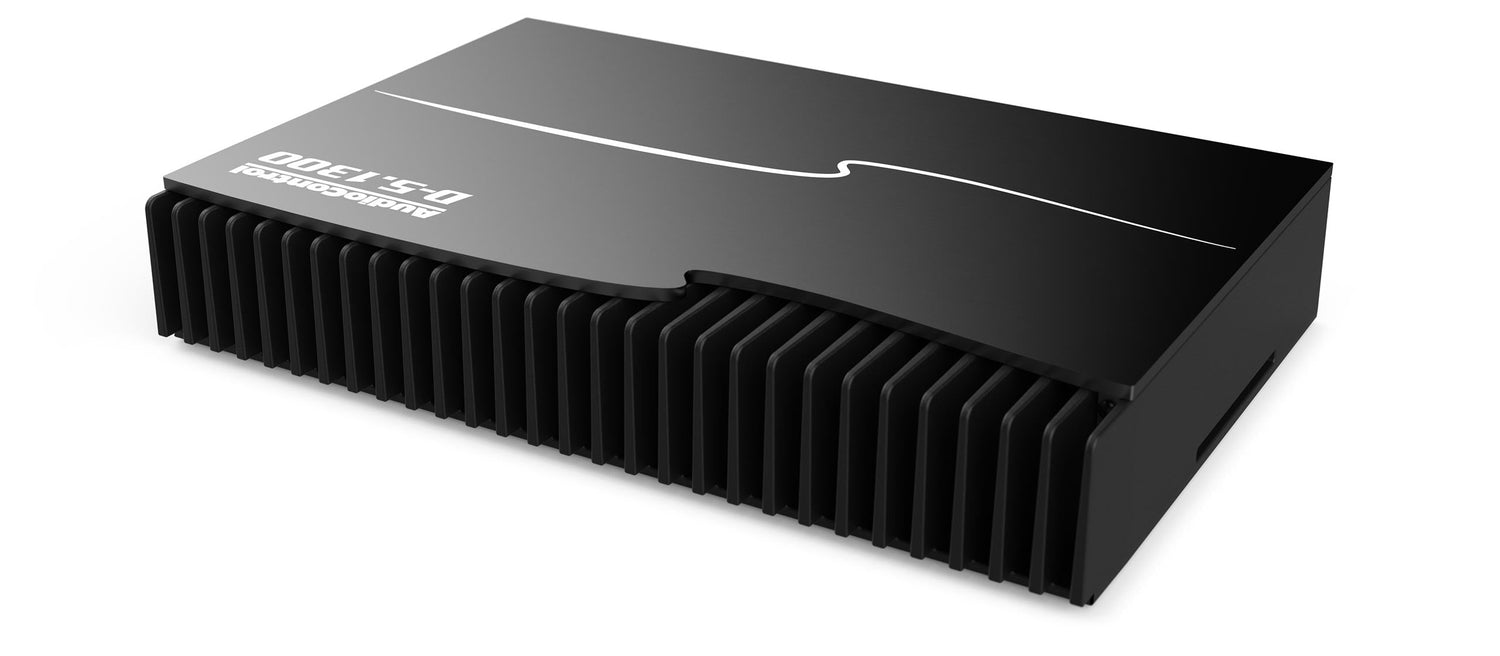

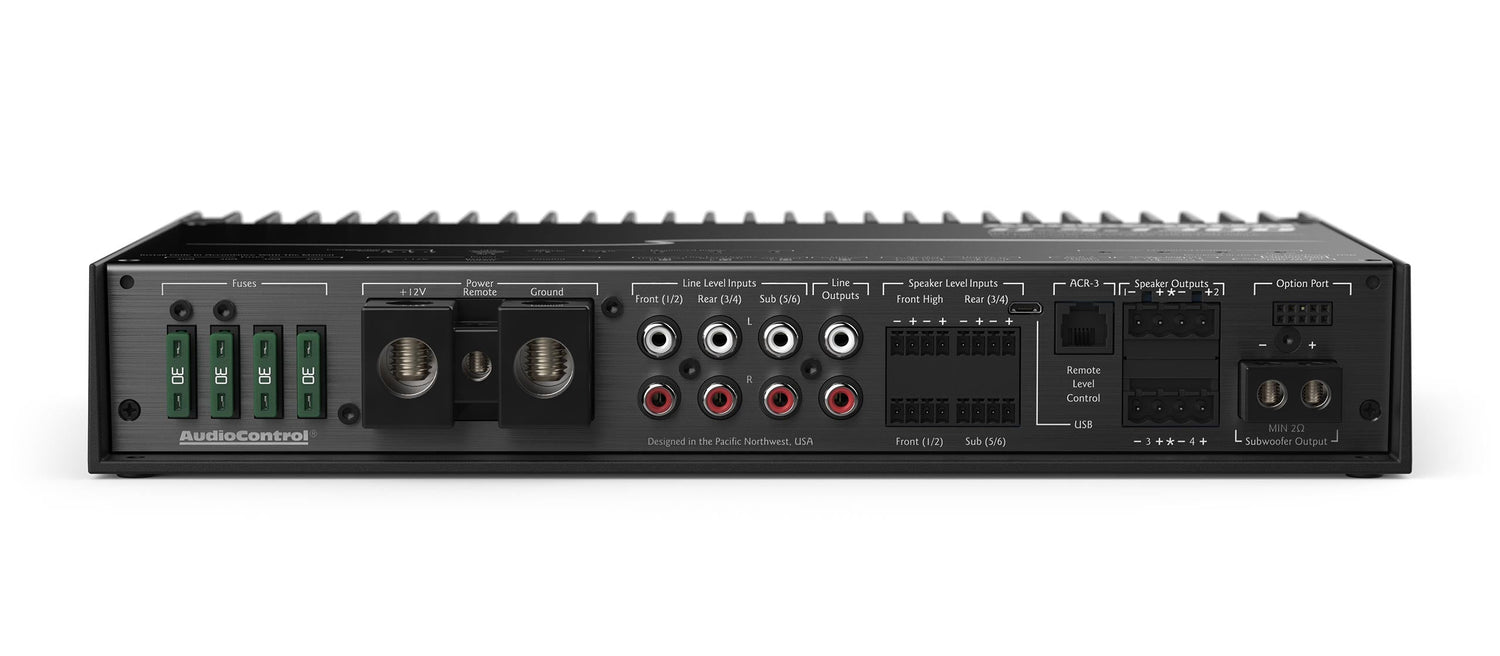

AudioControl D-5.1300 5-Channel Amplifier w/ Matrix DSP Technology
AudioControl D-5.1300 5-Channel Amplifier w/ Matrix DSP Technology is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
AudioControl D-5.1300 5-Channel Amplifier w/ Matrix DSP Technology
Highlight title
Text to highlight a key feature of your product
Description
Description
The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.
features
- Built-in DSP
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM Subsonic Filter
- Solid One-Piece Aluminum Chassis
- Input and Output RTA for precise and informed tuning
- Input and Output Delay
- 12 and 24 dB/octave Linkwitz-Riley crossovers
- 30 band equalizer with auto EQ
- Optional ACR-3 remote for preset recall and level control
- Optional AC-BT24 Bluetooth Streamer/Programmer
- DM Smart DSP app available in downloads for Mac/PC or…
dm smart dsp
INPUT VIEW
OUTPUT VIEW
DASHBOARD VIEW
AudioControl’s multi-platform DM Smart DSP app allows complete control over all tuning features of the D-5.1300 including 30 bands of EQ, signal delay, phase correction, AccuBASS®, GTO™ Signal Sense, MILC™ Clip Detection, plus integrated input and output RTA’s. Access DM Smart DSP from your phone or tablet with the optional AC-BT24 Bluetooth® Streamer & Programmer and use the all new DM Control app for easy access to level adjustments and preset recall.
specifications
inputs
- Preamp Inputs: 6 balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 8
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 100 W x 4 + 300 W x 1
- 2 Ω – 200 W x 4 + 500 W x 1
- Bridged 4 Ω – 400 W RMS
- Preamp Outputs: 2
- Maximum Preamp Output: 8.5 V RMS
performance
- Frequency Response: 20 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Power / Ground Wire Gauge: 8 to 3 AWG wire
- Fuse Rating: 4 x 30 A
weights & dimensions
- Dimensions: 12.0″W x 8.0″D x 2.1″H
- Weight: 7.2 lbs. (3.3 kg)
in the box: D-5.1300, Speaker Connectors, Fuses, Manual, Warranty
downloads
full line catalog
user manual
literature
dm smart dsp v2.06.1.414 (pc)
dm smart dsp v2.06.1.414 (mac)
(Remember to uninstall old DM software firmware before updating to the new version)
