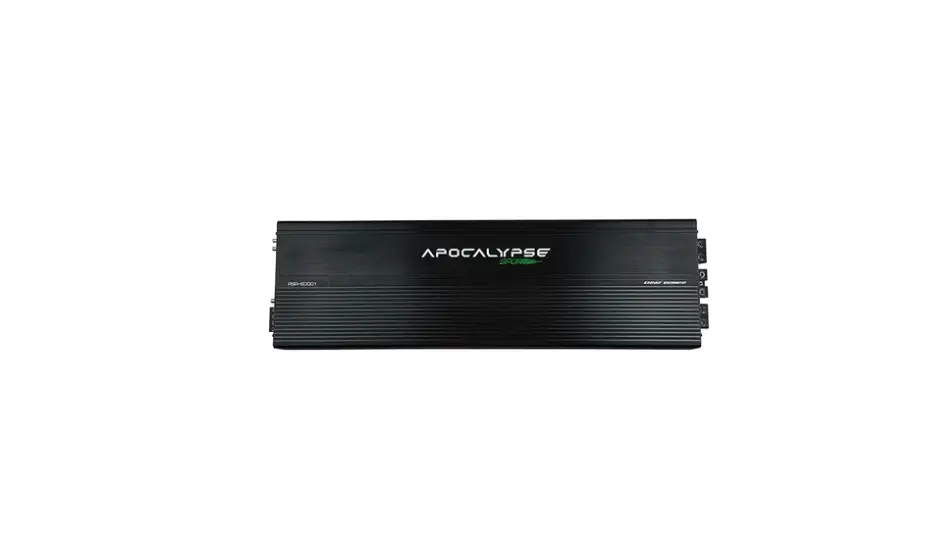

Deaf Bonce Apocalypse ASA-6000.1 | 6000 Watt Power Amplifier

The Deaf Bonce Apocalypse ASA-6000.1 is a 1-channel Class D power amplifier built for extreme bass in serious car-audio rigs, delivering up to 6000 W RMS into 1 Ω when supplied by 14.4 V.

• Model: ASA-6000.1 — identifying the high-power, single-channel Apocalypse amplifier designed for bass-focused applications.
• Class: D — efficient switching topology that supports high output in a compact chassis.
• Number of channels: 1 — dedicated single-channel amplification ideal for a subwoofer path.
• Frequency response: 10 - 250 Hz — concentrated in the bass region to reproduce deep sub-bass content.
• 1 Ohm RMS Power (14.4 V): 6000 W — maximum continuous power into a 1 Ω load with a typical 14.4 V supply.
• 1 Ohm RMS Power (12 V): 4030 W — substantial output when the vehicle provides around 12 V, maintaining headroom for demanding subs.
• 2 Ohm RMS Power (14.4 V): 3135 W — strong performance at higher impedance loads, useful for certain sub configurations.
• 4 Ohm RMS Power (14.4 V): 2150 W — lower impedance of 4 Ω reduces current draw while still delivering substantial bass power.
• Minimum permissible load on the channel: 1 Ohm — do not run below 1 Ω to preserve safe operation and performance.
• Low pass filter: 35 - 250 Hz — allows setting the upper limit of the bass signal sent to the subwoofer.
• Crossover: 24 dB/Oct — steep slope for clean separation between bass and higher frequencies.
• Subsonic filter: 10 - 50 Hz — protects the woofer from ultra-low frequencies that can provoke excess cone excursion.
• Input terminal: 0 Ga — specifies the input wiring gauge allowed for the signal input.
• Output terminal: 8 Ga — recommended power-wire gauge for supply leads.
• Working voltage: 9 - 15 V — compatible with typical automotive electrical systems and voltage fluctuations.
• Signal-to-noise ratio: ≥ 85 dB — low noise floor to preserve clean bass at high output levels.
• Size (WxLxH): 28 x 9.4 x 2.5 inch — compact 1-channel chassis footprint for installation considerations.

In a high-performance subwoofer installation, the ASA-6000.1 provides authoritative bass power with precise filtering and a robust power path, enabling strong, clean low-end output while maintaining signal integrity and compatibility with standard automotive electrical systems.
